Qashqai J11. Audio, Visual & Navigation System

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

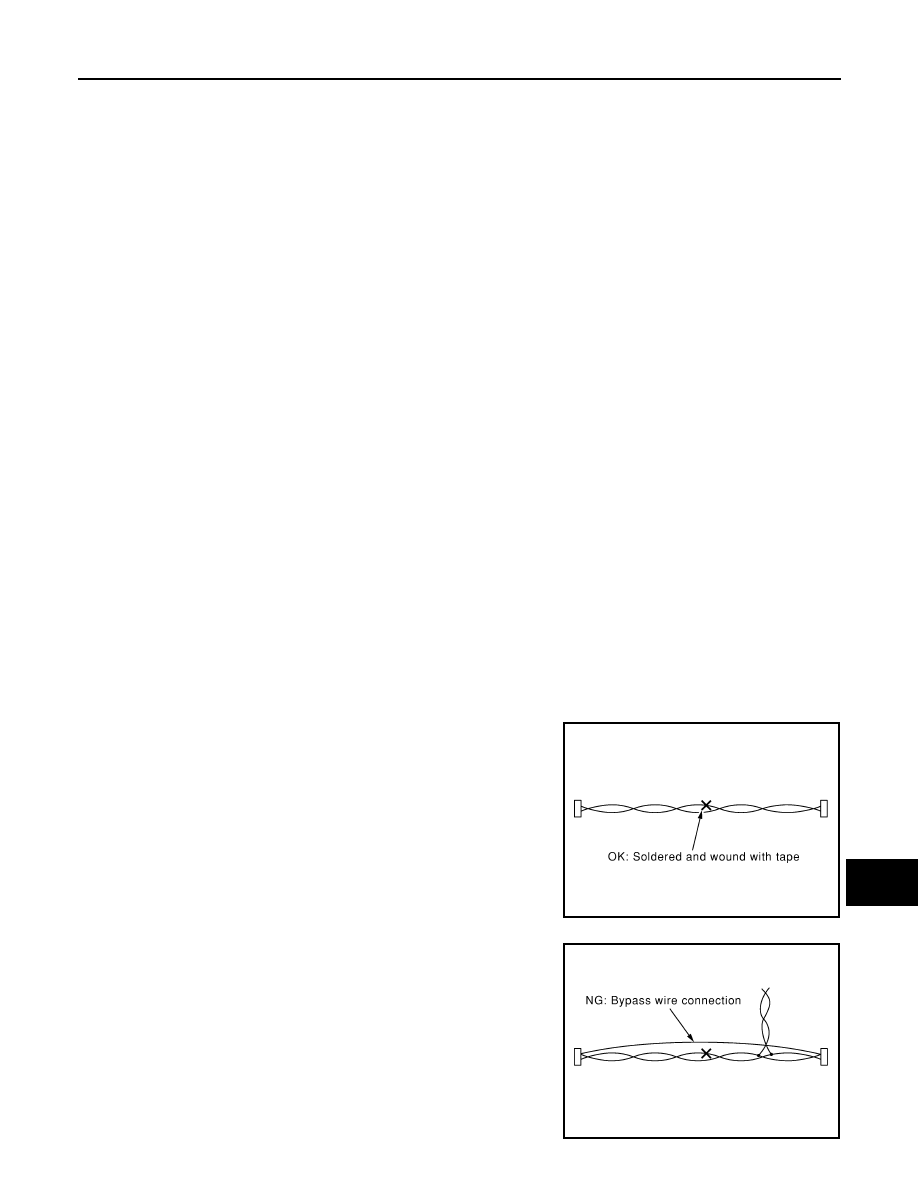

Precaution for Harness Repair

INFOID:0000000010502015

AV COMMUNICATION SYSTEM

• Solder the repaired parts, and wrap with tape. [Frays of twisted line

must be within 110 mm (4.33 in).]

• Do not perform bypass wire connections for the repair parts. (The

spliced wire will become separated and the characteristics of
twisted line will be lost.)

PKIA0306E

PKIA0307E

PREPARATION

AV-9

< PREPARATION >

[AUDIO SYSTEM]

PREPARATION

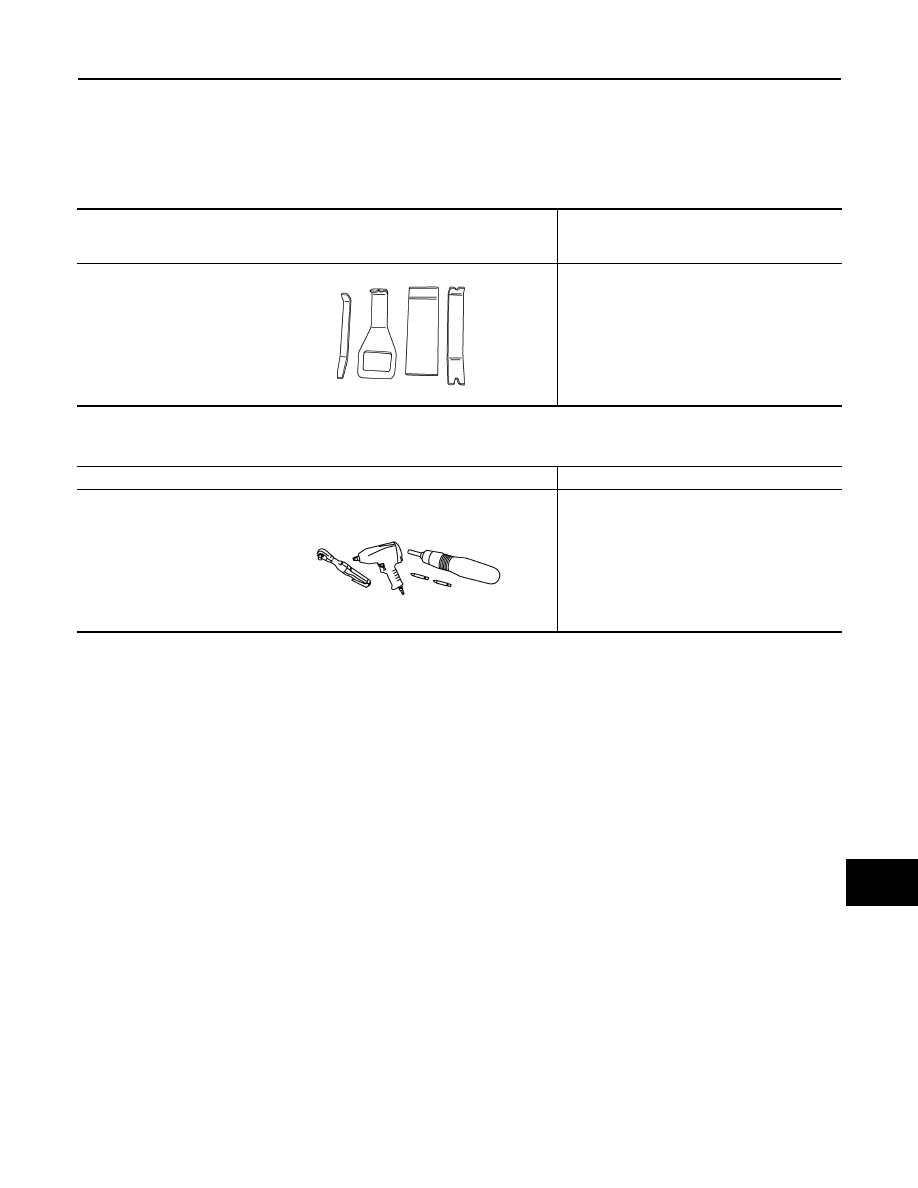

Special Service Tool

INFOID:0000000010502017

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tools

INFOID:0000000010502018

Tool number
(TechMate No.)
Tool name

Description

—

(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

AV-10

< SYSTEM DESCRIPTION >

[AUDIO SYSTEM]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

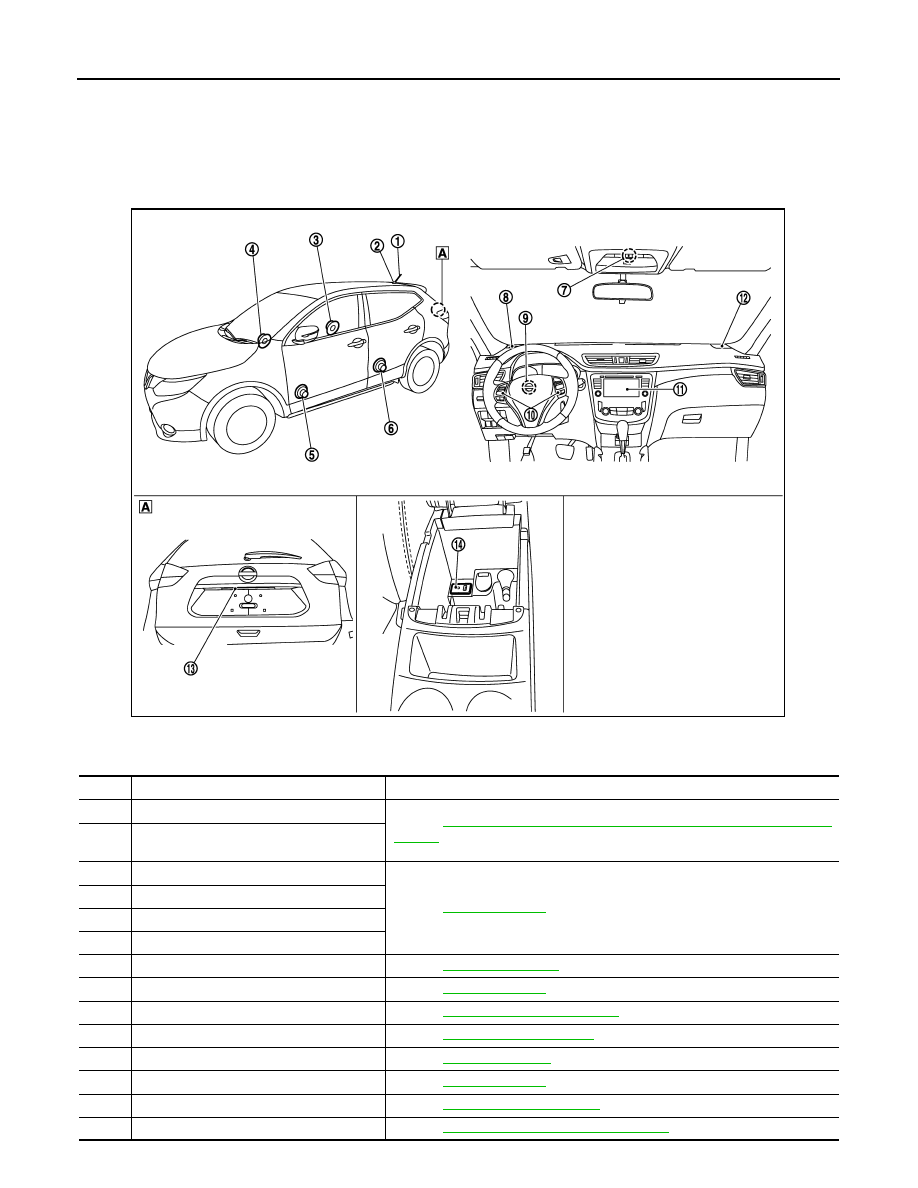

Component Parts Location

INFOID:0000000010502019

A. Center of back door

E1NIA0075ZZ

No.

Component

Function

Rod antenna

Refer to

AV-68, "Rod Antenna, Antenna Amp., Satellite Antenna and Antenna

Feeder"

Antenna base (antenna amp. and satellite
antenna)

Rear door speaker RH

Refer to

AV-66, "Speakers"

Front door speaker RH

Front door speaker LH

Rear door speaker LH

Microphone

Refer to

AV-67, "Microphone"

Front tweeter LH

Refer to

AV-66, "Speakers"

Steering angle sensor

Refer to

AV-68, "Steering Angle Sensor"

10.

Steering switches

Refer to

AV-67, "Steering Switches"

11.

Audio unit

Refer to

AV-66, "Audio Unit"

12.

Front tweeter RH

Refer to

AV-66, "Speakers"

13.

Rear view camera (if equipped)

Refer to

AV-67, "Rear View Camera"

14.

USB interface and AUX in jack

Refer to

AV-67, "USB Interface and AUX in Jack"

COMPONENT PARTS

AV-11

< SYSTEM DESCRIPTION >

[AUDIO SYSTEM]

Audio Unit

INFOID:0000000010502020

Description

• AM/FM electronic tuner radio, CD drive.
• The display can show audio status.
• Music files stored in iPod

®*

/USB memory can be played using the separate USB connector.

• Music files stored in an external audio device can be played using the separate AUX in jack.

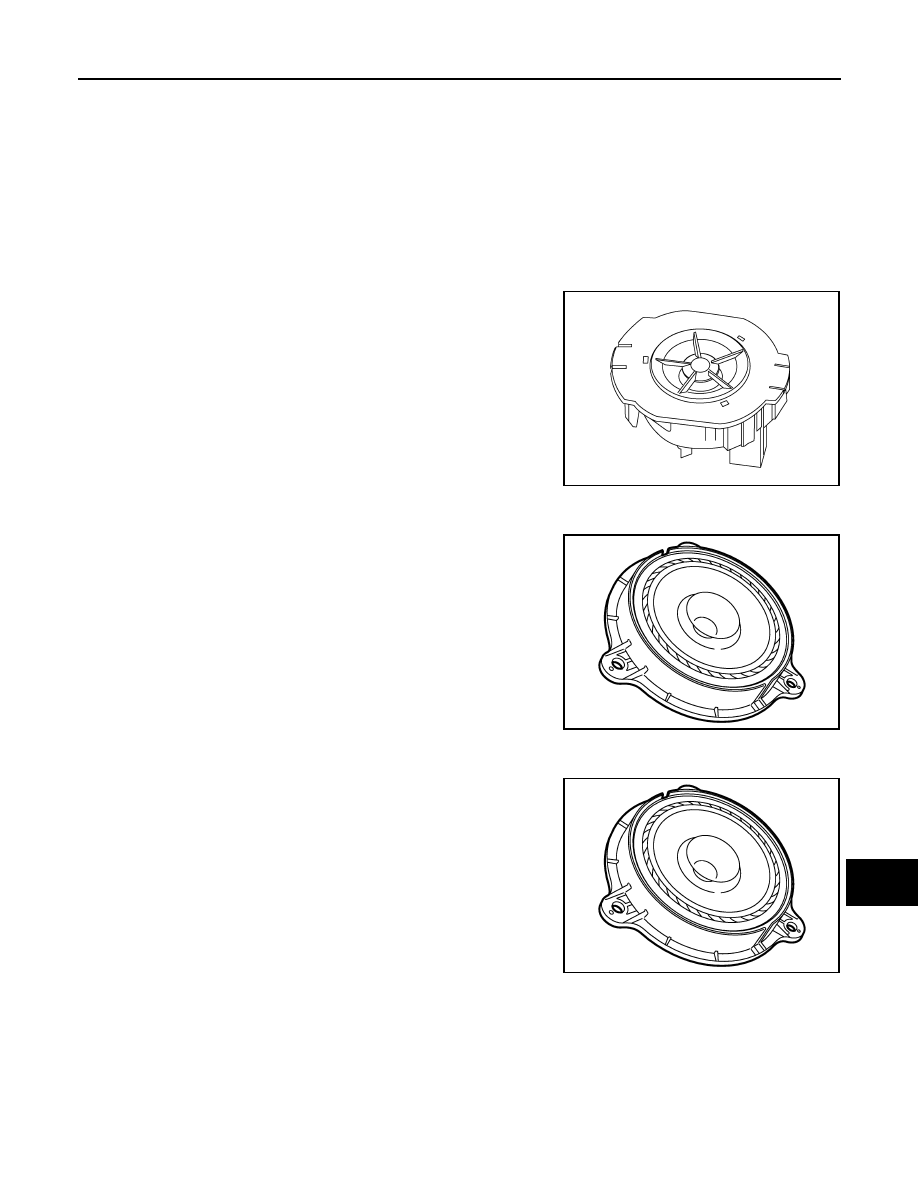

Speakers

INFOID:0000000010502021

FRONT TWEETER

• 2.5 cm (1 in) tweeters are installed in the top front corners of the

instrument panel.

• Sound signals are input from the audio unit to output high range

sounds.

FRONT DOOR SPEAKER

• 16.5 cm (6.5 in) speakers are installed in the bottom of the front doors.
• Sound signals are input from the audio unit to output high, mid and

low range sounds.

REAR DOOR SPEAKER

• 16.5 cm (6.5 in) speakers are installed in the bottom of the rear doors.
• Sound signals are input from the audio unit to output high, mid and

low range sounds.

USB Interface and AUX in Jack

INFOID:0000000010502022

• USB Interface and AUX in jack is installed in the console.
• iPod

and USB memory can be connected to the audio unit through the USB interface.

• An external audio device can be connected to the audio unit through the AUX in jack.

ALNIA1593ZZ

JPNIA1454ZZ

AV-12

< SYSTEM DESCRIPTION >

[AUDIO SYSTEM]

COMPONENT PARTS

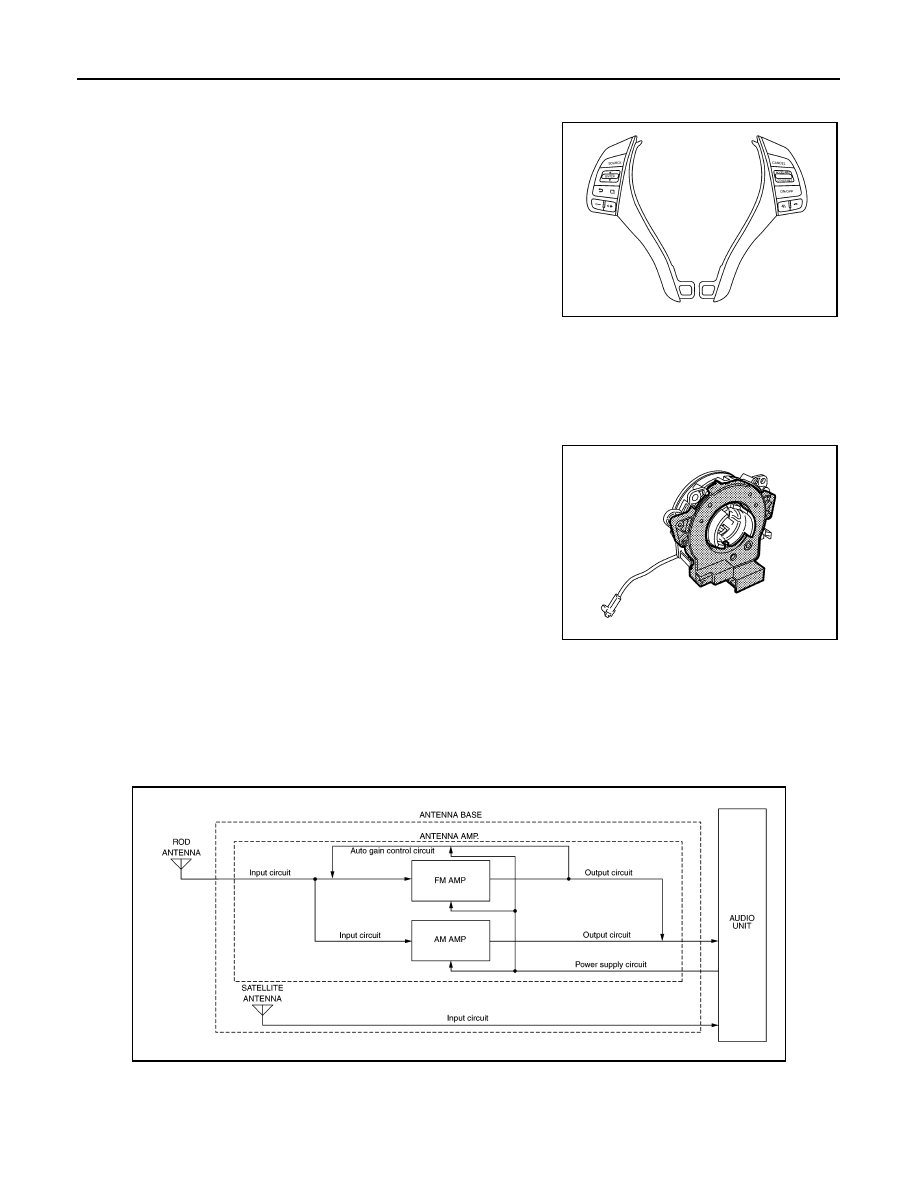

Steering Switches

INFOID:0000000010502023

• Steering switches are installed in the steering wheel.
• Operations for audio and hands-free phone are possible.
• Switches are connected to the combination meter.
• Combination meter is connected to the audio unit via AV communi-

cation.

Microphone

INFOID:0000000010502024

• The microphone is installed in the roof in the map lamp assembly.
• Power is supplied from the audio unit.

Steering Angle Sensor

INFOID:0000000010502026

• Steering sensor is installed to the spiral cable.
• Steering angle sends the steering signal necessary for predictive

course line via CAN communication.

Rod Antenna, Antenna Amp., Satellite Antenna and Antenna Feeder

INFOID:0000000010502027

RADIO ANTENNA AND SATELLITE ANTENNA

AM/FM radio rod antenna, antenna base and satellite antenna are located on the rear of the roof. The antenna
amp. and satellite antenna are built into the antenna base.

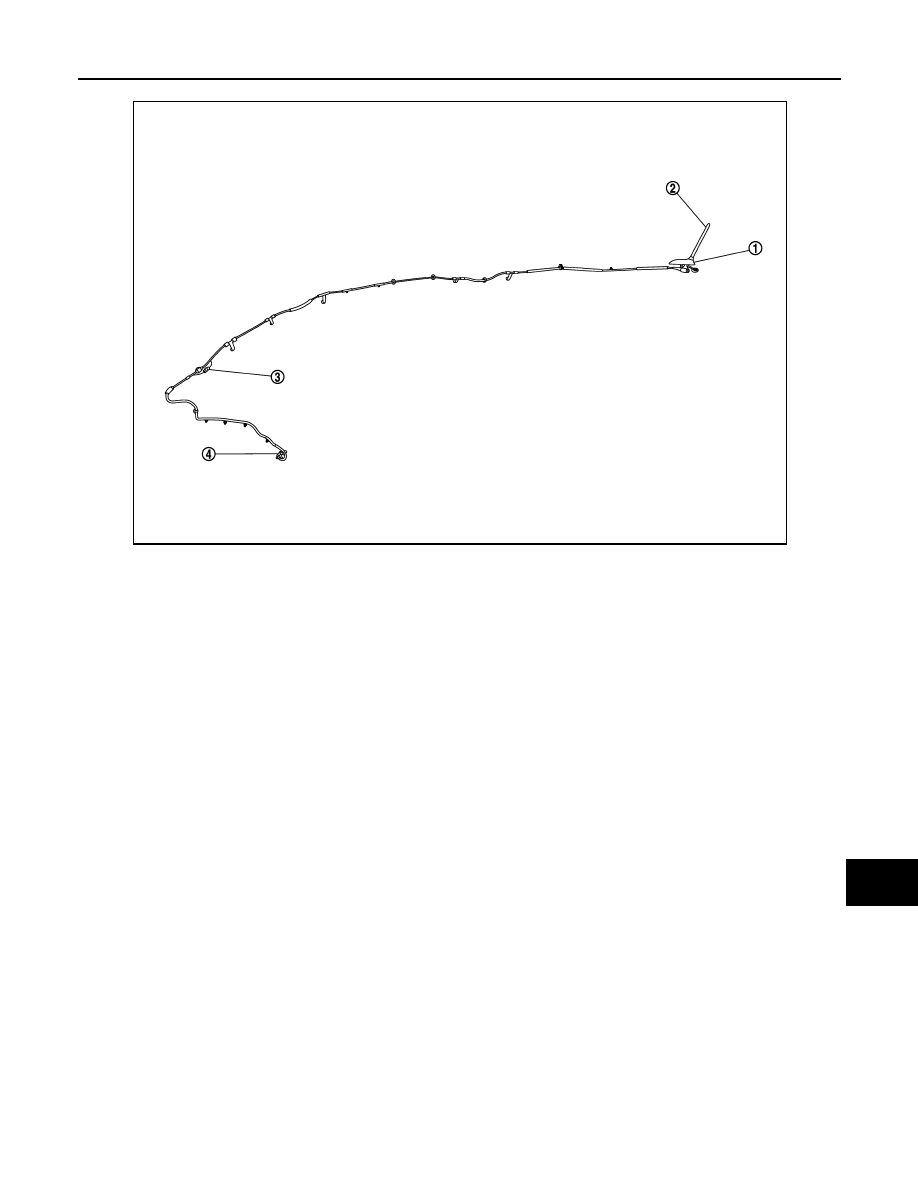

ANTENNA FEEDER LAYOUT

ALNIA1594ZZ

JSNIA1571ZZ

AWNIA3133GB

AV-14

< SYSTEM DESCRIPTION >

[AUDIO SYSTEM]

SYSTEM

SYSTEM

System Description

INFOID:0000000010502028

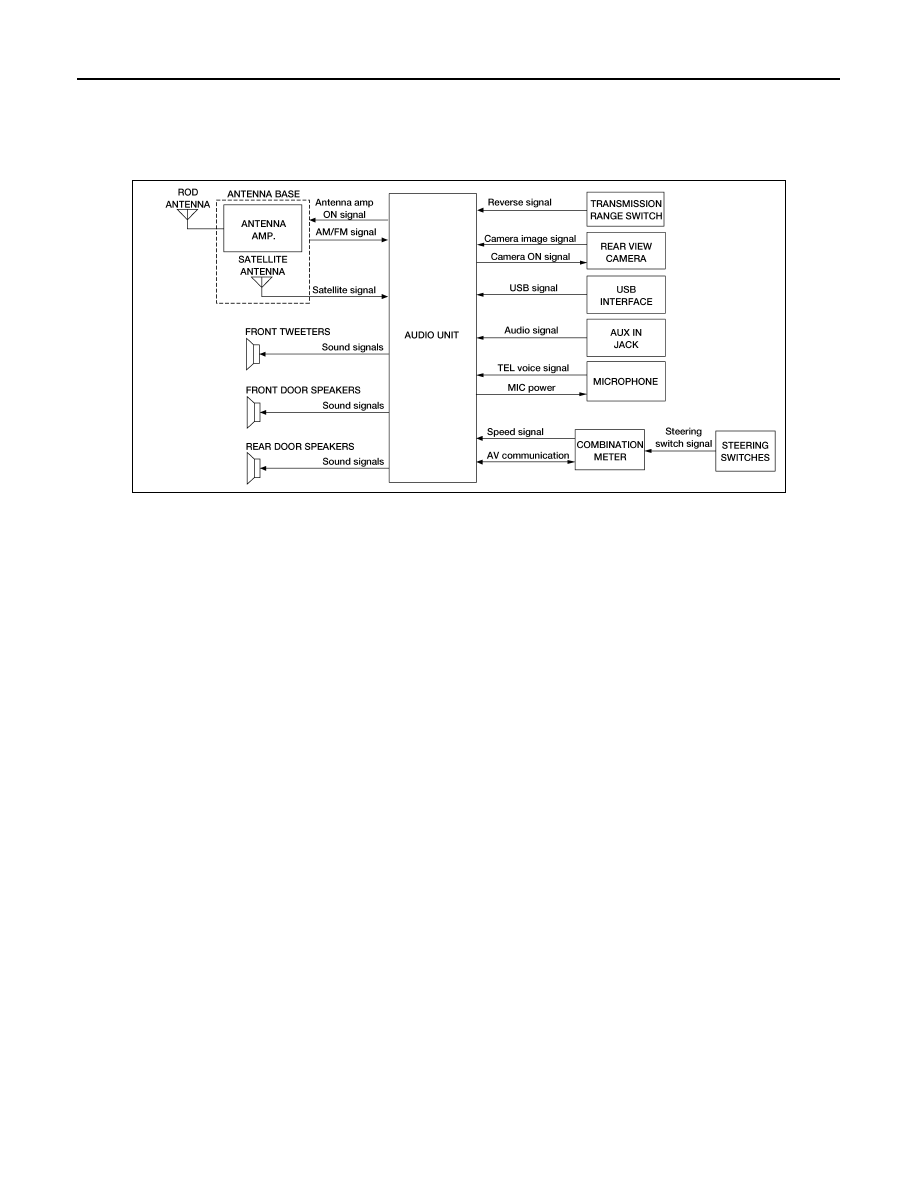

SYSTEM DIAGRAM

NOTE:
• There is no satellite Antenna connected to AUDIO SYSTEM.
• There is no Rear view camera connected to AUDIO SYSTEM.

AUDIO SYSTEM

The audio system consists of the following components
• Audio unit
• Front tweeters
• Front door speakers
• Rear door speakers
• USB interface
• AUX in jack
• Steering switches
• Antenna base (rod antenna, antenna amp. and satellite antenna)
When the audio system is on, AM/FM signals received by the rod antenna are amplified by the antenna amp.
and sent to the audio unit. The audio unit then sends audio signals to the front tweeters, front door speakers
and rear door speakers.
Refer to Owner's Manual for audio system operating instructions.

HANDS-FREE PHONE SYSTEM

• Bluetooth

control is built into audio unit.

• The connection between cellular phone and audio unit is performed with Bluetooth

communication.

• The voice guidance signal is input from the audio unit and output to the front speakers when operating the

cellular phone.

When A Call Is Originated

• Spoken voice sound output from the microphone (microphone signal) is input to audio unit.
• Audio unit outputs to cellular phone with Bluetooth

communication as a TEL voice signal.

• Voice sound is then heard at the other party.

When Receiving A Call

• Voice sound is input to own cellular phone from the other party.
• TEL voice signal is input to audio unit by establishing Bluetooth

communication from cellular phone, and

the signal is output to front speakers.

SPEED SENSITIVE VOLUME SYSTEM

Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control
level can be selected by the customer. Refer to Owner's Manual for operating instructions.

AWNIA3341GB

DIAGNOSIS SYSTEM (AUDIO UNIT)

AV-15

< SYSTEM DESCRIPTION >

[AUDIO SYSTEM]

DIAGNOSIS SYSTEM (AUDIO UNIT)

Description

INFOID:0000000010502029

The audio unit on board diagnosis performs the functions listed in the table below:

On Board Diagnosis Function

INFOID:0000000010502030

METHOD OF STARTING

Turn the ignition ON.

Turn the audio system OFF.

While pressing setup button, turn the tune encoder 3 clicks counterclockwise, then 3 clicks clockwise and
4 clicks counterclockwise. Shifting from current screen to previous screen is performed by pressing BACK
button.

The trouble diagnosis initial screen is displayed, and Self Diag-
nosis or Confirmation/Adjustment can be selected.

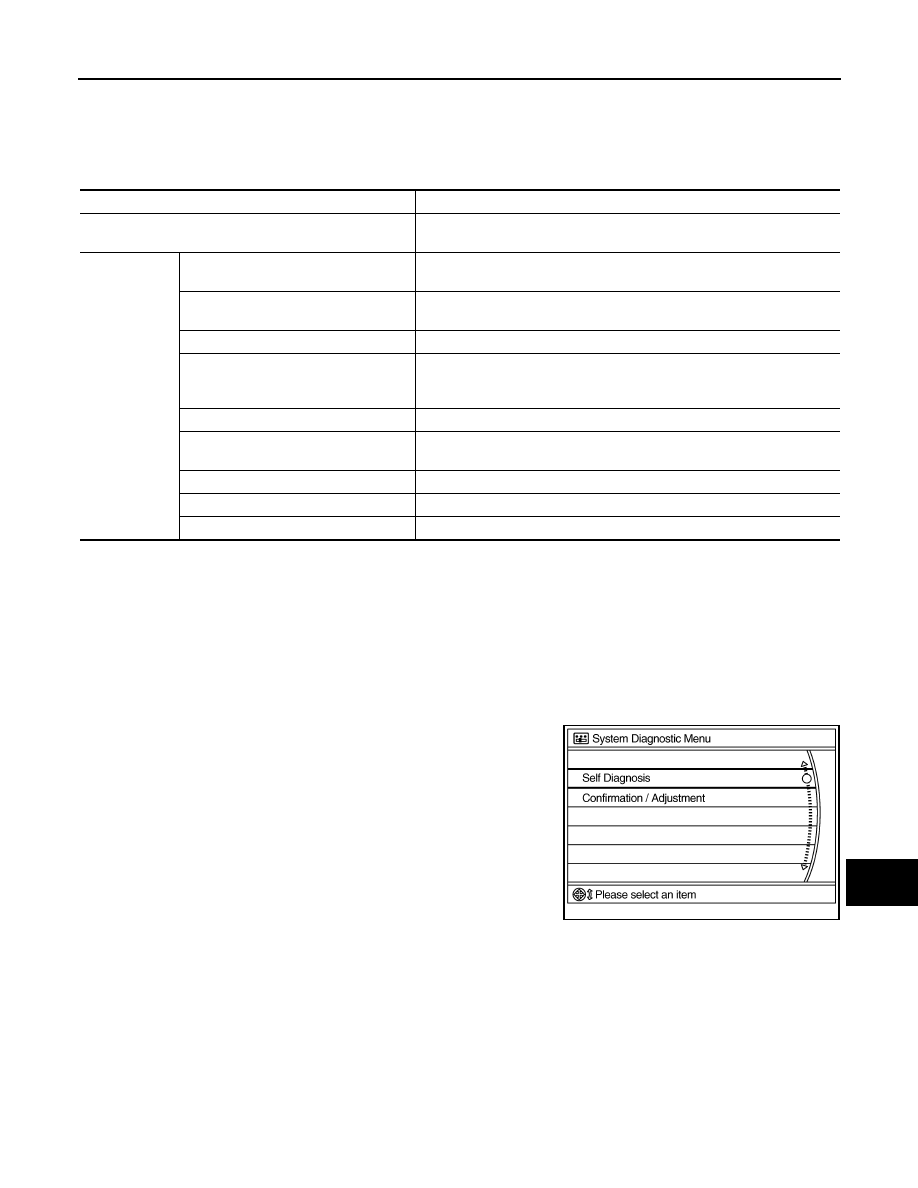

SELF DIAGNOSIS MODE

Audio Unit Self Diagnosis

Select Self Diagnosis.

Self diagnosis screen is displayed. The bar graph visible in center of screen indicates progress of self
diagnosis.

Mode

Description

Self Diagnosis

• Audio unit diagnosis.
• Diagnoses the connections across system components.

Confirmation/

Adjustment

Display Diagnosis

The following check functions are available: color tone check by color bar
display and white display, light and shade check by gray scale display.

Vehicle Signals

Diagnosis of signals can be performed for vehicle speed, lights, reverse,
EQ pin, destination and camera type.

Speaker Test

The connection of a speaker can be confirmed by test tone.

Error History

The system malfunction and the frequency when occurring in the past are
displayed. When the malfunctioning item is selected, the time and place
that the selected malfunction last occurred are displayed.

Camera System

Displayed but not used.

AV COMM Diagnosis

The communication condition of each unit of display audio system can be
monitored.

Delete Unit Connection Log

Erase the connection history of unit and error history.

Version Information

Audio unit software and hardware versions are displayed.

Initialize Setting

Initializes the audio unit memory.

JSNIA0138GB

AV-16

< SYSTEM DESCRIPTION >

[AUDIO SYSTEM]

DIAGNOSIS SYSTEM (AUDIO UNIT)

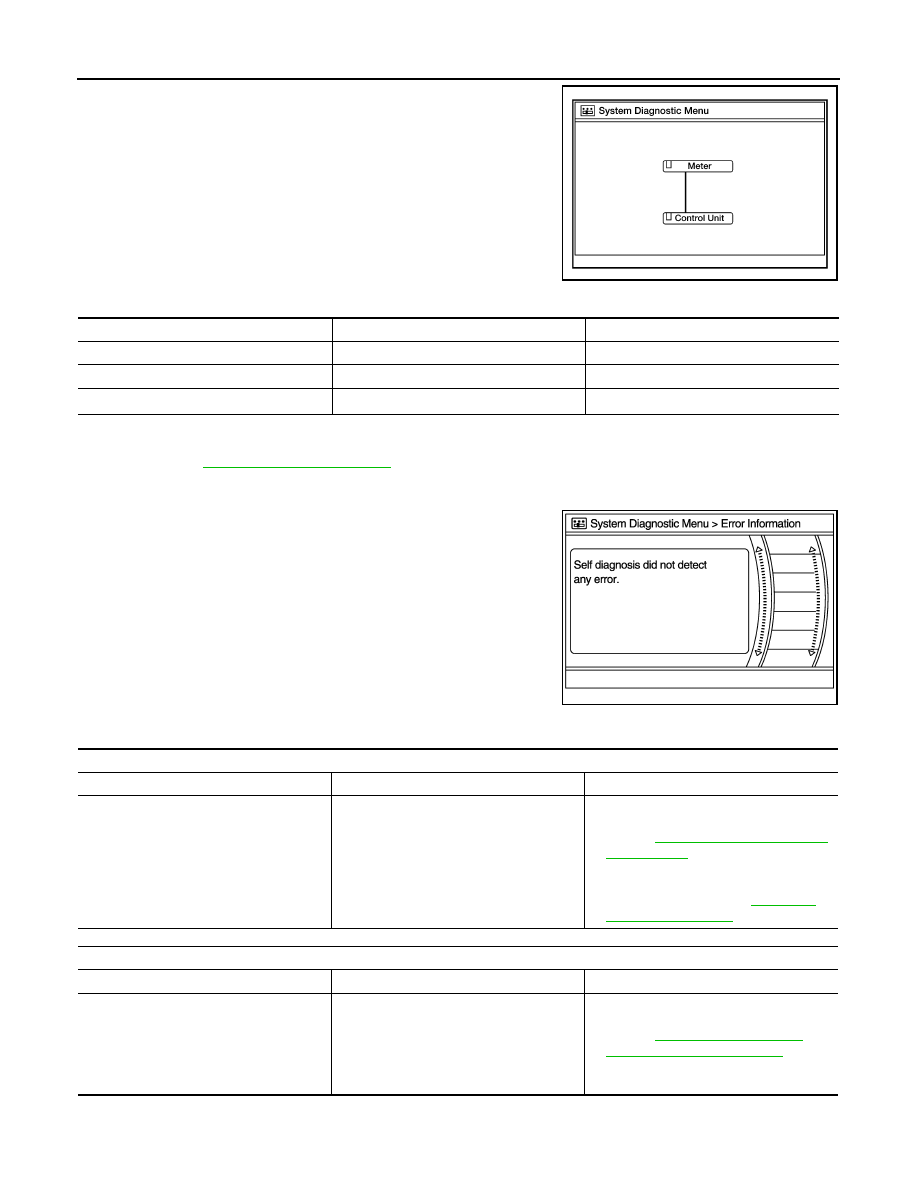

Diagnosis results are displayed after the self diagnosis is com-
pleted. The unit names and the connection lines are color coded
according to the diagnostic results.

1: Control unit (audio unit) is displayed in red.

• Replace audio unit if Self Diagnosis did not run because control unit malfunction is indicated. The symptom is audio unit internal

error. Refer to

AV-53, "Removal and Installation"

• If multiple errors occur at the same time for a single unit, the screen switch colors are determined according to the following order

of priority: red > gray.

Comments of self diagnosis results can be viewed in the diagno-
sis result screen.

Audio Unit Self Diagnosis Results

Audio Unit Confirmation/Adjustment

Select Confirmation/Adjustment.

AWNIA2630GB

Diagnosis results

Unit

Connection line

Normal

Green

Connection malfunction

Gray

Yellow

Unit malfunction

Red

Green

JSNIA1870ZZ

Only Unit Part Is Displayed In Red

Screen switch

Description

Possible cause

Control unit

Malfunction is detected in audio unit power
supply and ground circuits.

• Audio unit power supply or ground cir-

cuits.
Refer to

AV-37, "AUDIO UNIT : Diagno-

sis Procedure"

• If no malfunction is detected in audio unit

power supply and ground circuits, re-
place audio unit. Refer to

AV-53, "Re-

moval and Installation"

A Connecting Cable Between Units Is Displayed In Yellow

Area with yellow connection lines

Description

Possible cause

Control unit

⇔

Meter

When one of the following is detected:
• malfunction is detected in combination

meter power supply and ground circuits.

• malfunction is detected in AV communi-

cation circuits between audio unit and
combination meter.

• Combination meter power supply or

ground circuits.
Refer to

MWI-61, "COMBINATION

METER : Diagnosis Procedure"

• AV communication circuits between au-

dio unit and combination meter.
