Nissan Qashqai J11. Manual - part 880





WT-66

< SERVICE DATA AND SPECIFICATIONS (SDS)

[WITH TPMS]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Road Wheel

INFOID:0000000010297287

Tire Air Pressure

INFOID:0000000010297288

Unit: kPa (kgf/cm

2

, psi)

*1

 : The passengers are 3 or less.

*2

 : The passengers are more than 3.

Kind of wheel

Aluminum

Steel

Conventional

For temporary use

Maximum radial runout limit

Lateral deflection

Less than 0.3 mm

(0.012 in)

Less than 0.8 mm

(0.031 in)

Less than 1.2 mm

(0.047 in)

Vertical deflection

Less than 0.7 mm

(0.028 in)

Less than 1.3 mm

(0.051 in)

Maximum allowable unbalance limit

Dynamic (At flange)

Less than 10 g (0.35 oz) (one side)

Static (At flange)

Less than 20 g (0.71 oz)

Wheel nuts tightening torque

112.6 N·m (11 kg–m, 83 ft–lb)

Tire size

Air pressure

Front

Rear

Normal condition

Full condition

Normal condition

Full condition

215/65R16 98H

260 (2.6, 38)

240 (2.4, 35)

*1

260 (2.6, 38)

*2

215/60R17 96H

230 (2.3, 33)

210 (2.1, 30)

*1

260 (2.6, 38)

*2

215/55R18 83T/85T/87T/88T

225/45R19 92W/95W

PRECAUTIONS

WT-67

< PRECAUTION >

[WITHOUT TPMS]

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

PRECAUTION

PRECAUTIONS

Precautions for Removing Battery Terminal

INFOID:0000000010503767

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

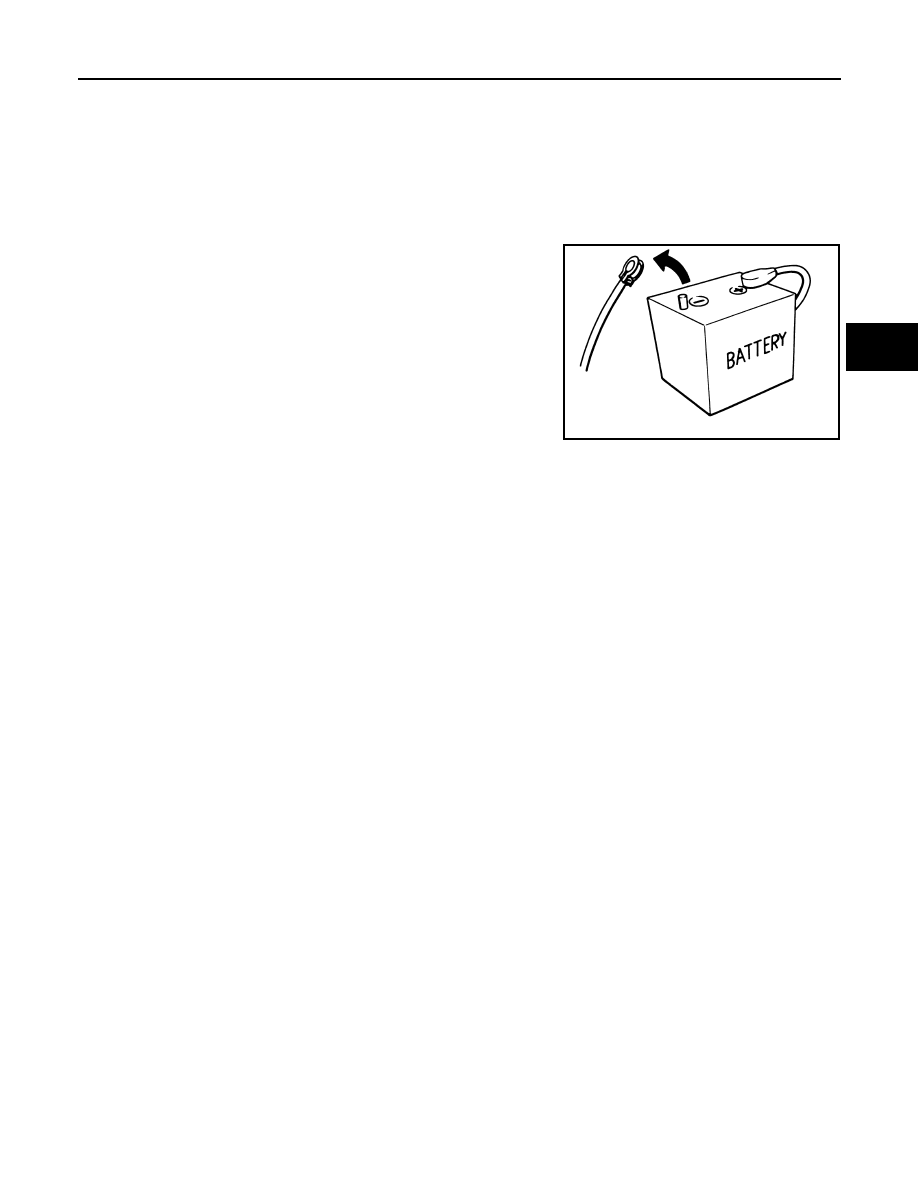

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

SEF289H

D4D engine

: 20 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

WT-68

< PRECAUTION >

[WITHOUT TPMS]

PRECAUTIONS

•  For vehicles with the 2-batteries, be sure to connect the main battery and the sub battery before turning ON

the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of main battery and sub battery discon-
nected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

Service Notice and Precautions for Road Wheel

INFOID:0000000010382304

• Genuine NISSAN aluminum wheel is designed for each type of vehicle. Use it on the specified vehicle only.
• Use Genuine NISSAN parts for the road wheels, valve caps and wheel nuts.
• Always use them after adjusting the wheel balance. For the balance weights, use Genuine NISSAN alumi-

num wheel weights.

• Use caution when handling the aluminum wheels, because they can be easily scratched. When removing

dirt, do not use any abrasives, a wire brush, or other items that may scratch the coating. Use a neutral deter-
gent if a detergent is needed.

• After driving on roads scattered with anti-icing salts, wash off the wheels completely.
• When installing road wheels onto the vehicle, always wipe off any dirt or foreign substances to prevent them

from being trapped between the contact surfaces of wheel.

• Never apply oil to nut and bolt threads.
• When tightening the valve cap there is a risk of damaging the valve cap if a tool is used. Tighten by hand.

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

WT-69

< SYMPTOM DIAGNOSIS >

[WITHOUT TPMS]

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000010380611

Use the chart below to find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

WT

-73

WT

-73

WT

-70

 (Alu

mi

nu

m wh

ee

l)

WT

-7

1

 (S

te

el

wh

ee

l)

WT

-75

WT

-70

 (Alu

mi

nu

m wh

ee

l)

WT

-7

1

 (S

te

el

wh

ee

l)

WT

-75

NV

in

 D

L

N

 s

e

c

ti

on.

NV

in

 D

L

N

 s

e

c

ti

on.

NV

in

 F

A

X

 an

d F

S

U s

e

c

tio

ns

.

N

V

H

 in RAX and RSU sections.

Re

fe

to

 TIRE in thi

s

 ch

art.

Re

fe

r to

 ROAD WHEEL

 in

 th

is chart

.

NV

in

 F

A

X

, R

A

X

 s

e

cti

o

n

.

NV

in

 B

R

 s

e

c

tio

n.

NV

in

 S

T

 s

e

c

ti

o

n

.

Possible cause and SUSPECTED PARTS

Im

pro

per in

st

a

lla

ti

on

lo

os

en

es

s

Ou

t-

of

-ro

un

d

Unbalance

Incorrect tire pressure

Un

ev

en

 ti

re

 we

ar

De

fo

rm

at

io

n

 o

da

ma

ge

No

n-u

n

if

orm

it

y

In

corre

ct tire

 si

ze

PROPELLER SHAF

T

D

IFFE

RE

NT

IA

L

FRONT AXLE AND F

R

ONT

 SUSPENSI

ON

REAR AXLE AND RE

AR SUSPENSI

ON

TIRE

ROA

D

 WHEELS

DRIVE SHA

F

T

BRAKE

STEERI

N

G

Symptom

TIRE

Noise

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

×

×

Shimmy

×

×

×

×

×

×

×

×

×

×

×

×

×

Judder

×

×

×

×

×

×

×

×

×

×

×

×

Poor quality ride or
handling

×

×

×

×

×

×

×

×

×

×

ROAD
WHEEL

Noise

×

×

×

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

×

×

×

Shimmy, Judder

×

×

×

×

×

×

×

×

×

Poor quality ride or
handling

×

×

×

×

×

×

×
