Nissan Qashqai J11. Manual - part 852





REAR DRIVE SHAFT

RAX-19

< REMOVAL AND INSTALLATION >

[4WD]

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

9.

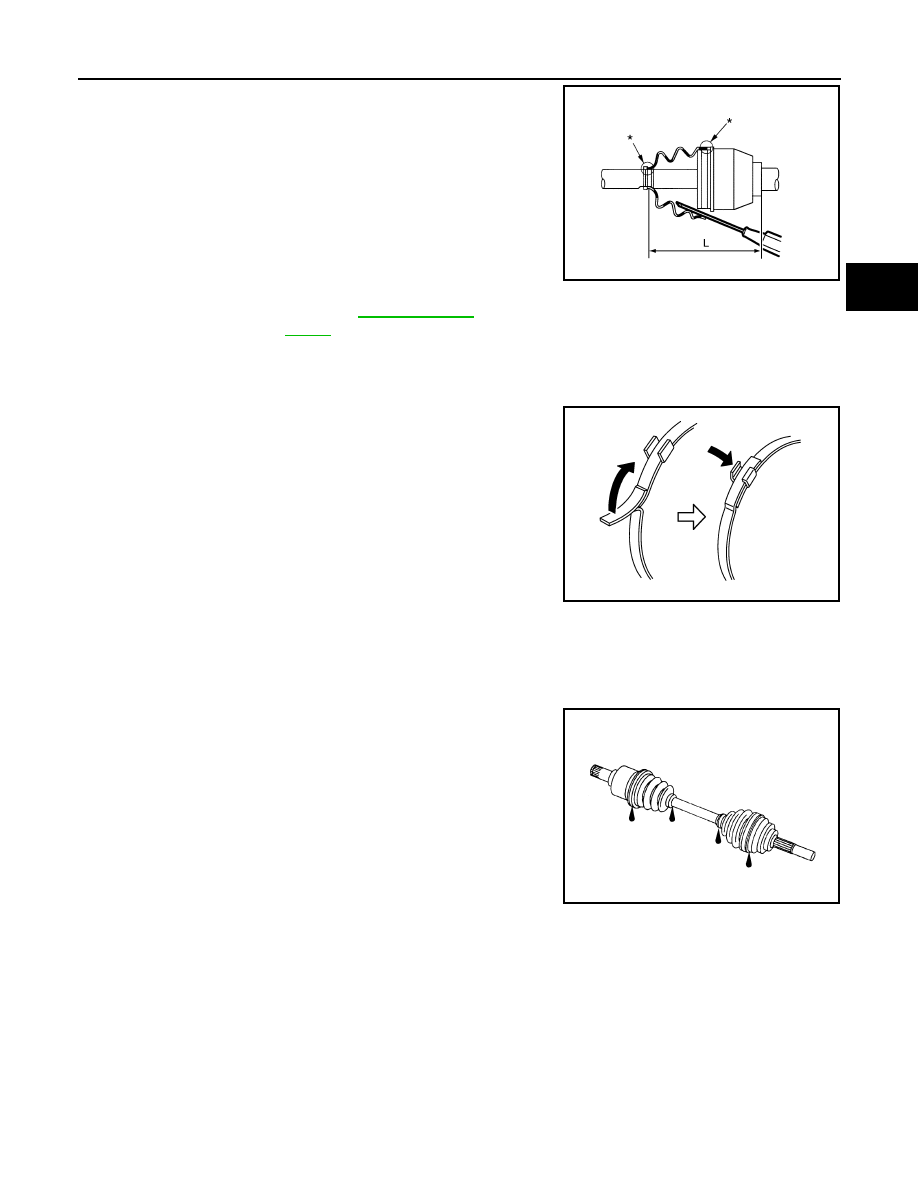

Install the boot securely into grooves (indicated by “*” marks)
shown in the figure.

CAUTION:

If grease adheres to the boot mounting surface (with “*”
mark) on the shaft or joint sub-assembly, boot may be
removed. Remove all grease from the surfaces.

10. To prevent from deformation of the boot, adjust the boot installa-

tion length to the specified value shown below (L) by inserting
the suitable tool into inside of the boot from the large diameter
side of boot and discharging the inside air.

CAUTION:

• If the boot installation length exceeds the standard, it may cause breakage in boot.
• Be careful not to touch the inside of the boot with the tip of tool.

11. Secure large and small ends of boot with new boot bands as

shown in the figure.

CAUTION:

Never reuse boot band.

12. Secure housing and shaft, and then make sure that they are in

the correct position when rotating boot. Install them with new
boot band when the mounting positions become incorrect.

Inspection

INFOID:0000000010297915

INSPECTION AFTER REMOVAL

• Move joint up/down, left/right, and in the axial direction. Check for any rough movement or significant loose-

ness.

• Check boot for cracks or other damage, and also for grease leak-

age.

• If a malfunction is found, disassemble drive shaft, and then replace

with new one.

INSPECTION AFTER DISASSENBLY

Shaft

Check shaft for runout, cracks, or other damage. Replace if there are.

Joint Sub-Assembly (Wheel Side)

Check the following:
• Joint sub-assembly for rough rotation and excessive axial looseness.
• The inside of the joint sub-assembly for entry of foreign material.
• Joint sub-assembly for compression scars, cracks, and fractures inside of joint sub-assembly.
Replace joint sub-assembly if there are any non-standard conditions of components.

Housing and Spider assembly (Final Drive Side)

Standard

Boots installed
length (L)

: Refer to

RAX-21, "Drive

Shaft"

.

JPDIF0018ZZ

PDIA1188J

SDIA1163J

RAX-20

< REMOVAL AND INSTALLATION >

[4WD]

REAR DRIVE SHAFT

Replace housing and spider assembly if there is scratching or wear of housing roller contact surface or spider
roller contact surface.
NOTE:
Housing and spider assembly are used in a set.

SERVICE DATA AND SPECIFICATIONS (SDS)

RAX-21

< SERVICE DATA AND SPECIFICATIONS (SDS)

[4WD]

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

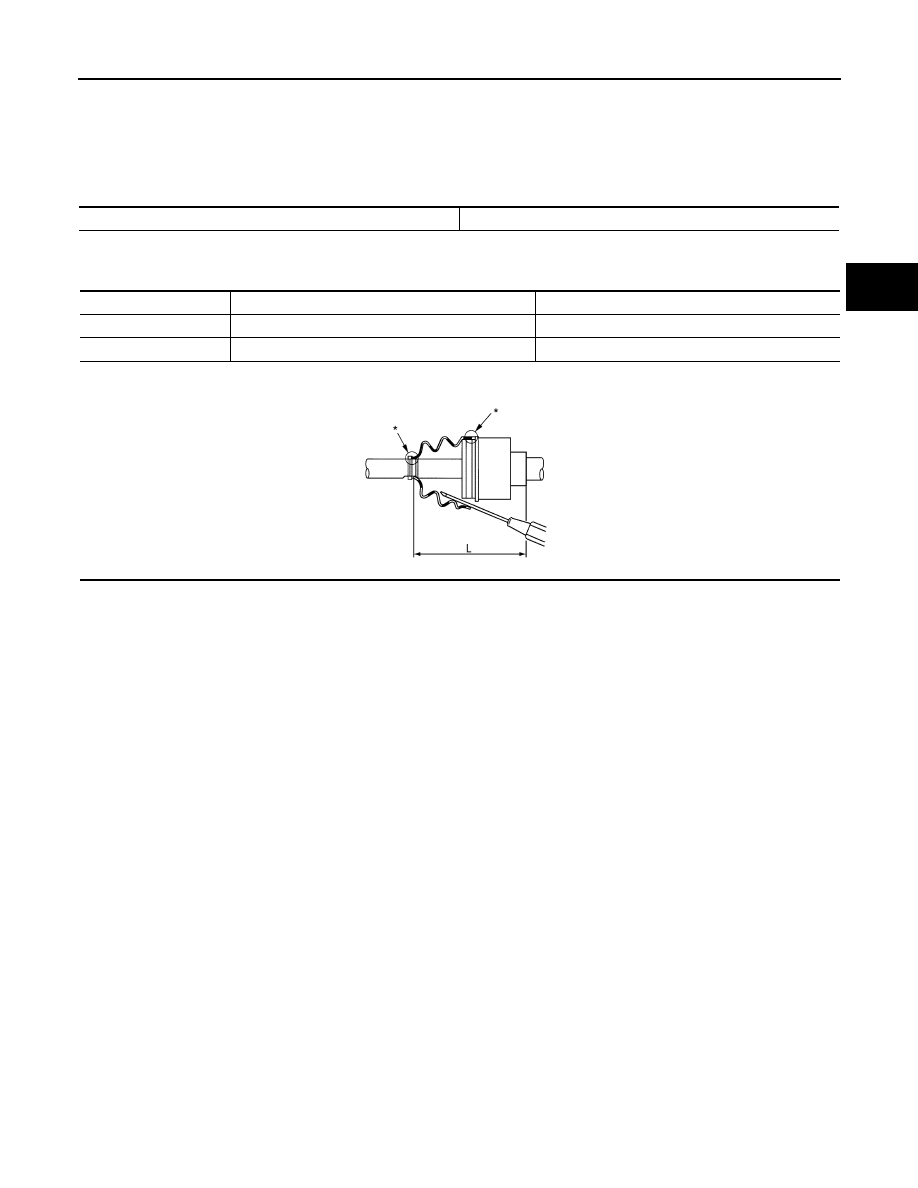

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing

INFOID:0000000010297916

Drive Shaft

INFOID:0000000010297917

Axial end play

0.05 mm (0.002 in) or less

Joint

Wheel side

Final drive side

Grease quantity

35 – 45 g (1.23 – 1.59 oz)

40 – 50 g (1.41 – 1.76 oz)

Boots installed length (L)

90.2 – 92.2 mm (3.55 – 3.63 in)

151.55 – 153.55 mm (5.97 – 6.05 in)

JPDIF0032ZZ

FSU-1

SUSPENSION

C

D

F

G

H

I

J

K

L

M

SECTION

FSU

A

B

FSU

N

O

P

CONTENTS

FRONT SUSPENSION

SYMPTOM DIAGNOSIS  ...............................

2

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

2

NVH Troubleshooting Chart  ......................................

2

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ...................................
..

3

Precaution for Procedure without Cowl Top Cover

......

4

Precautions for Suspension  ......................................

4

PREPARATION ............................................

5

PREPARATION ...................................................

5

Special Service Tool  .................................................

5

Commercial Service Tool  ..........................................

5

PERIODIC MAINTENANCE ..........................

6

FRONT SUSPENSION ASSEMBLY  ...................

6

Inspection ..................................................................

6

WHEEL ALIGNMENT ..........................................

7

Wheel Alignment Inspection ......................................

7

REMOVAL AND INSTALLATION ................

9

FRONT COIL SPRING AND STRUT  .................

9

Exploded View ..........................................................

9

Removal and Installation  .........................................

10

Disassembly and Assembly .....................................

11

Inspection ................................................................

12

Disposal ...................................................................

13

TRANSVERSE LINK .........................................

14

Exploded View .........................................................

14

Removal and Installation  .........................................

15

Inspection ................................................................

15

FRONT STABILIZER  ........................................

17

Exploded View .........................................................

17

Removal and Installation  .........................................

18

Inspection ................................................................

19

FRONT SUSPENSION MEMBER .....................

20

Exploded View .........................................................

20

Removal and Installation  .........................................

21

Inspection ................................................................

21

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

23

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

23

Wheel Alignment  .....................................................

23

Ball Joint  ..................................................................

24

Wheelarch Height  ....................................................

24
