TRANSAXLE ASSEMBLY

TM-655

< UNIT REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

*: Stud bolt

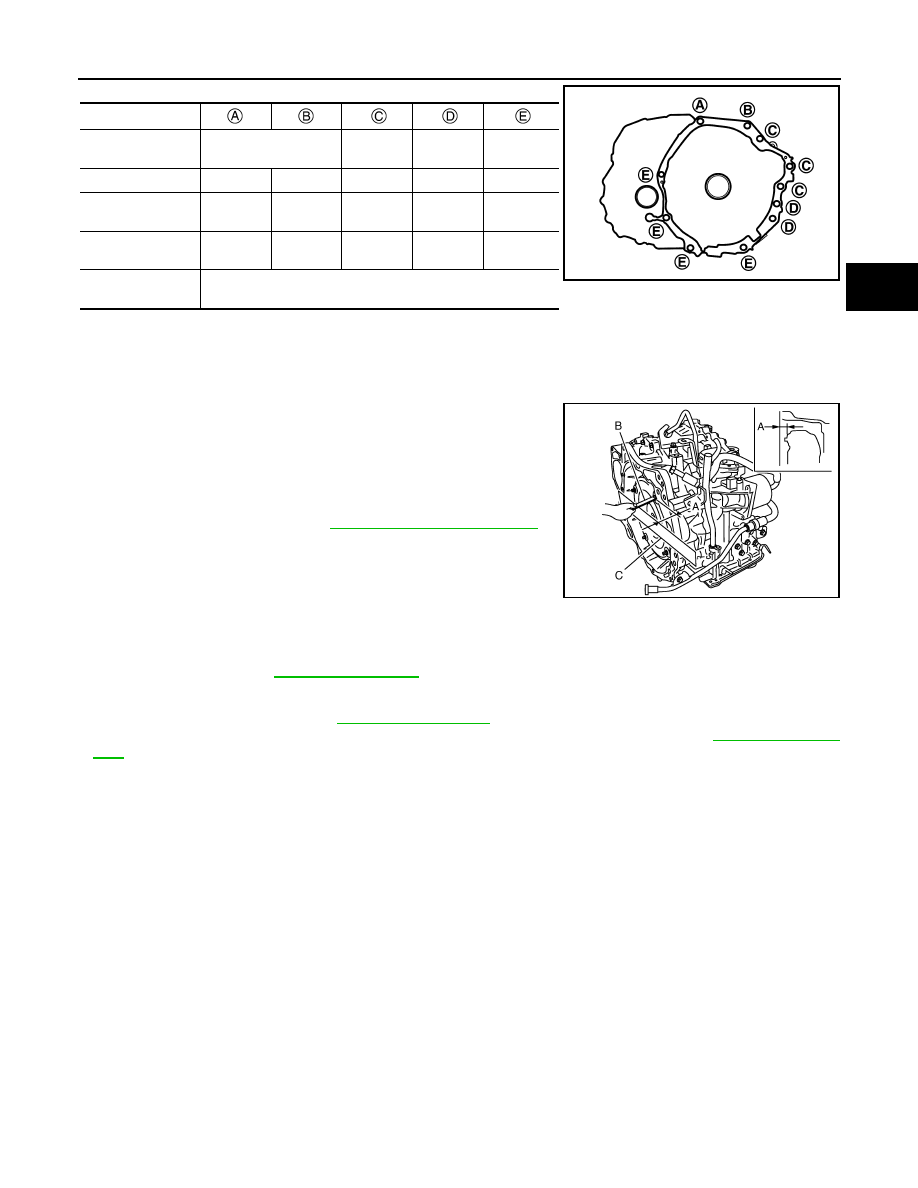

Inspection and Adjustment

INFOID:0000000010245717

INSPECTION BEFORE INSTALLATION

After inserting a torque converter to the CVT, check dimension (A)
with in the reference value limit.

INSPECTION AFTER INSTALLATION

Check the following items:
• Start the engine and check visually that there is no leakage of CVT flluid and engine coolant.
• For CVT position, refer to

TM-619, "Inspection"

.

ADJUSTMENT AFTER INSTALLATION

• Adjust the CVT fluid level. Refer to

TM-615, "Adjustment"

.

• Perform "ADDITIONAL SERVICE WHEN REPLACE TRANSAXLE ASSEMBLY". Refer to

TM-502, "Descrip-

tion"

.

Bolt No.

*

*

Insertion direction

Transaxle to engine

Engine to

transaxle

Transaxle

to engine

Engine to

transaxle

Number  of  bolts

1

1

3

2

4

Bolt length
mm (in)

—

—

60 (2.36)

30(1.18)

55 (2.17)

Stud length
mm (in)

56(2.20)

96(3.78)

—

—

—

Tightening torque
N·m (kg-m, ft-lb)

48.0 (4.9, 35)

JSDIA5239ZZ

B

:  Scale

C

: Straightedge

Dimension (A)

: Refer to

TM-659, "Torque Converter"

.

JPDIA0115ZZ

TM-656

< UNIT DISASSEMBLY AND ASSEMBLY >

[CVT: RE0F10G]

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

UNIT DISASSEMBLY AND ASSEMBLY

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

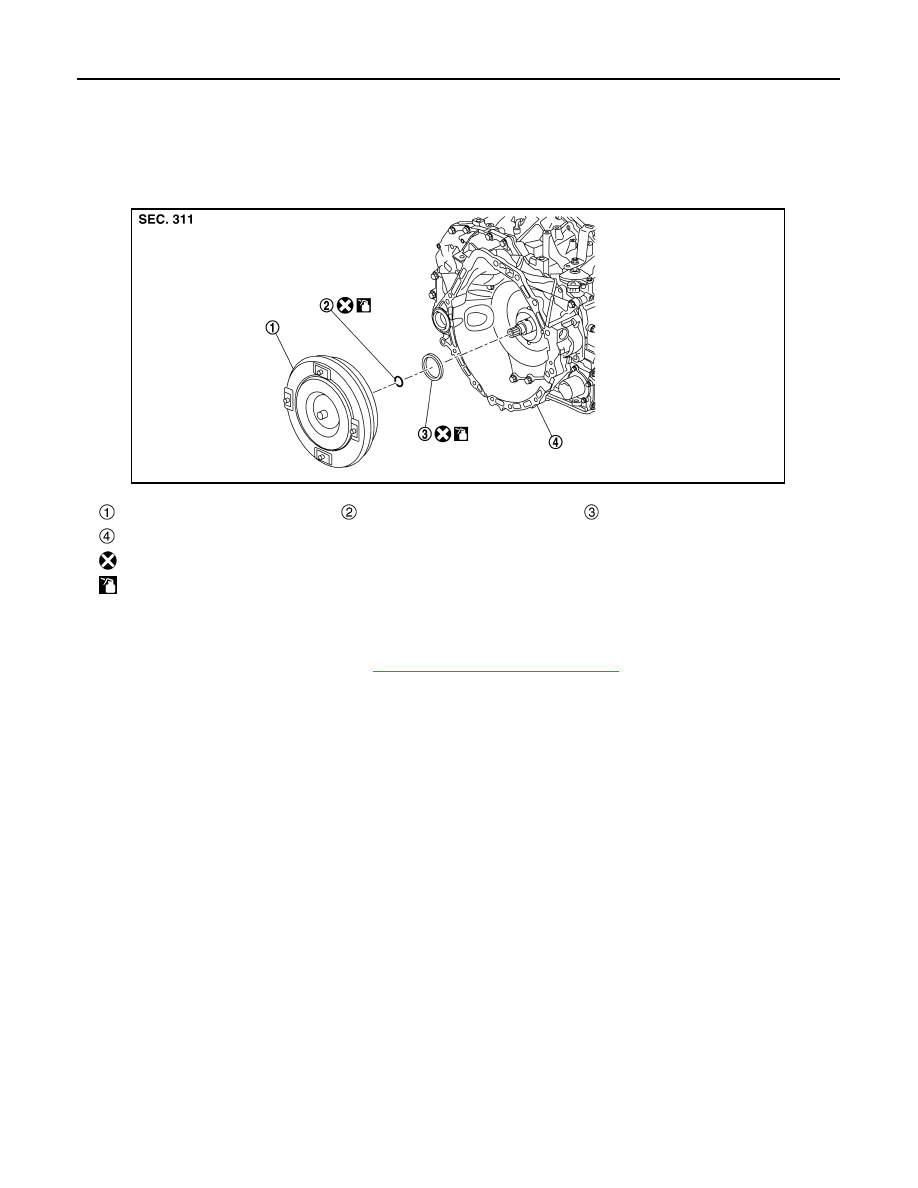

Exploded View

INFOID:0000000010245718

Disassembly

INFOID:0000000010245719

1.

Remove transaxle assembly. Refer to

TM-653, "Removal and Installation"

.

2.

Remove torque converter from transaxle assembly.

CAUTION:

Never damage the bushing on the inside of torque converter sleeve when removing torque con-
verter.

3.

Remove O-ring from input shaft.

4.

Remove converter housing oil seal using an oil seal remover (commercial service tool).

CAUTION:

Be careful not to scratch converter housing.

Assembly

INFOID:0000000010245720

Note the followings and assembly is in the reverse order of disassembly.

CAUTION:

• Never reuse O-ring.
• Never reuse converter housing oil seal.
• Apply CVT fluid to O-ring.
• Apply CVT fluid to converter housing oil seal.

Torque converter

O-ring

Converter housing oil seal

Transaxle assembly

: Always replace after every disassembly.

: Apply CVT fluid

JSDIA4173ZZ

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

TM-657

< UNIT DISASSEMBLY AND ASSEMBLY >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

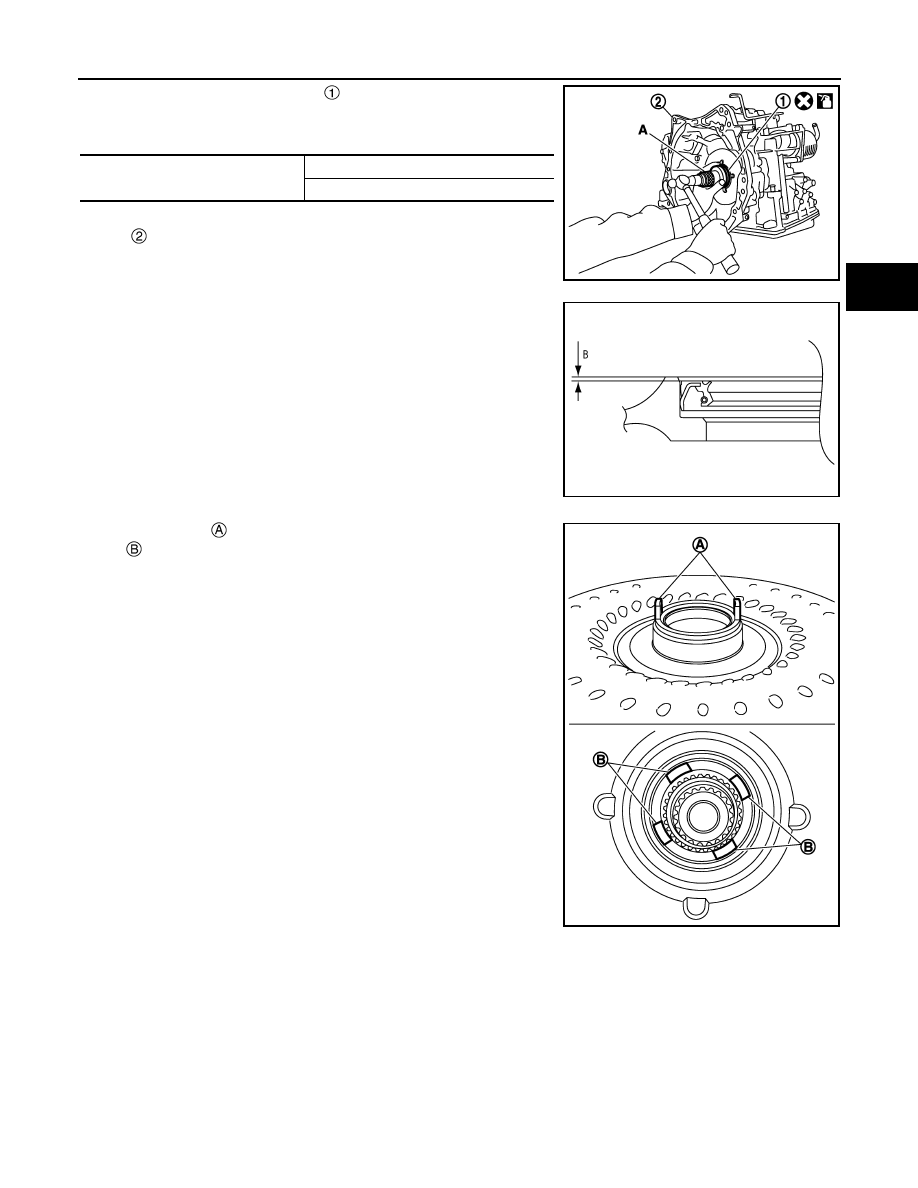

• Drive converter housing oil seal

 evenly using a drift (A) (com-

mercial service tool) so that converter housing oil seal protrudes by
the dimension (B) respectively.

Unit: mm (in)

NOTE:
Converter housing oil seal pulling direction is used as the refer-
ence.

• Attach the pawl

 of the torque converter to the drive sprocket

hole

 on the transaxle assembly side.

CAUTION:

• Rotate the torque converter for installing torque converter.
• Never damage the bushing inside the torque converter

sleeve when installing the converter housing oil seal.

Inspection

INFOID:0000000010245721

INSPECTION AFTER INSTALLATION

Commercial service tool: (A)

Outer diameter: 65 (2.56)

Inner diameter: 60 (2.36)

: Transaxle assembly

SCIA7908J

Dimension (B)

: 1.0

±

 0.5 mm (0.039

±

 0.020 in)

SCIA7909J

SCIA7907J

TM-658

< UNIT DISASSEMBLY AND ASSEMBLY >

[CVT: RE0F10G]

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

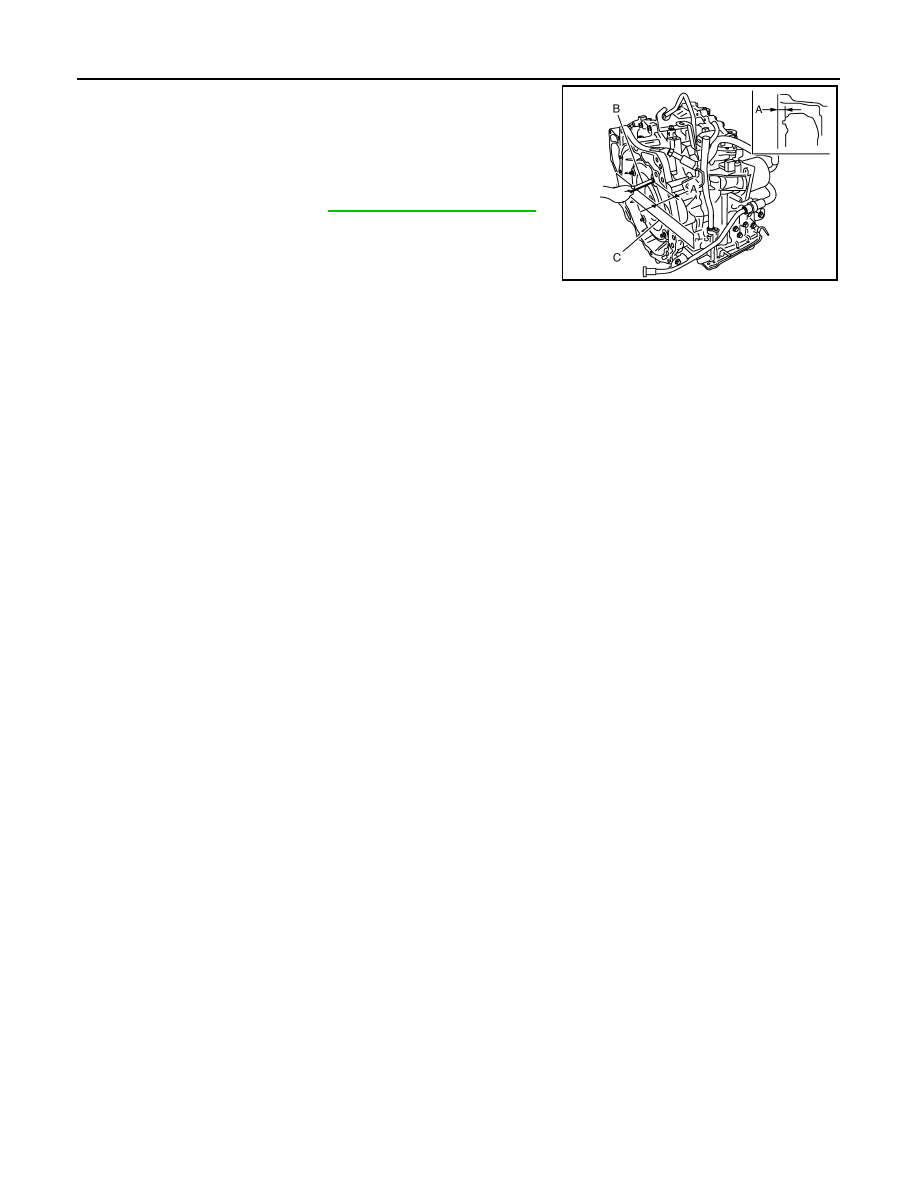

• After inserting a torque converter to the CVT, check dimension (A)

with in the reference value limit.

B

:  Scale

C

: Straightedge

Dimension (A)

: Refer to

TM-659, "Torque Converter"

.

JPDIA0115ZZ
