FLUID COOLER SYSTEM

TM-647

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• Refer to the followings when installing hose clamp.

CAUTION:

Hose clamp should not interfere with the bulge of fluid cooler tube.

Inspection

INFOID:0000000010248023

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to

TM-615, "Adjustment"

.

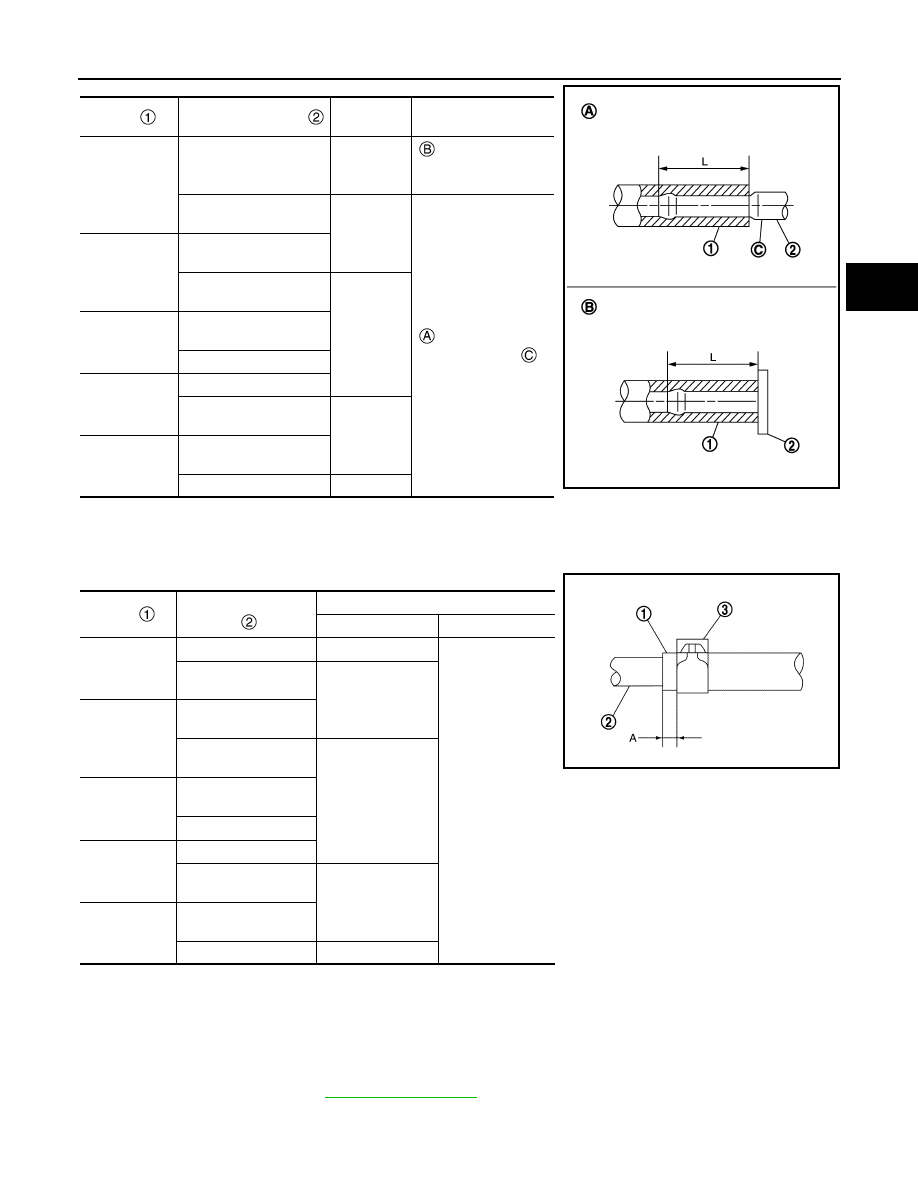

Hose

Installation side tube

Direction of

paint mark

Hose insertion depth

“L”

CVT fluid cool-
er hose B

CVT oil warmer

Upward

: Hose end reaches

the end of CVT oil
warmer tube.

CVT fluid cooler tube as-
sembly A

Leftward

: Hose end reaches

the 2-stage bulge

.

CVT fluid cool-
er hose C

CVT fluid cooler tube as-
sembly A

CVT fluid cooler tube as-
sembly B

Frontward

CVT fluid cool-
er hose D

CVT fluid cooler tube as-
sembly B

CVT fluid cooler

CVT fluid cool-
er hose E

CVT fluid cooler

CVT fluid cooler tube as-
sembly A

Leftward

CVT fluid cool-
er hose F

CVT fluid cooler tube as-
sembly A

CVT fluid cooler tube

Frontward

JSDIA1640ZZ

Hose

Installation side tube

Hose clamp

Direction of tab

Clamping position

CVT fluid cool-
er hose B

CVT oil warmer

Upward

5 – 9 mm (0.20 –
0.35 in) (A) from
hose end

CVT fluid cooler tube
assembly A

Leftward

CVT fluid cool-
er hose C

CVT fluid cooler tube
assembly A

CVT fluid cooler tube
assembly B

Upward

CVT fluid cool-
er hose D

CVT fluid cooler tube
assembly B

CVT fluid cooler

CVT fluid cool-
er hose E

CVT fluid cooler

CVT fluid cooler tube
assembly A

 Leftward

CVT fluid cool-
er hose F

CVT fluid cooler tube
assembly A

CVT fluid cooler tube

Frontward

JSDIA2424ZZ

TM-648

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

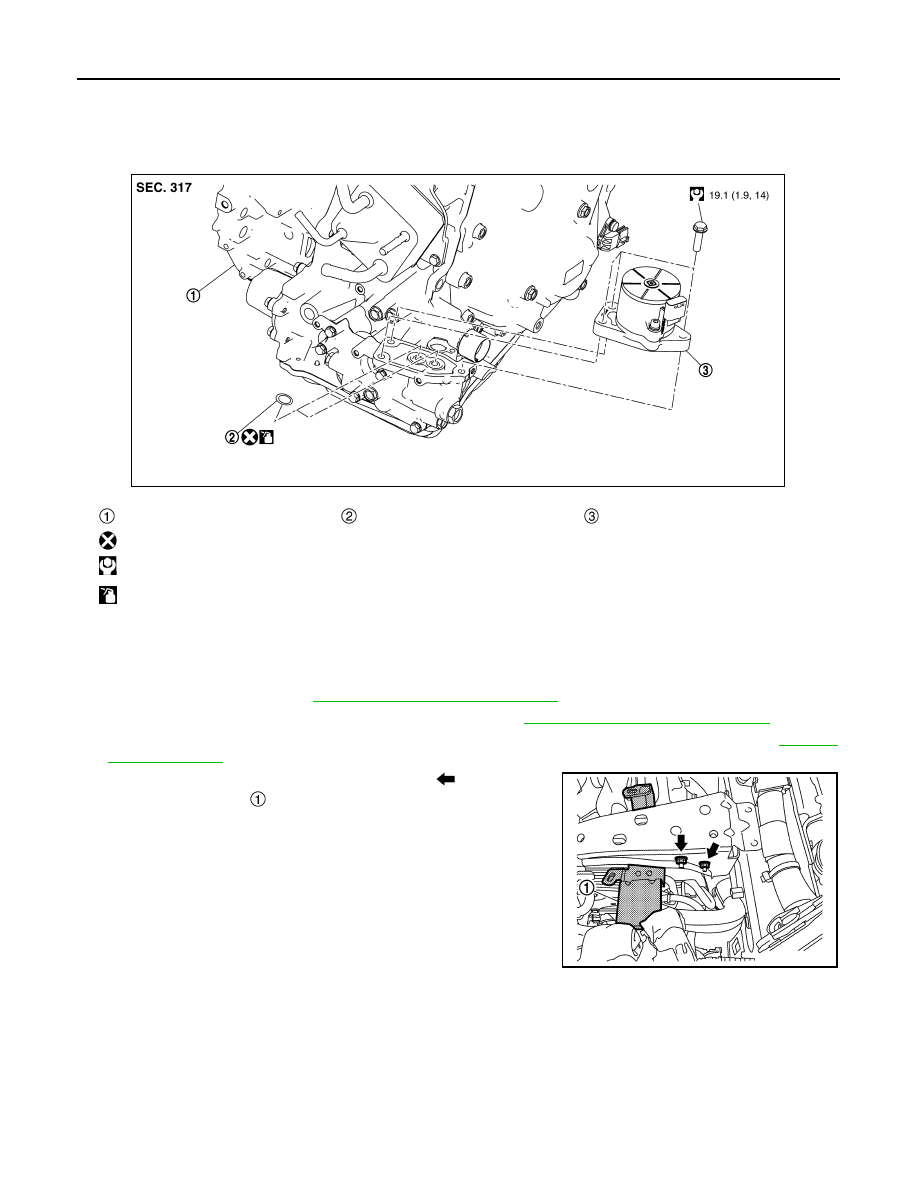

ELECTRIC OIL PUMP

ELECTRIC OIL PUMP

Exploded View

INFOID:0000000010249450

Removal and Installation

INFOID:0000000010249451

REMOVAL

1.

Remove the battery. Refer to

PG-155, "Removal and Installation"

2.

Remove the ECM (TCM) bracket and ECM (TCM). Refer to

TM-625, "Removal and Installation"

.

3.

Remove the battery mounting bracket assembly and battery mounting bracket. Refer to

PG-154,

"Exploded View"

.

4.

Remove the harness bracket mounting nuts (

) and remove

the harness bracket

 from the vehicle.

5.

Disconnect the electric oil pump connector.

Transaxle assembly

O-ring

Electric oil pump & motor assembly

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Apply CVT fluid

JSDIA5137GB

JSDIA5410ZZ

ELECTRIC OIL PUMP

TM-649

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

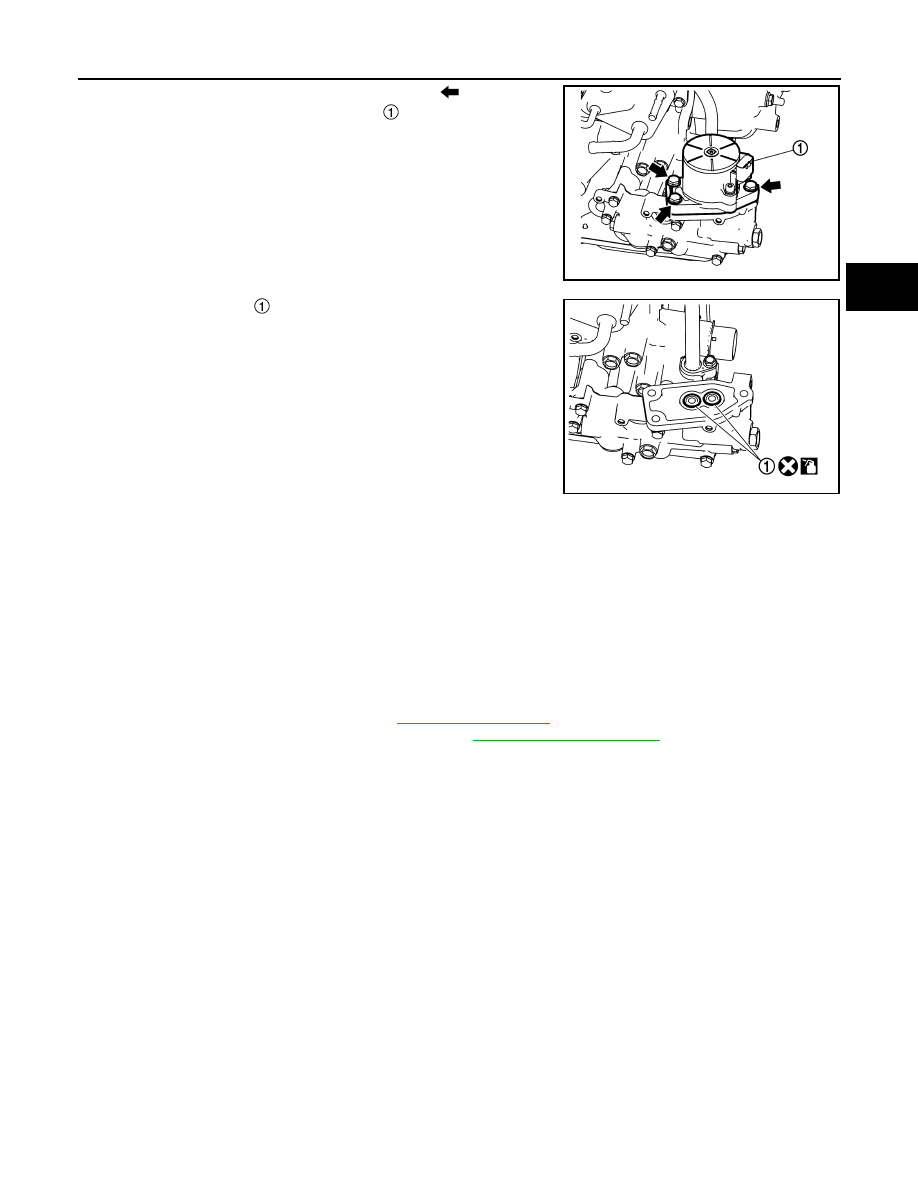

6.

Remove the electric oil pump mounting bolts (

) and remove

the electric oil pump & motor assembly

.

7.

Remove the O-rings

.

INSTALLATION

Note the followings and install in the reverse order of removal.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to the O-ring.

Inspection and Adjustment

INFOID:0000000010249452

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

• Adjust the CVT fluid level. Refer to Refer to

TM-615, "Adjustment"

.

• Perform “BLEEDING ELECTRIC OIL PUMP”. Refer to

TM-507, "Work Procedure"

.

JSDIA5215ZZ

JSDIA5216ZZ

TM-650

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

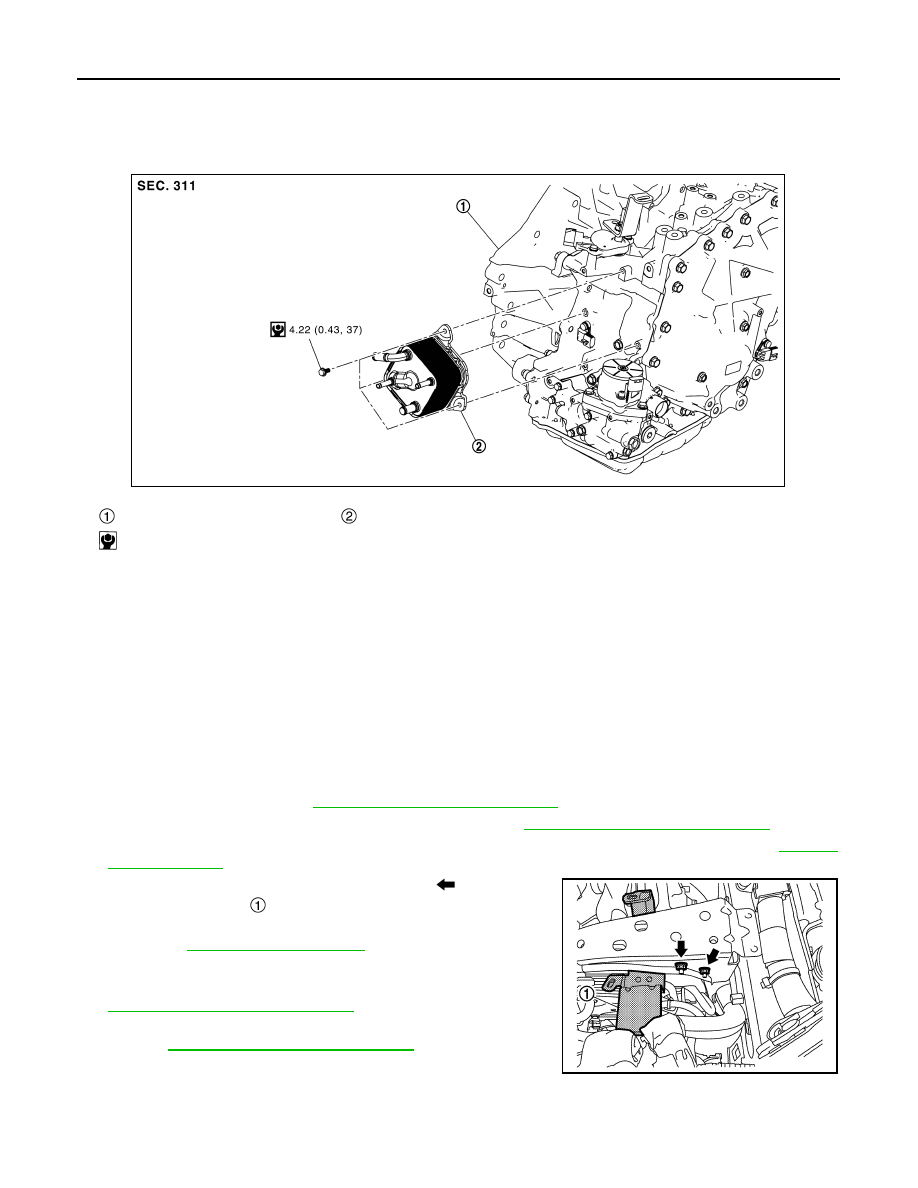

CVT OIL WARMER

CVT OIL WARMER

Exploded View

INFOID:0000000010248024

Removal and Installation

INFOID:0000000010248025

REMOVAL

WARNING:

Do not remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter turn to
allow built-up pressure to escape. Carefully remove the cap by turning it all the way.

CAUTION:

Perform when the engine is cold.
NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-
ing.

1.

Remove the battery. Refer to

PG-155, "Removal and Installation"

.

2.

Remove the ECM (TCM) bracket and ECM (TCM). Refer to

TM-625, "Removal and Installation"

.

3.

Remove the battery mounting bracket assembly and battery mounting bracket. Refer to

PG-154,

"Exploded View"

.

4.

Remove the harness bracket mounting nuts (

) and remove

the harness bracket

 from the vehicle.

5.

Remove the CVT fluid cooler hose A and CVT fluid cooler hose
B. Refer to

TM-642, "Exploded View"

6.

Remove the engine under cover.

7.

Remove the CVT water hose A and CVT water hose B. Refer to

TM-640, "Removal and Installation"

8.

Remove CVT fluid cooler tube A and CVT fluid cooler tube B.
Refer to

TM-644, "Removal and Installation"

.

9.

Remove CVT oil warmer bolts and remove CVT oil warmer from
the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

Transaxle assembly

CVT oil warmer

: N·m (kg-cm, in-lb)

JSDIA5225GB
