CVT OIL WARMER

TM-651

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Inspection

INFOID:0000000010248026

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid and engine coolant.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to Refer to

TM-615, "Adjustment"

.

TM-652

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

PLUG

PLUG

Description

INFOID:0000000010245711

Replace the O-ring if oil leakage or exudes from the plug.

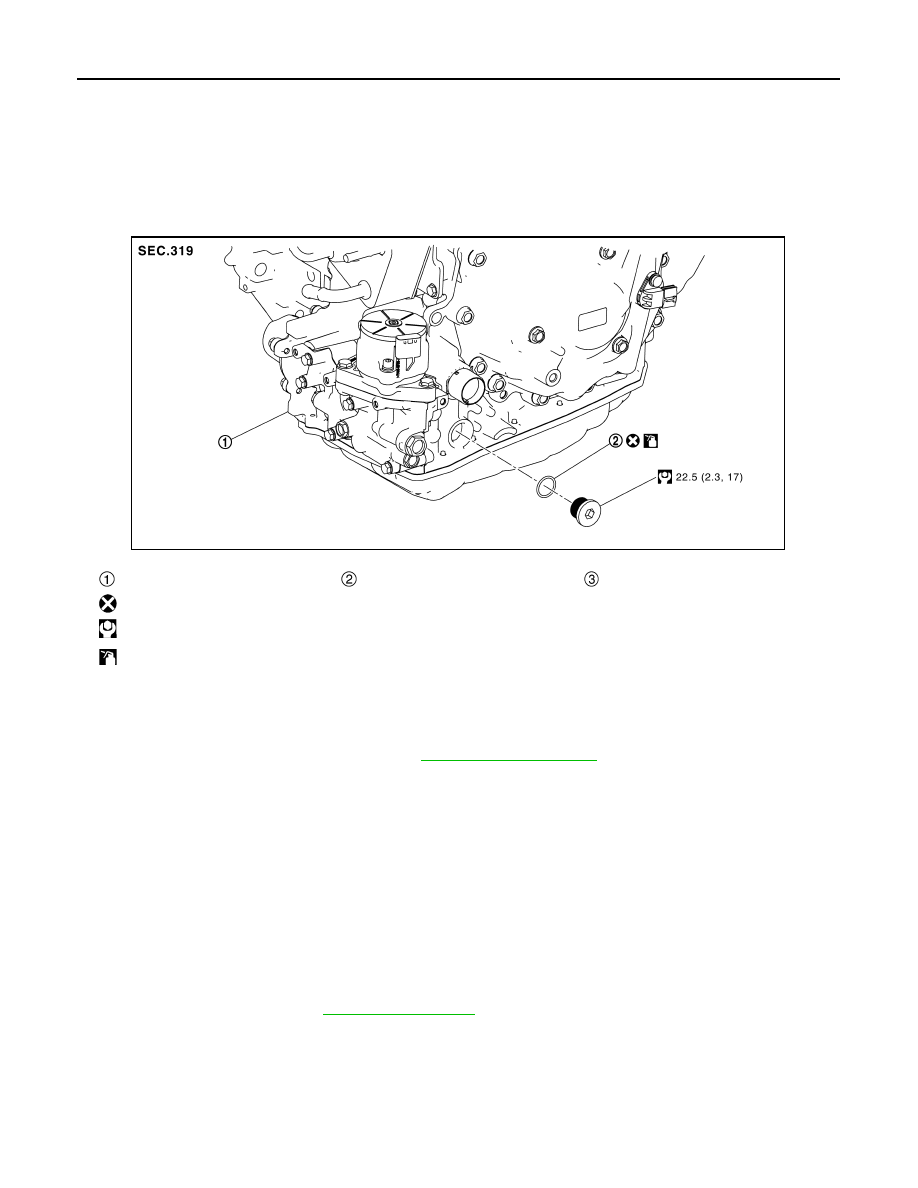

Exploded View

INFOID:0000000010245712

Removal and Installation

INFOID:0000000010245713

REMOVAL

1.

Remove front fender protector (LH). Refer to

EXT-31, "Exploded View"

.

2.

Remove the plug and O-ring.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to O-ring.

Inspection and Adjustment

INFOID:0000000010245714

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to

TM-615, "Adjustment"

.

Transaxle assembly

O-ring

Plug

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Apply CVT fluid

JSDIA5136GB

TRANSAXLE ASSEMBLY

TM-653

< UNIT REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

UNIT REMOVAL AND INSTALLATION

TRANSAXLE ASSEMBLY

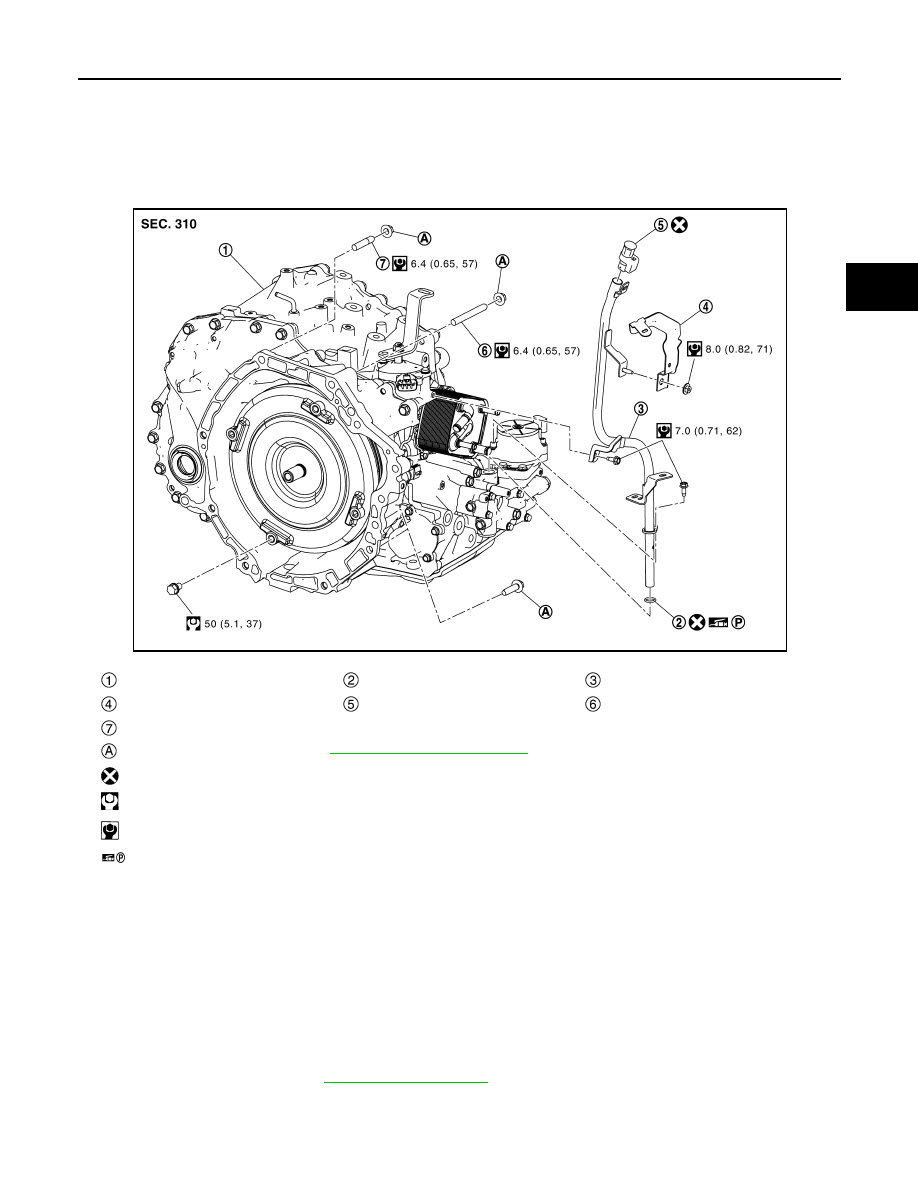

Exploded View

INFOID:0000000010245715

Removal and Installation

INFOID:0000000010245716

REMOVAL

WARNING:

Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn a quarter turn to
allow built-up pressure to escape. Carefully remove the cap by turning it all the way.

CAUTION:

• Perform when the engine is cold.
• When replacing the TCM and transaxle assembly as a set, replace the transaxle assembly first and

then replace the TCM. Refer to

TM-500, "Description"

.

NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-
ing.

Transaxle assembly

O-ring

CVT fluid charging pipe

Bracket

CVT fluid charging pipe cap

Stud bolt B

Stud bolt A

: For the tightening torque, refer to

TM-653, "Removal and Installation"

.

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Apply petroleum jelly

JSDIA5226GB

TM-654

< UNIT REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

TRANSAXLE ASSEMBLY

1.

Remove engine and transaxle assembly. Refer to

EM-431, "Removal and Installation"

.

2.

Remove the CVT water hoses from transmission side. Refer to

TM-640, "Exploded View"

.

3.

Turn crankshaft, and remove the tightening nuts for drive plate and torque converter.

CAUTION:

Rotate crankshaft clockwise (as viewed from the crankshaft pulley side).

4.

Remove the bolts that fasten the transaxle assembly and engine assembly.

5.

Separate the engine from the transaxle assembly.
NOTE:
Using paint, put matching marks on the drive plate and torque converter when removing the torque con-
verter to drive plate nuts.

6.

Remove following parts from transaxle assembly.
• Air breather hose (Refer to

TM-627, "Exploded View"

.)

• Charging pipe and O-ring

INSTALLATION

Note the followings and installation is in the reverse order of removal.
NOTE:

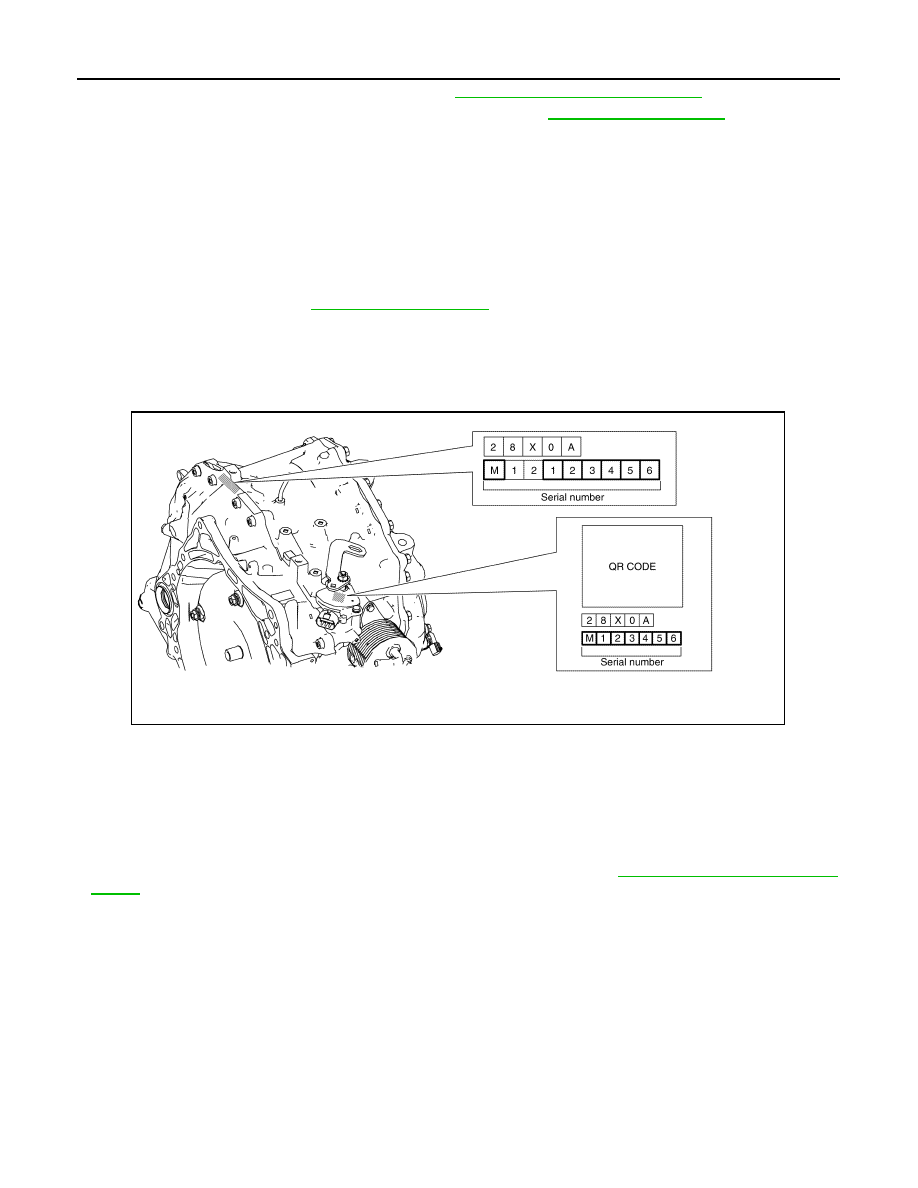

Write down the serial number of the new transaxle assembly.

CAUTION:

• When replacing an engine or transaxle you must make sure any dowels are installed correctly during

re-assembly

• Improper alignment caused by missing dowels may cause vibration, oil leaks or breakage of drive

train components.

• Never reuse O-rings or copper sealing washers.
• When turning crankshaft, turn it clockwise as viewed from the front of the engine.
• When tightening the nuts for the torque converter while securing the crankshaft pulley bolt, be sure

to confirm the tightening torque of the crankshaft pulley bolt. Refer to

EM-413, "Removal and Instal-

lation"

.

• After converter is installed to drive plate, rotate crankshaft several turns to check that CVT rotates

freely without binding.

• When installing the CVT to the engine, align the matching mark on the drive plate with the matching

mark on the torque converter.

• When installing the drive plate to torque converter nuts, tighten them temporarily. then tighten the nuts to the

specified torque.

• Install the transaxle assembly and engine assembly mounting bolts according to the following standards.

JSDIA4208GB
