OIL PAN

TM-631

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Completely wipe out any moisture, oil, and old gasket from the oil pan gasket surface and bolt
hole of oil pan and transaxle case.

2.

Install the oil pan assembly to the transaxle case, and then temporarily tighten the oil pan bolt.

3.

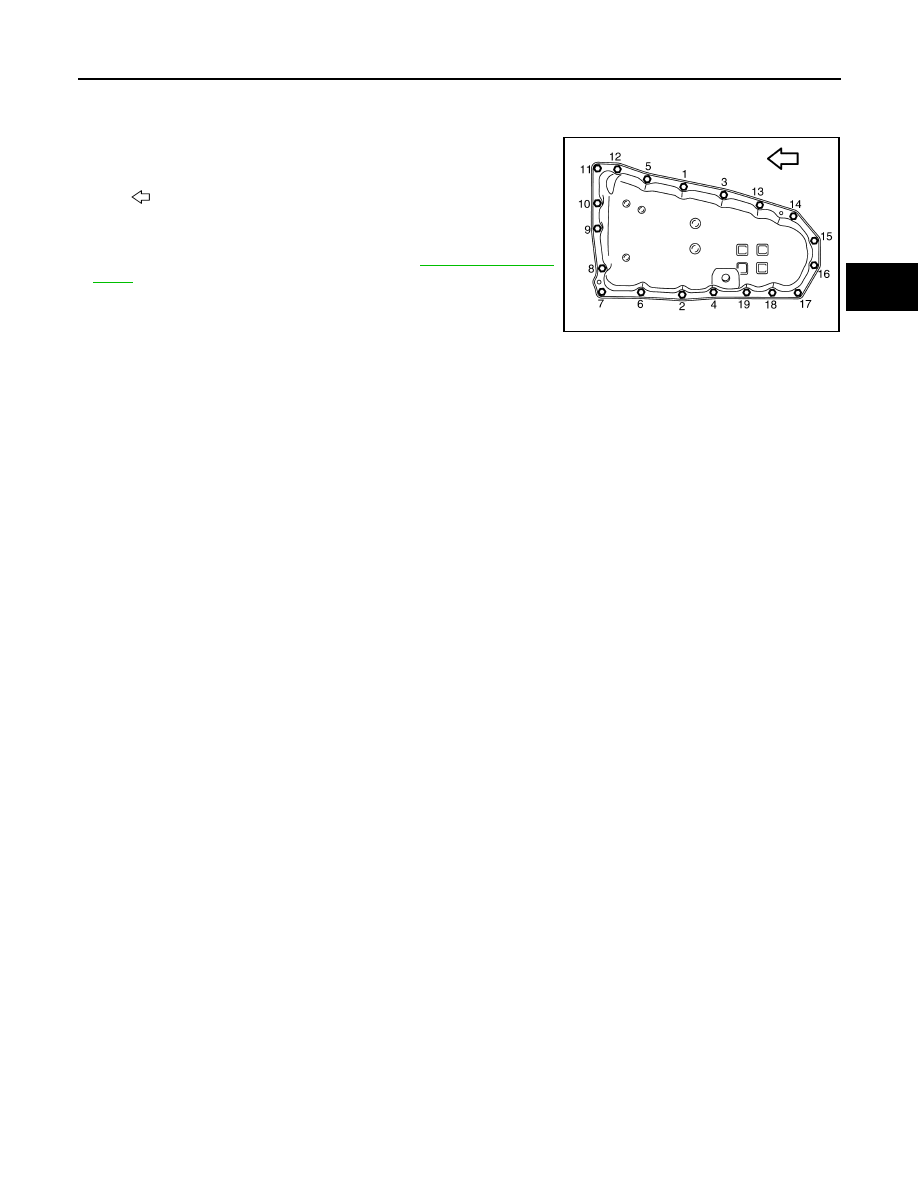

Tighten the oil pan bolts in the order shown to the specified
torque.

4.

Tighten the oil pan bolts again clockwise from (1) shown to the
specified torque.

• Fill with CVT fluid after installation. Refer to

TM-613, "Replace-

ment"

.

Inspection

INFOID:0000000010245689

INSPECTION AFTER REMOVAL

Check oil pan for foreign material.
• If a large amount of worn material is found, clutch plate may be worn.
• If iron powder is found, bearings, gears, or clutch plates may be worn.
• If aluminum powder is found, bushing may be worn, or chips or burrs of aluminum casting parts may enter.
Check points where wear is found in all cases.

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

: Vehicle front

JSDIA5211ZZ

TM-632

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

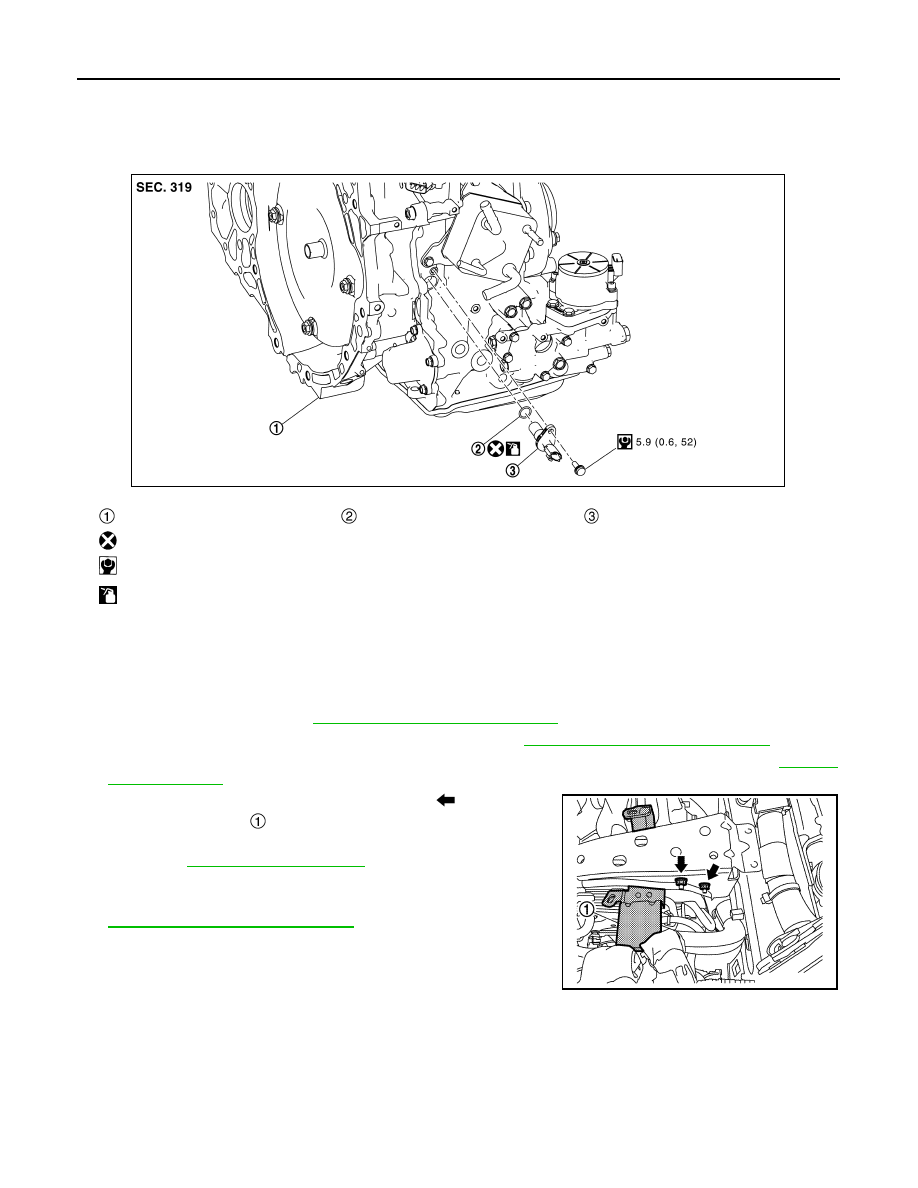

INPUT SPEED SENSOR

INPUT SPEED SENSOR

Exploded View

INFOID:0000000010245690

Removal and Installation

INFOID:0000000010245691

REMOVAL

1.

Turn ignition switch OFF.

2.

Remove the battery. Refer to

PG-155, "Removal and Installation"

.

3.

Remove the ECM (TCM) bracket and ECM (TCM). Refer to

TM-625, "Removal and Installation"

.

4.

Remove the battery mounting bracket assembly and battery mounting bracket. Refer to

PG-154,

"Exploded View"

.

5.

Remove the harness bracket mounting nuts (

) and remove

the harness bracket

 from the vehicle.

6.

Remove the CVT fluid cooler hose A and CVT fluid cooler hose
B. Refer to

TM-642, "Exploded View"

7.

Remove the engine undercover.

8.

Remove the CVT water hose A and CVT water hose B. Refer to

TM-640, "Removal and Installation"

9.

Disconnect the input speed sensor harness connector.

10. Remove the input speed sensor mounting bolt and remove the

input speed sensor.

Transaxle assembly

O-ring

Input speed sensor

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Apply CVT fluid

JSDIA5131GB

JSDIA5410ZZ

INPUT SPEED SENSOR

TM-633

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

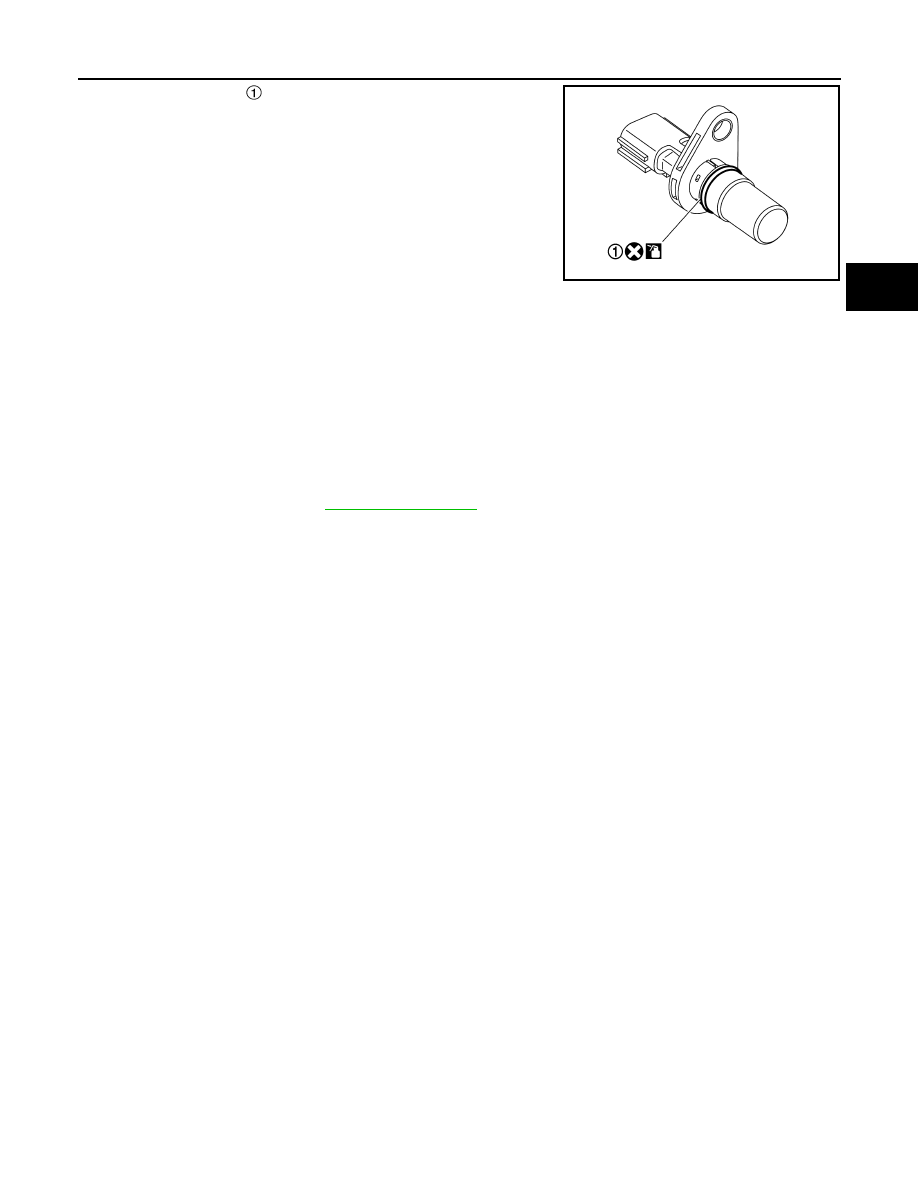

11. Remove the O-ring

 from the input speed sensor.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to the O-ring.

Inspection and Adjustment

INFOID:0000000010245692

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to

TM-615, "Adjustment"

.

JSDIA5196ZZ

TM-634

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

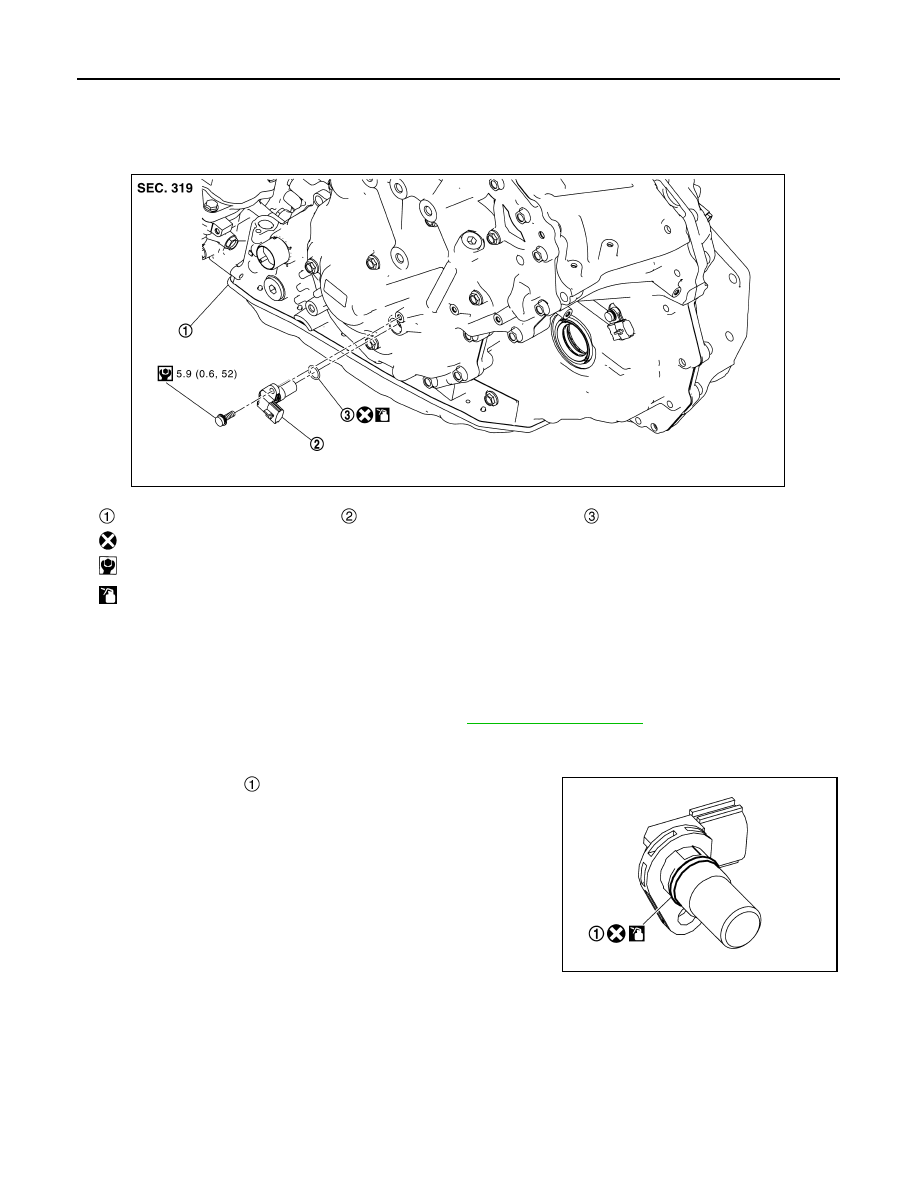

PRIMARY SPEED SENSOR

PRIMARY SPEED SENSOR

Exploded View

INFOID:0000000010245693

Removal and Installation

INFOID:0000000010245694

REMOVAL

1.

Turn ignition switch OFF.

2.

Remove the Hoodledge splashguard (LH). Refer to

EXT-31, "Exploded View"

.

3.

Disconnect the primary speed harness connector.

4.

Remove the primary speed sensor mounting bolt and remove the primary speed sensor.

5.

Remove the O-ring

 from the primary speed sensor.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to the O-ring.

Inspection and Adjustment

INFOID:0000000010245695

INSPECTION AFTER INSTALLATION

Transaxle assembly

Primary speed sensor

O-ring

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Apply CVT fluid

JSDIA5132GB

JSDIA5199ZZ
