KEY INTERLOCK CABLE

TM-623

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

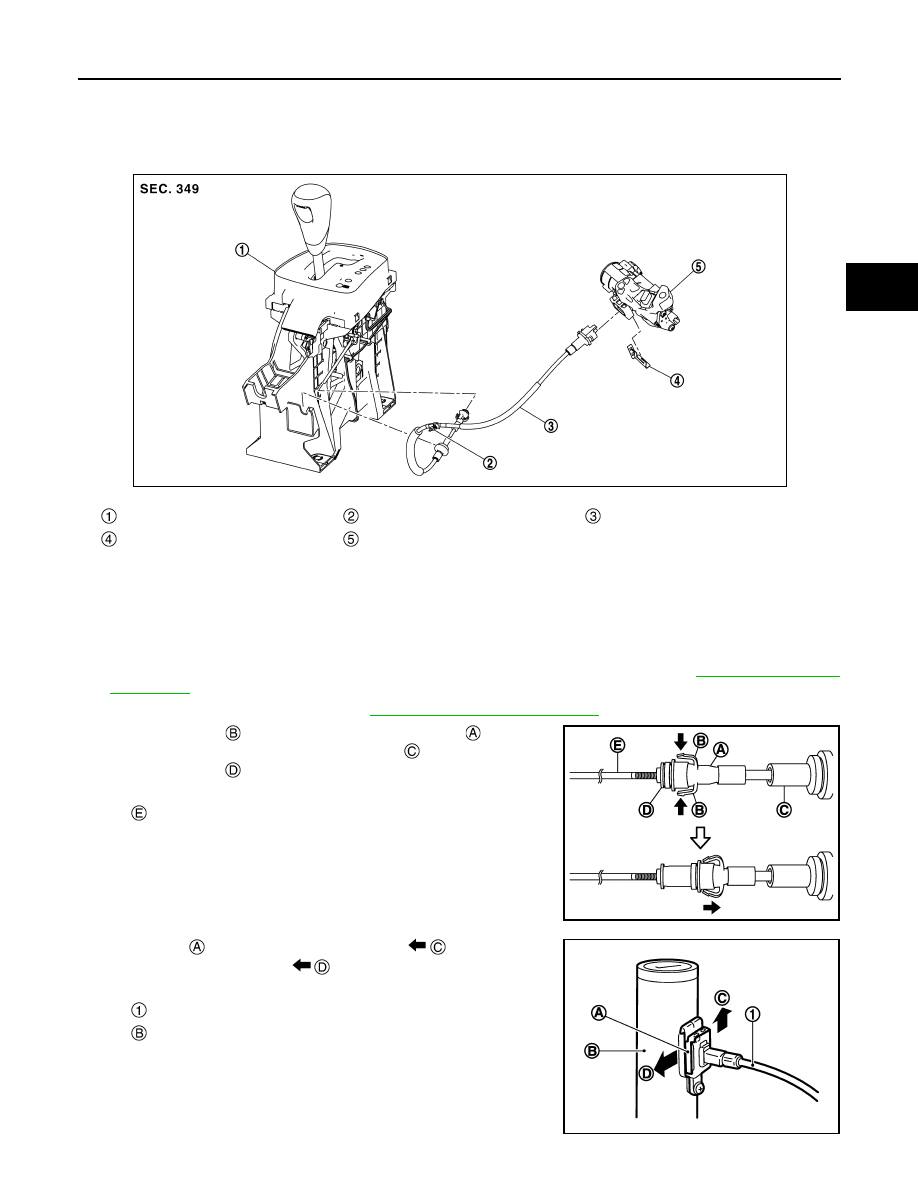

KEY INTERLOCK CABLE

Exploded View

INFOID:0000000010249391

Removal and Installation

INFOID:0000000010249392

REMOVAL

CAUTION:

Always apply the parking brake before performing removal and installation.
1.

Remove the lower instrument panel (driver side) and steering column cover. Refer to

IP-13, "Removal and

Installation"

.

2.

Remove the center console. Refer to

IP-19, "Removal and Installation"

.

3.

Press the pawls

 of the key interlock cable slider

 while slid-

ing it in the direction of the casing cap

, and separate the

adjusting holder

 and slider.

4.

Remove the key interlock cable from the shift selector.

5.

Lift the clip

 in the direction of the arrow (



) and remove in

the direction of the arrow (



).

6.

Remove the key interlock cable from the key cylinder.

7.

Disengage the clip and disconnect the key interlock cable from
the vehicle.

Shift selector assembly

Clip

Key interlock cable

Clip

Key cylinder

JSDIA5227ZZ

:Key interlock rod

JSDIA1797ZZ

: Key interlock cable

: Key cylinder

JSDIA1798ZZ

TM-624

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

KEY INTERLOCK CABLE

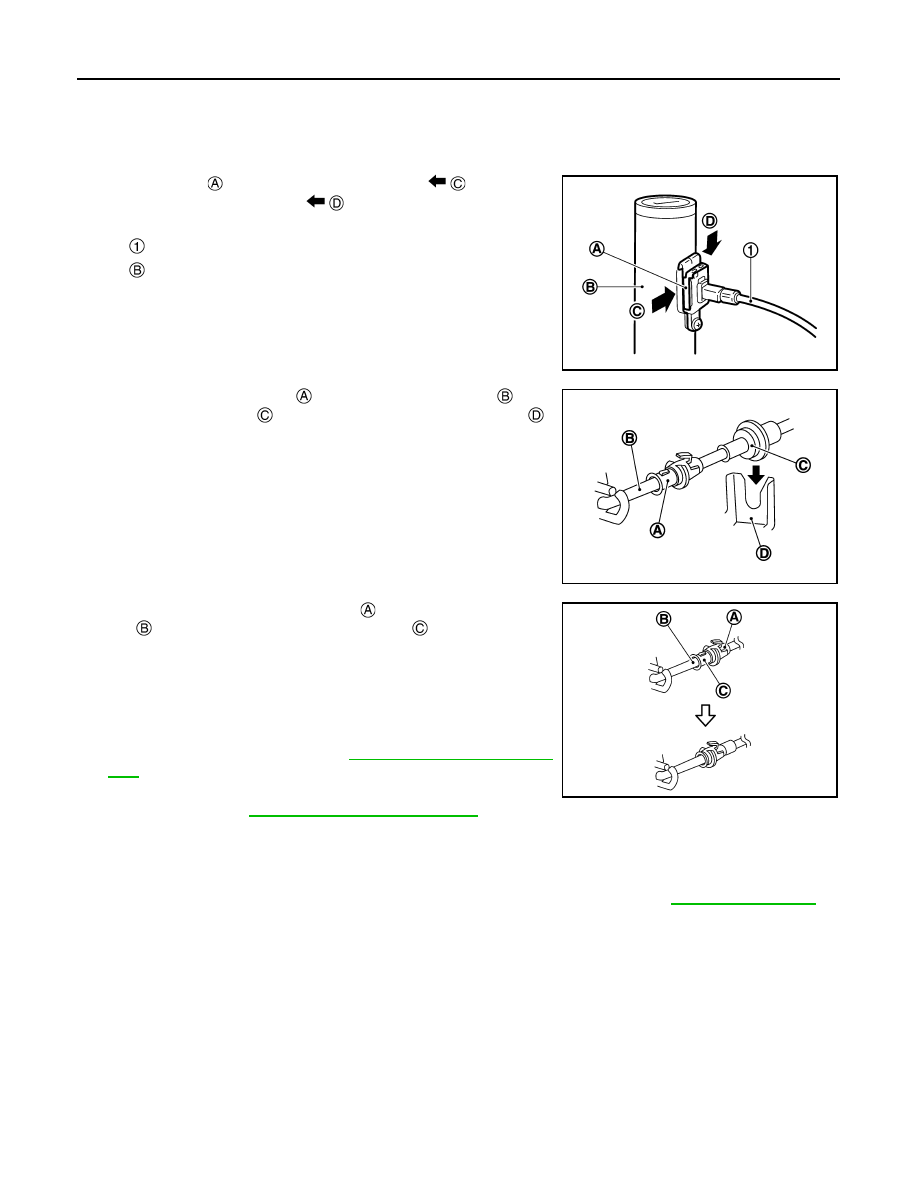

INSTALLATION

1.

Move the shift selector to "P" position.

2.

Turn the ignition switch to ACC or ON position.

3.

Install the holder of key interlock cable to key cylinder.

4.

Install the clip

 in the direction of the arrow (



) and push it

in the direction of the arrow (



).

5.

Turn the ignition switch to LOCK position.

6.

Install the adjusting holder

 onto the key interlock rod

, then

install the casing cap

 onto the shift selector cable bracket

.

CAUTION:

• When installing the key interlock cable, do not bend or

twist the cable forcefully.

• After connecting the key interlock cable to the shift selec-

tor cable bracket, be sure to check that the casing cap is
completely fastened to the cable bracket. If the casing cap
is easily displaced, replace the key interlock cable.

7.

Slide the key interlock cable slider

 toward the key interlock

rod

 side and install the adjusting holder

 and key interlock

rod.

CAUTION:

• Never squeeze the pawls on the key interlock cable slider

when holding the slider.

• Never apply force in a perpendicular direction to the key

interlock rod when sliding the slider.

8.

Install the center console. Refer to

IP-19, "Removal and Installa-

tion"

.

9.

Install the lower instrument panel (driver side) and steering col-
umn cover. Refer to

IP-13, "Removal and Installation"

.

Inspection

INFOID:0000000010249393

INSPECTION AFTER INSTALLATION

• Check the CVT position. If a malfunction is found, adjust the CVT position. Refer to

TM-509, "Inspection"

.

• The key can be removed only when the selector lever is in the “P” position.
• It must not be possible to turn the ignition switch to LOCK when the selector lever is not in the “P” position.

: Key interlock cable

: Key cylinder

JSDIA3589ZZ

JSDIA1799ZZ

JSDIA2644ZZ

TCM

TM-625

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

TCM

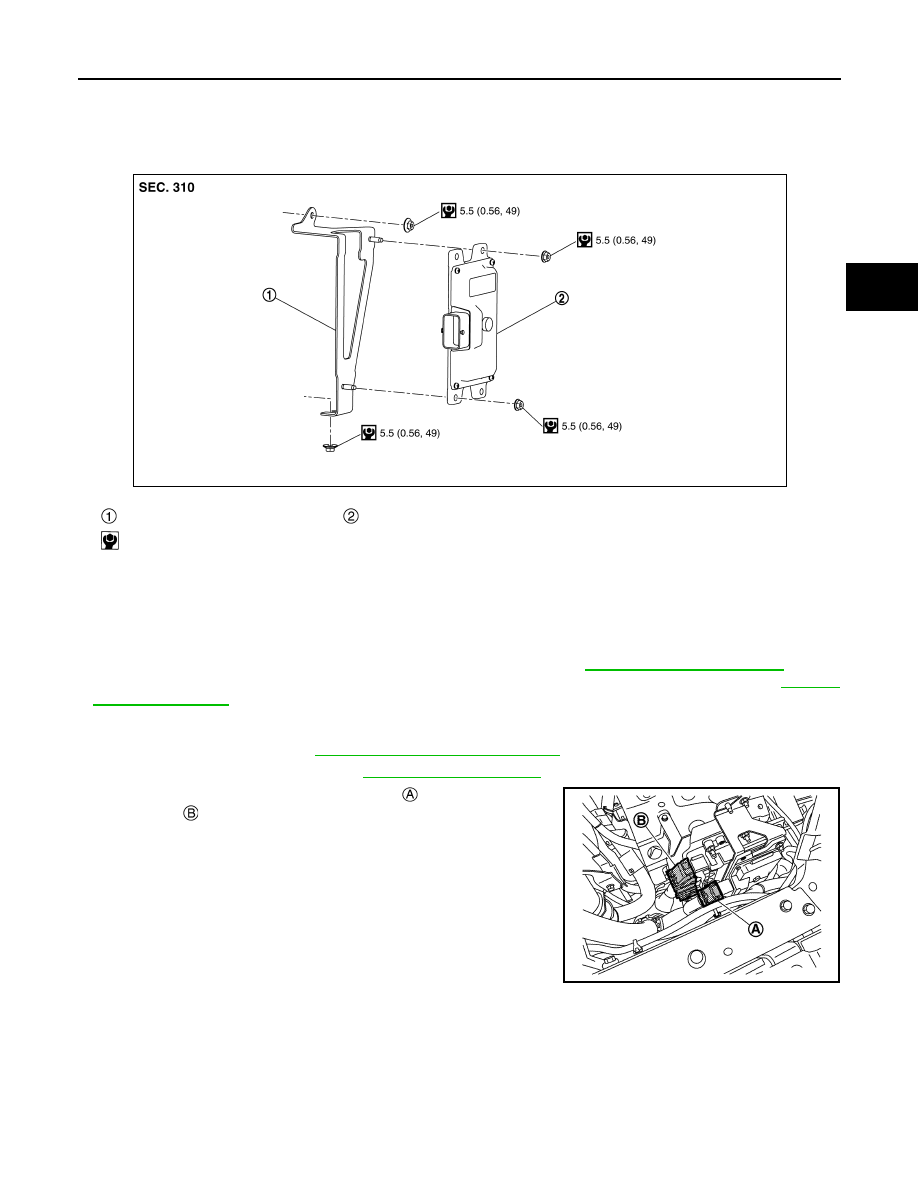

Exploded View

INFOID:0000000010245682

Removal and Installation

INFOID:0000000010245683

CAUTION:

• Never impact the TCM when removing or installing TCM.
• Before replacing TCM and transaxle assembly simultaneously, perform “ADDITIONAL SERVICE

WHEN REPLACING TCM AND TRANSAXLE ASSEMBLY”. Refer to

TM-504, "Work Procedure"

.

• Before replacing TCM, perform “ADDITIONAL SERVICE WHEN REPLACING TCM”. Refer to

TM-500,

"Work Procedure"

.

REMOVAL

1.

Remove the battery. Refer to

PG-155, "Removal and Installation"

2.

Remove the air duct (inlet). Refer to

EM-380, "Exploded View"

.

3.

Disconnect the TCM harness connector

 and ECM harness

connector .

Bracket

TCM

: N·m (kg-m, in-lb)

JSDIA5219GB

JSDIA5385ZZ

TM-626

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

TCM

4.

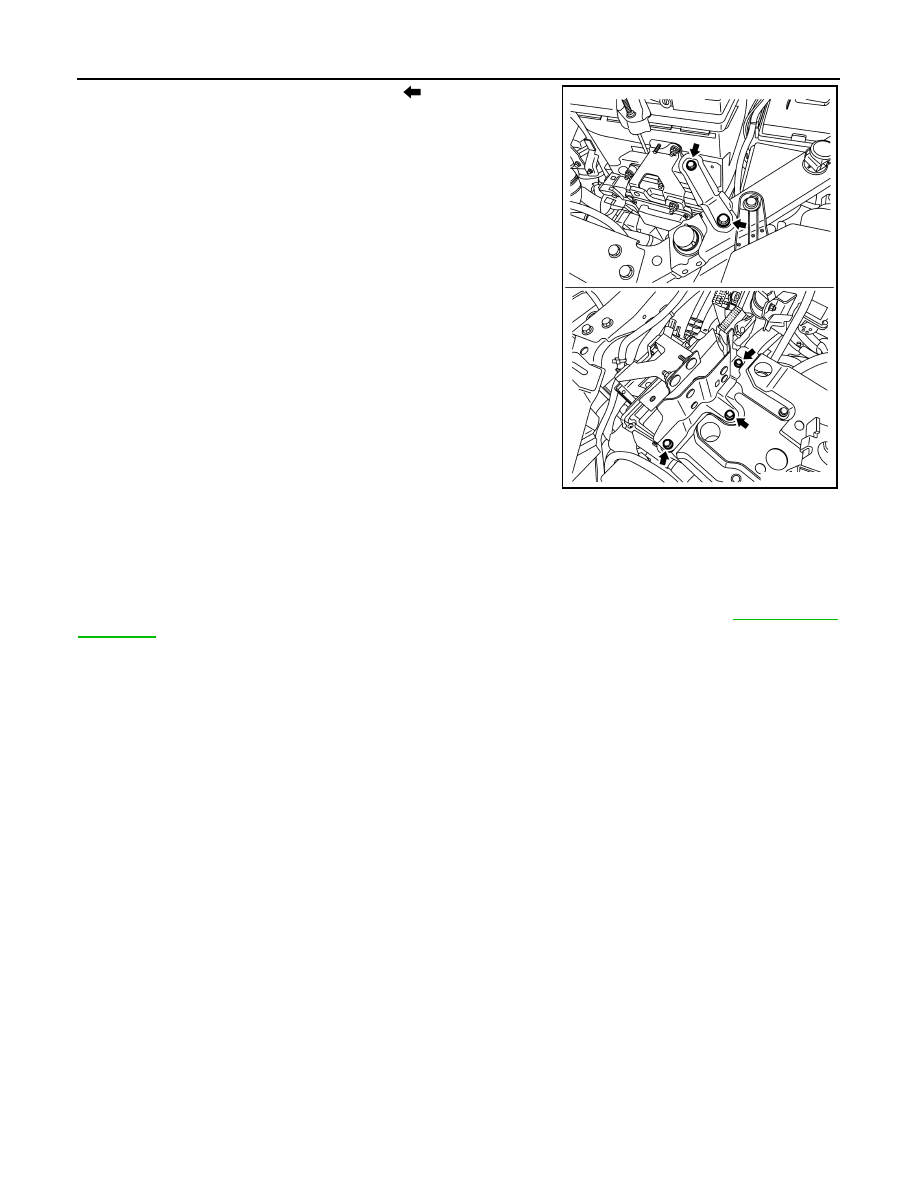

Remove the ECM bracket mounting bolts (

) and remove ECM

bracket from the vehicle.

5.

Remove the TCM mounting nuts and remove TCM from bracket.

INSTALLATION

Installation is in the reverse order of removal.

Adjustment

INFOID:0000000010245684

ADJUSTMENT AFTER INSTALLATION

When replacing TCM, perform "ADDITIONAL SERVICE WHEN REPLACING TCM". Refer to

TM-500, "Work

Procedure"

.

JSDIA5386ZZ
