TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

TM-419

< UNIT DISASSEMBLY AND ASSEMBLY >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

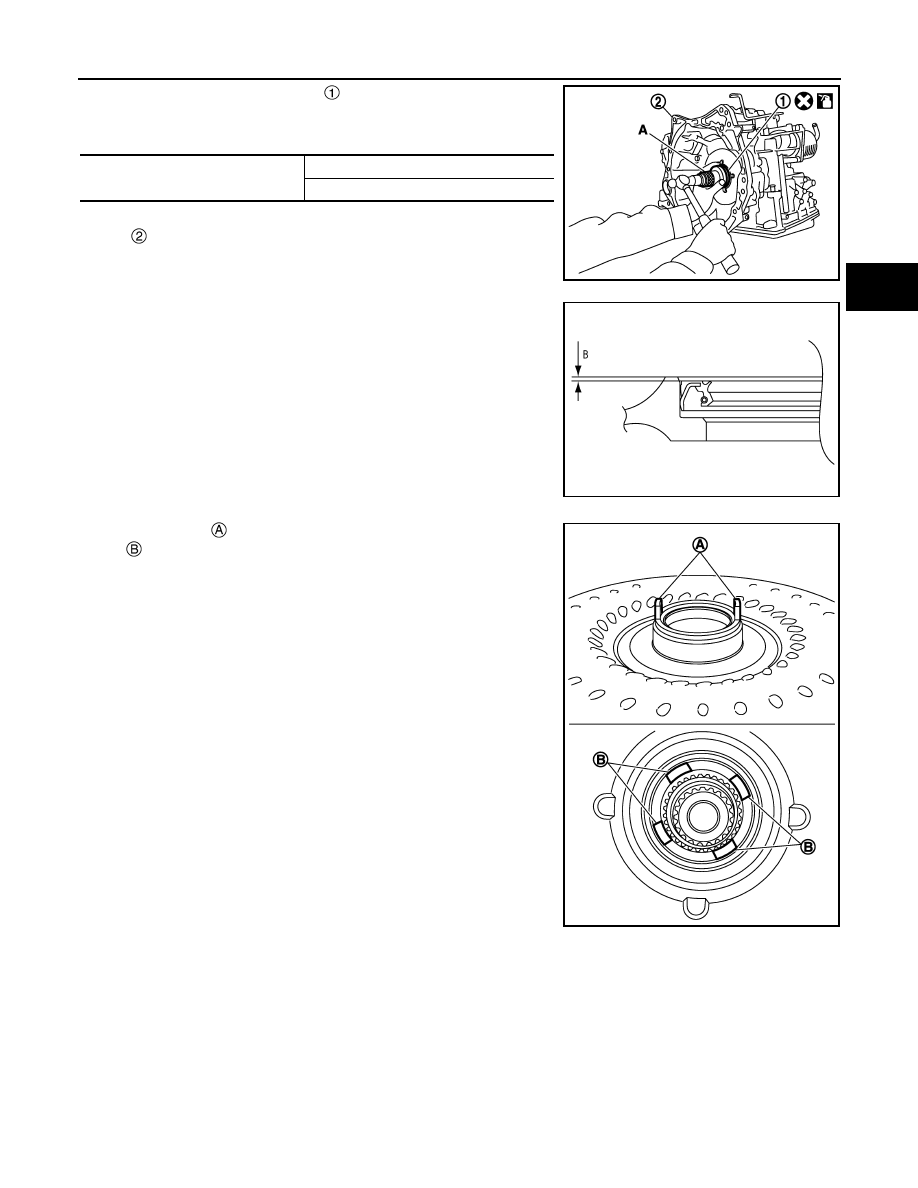

• Drive converter housing oil seal

 evenly using a drift (A) (com-

mercial service tool) so that converter housing oil seal protrudes by
the dimension (B) respectively.

Unit: mm (in)

NOTE:
Converter housing oil seal pulling direction is used as the refer-
ence.

• Attach the pawl

 of the torque converter to the drive sprocket

hole

 on the transaxle assembly side.

CAUTION:

• Rotate the torque converter for installing torque converter.
• Never damage the bushing inside the torque converter

sleeve when installing the converter housing oil seal.

Inspection

INFOID:0000000010589413

INSPECTION AFTER INSTALLATION

Commercial service tool: (A)

Outer diameter: 65 (2.56)

Inner diameter: 60 (2.36)

: Transaxle assembly

SCIA7908J

Dimension (B)

: 1.0

±

 0.5 mm (0.039

±

 0.020 in)

SCIA7909J

SCIA7907J

TM-420

< UNIT DISASSEMBLY AND ASSEMBLY >

[CVT: RE0F10D]

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

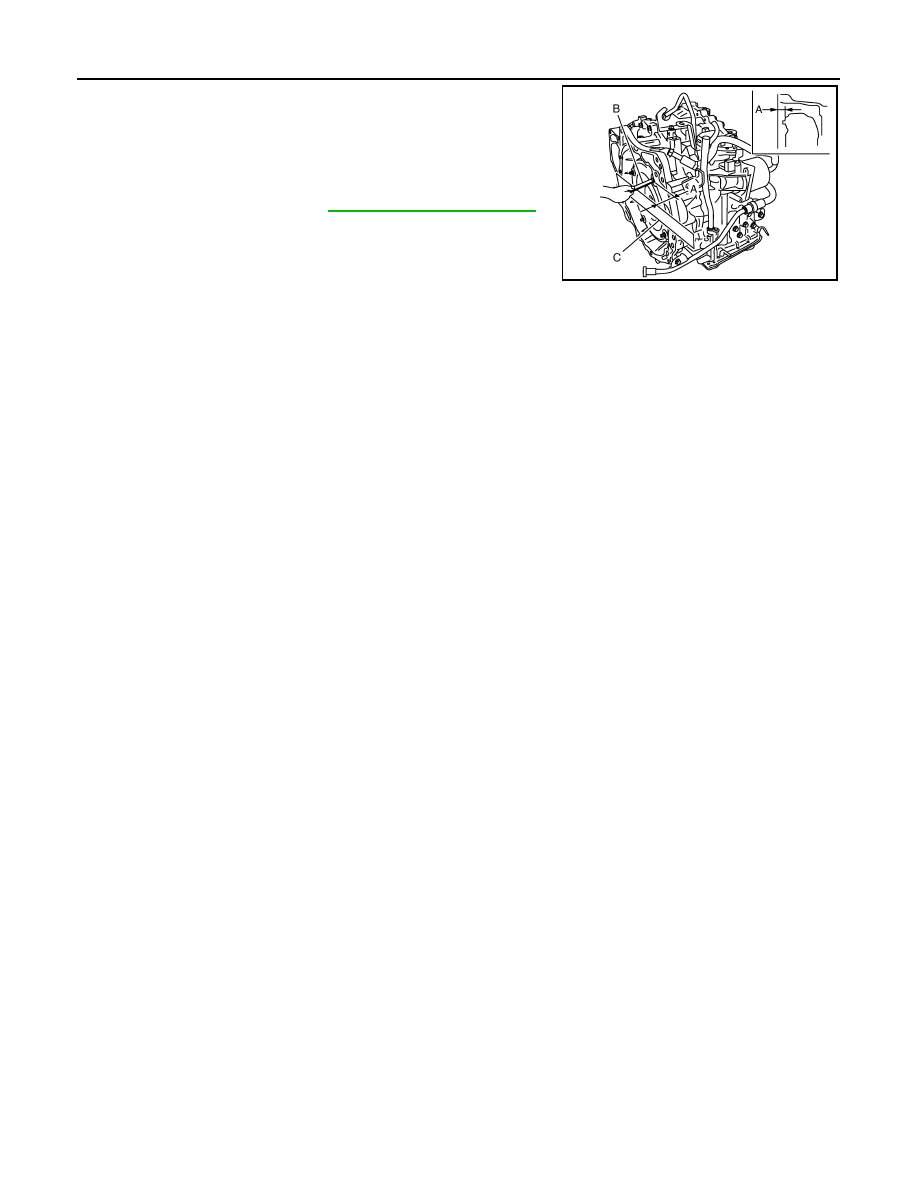

• After inserting a torque converter to the CVT, check dimension (A)

with in the reference value limit.

B

:  Scale

C

: Straightedge

Dimension (A)

: Refer to

TM-421, "Torque Converter"

.

JPDIA0115ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-421

< SERVICE DATA AND SPECIFICATIONS (SDS)

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000010589414

Shift Characteristics

INFOID:0000000010589415

Unit: rpm

*: With ECO mode switch
NOTE:
Lock-up is engaged at the vehicle speed of approximately 14 km/h (8 MPH) to 130 km/h (81 MPH).

Stall Speed

INFOID:0000000010589416

Unit: rpm

Torque Converter

INFOID:0000000010589417

Unit: mm (in)

Heater Thermostat

INFOID:0000000010589418

Standard

Reference value

Applied model

Engine

MR20DE

Axle

2WD/4WD

Transaxle model

RE0F10D

Transaxle gear ratio

D position

2.631 – 0.378

R position

1.960

Final drive

6.386

Recommended fluid

MA-59, "Fluids and Lubricants"

Fluid capacity litter (Imp qt)

Approx. 7.9 (7)

 Throttle position

Shift pattern

CVT input speed

At 40 km/h (25 MPH)

At 60 km/h (37 MPH)

2/8

“D” position (Normal)

1,720 – 3,400

1,780 – 3,800

“D” position (ECO mode*)

1,720 – 3,400

1,780 – 3,800

8/8

“D” position (Normal)

3,200 – 4,250

3,780 – 5,920

“D” position (ECO mode*)

3,200 – 4,250

3,780 – 5,920

Stall speed

2,520 – 2,980

Dimension “A” between the converter housing and torque converter

14.4 (0.567)

Valve lift

More than 5.0 mm (0.197 in)

Valve opening temperature

69 – 73

°

C (156 – 163

°

F)

Minimum valve lift

5.0 mm/85

°

C (0.197 in/185

°

F)

TM-422

< HOW TO USE THIS MANUAL >

[CVT: RE0F10G]

APPLICATION NOTICE

HOW TO USE THIS MANUAL

APPLICATION NOTICE

Information

INFOID:0000000010497498

• Both “VDC” and “ESP” are used in this manual. These indicate the same system.
• In this manual, “Idling Stop System” is referred to as “Stop/Start System”.
