MAINSHAFT AND GEAR

TM-191

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

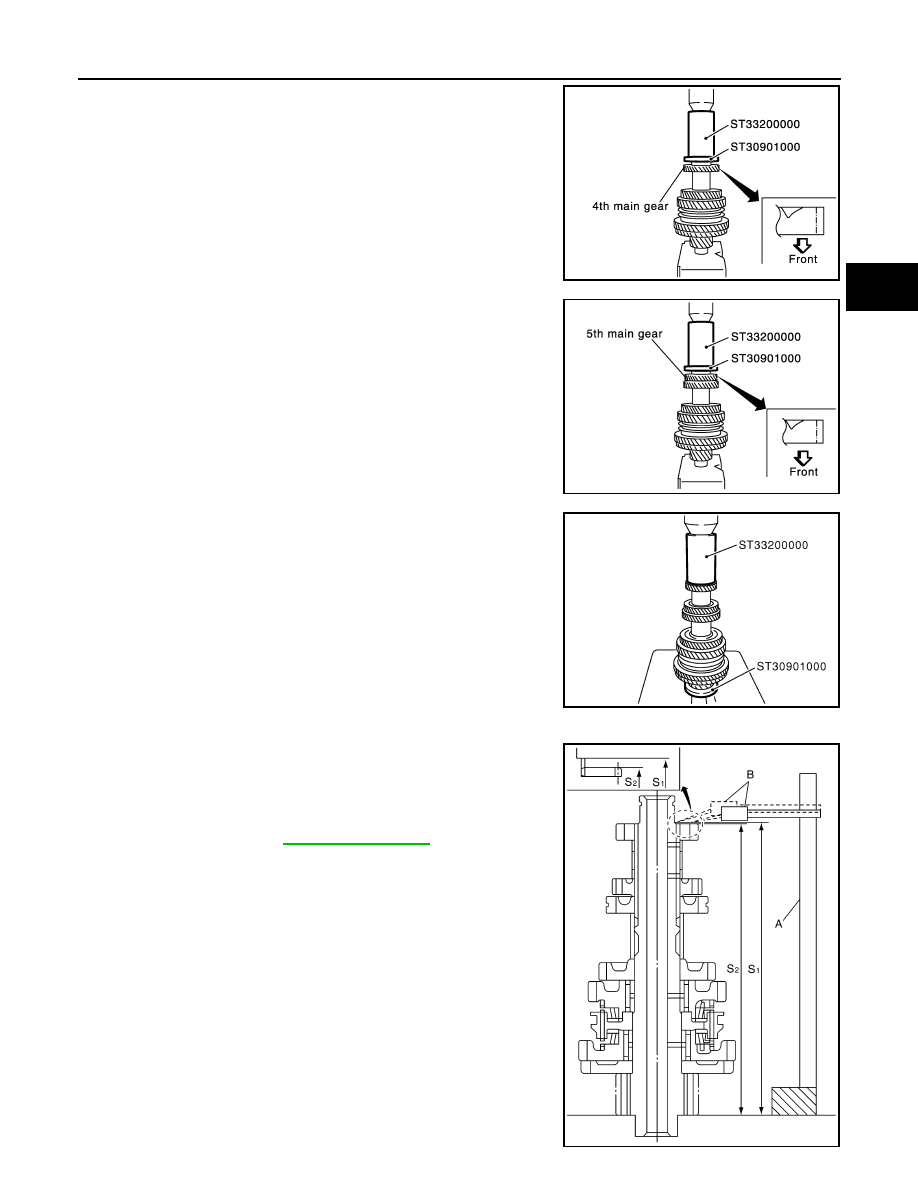

12. Press in 4th main gear using the drifts.

CAUTION:

• Be careful with orientation of 4th main gear.
• Never reuse 4th main gear.

13. Press in 5th main gear using the drifts.

CAUTION:

• Be careful with orientation of 5th main gear.
• Never reuse 5th main gear.

14. Install 5th-6th mainshaft spacer.

15. Press in 6th main gear using the drifts.

CAUTION:

Never reuse 6th main gear.

16. Select 6th main gear adjusting shim and then install it onto mainshaft.

• Calculate thickness “S” of 6th main gear adjusting shim follow-

ing the procedure below so that end play dimension between
6th main gear and mainshaft rear bearing becomes the dimen-
sion shown below.

CAUTION:

Only one adjusting shim can be selected.

a.

Measure dimension “S

1

” and “S

2

” using a height gauge (A) and

pick tester (B).

b.

Install selected 6th main gear adjusting shim to mainshaft.

SCIA0945E

SCIA0946E

SCIA0977E

End play

:Refer to

TM-207, "End Play"

.

Dimension “S” = (S

1

 - S

2

) - End play

S

: Thickness of adjusting shim

S

1



: Dimension from mainshaft standard face to
mainshaft rear bearing press-fit end face

S

2



: Dimension from mainshaft standard face to
6th main gear end face

PCIB1887E

TM-192

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

MAINSHAFT AND GEAR

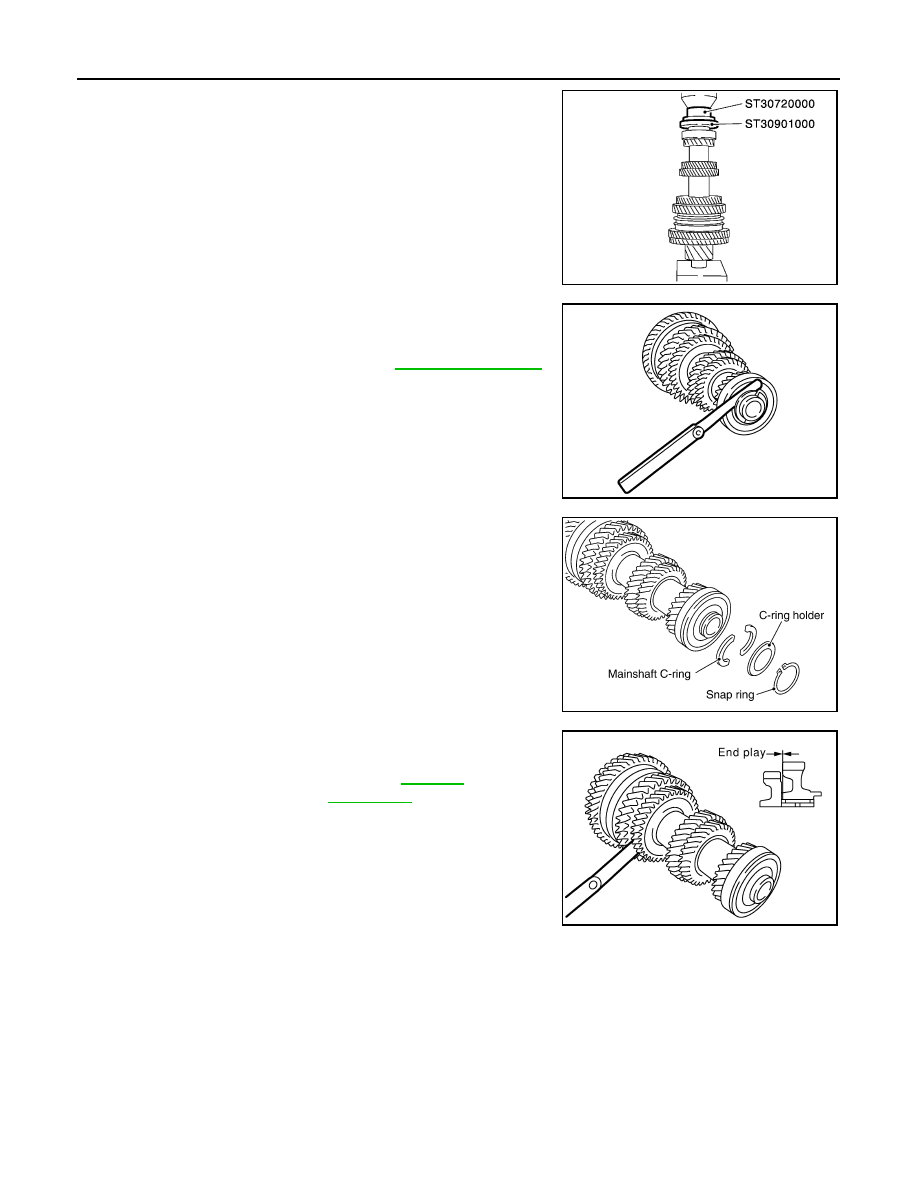

17. Press in mainshaft rear bearing using the drifts.

18. Install mainshaft C-rings onto mainshaft and check that end play

of mainshaft rear bearing satisfies the standard value.

• If measurement is outside the standard range, reselect main-

shaft C-rings.

19. Install C-ring holder and then install snap ring.

CAUTION:

Never reuse snap ring.

20. Check end play of 1st and 2nd main gears.

Inspection

INFOID:0000000010288526

MAINSHAFT AND GEAR

SCIA0978E

End play standard value

: Refer to

TM-207, "End Play"

.

SCIA0979E

PCIB0805E

End play standard value

: Refer to

TM-207,

"End Play"

.

SCIA0973E

MAINSHAFT AND GEAR

TM-193

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

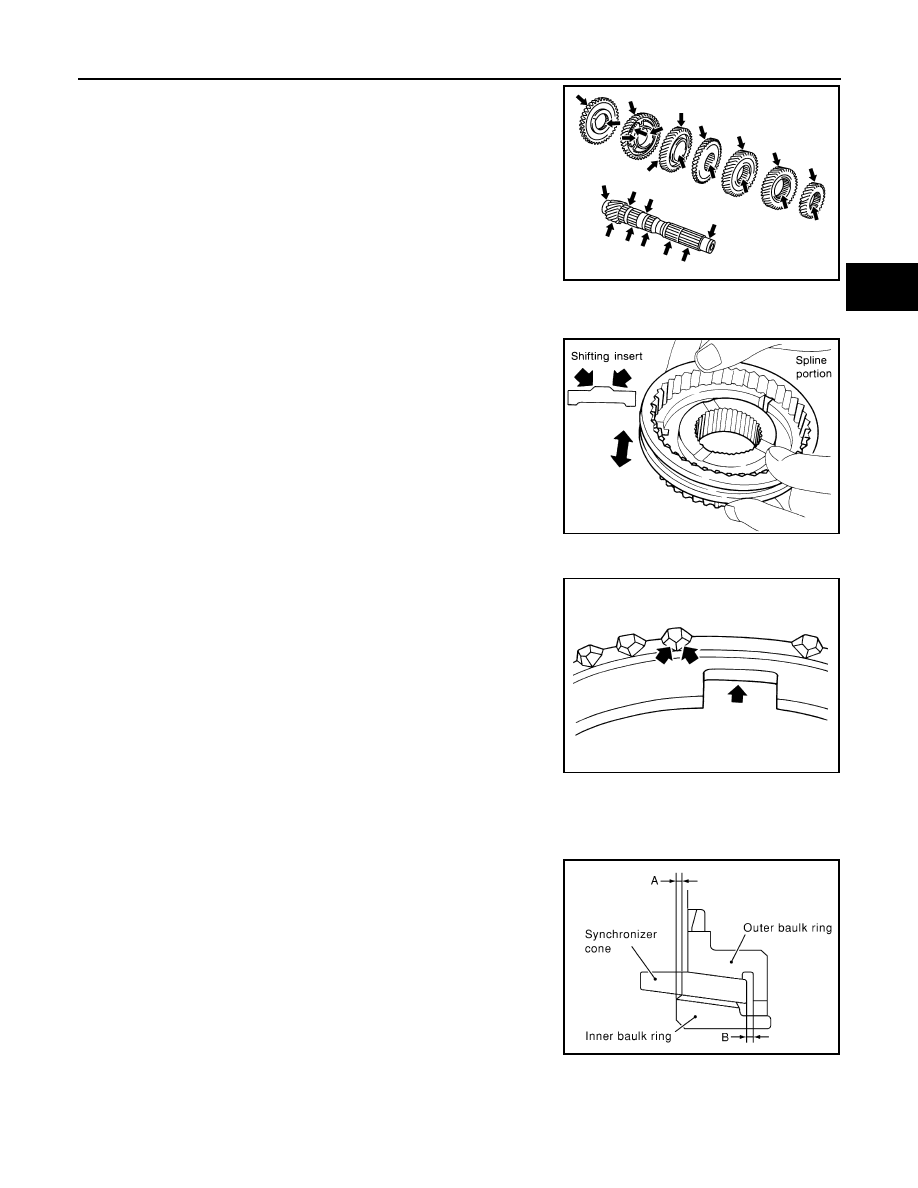

Check items below. If necessary, replace them with new ones.
• Damage, peeling, dent, uneven wear, bending, etc. of shaft
• Excessive wear, damage, peeling, etc. of gears
• Excessive wear, damage, peeling, etc. of cam side of clutch gears

SYNCHRONIZER

Synchronizer Hub and Coupling Sleeve

Check items below. If necessary, replace them with new ones.
• Damage and unusual wear on contact surfaces of coupling sleeve,

synchronizer hub and shifting insert.

• Coupling sleeve and synchronizer hub must move smoothly.

Baulk Ring and Spread Spring

Check items below. If necessary, replace them with new ones.
• If any crack, damage, or excessive wear is found on cam face of

baulk ring or working face of insert, replace it.

Baulk Ring Clearance for Double Cone Synchronizer

Check the clearance between outer baulk ring, synchronizer cone,
and inner baulk ring as follows.

CAUTION:

The clearances “A” and “B” are controlled with outer baulk
ring, synchronizer cone, and inner baulk ring as a set. Replace
them as a set if the clearances are outside the limit value.

JPDIC0143ZZ

SMT387A

SMT867D

R9M

: —

SCIA0950E

TM-194

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

MAINSHAFT AND GEAR

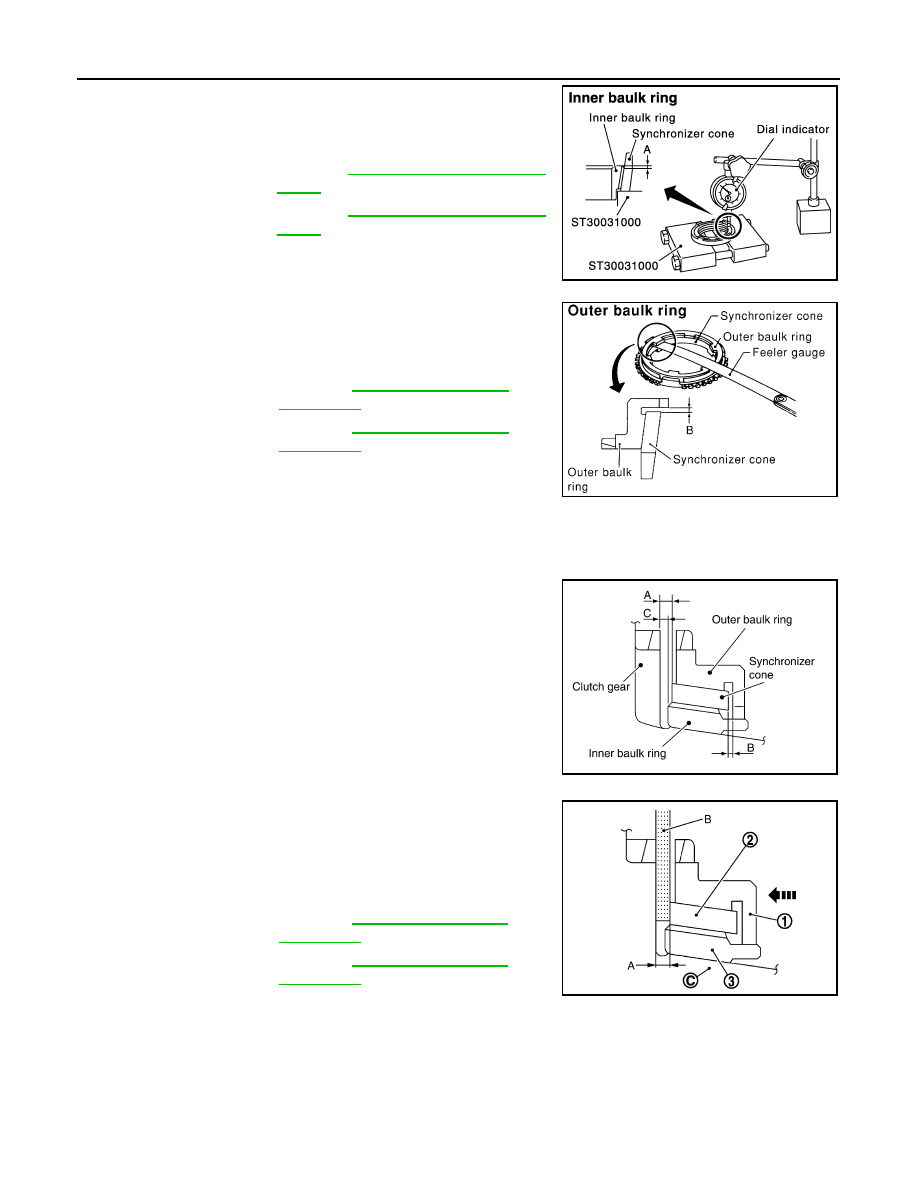

1.

Measure the clearance “A” at 2 points or more diagonally oppo-
site using a dial indicator. And then calculate mean value.

2.

Measure the clearance “B” at 2 points or more diagonally oppo-
site using a feeler gauge. And then calculate mean value.

Baulk Ring Clearance for Triple Cone Synchronizer

Check the clearance between outer baulk ring, synchronizer cone,
and inner baulk ring as follows.

CAUTION:

The clearances “A”, “B”, and “C” are controlled with outer
baulk ring, synchronizer cone, and inner baulk ring as a set.
Replace them as a set if the clearances are outside the limit
value.

1.

Measure the clearance “A” at 2 points or more diagonally oppo-
site using a feeler gauge (B) when pressing outer baulk ring (1),
synchronizer cone (2), and inner baulk ring (3) toward gear taper
cone (C). And then calculate mean value.

Clearance “A”

Standard value

: Refer to

TM-207, "Baulk Ring Clear-

ance"

.

Limit value

: Refer to

TM-207, "Baulk Ring Clear-

ance"

.

SCIA0951E

Clearance “B”

Standard value

: Refer to

TM-207, "Baulk Ring

Clearance"

.

Limit value

: Refer to

TM-207, "Baulk Ring

Clearance"

.

SCIA1084E

R9M

: 1st and 2nd

PCIB1358E

Clearance “A”

Standard value

: Refer to

TM-207, "Baulk Ring

Clearance"

.

Limit value

: Refer to

TM-207, "Baulk Ring

Clearance"

.
