Nissan Qashqai J11. Manual - part 642

CONTROL LINKAGE

TM-143

< REMOVAL AND INSTALLATION >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CONTROL LINKAGE

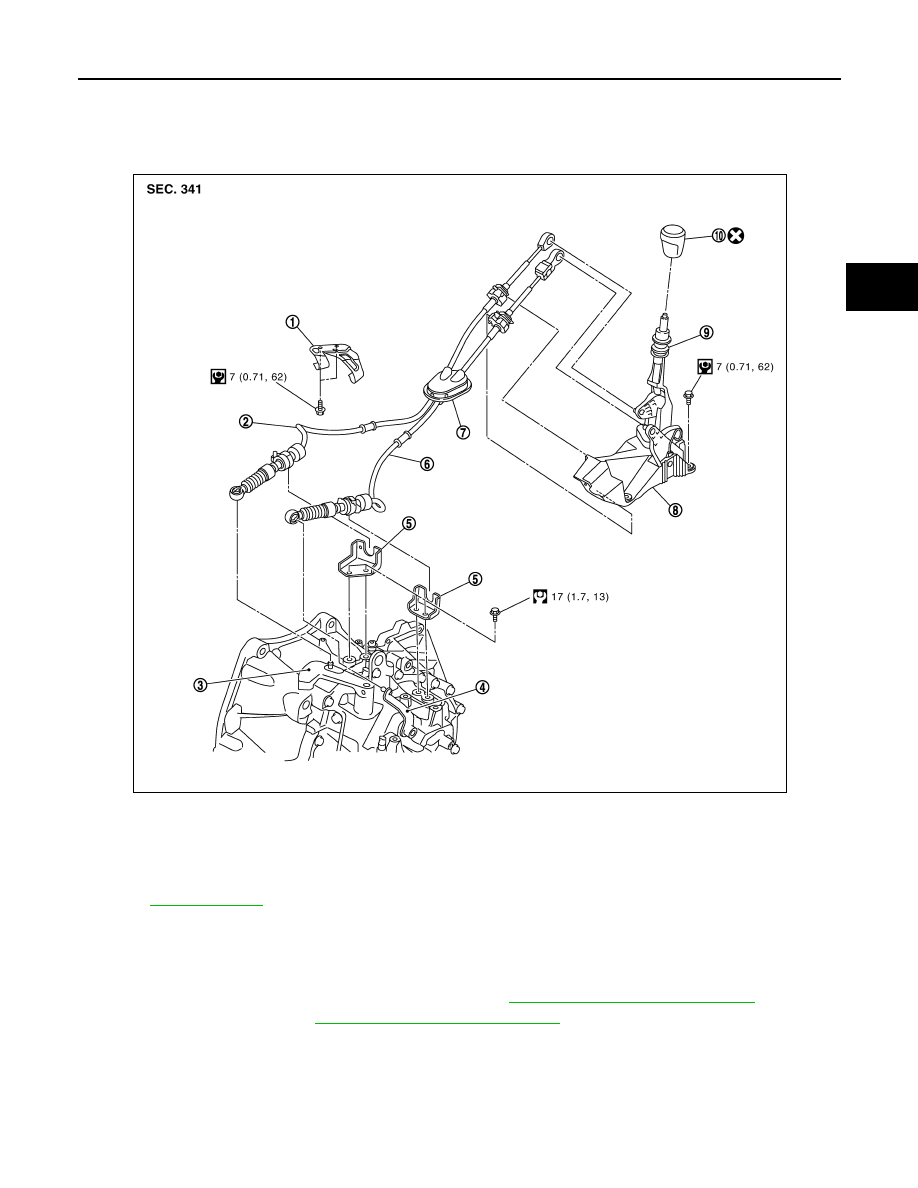

Exploded View

INFOID:0000000010288504

Removal and Installation

INFOID:0000000010288505

REMOVAL

1.

Remove the air cleaner case and air duct (inlet). Refer to

EM-380, "Removal and Installation"

.

2.

Remove the battery. Refer to

PG-155, "Removal and Installation"

.

1.

Bracket

2.

Shift cable

3.

Shifter lever A

4.

Selector lever

5.

Cable mounting bracket

6.

Select cable

7.

Grommet

8.

Control device assembly

9.

Control lever

10. Control lever knob

Refer to

GI-4, "Components"

 for the symbols in the figure.

JPDIC0056GB

TM-144

< REMOVAL AND INSTALLATION >

[6MT: RS6F52A]

CONTROL LINKAGE

3.

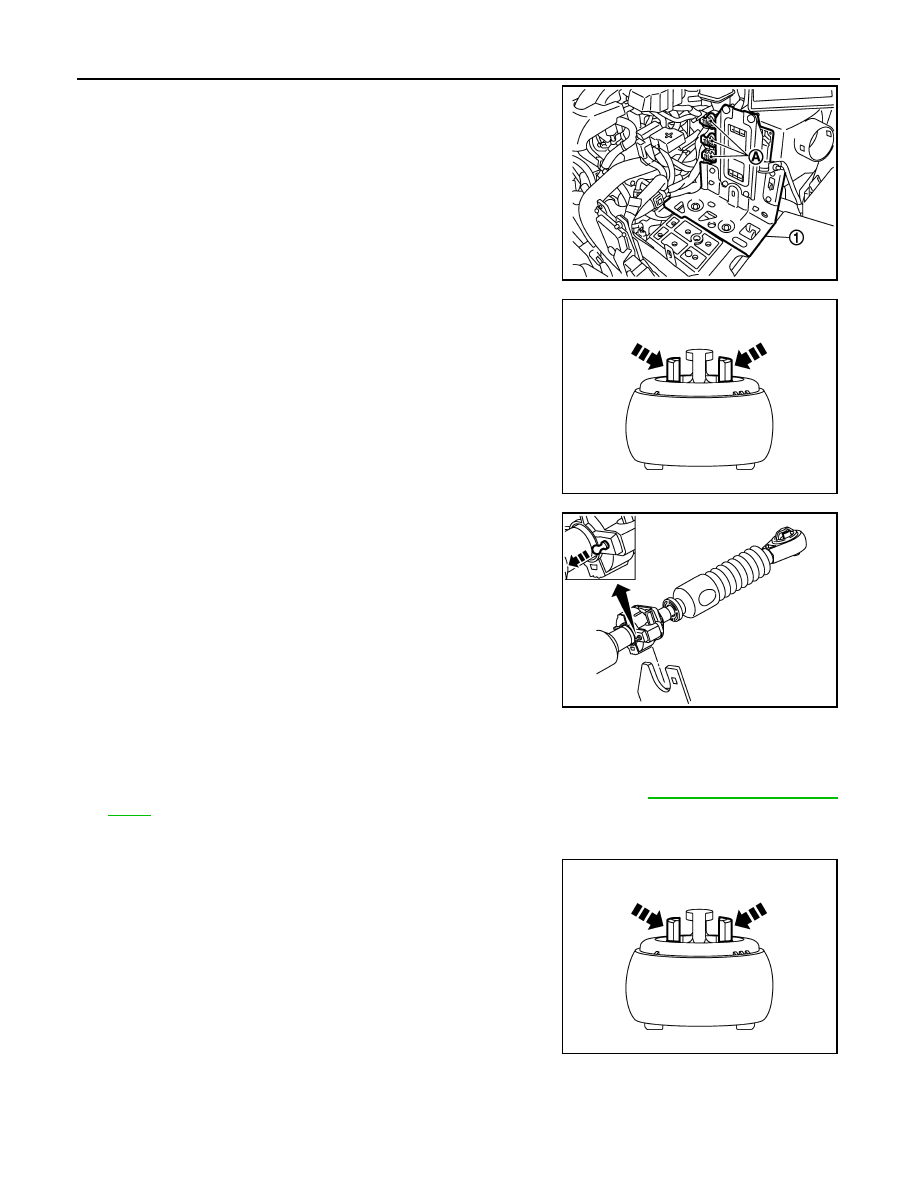

Disconnect connectors (A) and then remove bracket (1).

4.

While pressing the lock of the select cable in the direction of the
arrow shown in the figure, remove the select cable from the
selector lever.

5.

While pressing the lock of the shift cable in the direction of the
arrow shown in the figure, remove the shift cable from the shifter
lever A.

6.

While pulling the lock of the select cable in the direction of the
arrow shown in the figure, remove the select cable from the
cable mounting bracket.

7.

While pulling the lock of the shift cable in the direction of the
arrow shown in the figure, remove the shift cable from the cable
mounting bracket.

8.

Remove the control lever knob:

• Push the lever knob ornament to the top, then remove it,
• Turn the control lever knob to the left, then remove it.

9.

Remove console finisher assembly and the center console assembly. Refer to

IP-19, "Removal and Instal-

lation"

.

10. Shift the control lever to the neutral position.

11. While pressing the lock of the select cable in the direction of the

arrow shown in the figure, remove the select cable from the con-
trol device assembly.

12. While pressing the lock of the shift cable in the direction of the

arrow shown in the figure, remove the shift cable from the con-
trol device assembly.

JPDIA0240ZZ

JPDIC0066ZZ

JPDIC0067ZZ

JPDIC0066ZZ

CONTROL LINKAGE

TM-145

< REMOVAL AND INSTALLATION >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

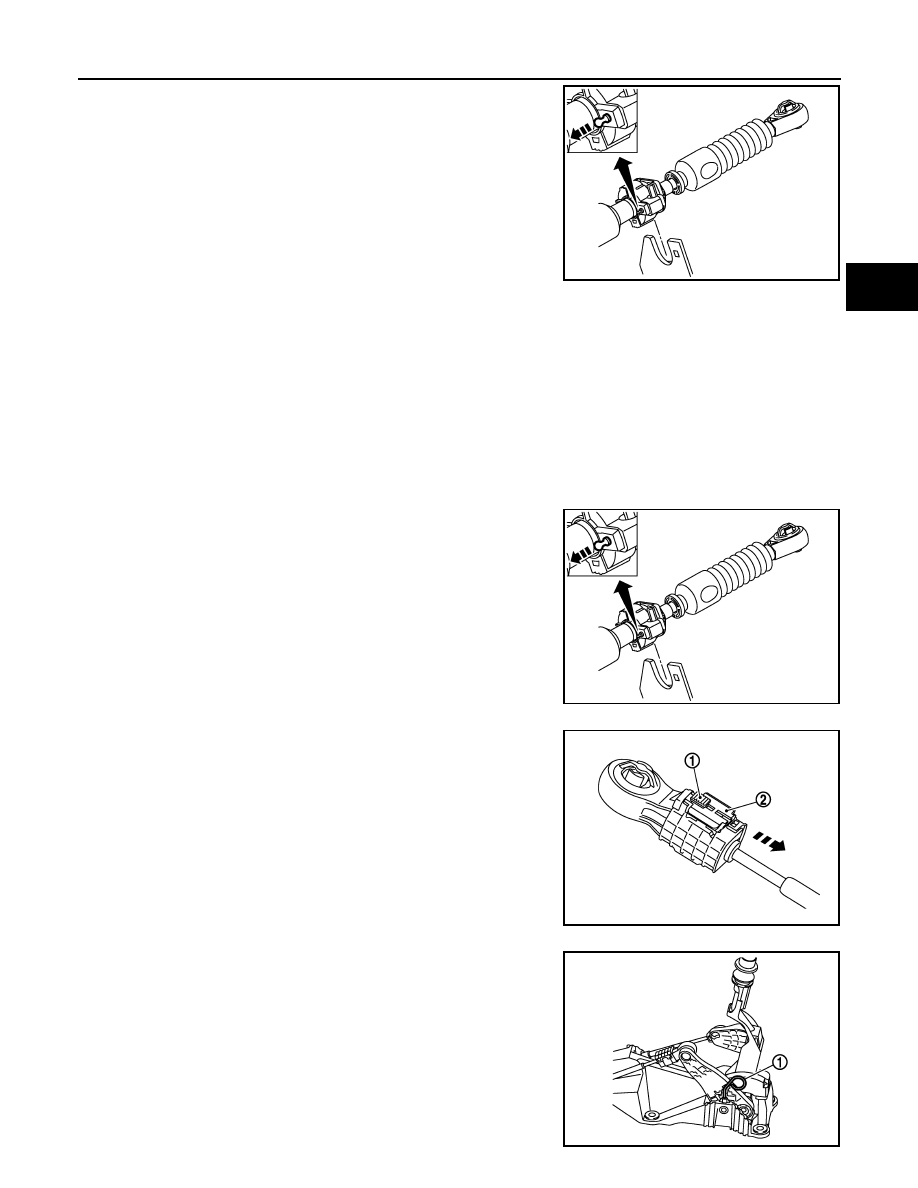

13. While pulling the lock of the select cable in the direction of the

arrow shown in the figure, remove the select cable from the con-
trol device assembly.

14. While pulling the lock of the shift cable in the direction of the

arrow shown in the figure, remove the shift cable from the con-
trol device assembly.

15. Remove the control device assembly.

16. Remove the heat plate.

17. Remove the bracket.
18. Remove the grommet and then remove the shift cable and

select cable from the vehicle.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Shift the control lever to the neutral position.
• Securely assemble each cable and the selector lever and shifter lever A.
• Securely assemble each cable and the cable mounting bracket.
• Securely assemble each cable and the control device assembly.
• Make sure that the claws of grommet are in contact with the floor.
• Be careful about the installation direction and push the control lever knob into the control lever.

CAUTION:

Never reuse control lever knob.

Install the select cable (the control device assembly side) with the following procedure.

1.

While pulling the lock of the select cable in the direction of the
arrow shown in the figure, install the select cable to the control
device assembly.

2.

Slide the lock (1) of the select cable in the direction of the arrow
as shown in the figure to pull up the stopper (2) of the select
cable.

3.

Install the end of the select cable to the pin of the control device
assembly.

4.

Install the lever stopper pin (1) or a pin [3 mm (0.12 in) dia.] to
the control device assembly.

CAUTION:

Select cable cannot be adjusted accurately without a use of
a lever stopper pin or a pin [3 mm (0.12 in) dia.].
NOTE:
A lever stopper pin is not included in control device assembly.
Therefore, if the control device assembly is not replaced, pre-
pare a pin [3 mm (0.12 in) dia.].

5.

Check that the control lever does not move in the direction of the
select. If it moves, repeat step 3.

JPDIC0067ZZ

JPDIC0067ZZ

JPDIC0064ZZ

JPDIC0069ZZ

TM-146

< REMOVAL AND INSTALLATION >

[6MT: RS6F52A]

CONTROL LINKAGE

6.

Shift the control lever to 4th gear position.

7.

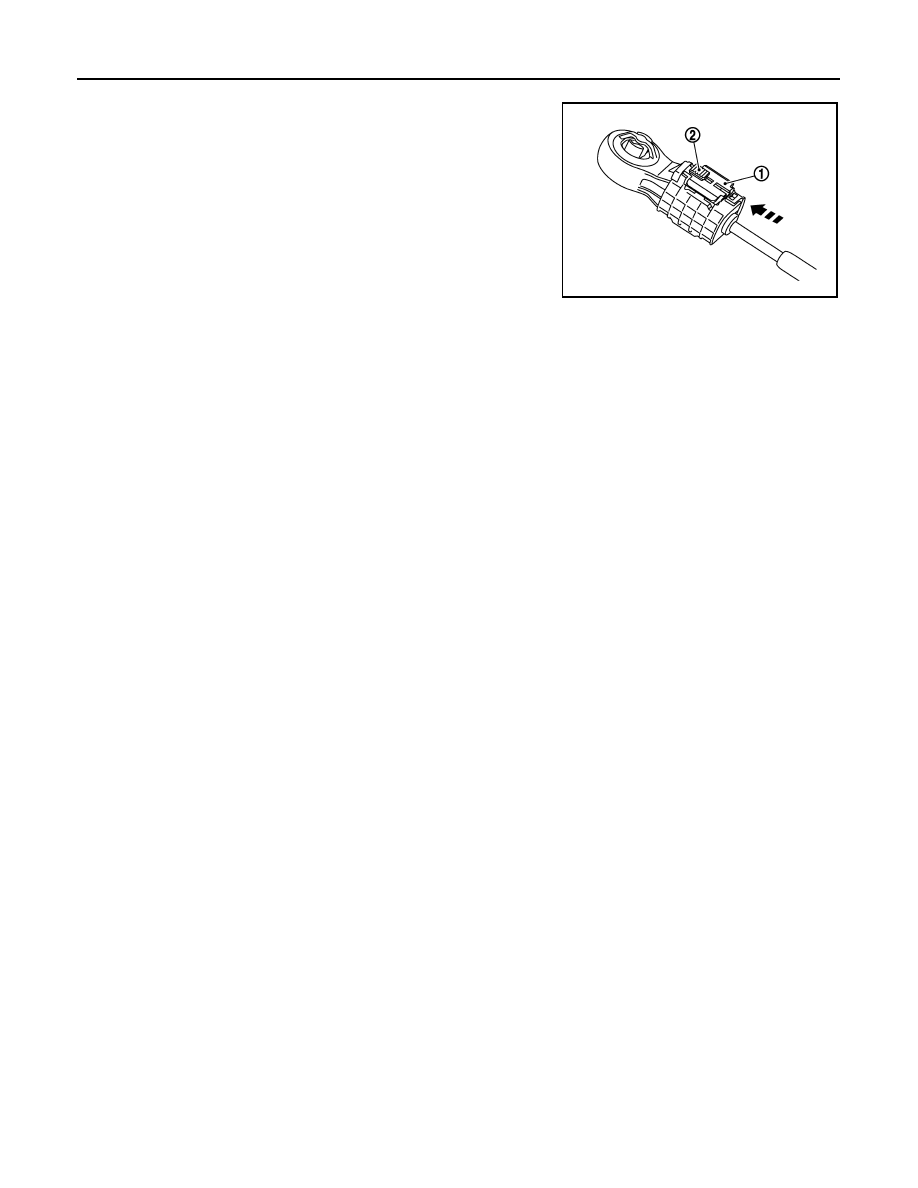

With the stopper (1) of the select cable pressed into all the way,
slide lock (2) of the select cable all the way in the direction of the
arrow.

8.

Remove the lever stopper pin or a pin [3 mm (0.12 in) dia.] from
the control device assembly.

9.

Shift the control lever to each gear position to check that there is
no bindings. If any, repeat step 3.

Inspection

INFOID:0000000010288506

After installing, confirm the following items:
• When the control lever is shifted to 1st-2nd side and 5th-6th side, confirm the control lever returns to neutral

position smoothly.

• When the control lever is shifted to each position, make sure there is no binding or disconnection in each

boot.

JPDIC0065ZZ
