Nissan Qashqai J11. Manual - part 641





PREPARATION

TM-139

< PREPARATION >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

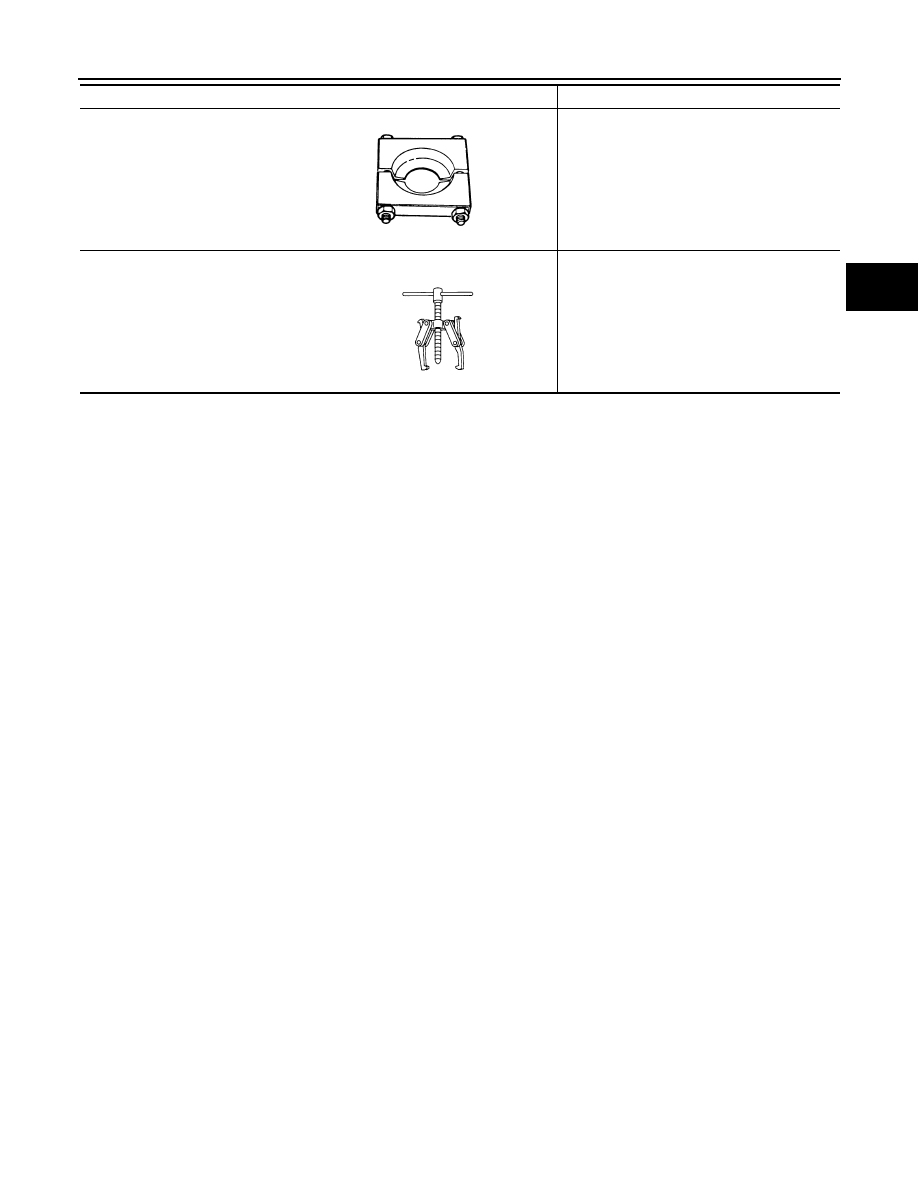

Puller

Removing each bearing, gear, and bushing

Puller

Removing each bearing, gear, and bushing

Tool name

Description

ZZA0537D

NT077

TM-140

< PERIODIC MAINTENANCE >

[6MT: RS6F52A]

GEAR OIL

PERIODIC MAINTENANCE

GEAR OIL

4WD

4WD : Exploded View

INFOID:0000000010288498

Refer to

TM-150, "4WD : Exploded View"

.

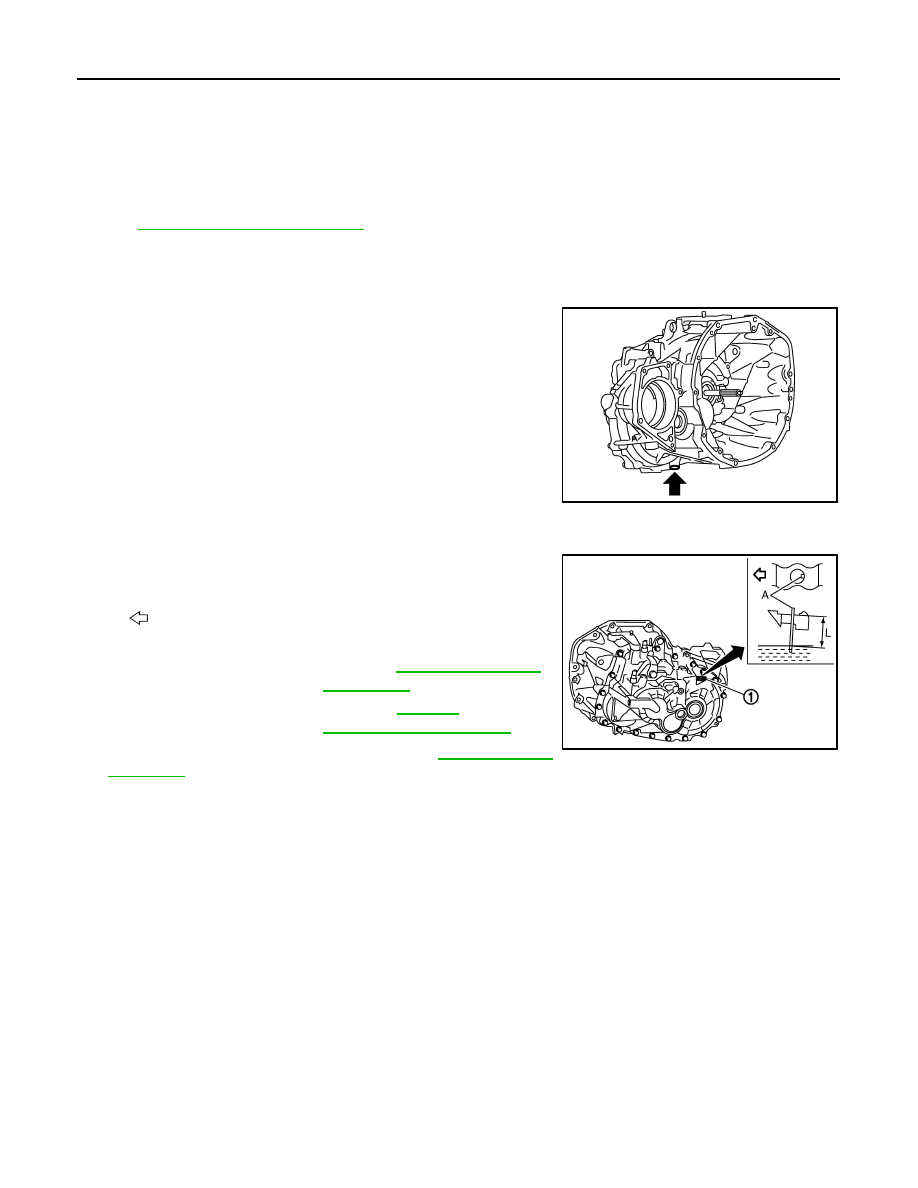

4WD : Draining

INFOID:0000000010288499

1.

Start engine and let it run to warm up transaxle.

2.

Stop engine. Remove drain plug and then drain gear oil.

3.

Set a gasket on drain plug and install it to clutch housing.
Tighten drain plug to the specified torque.

CAUTION:

Never reuse gasket.

4WD : Refilling

INFOID:0000000010288500

1.

Remove filler plug (1). Fill with new gear oil to transaxle.

2.

After refilling gear oil, check oil level. Refer to

TM-140, "4WD :

Inspection"

.

3.

Set a gasket on filler plug and then install it to transaxle case.

CAUTION:

Never reuse gasket.

4.

Tighten filler plug to the specified torque.

4WD : Inspection

INFOID:0000000010288501

LEAKAGE

Make sure that gear oil is not leaking from transaxle or around it.

LEVEL

JPDIC0073ZZ

A

: Suitable gauge

: Vehicle front

Oil grade and viscosity

: Refer to

MA-59, "Fluids and

Lubricants"

.

Oil capacity (reference)

: Refer to

TM-206,

"General Specifications"

.

JPDIC0139ZZ

GEAR OIL

TM-141

< PERIODIC MAINTENANCE >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

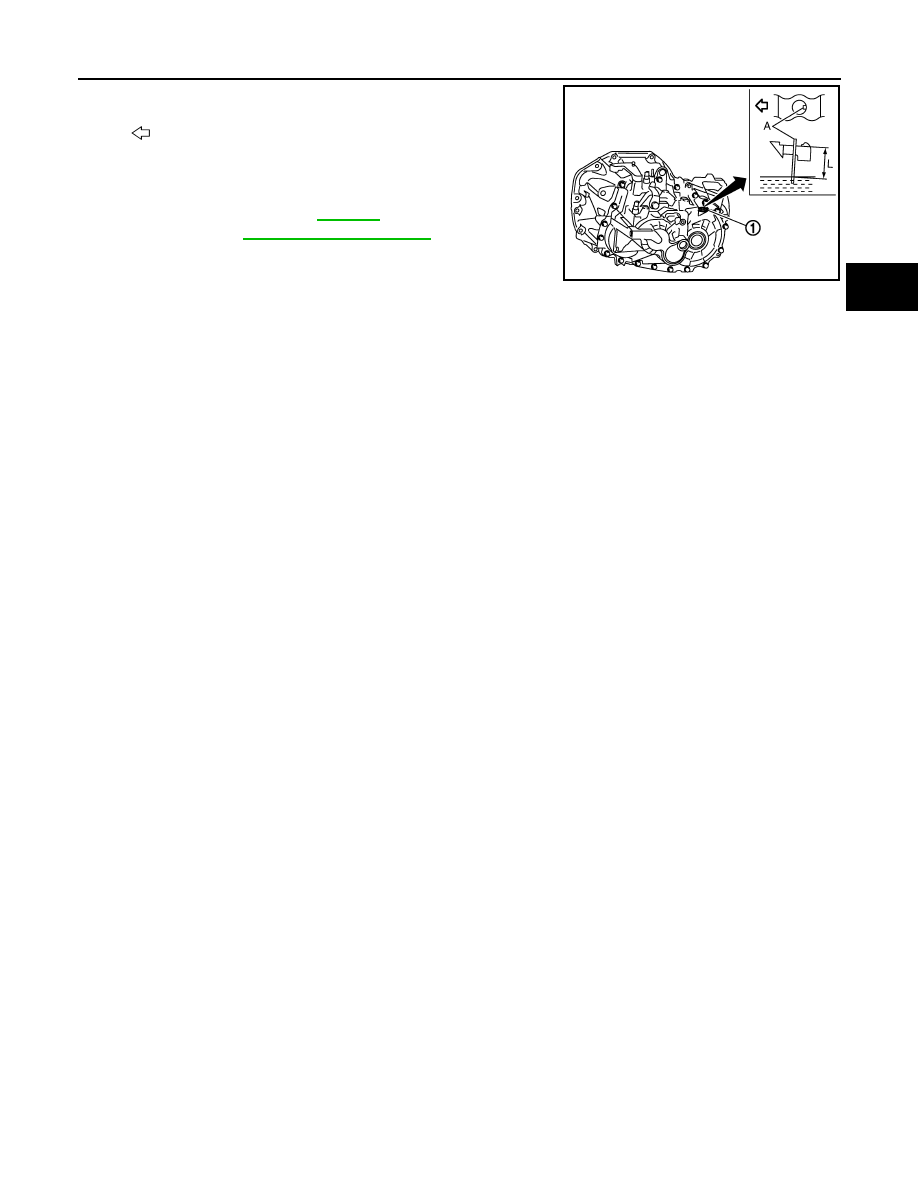

1.

Remove filler plug (1).

2.

Measure oil level using a suitable gauge (A) as shown in the fig-
ure and then check if it is within the specifications.

CAUTION:

• Never start engine while checking oil level.
• Measure suitable gauge according to the wall of the plug

mounting hole.

3.

Set a gasket on filler plug and then install it to transaxle case.

CAUTION:

Never reuse gasket.

4.

Tighten filler plug to the specified torque.

: Vehicle front

Oil level “L”

: Refer to

TM-206,

"General Specifications"

.

JPDIC0139ZZ

TM-142

< REMOVAL AND INSTALLATION >

[6MT: RS6F52A]

SIDE OIL SEAL

REMOVAL AND INSTALLATION

SIDE OIL SEAL

Exploded View

INFOID:0000000010288502

Refer to

TM-150, "4WD : Exploded View"

.

Removal and Installation

INFOID:0000000010288503

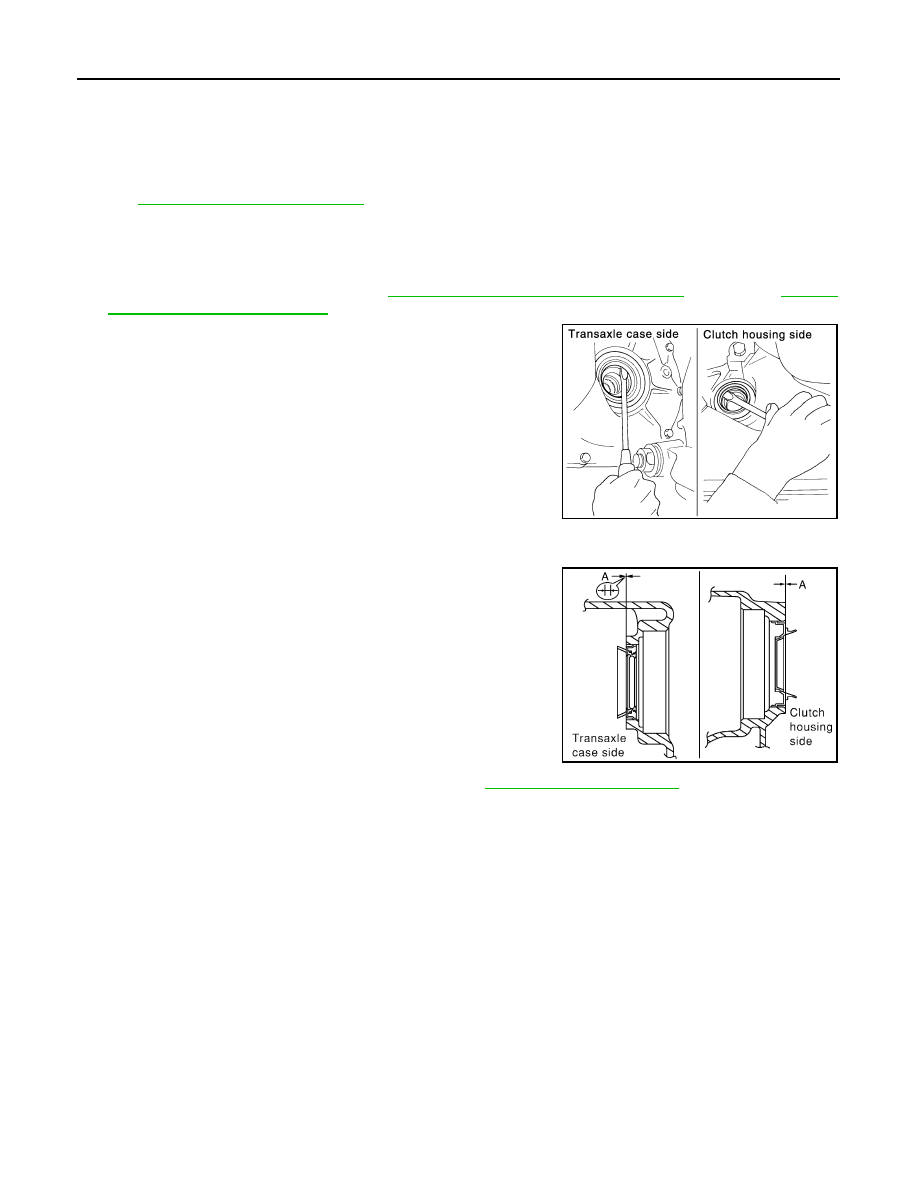

REMOVAL

1.

Remove front drive shafts. Refer to

FAX-22, "Removal and Installation (LH)"

  (4WD),  or

FAX-26,

"Removal and Installation (RH)"

(4WD).

2.

Remove differential side oil seals using a suitable tool.

CAUTION:

Never damage transaxle case and clutch housing.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Install differential side oil seal to transaxle case and clutch housing

using the drift.

CAUTION:

• Never reuse differential side oil seal.
• When installing, never incline differential side oil seal.
• Never damage clutch housing and transaxle case.

• Check oil level and oil leakage after installation. Refer to

TM-140, "4WD : Inspection"

.

SCIA0824E

Dimension “A”

: -0.5 - 0.5 mm (-0.020 - 0.020 in)

Transaxle case side

: Drift [SST: ST30720000]

Clutch housing side

: Drift [SST: ST33400001]

SCIA1010E
