SERVICE DATA AND SPECIFICATIONS (SDS)

TM-127

< SERVICE DATA AND SPECIFICATIONS (SDS)

[6MT: RS6F95R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Engine type

R9M

Transaxle model

RS6F95R

Model code number

4EA2A

Final gear ratio

4.133

Number of teeth

Final gear/Pinion

15/62

Side gear/Pinion mate gear

-

TM-128

< SYSTEM DESCRIPTION >

[6MT: RS6F52A]

M/T SYSTEM

SYSTEM DESCRIPTION

M/T SYSTEM

System Diagram

INFOID:0000000010288484

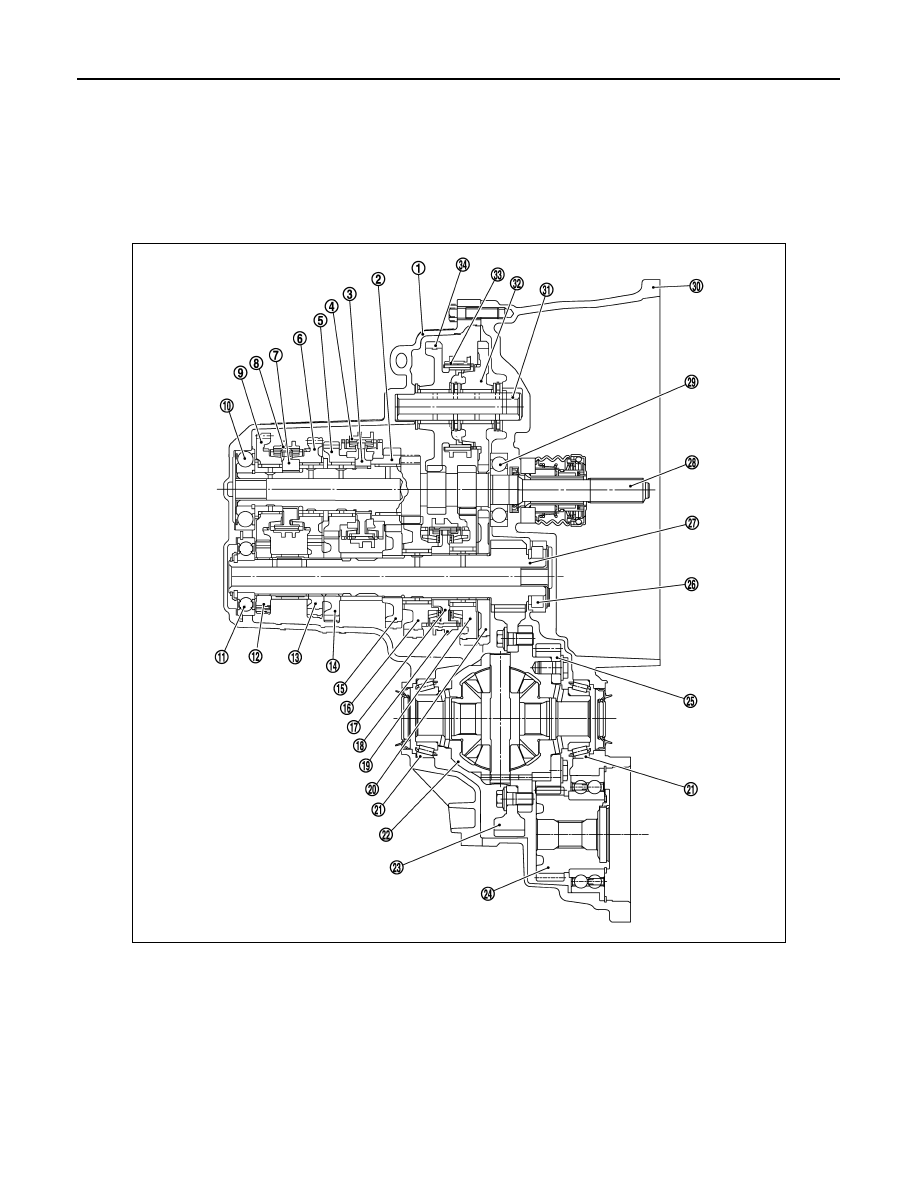

CROSS-SECTIONAL VIEW

4WD

JPDIC0046ZZ

1.

Transaxle case

2.

3rd input gear

3.

3rd-4th synchronizer hub

4.

3rd-4th coupling sleeve

5.

4th input gear

6.

5th input gear

7.

5th-6th synchronizer hub

8.

5th-6th coupling sleeve

9.

6th input gear

10. Input shaft rear bearing

11.

Mainshaft rear bearing

12. 6th main gear

13. 5th main gear

14. 4th main gear

15. 3rd main gear

16. 2nd main gear

17. 1st-2nd synchronizer hub

18. 1st-2nd coupling sleeve

19. 1st main gear

20. Reverse main gear

21. Differential side bearing

22. Differential case assembly

23. Final gear

24. Output gear assembly

25. Reduction gear

26. Mainshaft front bearing

27. Mainshaft

M/T SYSTEM

TM-129

< SYSTEM DESCRIPTION >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

System Description

INFOID:0000000010288485

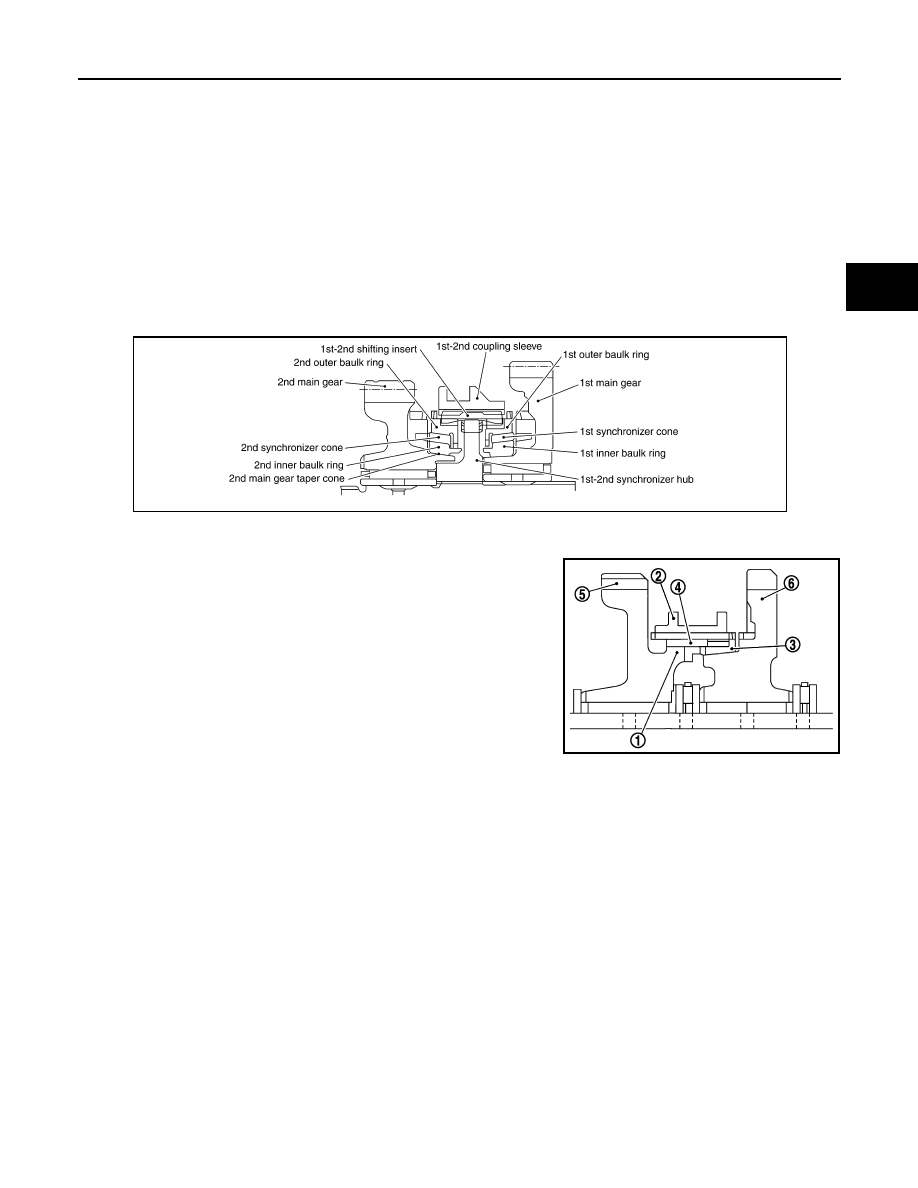

DOUBLE-CONE SYNCHRONIZER

R9M

Double-cone synchronizer is adopted for 3rd gear to reduce operating force of the control lever.

TRIPLE-CONE SYNCHRONIZER

R9M

Triple-cone synchronizer are adopted for 1st and 2nd gears to reduce operating force of the control lever.

REVERSE GEAR NOISE PREVENTION FUNCTION (SYNCHRONIZING METHOD)

Reverse gear can be matched smoothly in a structure by setting syn-
chronizer hub (1) of reverse idler gear (rear), reverse coupling
sleeve (2), reverse baulk ring (3), and reverse insert spring (4) to
reverse idler gears, and letting reverse gear be synchronized.

28. Input shaft

29. Input shaft front bearing

30. Clutch housing

31. Reverse idler shaft

32. Reverse idler gear (front)

33. Reverse coupling sleeve

34. Reverse idler gear (rear)

PCIB1454E

5

: Reverse idler gear (rear)

6

: Reverse idler gear (front)

PCIB1909E

TM-130

< DTC/CIRCUIT DIAGNOSIS >

[6MT: RS6F52A]

BACK-UP LAMP SWITCH

DTC/CIRCUIT DIAGNOSIS

BACK-UP LAMP SWITCH

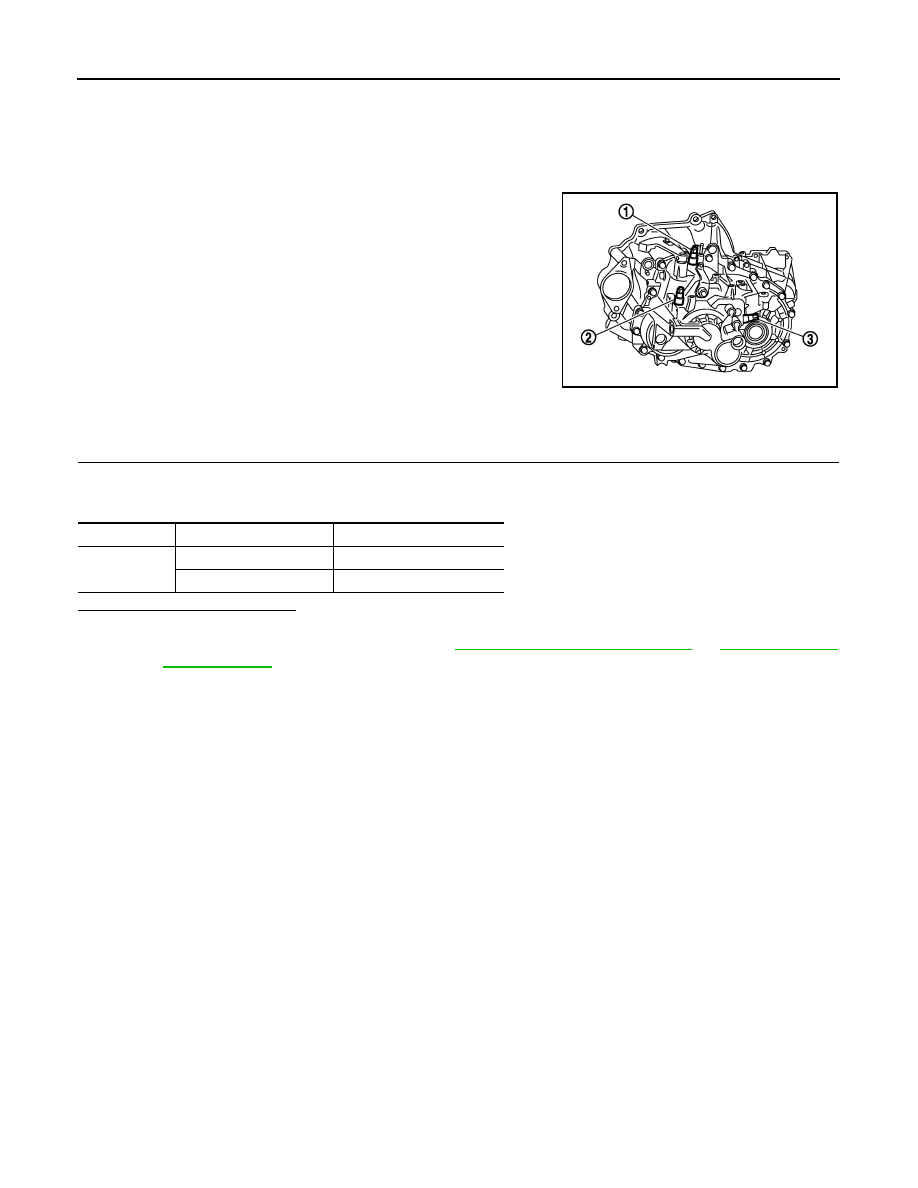

Component Parts Location

INFOID:0000000010288486

Component Inspection

INFOID:0000000010288487

1.

CHECK BACK-UP LAMP SWITCH

Check continuity between back-up lamp switch terminals with control lever turned to 1st to 6th and reverse
position.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace back up lamp switch. Refer to

TM-150, "4WD : Exploded View"

 or

TM-150, "4WD :

Exploded View"

.

1

: Park/Neutral position (PNP) switch

2

: Back-up lamp switch

3

: 1st gear position switch

JPDIC0124ZZ

Terminals

Gear position

Continuity

1 – 2

Reverse

Existed

Except reverse

Not existed
