FINAL DRIVE

TM-123

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F95R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

FINAL DRIVE

Exploded View

INFOID:0000000010428798

Refer to

TM-91, "Exploded View"

.

Disassembly

INFOID:0000000010428799

Refer to

TM-96, "Disassembly"

.

Assembly

INFOID:0000000010428800

Refer to

TM-103, "Assembly"

.

Adjustment

INFOID:0000000010478355

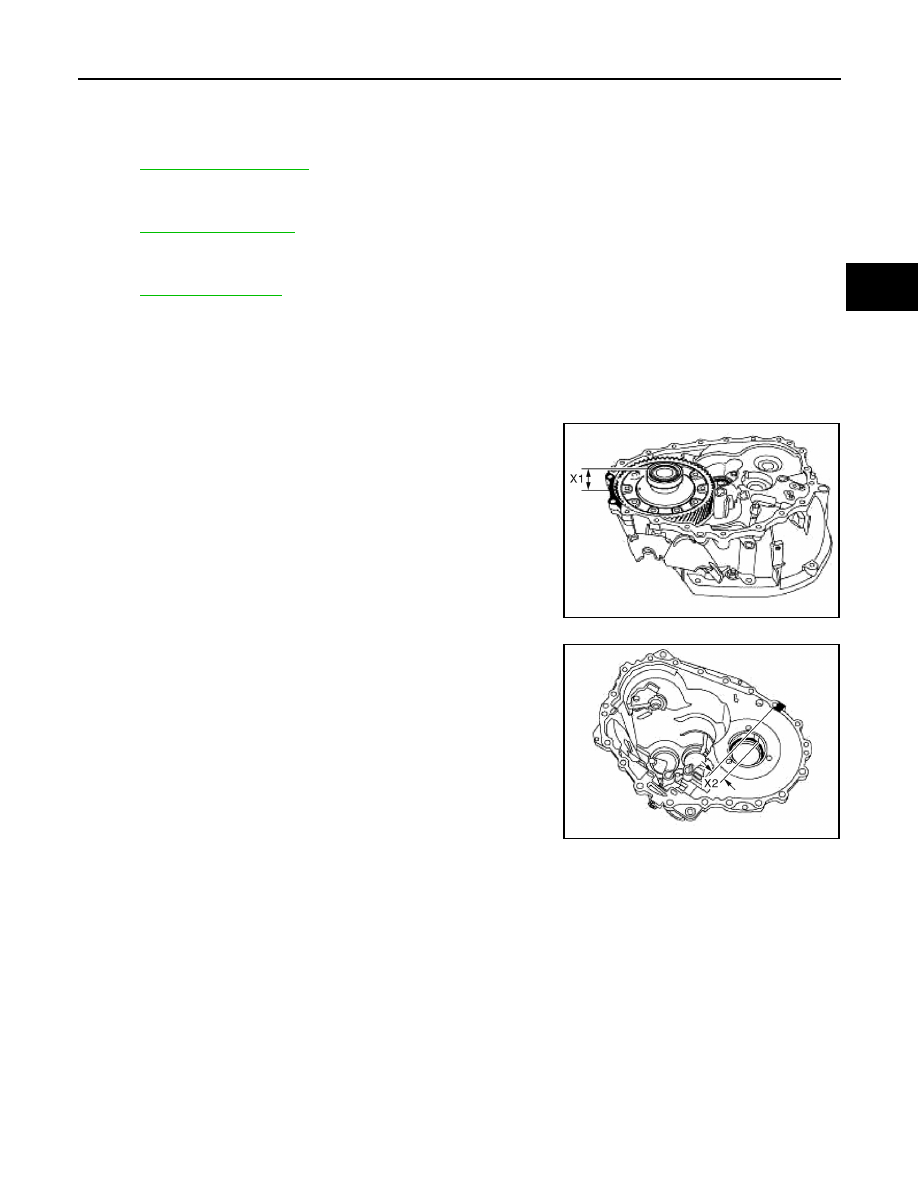

Adjusting the pretension of the differential bearings

1.

Fit the differential.

2.

Measure the distance (X1) between the end of the bearing hous-
ing and the joint face.

3.

Remove the differential.

4.

Measure the distance (X2) between the mechanism housing
joint face and the bearing face that takes the permanent shim.

5.

Determine the thickness of the permanent shim using the following procedure, accounting for a preten-
sioning determined by a value between 0.15mm (0.006 In) and 0.21 mm (0.008 In).

a.

Permanent shim = (X2 - X1) + pretensioning

b.

Example:

• X1 = 26.49 mm (1.043 In)
• X2 = 26.98 mm (1.062 In)
• Permanent shim = (26.98 - 26.49) + 0.18 = 0.67 mm (0.026 In)
Given that shims vary by 0.04 mm (0.002 In), in this example, it is necessary to use the 0.68 mm (0.027
In) shim in the set.

NOTE:
In some cases, two shims are required to obtain the correct pretensioning torque.
Example: Calculated value 1.04 mm - shims available 0.48 + 0.56 = 1.04 mm (0.041)

E1DIA0326ZZ

E1DIA0327ZZ

TM-124

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F95R]

FINAL DRIVE

Inspection

INFOID:0000000010428801

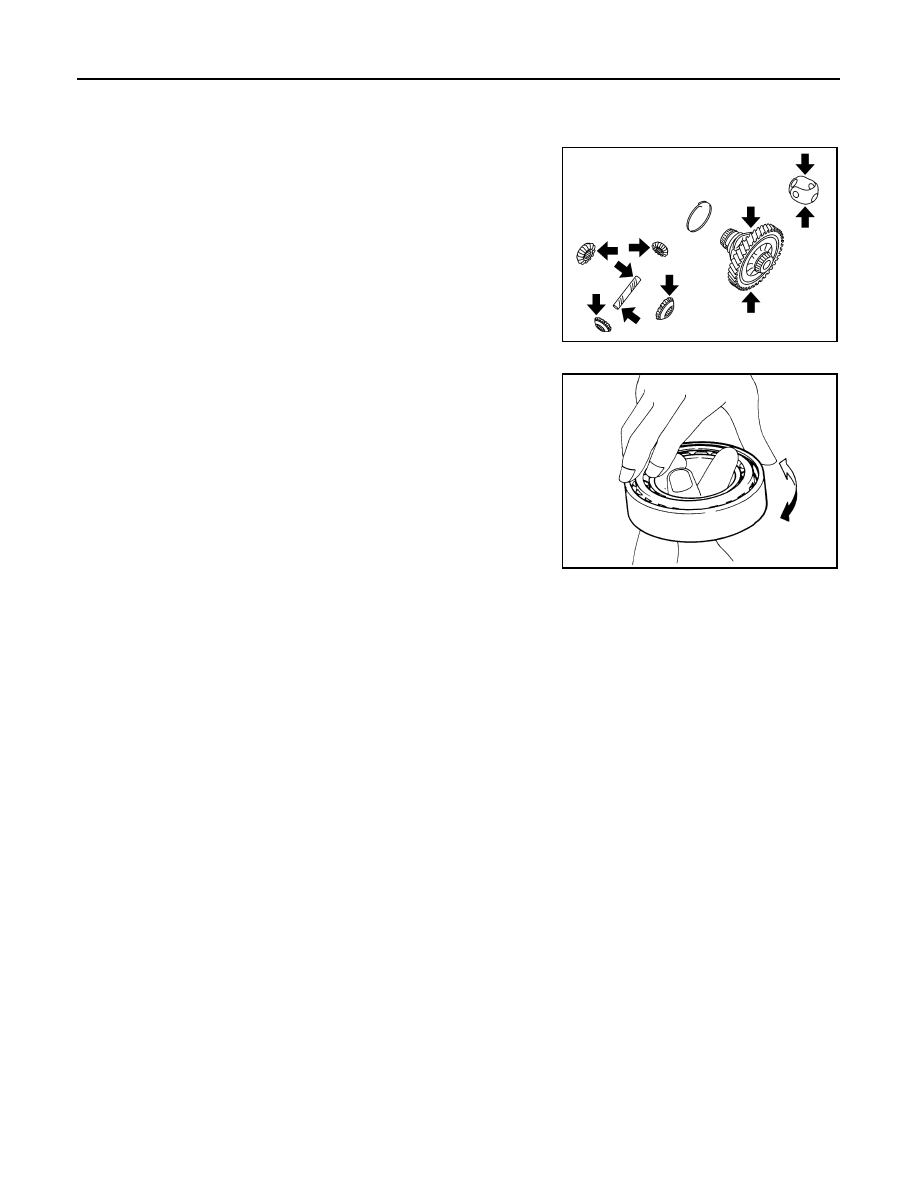

GEAR, WASHER, SHAFT AND CASE

Check side gears, thrust washer, pinion mate shaft, pinion mate
gears, lock ring and differential case. If necessary, replace with a
new one.

BEARING

Check for bearing damage and rough rotation. If necessary, replace
with a new one.

CAUTION:

When replacing tapered roller bearing, replace outer and inner
races as a set.

PCIB0977J

SPD715

SHIFT FORK AND FORK ROD

TM-125

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F95R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SHIFT FORK AND FORK ROD

Exploded View

INFOID:0000000010428802

Refer to

TM-91, "Exploded View"

.

Disassembly

INFOID:0000000010428803

Refer to

TM-96, "Disassembly"

 for disassembly procedure.

Assembly

INFOID:0000000010428804

Refer to

TM-103, "Assembly"

 for assembly procedure.

Inspection

INFOID:0000000010428805

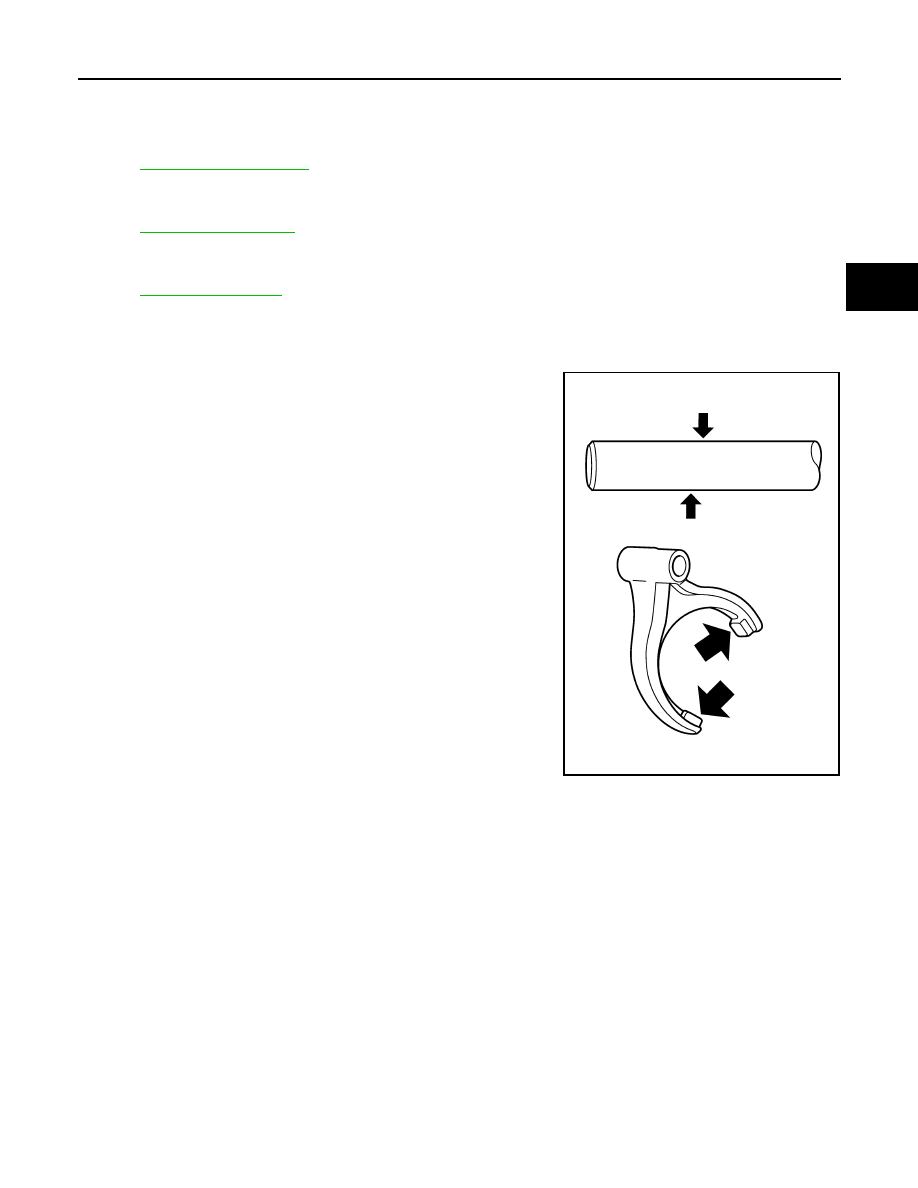

FORK ROD AND SHIFT FORK

Check contact surface and sliding surface of fork rod and shift fork
for wear, damage, and bend. Replace if necessary.

SCIA7785E

TM-126

< SERVICE DATA AND SPECIFICATIONS (SDS)

[6MT: RS6F95R]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000010428806

TRANSAXLE

FINAL GEAR

Engine type

R9M

Transaxle model

RS6F95R

Model code number

4EA2A

Number of speeds

6

Synchromesh type

Warner

Shift pattern

Gear ratio

1st

3.727

2nd

2.043

3rd

1.323

4th

0.947

5th

0.723

6th

0.596

Reverse

3.641

Number of teeth

Input gear

1st

11

2nd

23

3rd

31

4th

38

5th

47

6th

52

Reverse

11

Main gear

1st

41

2nd

47

3rd

41

4th

36

5th

34

6th

31

Reverse

39

Reverse idler gear

Input/Output

38/37

Oil capacity

 (Imp pt)

Approx. 1.8 (1.6)

Remarks

Reverse synchronizer

Installed

Triple-cone synchronizer

1st and 2nd

PCIB1769E
