TRANSAXLE ASSEMBLY

TM-107

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F95R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

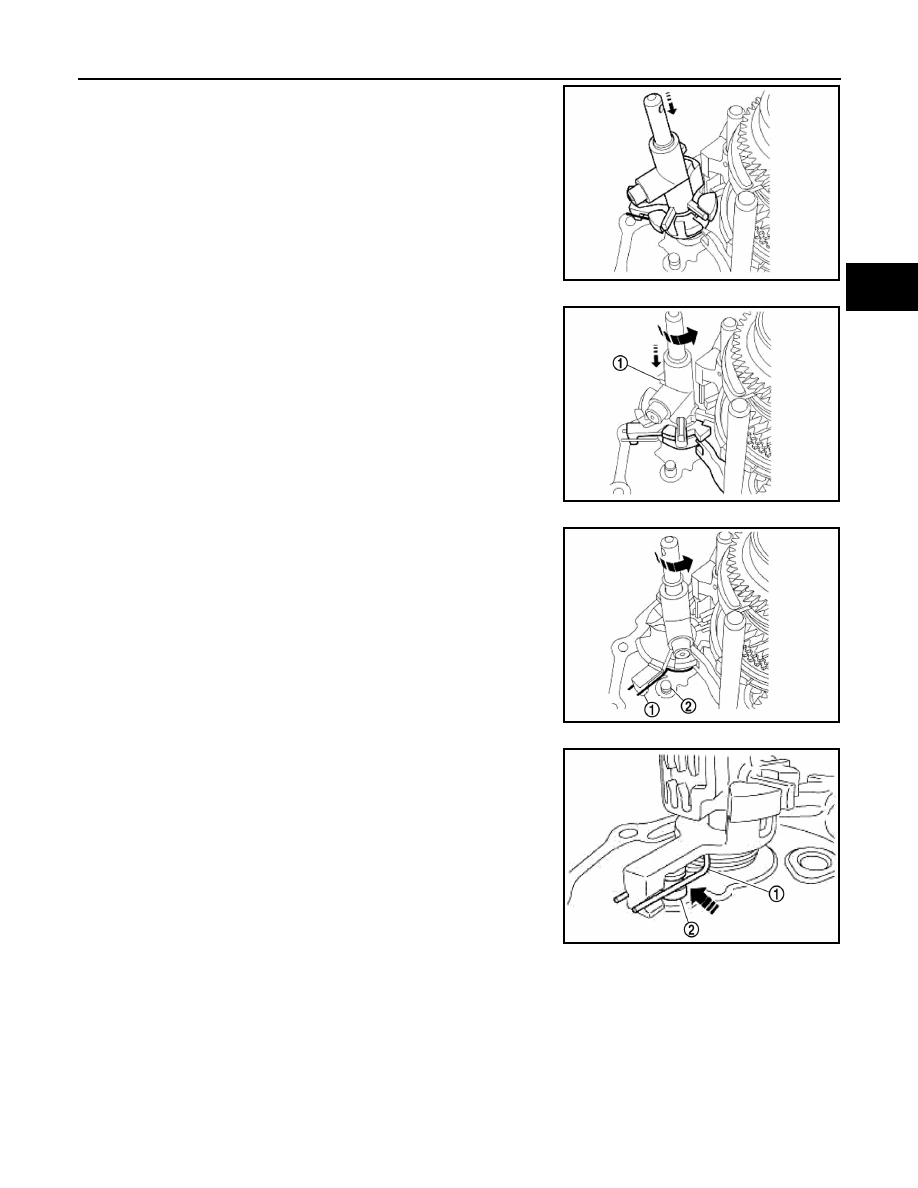

24. Slightly raise forks 1-2 and 3-4 and 5-6 and fit the control mod-

ule.

25. Pivot the module anti-clockwise until the claw of the reverse

gear shaft is freed from any restriction.

Place:

• the part (1) of the control module in neutral,
• the reverse gear shaft in neutral.

26. Raise the spring (1) , pivot the control module and pass the

return spring over the return pin (2) .

27. Check that the spring (1) is securely seated in the groove of the

return pin (2) .

28. Refit:

E1DIA0281ZZ

E1DIA0282ZZ

E1DIA0283ZZ

E1DIA0330ZZ

TM-108

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F95R]

TRANSAXLE ASSEMBLY

• the output shaft adjusting shim,
• the new stop ring (1) .

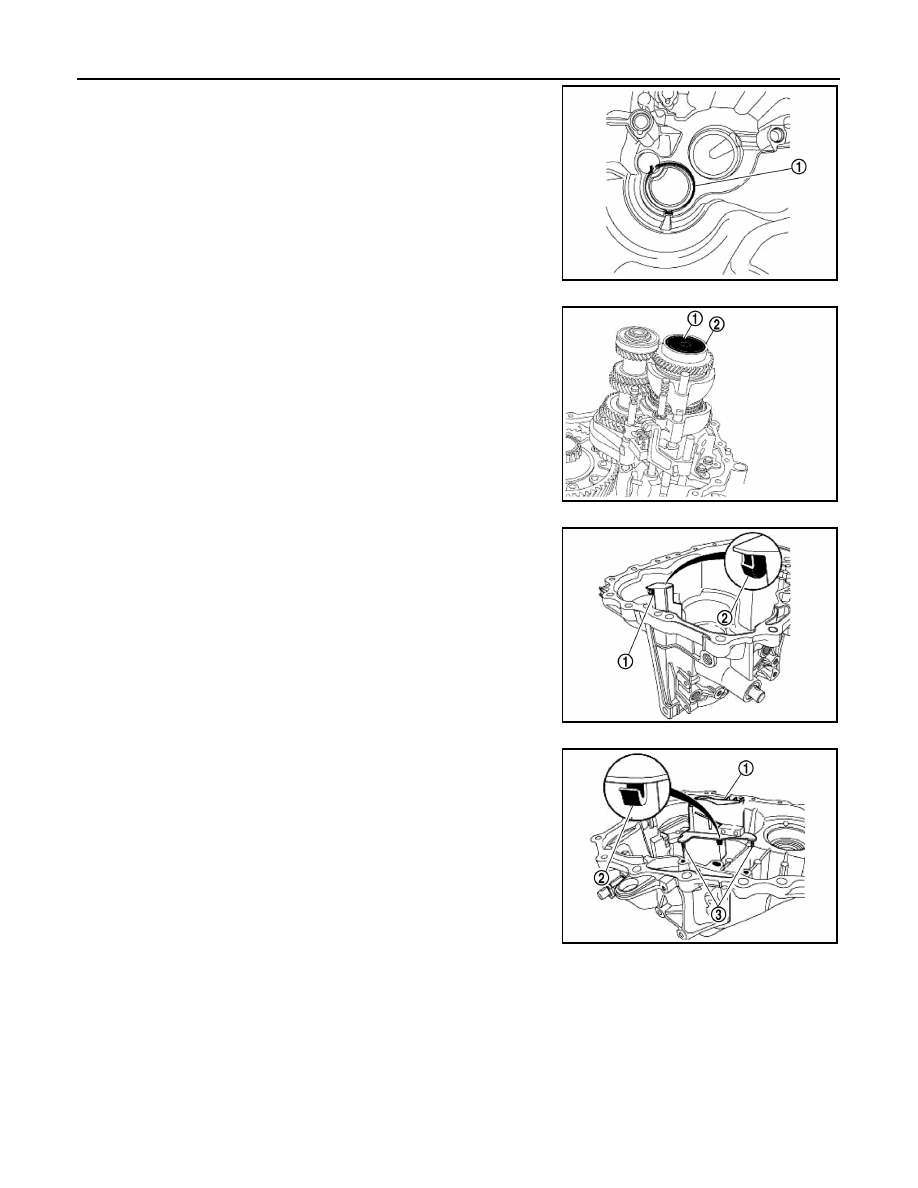

29. Refit the deflector (1) and the adjusting shim (2) at the end of the

input shaft.

30. Refit the oil neck (1) , making sure that the lug (2) is properly

positioned in its housing.

31. Refit the oil neck (1) by positioning the lug (2) and the two cen-

tring pins (3) in their housings.

32. Check that the centring dowels are in place.

WARNING:

Applying excess sealant could cause it to be squeezed out when parts are tightened. A mixture of
sealant and fluid may cause damage to some components.

E1DIA0262ZZ

E1DIA0263ZZ

E1DIA0264ZZ

E1DIA0265ZZ

TRANSAXLE ASSEMBLY

TM-109

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F95R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

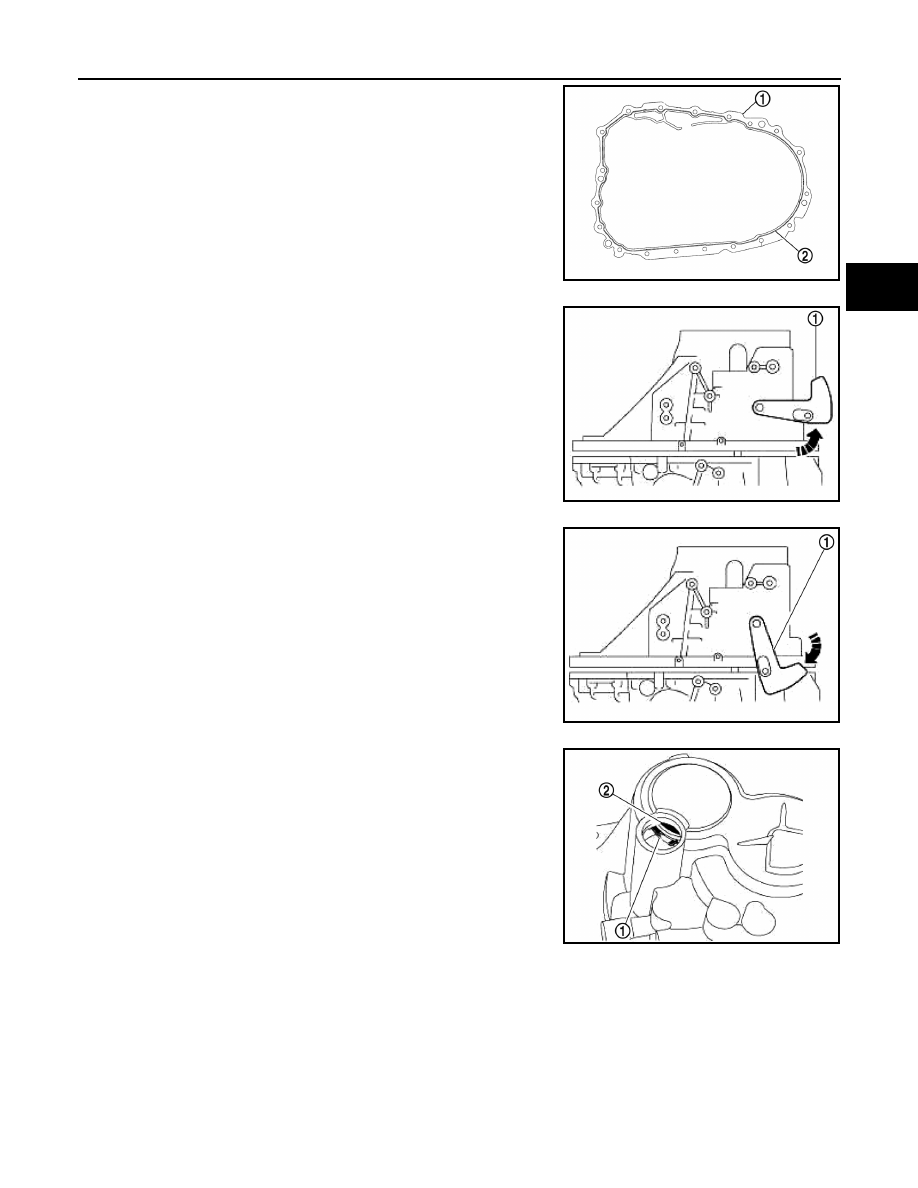

33. Apply a bead of SILICONE ADHESIVE SEALANT all around the

joint face of the mechanism housing as shown on the figure.

34. Position the mechanism housing temporarily with the gear lever

(1) turned.

35. Refit the mechanism housing while rotating the gear lever (1) .

36. Widen the stop ring (1) at the level of the output shaft rear bear-

ing in such a way that the stop ring comes into contact with the
edge of the output shaft rear bearing.

E1DIA0331ZZ

E1DIA0266ZZ

E1DIA0267ZZ

E1DIA0268ZZ

TM-110

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F95R]

TRANSAXLE ASSEMBLY

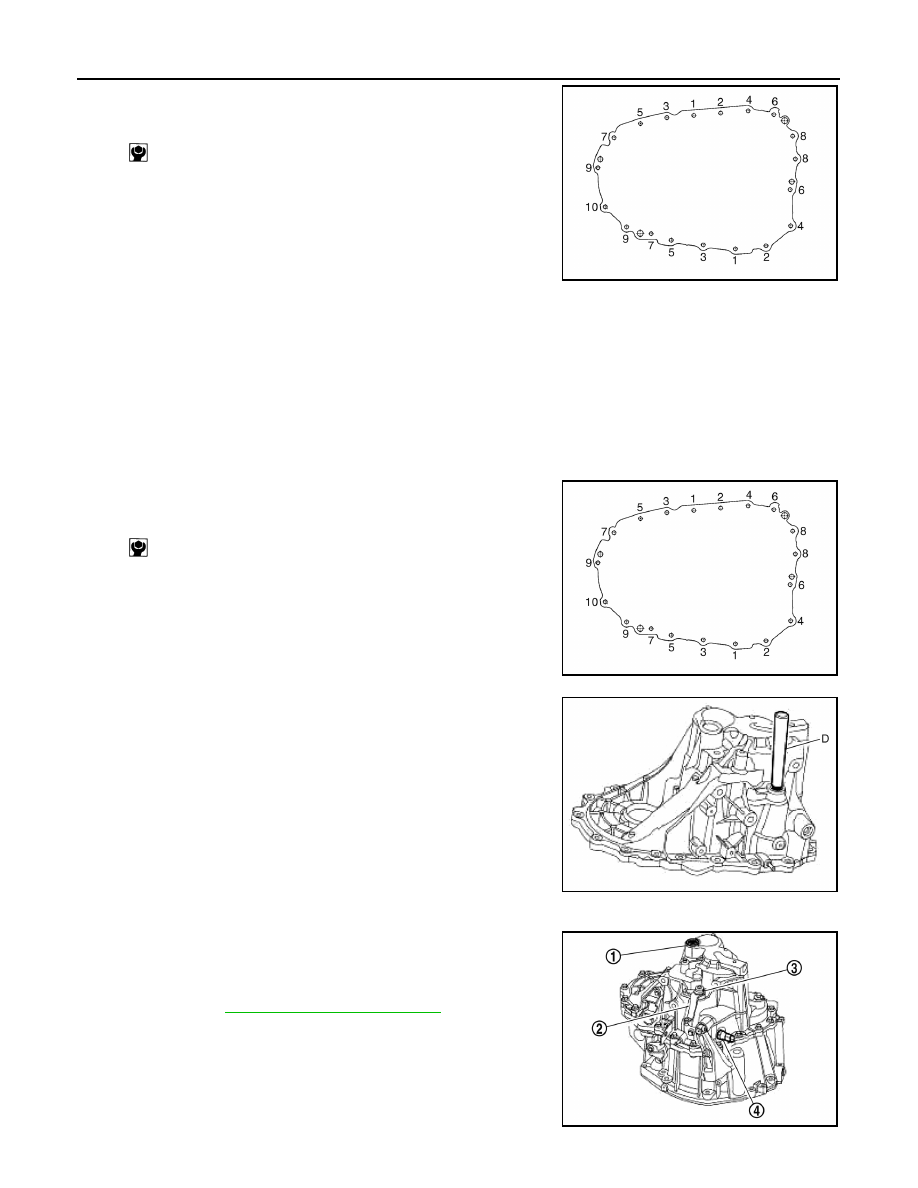

37. Pretighten the mechanism housing bolts following the order as

shown on the figure.

38. Position:

• the gear lever in 2nd gear,
• the stop ring in the bearing channel of the output shaft.

39. Check that:

• the stop ring (1) is in the bearing channel of the output shaft,
• the adjusting shim (2) rotates freely in its housing and is not secured..

40. Tighten the mechanism housing bolts following the order as

shown on the figure.

41. Refit the selector lever seal using component (D) of the tool [Bvi.

1902].

42. Put the gear lever in neutral.

43. Refit:

• a new blanking cover (1),
• the gear lever (2),
• a new selector lever pin (3),
• the new dual function switch (4) coated with RESIN ADHE-

SIVE. Refer to

MA-59, "Fluids and Lubricants"

.

: 35 N.m (3.6 kg-m; 26 ft-lb)

E1DIA0332ZZ

: 52 N.m (5.3 kg-m; 38 ft-lb)

E1DIA0332ZZ

E1DIA0269ZZ

E1DIA0270ZZ
