PRECAUTIONS

TM-19

< PRECAUTION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

TM-20

< PREPARATION >

[6MT: RS6F94R]

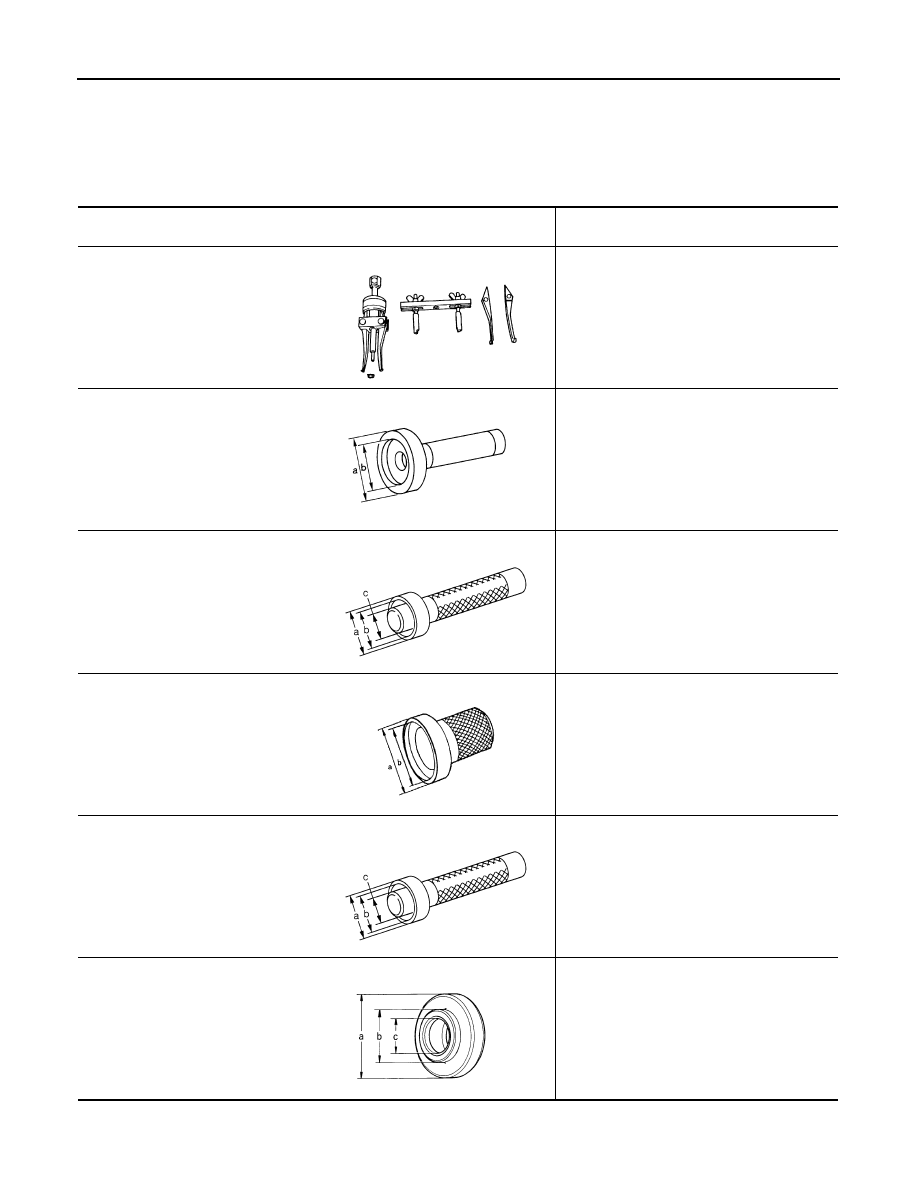

PREPARATION

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000010288442

Tool number
Tool name

Description

KV381054S0
Puller

Removing mainshaft front bearing outer race

KV38100200
Drift
a: 65 mm (2.56 in) dia.
b: 49 mm (1.93 in) dia.

• Installing mainshaft front bearing outer race
• Installing mainshaft rear bearing outer race
• Installing differential side bearing outer race

(clutch housing side)

ST33220000
Drift
a: 37 mm (1.46 in) dia.
b: 31 mm (1.22 in) dia.
c: 22 mm (0.87 in) dia.

Installing input shaft oil seal

ST33400001
Drift
a: 60 mm (2.36 in) dia.
b: 47 mm (1.85 in) dia.

Installing differential side bearing outer race
(transaxle case side)

KV38100300
Drift
a: 54 mm (2.13 in) dia.
b: 46 mm (1.81 in) dia.
c: 32 mm (1.26 in) dia.

Installing differential side oil seal

ST36720030
Drift
a: 70 mm (2.76 in) dia.
b: 40 mm (1.57 in) dia.
c: 29 mm (1.14 in) dia.

• Installing input shaft rear bearing
• Installing mainshaft front bearing inner race

ZZA0601D

ZZA1143D

ZZA1046D

ZZA0814D

ZZA1046D

ZZA0978D

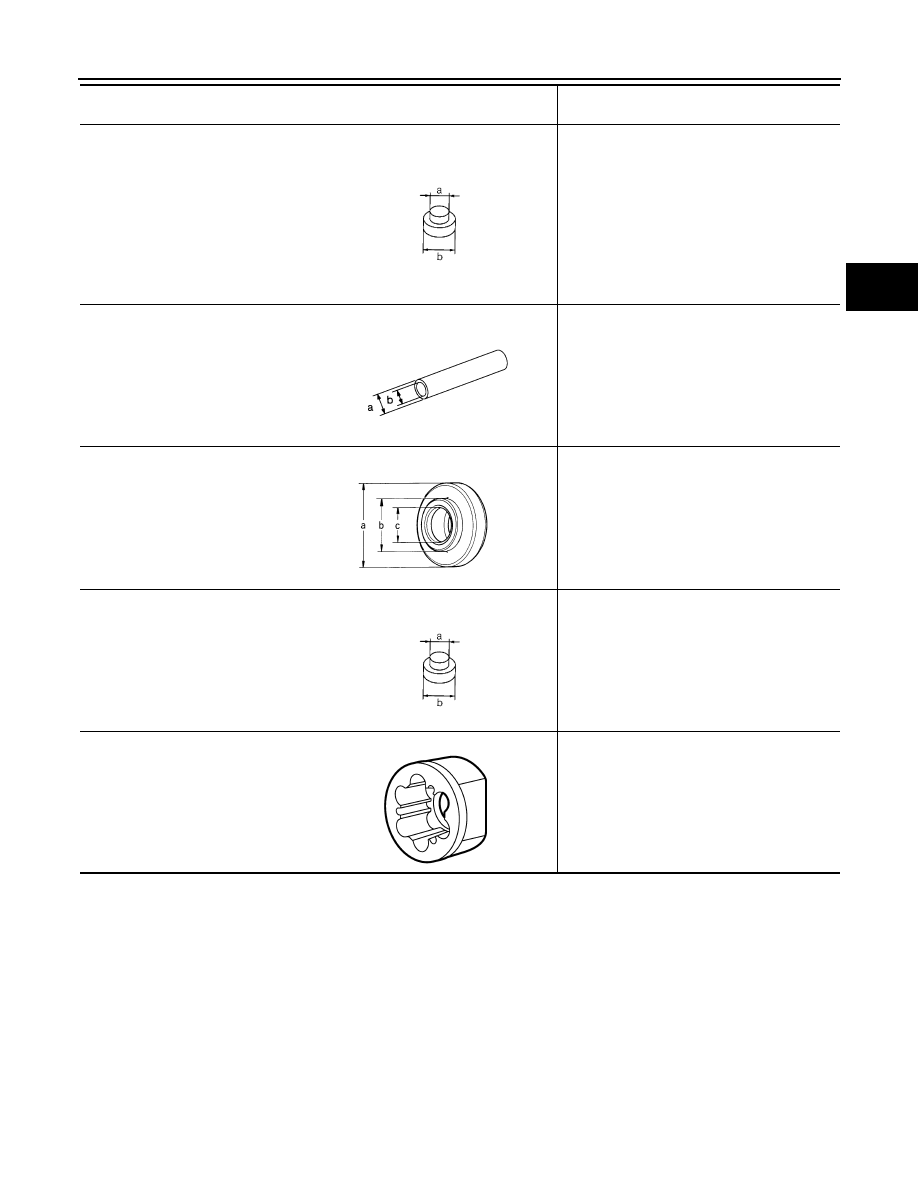

PREPARATION

TM-21

< PREPARATION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

ST33052000
Drift
a: 22 mm (0.87 in) dia.
b: 28 mm (1.10 in) dia.

• Removing mainshaft rear bearing inner race
• Removing 6th main gear
• Removing 5th main gear
• Removing 4th main gear
• Removing 1st main gear
• Removing 1st-2nd synchronizer assembly
• Removing 2nd main gear
• Removing bushing
• Removing 3rd main gear
• Removing mainshaft front bearing inner

race

KV32102700
Drift
a: 54 mm (2.13 in) dia.
b: 32 mm (1.26 in) dia.

• Installing bushing
• Installing 2nd main gear
• Installing 3rd main gear
• Installing 4th main gear
• Installing 5th main gear
• Installing 6th main gear

ST30901000
Drift
a: 79 mm (3.11 in) dia.
b: 45 mm (1.77 in) dia.
c: 35.2 mm (1.386 in) dia.

Installing mainshaft rear bearing inner race

ST33061000
Drift
a: 28.5 mm (1.122 in) dia.
b: 38 mm (1.50 in) dia.

Removing differential side bearing inner race
(clutch housing side)

KV32300QAM
(Renault SST: B.vi 1823)
Drift

Removing and installing input shaft rear bear-
ing mounting bolt

Tool number
Tool name

Description

ZZA0969D

S-NT065

ZZA0978D

ZZA0969D

PCIB2078J

TM-22

< PREPARATION >

[6MT: RS6F94R]

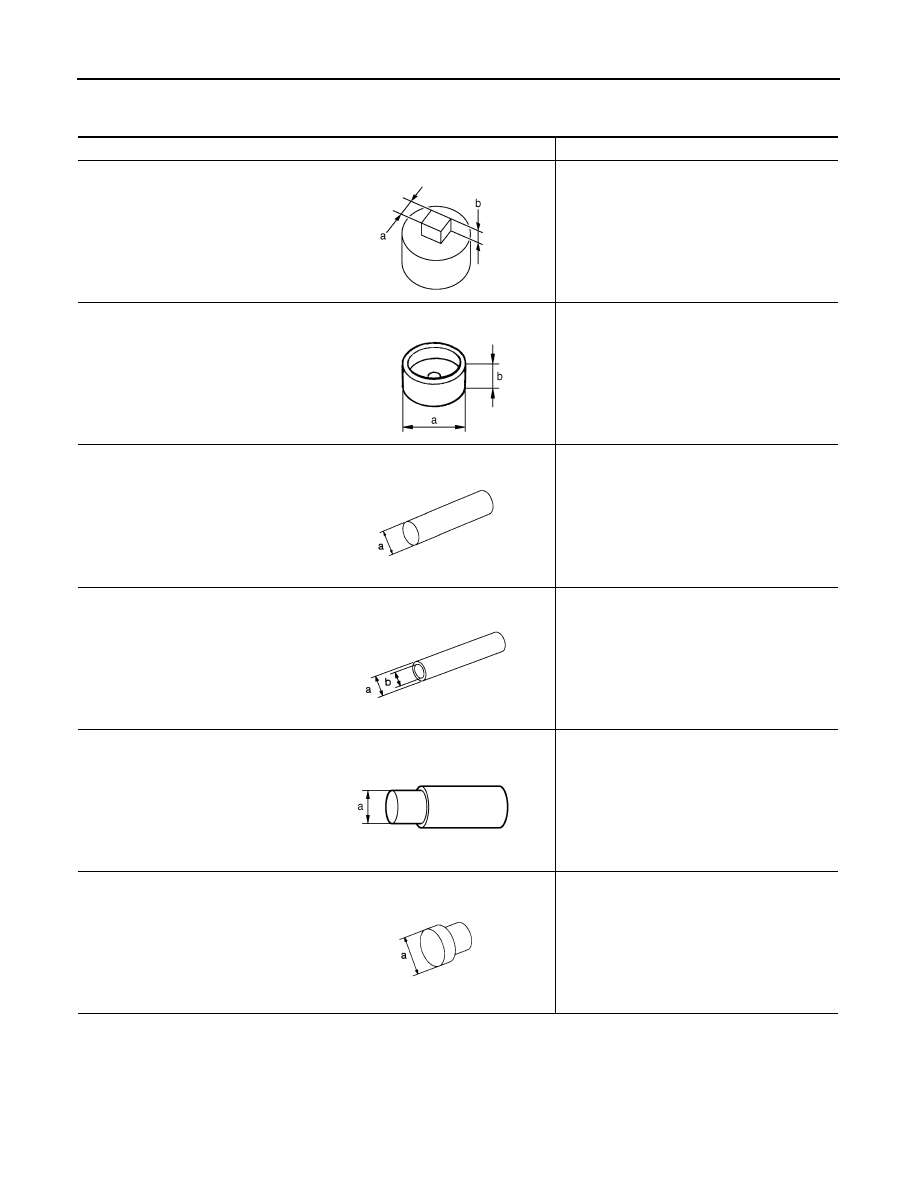

PREPARATION

Commercial Service Tools

INFOID:0000000010288443

Tool name

Description

Socket
a: 8 mm (0.31 in)
b: 5 mm (0.20 in)

Removing and installing drain plug

Spacer
a: 25 mm (0.98 in) dia.
b: 25 mm (0.98 in)

Removing mainshaft front bearing outer race

Drift
a: 17 mm (0.67 in) dia.

• Installing bushing
• Installing shifter lever oil seal
• Installing selector lever oil seal

Drift
a: 35 mm (1.38 in) dia.
b: 25 mm (0.98 in) dia.

Installing input shaft front bearing

Drift
a: 24 mm (0.94 in) dia.

Removing input shaft rear bearing

Drift
a: 43 mm (1.69 in) dia.

• Removing differential side bearing inner

race (transaxle case side)

• Installing input shaft rear bearing

PCIB1776E

PCIB1780E

S-NT063

S-NT065

PCIB1779E

NT109
