POSITION SWITCH

TM-15

< DTC/CIRCUIT DIAGNOSIS >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

DTC/CIRCUIT DIAGNOSIS

POSITION SWITCH

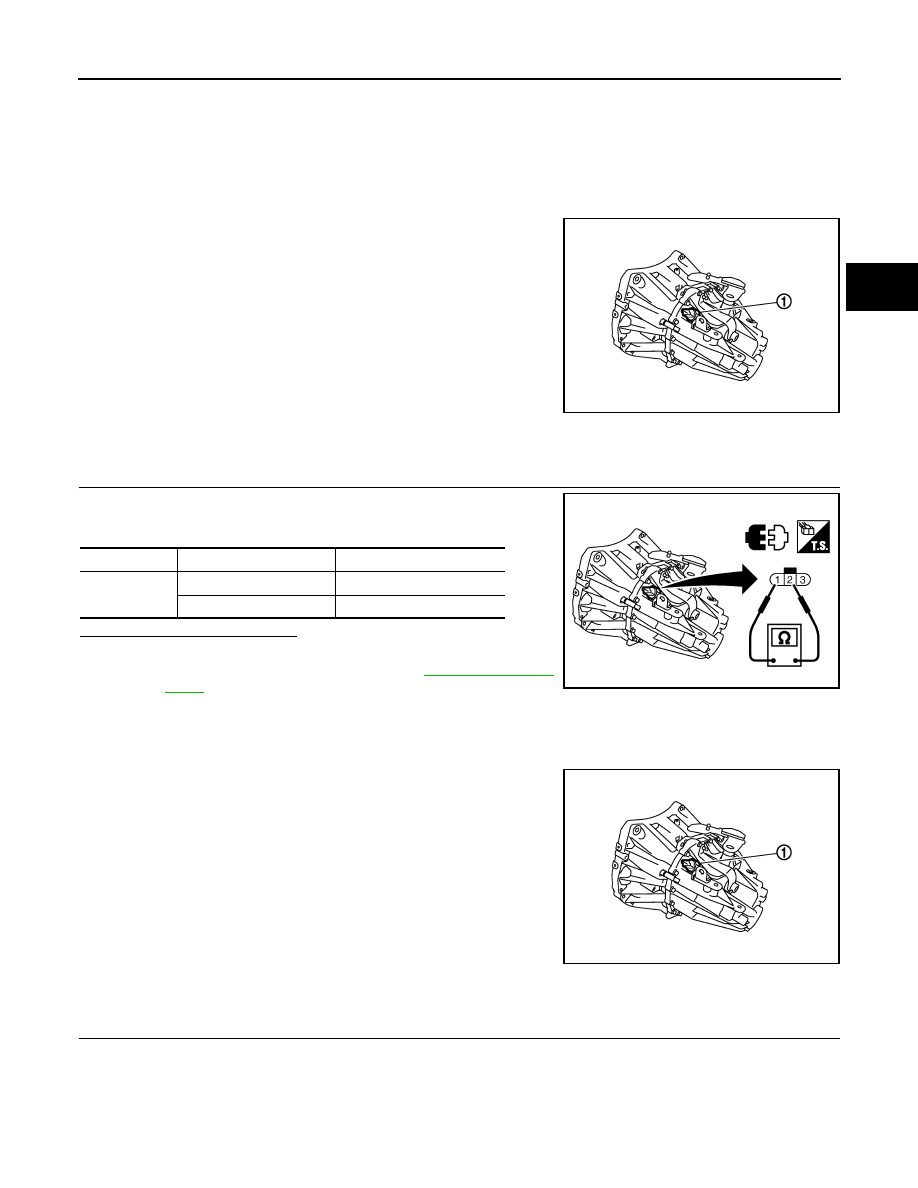

BACK-UP LAMP SWITCH

BACK-UP LAMP SWITCH : Component Parts Location

INFOID:0000000010288436

BACK-UP LAMP SWITCH : Component Inspection

INFOID:0000000010288437

1.

CHECK BACK-UP LAMP SWITCH

Check continuity between position switch terminals with control lever
turned to 1st to 6th and reverse position.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace position switch. Refer to

TM-38, "Exploded

View"

.

PARK/NEUTRAL POSITION (PNP) SWITCH

PARK/NEUTRAL POSITION (PNP) SWITCH : Component Parts Location

INFOID:0000000010288438

PARK/NEUTRAL POSITION (PNP) SWITCH : Component Inspection

INFOID:0000000010288439

1.

CHECK PARK/NEUTRAL POSITION (PNP) SWITCH

1

: Position switch

JPDIC0070ZZ

Terminals

Gear position

Continuity

1 – 2

Reverse

Existed

Except reverse

Not existed

PCIB1781E

1

: Position switch

JPDIC0070ZZ

TM-16

< DTC/CIRCUIT DIAGNOSIS >

[6MT: RS6F94R]

POSITION SWITCH

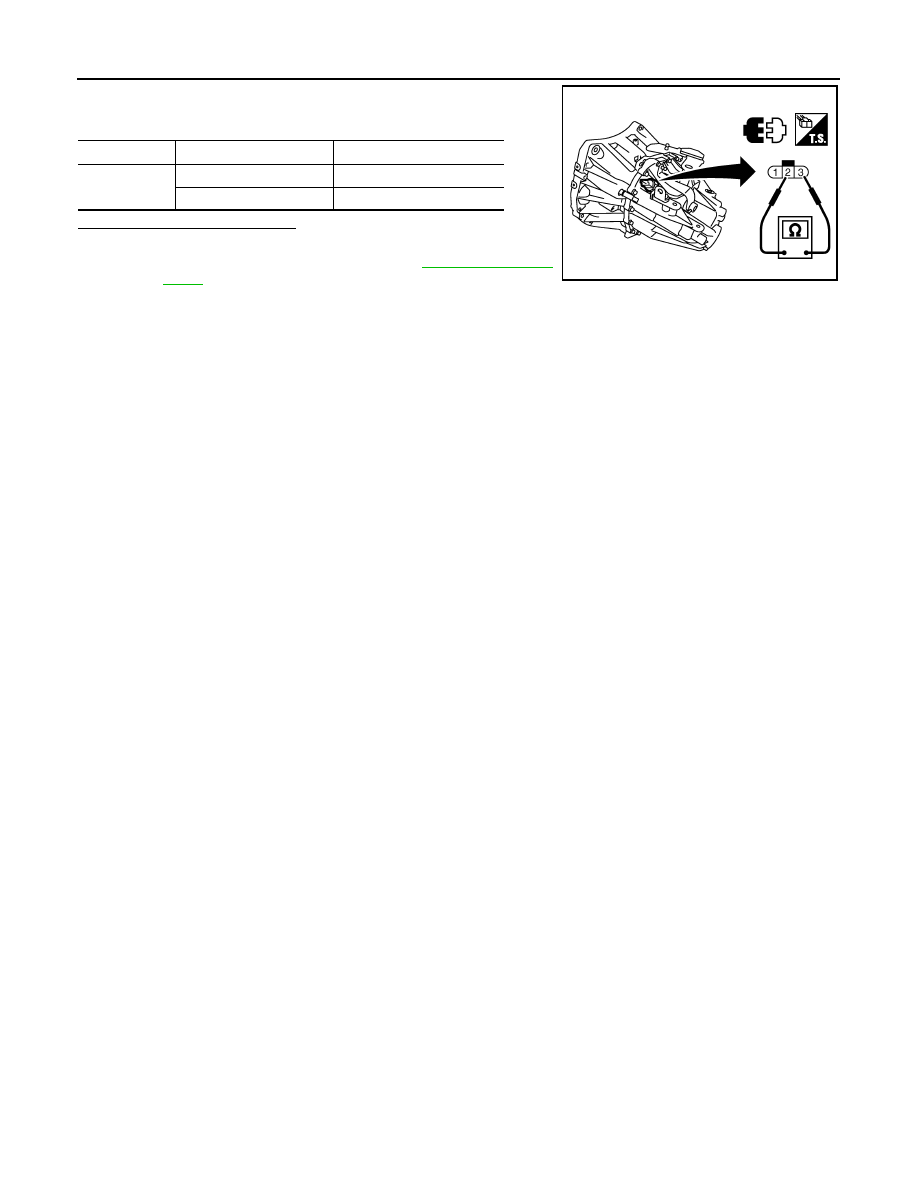

Check continuity between position switch terminals with control lever
turned to 1st to 6th and reverse position.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace position switch. Refer to

TM-38, "Exploded

View"

.

Terminals

Gear position

Continuity

2 – 3

Neutral

Existed

Except neutral

Not existed

JPDIC0091ZZ

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

TM-17

< SYMPTOM DIAGNOSIS >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000010288440

Use the chart below to help you find the cause of the symptom. The numbers indicate the order of the inspec-
tion. If necessary, repair or replace these parts.

Reference page

TM-38

TM-38

TM-28

TM-38

TM-38

SUSPECTED PARTS
(Possible cause)

OIL

 (Oil

lev

e

l is

 l

o

w

.)

OI

L (W

ro

ng

 oi

l.

)

OIL

 (Oil

lev

e

l is

 h

igh

.)

GASKET

 (Damaged)

OIL SEAL (W

orn or

damaged)

O-RING (W

orn

 or

da

ma

ge

d)

SHIF

T CONTROL L

INKAGE

(W

o

rn)





















SHIF

T FORK (W

o

rn)

GEAR (W

o

rn o

r da

m

age

d)

BEAR

ING

 (W

orn

 o

r

da

ma

ge

d)

BAUL

K

 RING (W

orn

 o

r da

ma

ge

d)

INSE

R

T

 S

P

RING (Dam

ag

ed

)

Symptoms

Noise

1

2

3

3

Oil  leakage

3

1

2

2

2

Hard to shift or will not shift

1

1

2

3

3

Jumps out of gear

1

2

2

TM-18

< PRECAUTION >

[6MT: RS6F94R]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Procedure without Cowl Top Cover

INFOID:0000000010497458

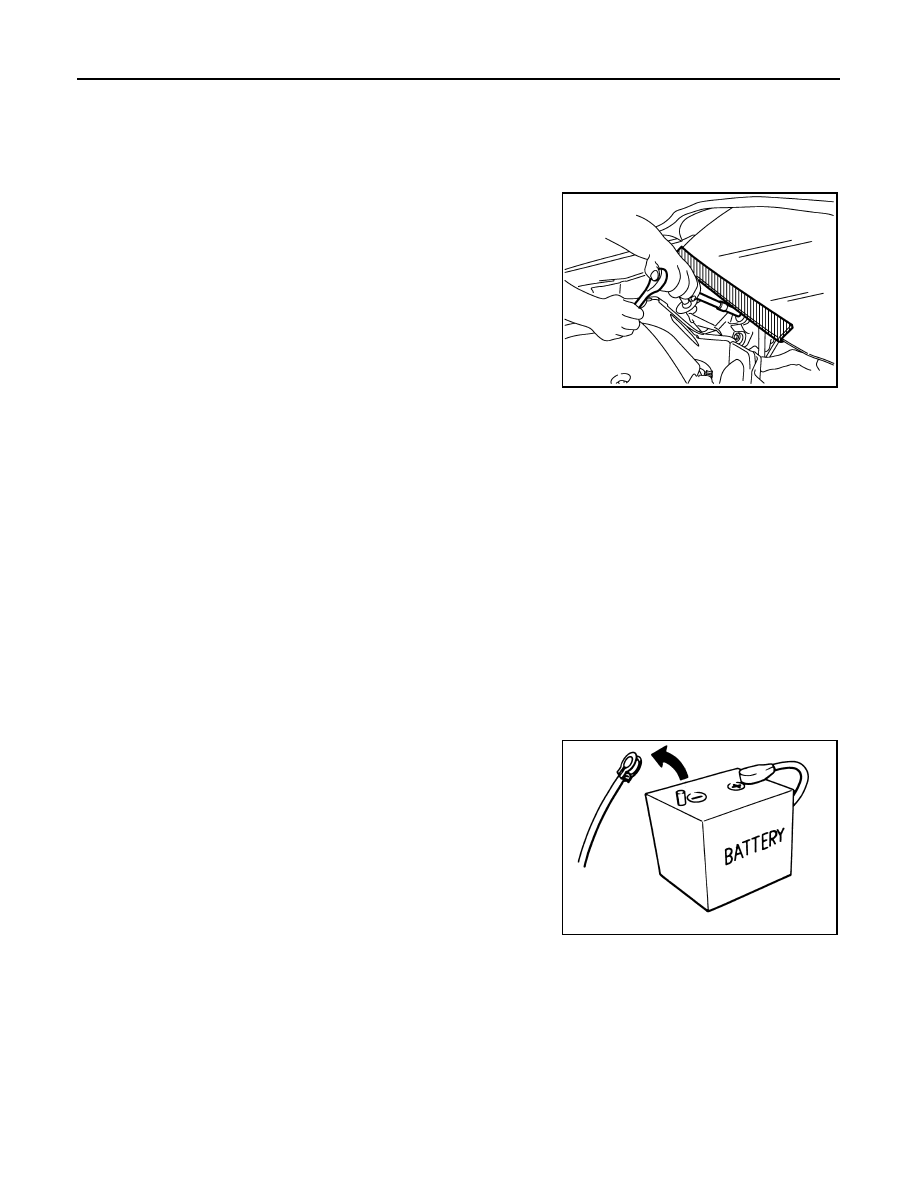

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

Service Notice or Precautions for Manual Transaxle

INFOID:0000000010288441

CAUTION:

• If transaxle assembly is removed from the vehicle, always replace CSC (Concentric Slave Cylinder).

Return CSC insert to original position to remove transaxle assembly. Dust on clutch disc sliding
parts may damage seal of CSC and may cause clutch fluid leakage.

• Never reuse transaxle gear oil, once it has been drained.
• Check oil level or replace gear oil with vehicle on level surface.
• During removal or installation, keep inside of transaxle clear of dust or dirt.
• Check for the correct installation status prior to removal or disassembly. If matching marks are

required, be certain they do not interfere with the function of the parts they are applied.

• In principle, tighten bolts or nuts gradually in several steps working diagonally from inside to out-

side. If tightening sequence is specified, use it.

• Never damage sliding surfaces and mating surfaces.

Precautions for Removing Battery Terminal

INFOID:0000000010508552

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

PIIB3706J

SEF289H
