M/T SYSTEM

TM-13

< SYSTEM DESCRIPTION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SYSTEM DESCRIPTION

M/T SYSTEM

System Diagram

INFOID:0000000010288434

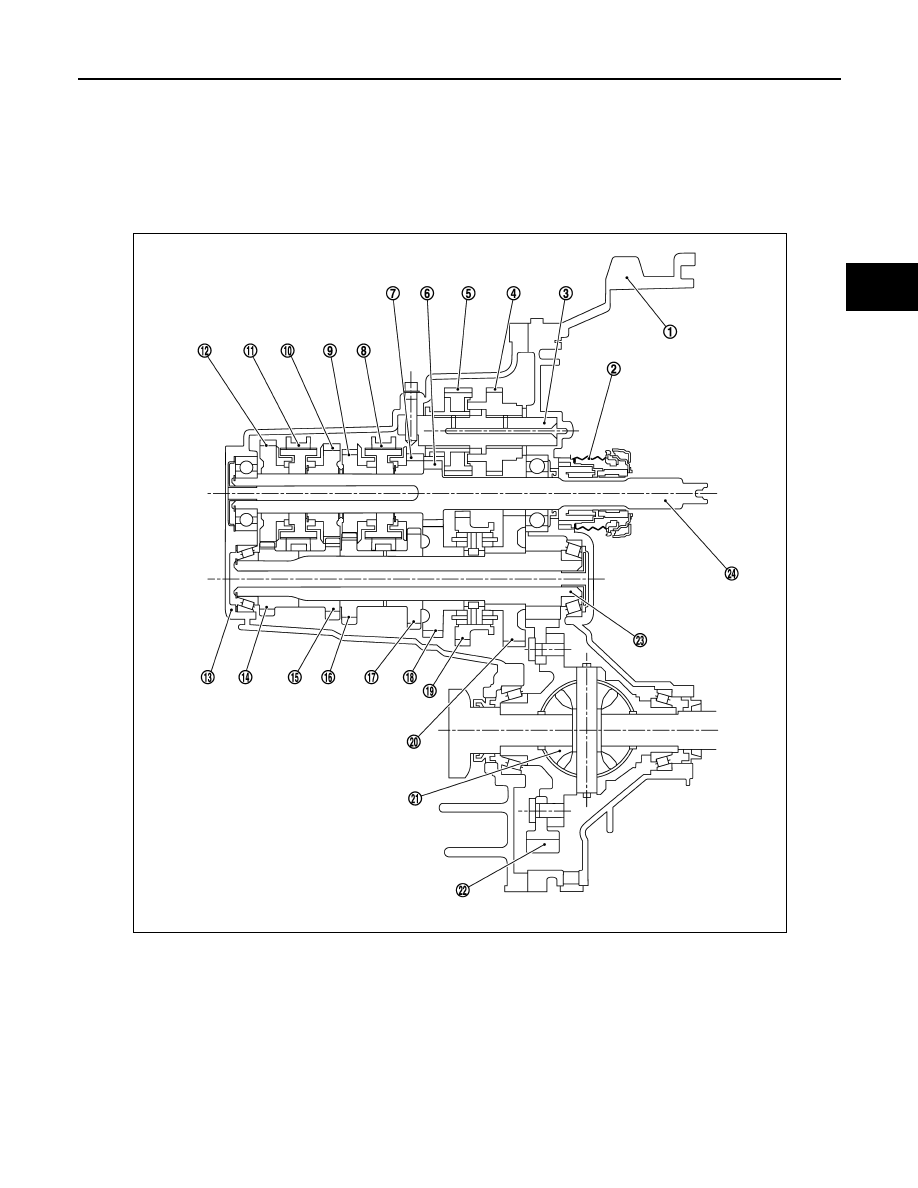

CROSS-SECTIONAL VIEW

1.

Clutch housing

2.

CSC (Concentric Slave Cylinder)

3.

Reverse idler shaft

4.

Reverse input gear

5.

Reverse output gear

6.

2nd input gear

7.

3rd input gear

8.

3rd-4th synchronizer assembly

9.

4th input gear

10. 5th input gear

11.

5th-6th synchronizer assembly

12. 6th input gear

13. Transaxle case

14. 6th main gear

15. 5th main gear

16. 4th main gear

17. 3rd main gear

18. 2nd main gear

19. 1st-2nd synchronizer assembly

20. 1st main gear

21. Differential assembly

22. Final gear

23. Mainshaft

24. Input shaft

SCIA7618E

TM-14

< SYSTEM DESCRIPTION >

[6MT: RS6F94R]

M/T SYSTEM

System Description

INFOID:0000000010288435

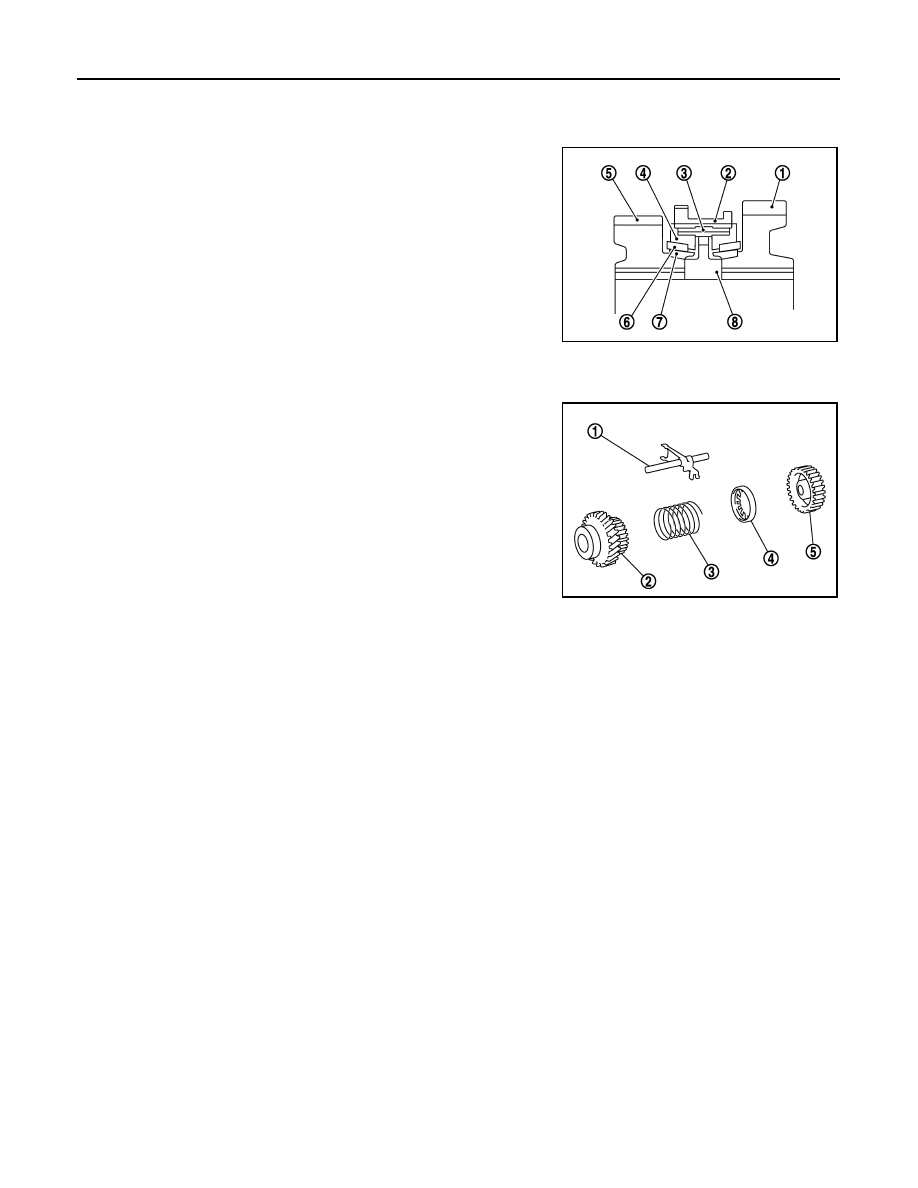

TRIPLE-CONE SYNCHRONIZER

Triple-cone synchronizer is used for the 1st and the 2nd gears to
reduce operating force of the control lever.

REVERSE GEAR NOISE PREVENTION FUNCTION (SYNCHRONIZING METHOD)

Reverse gear assembly consists of reverse input gear, return spring,
reverse baulk ring and reverse output gear. When the control lever is
shifted to the reverse position, the construction allows smooth shift
operation by stopping the reverse idler shaft rotation by frictional
force of synchronizer.

1

: 1st main gear

2

: 1st-2nd coupling sleeve

3

: Insert key

4

: Outer baulk ring

5

: 2nd main gear

6

: Synchronizer cone

7

: Inner baulk ring

8

: 1st-2nd synchronizer hub

SCIA7636E

1

: Reverse fork rod

2

: Reverse output gear

3

: Return spring

4

: Reverse baulk ring

5

: Reverse input gear

SCIA7621E
