Nissan Qashqai J11. Manual - part 602





CL-14

< REMOVAL AND INSTALLATION >

CLUTCH MASTER CYLINDER

• RS6F94R,  RS6F95R and RS6F52A

e.

Depress clutch pedal slowly to full stroke and then release it.
Repeat this until new clutch fluid comes out.

CAUTION:

• Hold it to prevent releasing clutch tube from bleeding

connector when fluid pressure is applied in the tube.

• Monitor clutch fluid level in reservoir tank to make sure it

does not empty.

f.

Place clutch tube (1) and lock pin back into position with clutch pedal depressed.

g.

Bleed the air from the clutch hydraulic system. Refer to

CL-8, "Air Bleeding Procedure"

7.

After completing this procedure, inspect for clutch pedal. Refer to

CL-7, "Inspection and Adjustment"

.

8.

Install engine room insulator. (For RHD)

9.

Install cowl top assembly. Refer to

EXT-29, "Removal and Installation"

. (For RHD with R9M)

10. Install the air cleaner case and air duct (inlet) or air ducts. Refer to

EM-380, "Removal and Installation"

(R9M),

EM-23, "Removal and Installation"

 (HRA2DDT),

EM-279, "Removal and Installation"

 (K9K),

EM-

147, "Removal and Installation"

 (MR20DD). (For LHD)

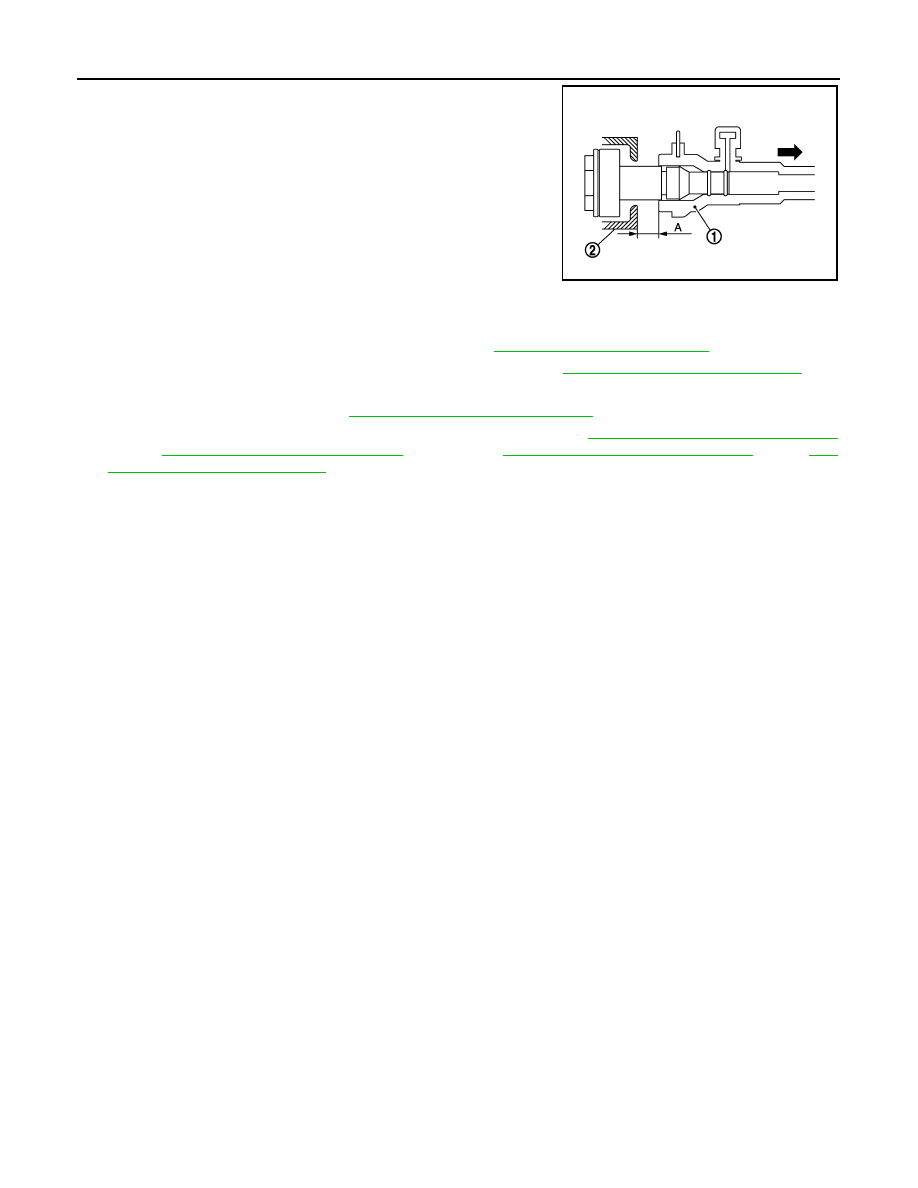

2

: Clutch housing

Dimension “A”

: 10 mm (0.39 in)

JPDIB0042ZZ

CLUTCH PIPING

CL-15

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

CLUTCH PIPING

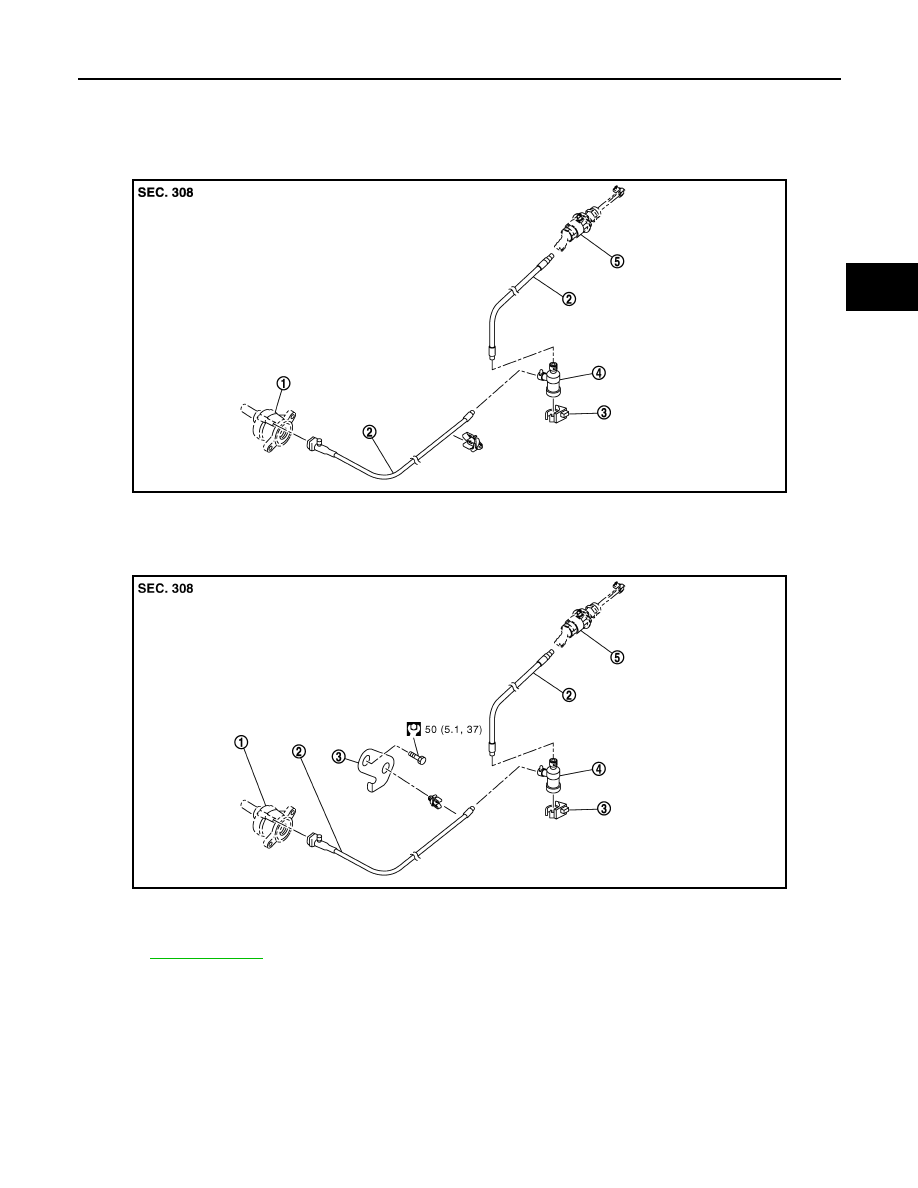

Exploded View

INFOID:0000000010288565

RS6F94R RS6F95R

RS6F52A

JPDIB0050ZZ

1.

CSC (Concentric Slave Cylinder)

2.

Clutch tube

3.

Bracket

4.

Clutch damper

5.

Master cylinder assembly

JPDIB0054GB

1.

CSC (Concentric Slave Cylinder)

2.

Clutch tube

3.

Bracket

4.

Clutch damper

5.

Master cylinder assembly

Refer to

GI-4, "Components"

 for the symbols in the figure.

CL-16

< REMOVAL AND INSTALLATION >

CLUTCH PIPING

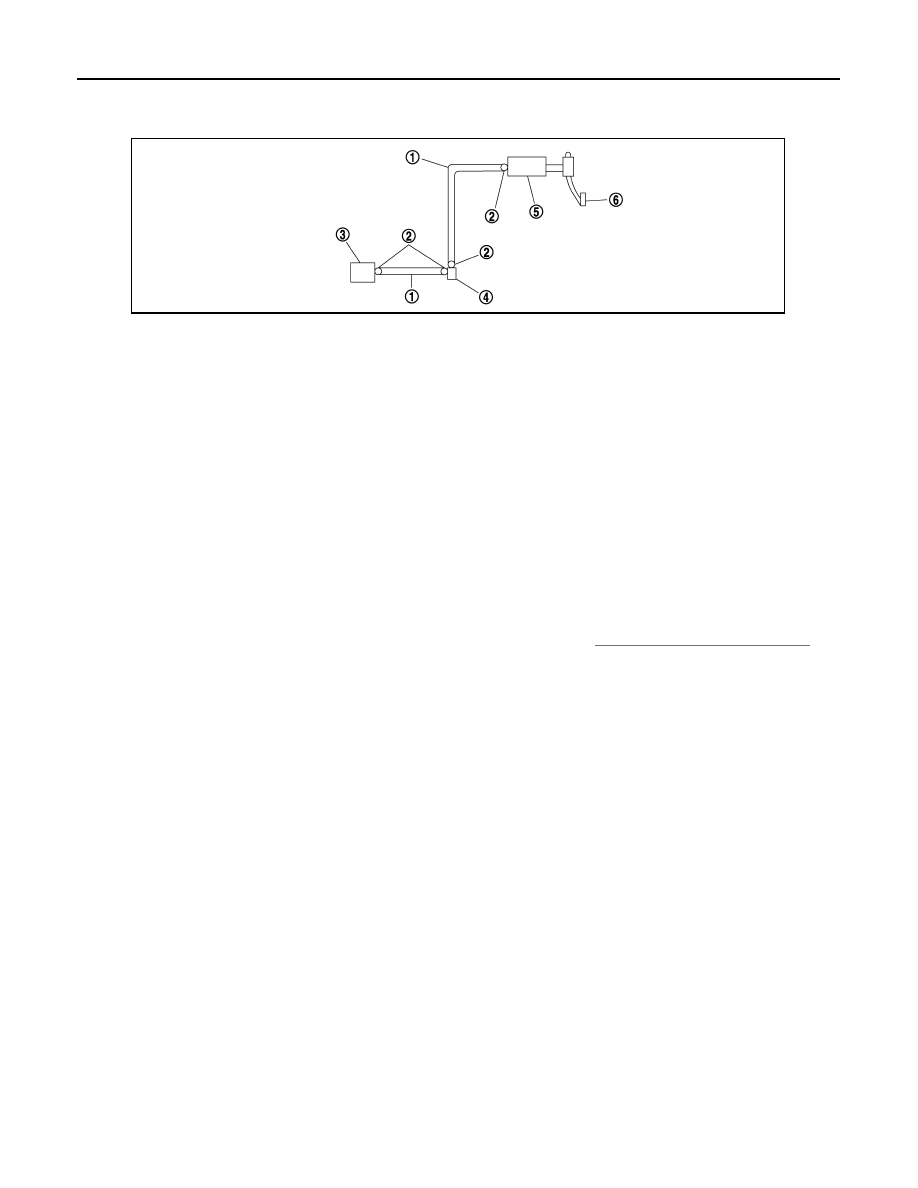

Hydraulic Layout

INFOID:0000000010288566

Removal and Installation

INFOID:0000000010288567

CAUTION:

Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately
and wash the affected area with water.

REMOVAL

Refer to the figure for removal procedure.

INSTALLATION

Refer to the figure for installation procedure.
• When installing clutch tube to connector of CSC, connector of clutch damper and connector of master cylin-

der, push it as far as it goes.

• When installing lock pin to connector of CSC, connector of clutch damper and connector of master cylinder,

push it as far as it goes.

• After installation, bleed the air from the clutch hydraulic system. Refer to

CL-8, "Air Bleeding Procedure"

.

CAUTION:

Never scratch or damage clutch hose.

1.

Clutch tube

2.

Lock pin

3.

CSC (Concentric Slave Cylinder)

4.

Clutch damper

5.

Master cylinder assembly

6.

Clutch pedal assembly

PCIB1499E

CSC (CONCENTRIC SLAVE CYLINDER)

CL-17

< UNIT REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

UNIT REMOVAL AND INSTALLATION

CSC (CONCENTRIC SLAVE CYLINDER)

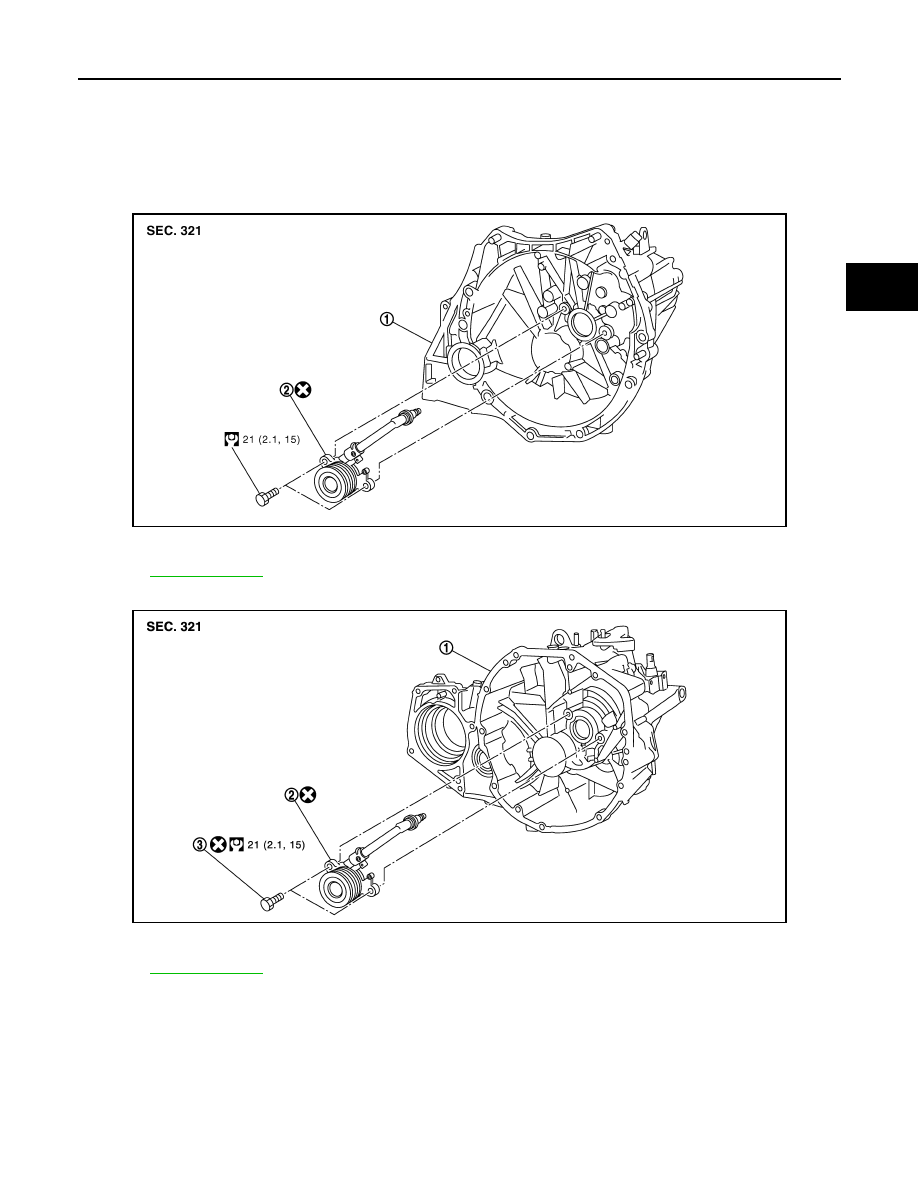

Exploded View

INFOID:0000000010288568

MR20DD, HRA2DDT and K9K

 R9M

Removal and Installation

INFOID:0000000010288569

CAUTION:

• If transaxle assembly is removed from the vehicle, always replace CSC (Concentric Slave Cylinder).

Return CSC insert to original position to remove transaxle assembly. Dust on clutch disc sliding
parts may damage seal of CSC and may cause clutch fluid leakage.

• Never disassemble CSC.
• Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately

and wash the affected area with water.

JPDIB0040GB

1.

Transaxle assembly

2.

CSC (Concentric Slave Cylinder)

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDIB0048GB

1.

Transaxle assembly

2.

CSC (Concentric Slave Cylinder)

3.

Sealing bolt

Refer to

GI-4, "Components"

 for symbols not described on the above.
