CLUTCH PEDAL

REMOVAL AND INSTALLATION

CLUTCH PEDAL

Exploded View

INFOID:0000000010288560

Removal and Installation

INFOID:0000000010288561

REMOVAL

1.

Remove front kicking plate inner and dash side finisher. Refer to

INT-18, "Removal and Installation"

.

2.

Remove lower instrument panel, driver side. Refer to

IP-13, "Removal and Installation"

.

3.

Disconnect ASCD clutch switch and Interlock clutch switch harness connector and then disconnect clip of
harness from clutch pedal assembly.

4.

Disconnect clutch stroke sensor harness connector.

5.

Remove clutch stroke sensor. Refer to

CL-10, "Removal and Installation"

.

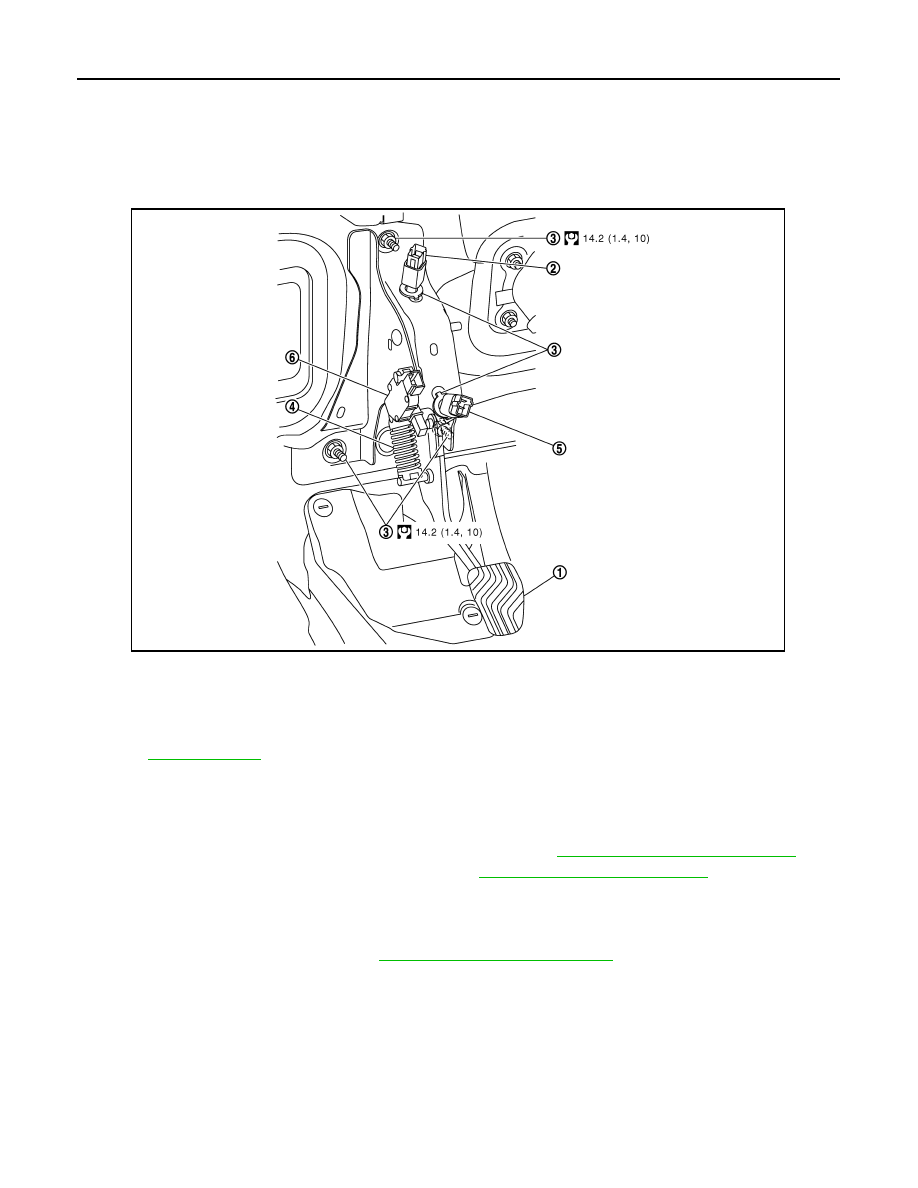

1.

Clutch pedal

2.

 Interlock clutch switch

3.

Clip

4.

Spring

5.

Cluctch switch (ASCD Cancel
Switch)

5.

Nuts

6.

Stroke sensor

Refer to

GI-4, "Components"

 for the symbols in the figure.

E1DIA0227GB

CLUTCH PEDAL

CL-11

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

6.

Remove master cylinder rod end from clutch pedal assembly.

7.

Remove clutch pedal assembly.

INSTALLATION

Install in the reverse order of removal.

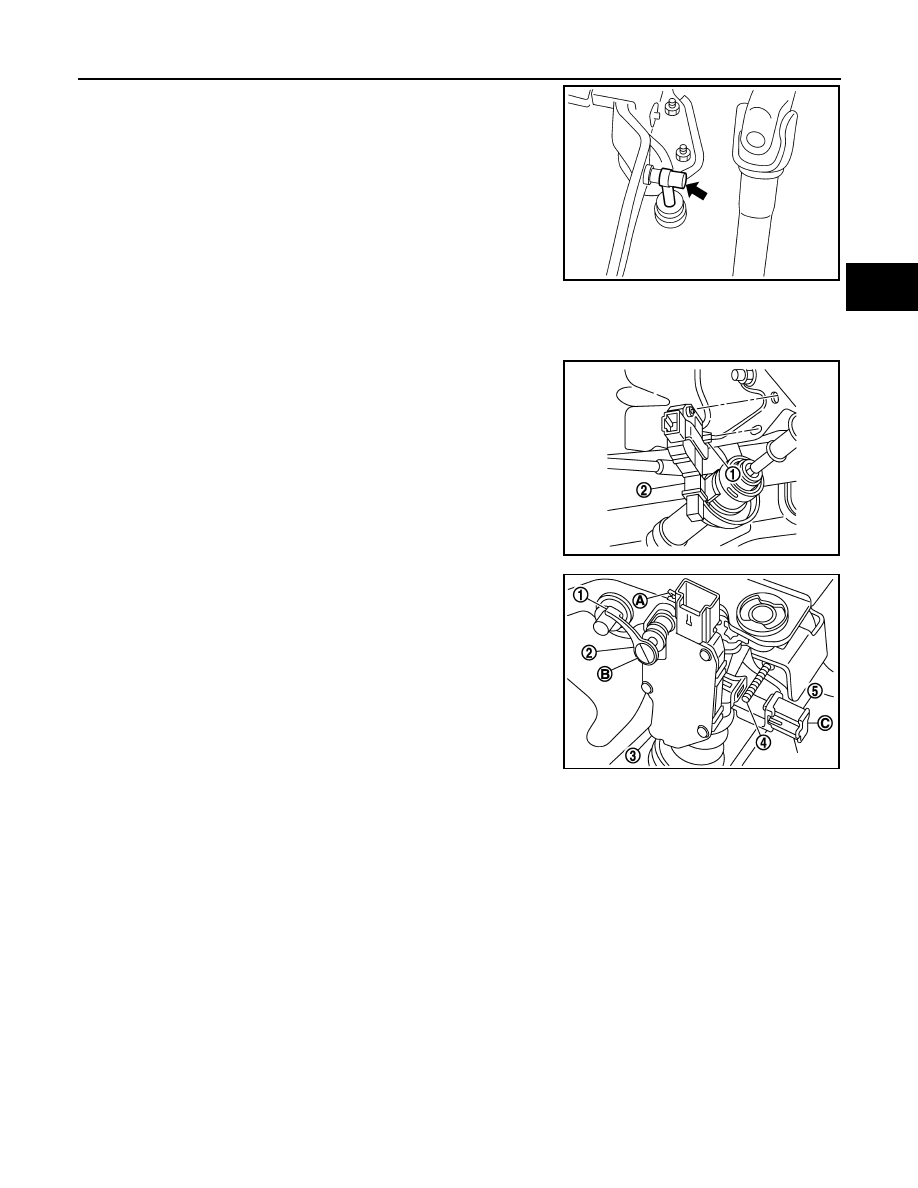

CLUTCH STROKE SENSOR INSTALLATION

1.

Inserted the part (1) of the clutch stroke (2) into the hole and
slide it as shown on the figure.

2.

Push the part (2) in the direction (B) to the hole deeply.
Turn the part (1) in counterclockwise until the part in completely
fixed.
Push the part (5) on the direction (C) to cover the cluch pedal
rod (4).

Inspection

INFOID:0000000010288562

INSPECTION AFTER REMOVAL

Check clutch pedal for bend, damage, or a cracked weld. If bend, damage, or a cracked weld is found, replace
clutch pedal assembly.

PCIB1491E

E1DIA0240ZZ

E1DIA0241ZZ

CL-12

< REMOVAL AND INSTALLATION >

CLUTCH MASTER CYLINDER

CLUTCH MASTER CYLINDER

Exploded View

INFOID:0000000010288563

Removal and Installation

INFOID:0000000010288564

REMOVAL

CAUTION:

• Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately

and wash the affected area with water.

• Never disassemble master cylinder.
1.

Remove the air cleaner case and air duct (inlet) or air ducts. Refer to

EM-23, "Removal and Installation"

(HRA2DDT),

EM-380, "Removal and Installation"

 (R9M),

EM-279, "Removal and Installation"

 (K9K),

(MR20DD)

EM-147, "Removal and Installation"

. (For LHD)

2.

Remove cowl top assembly. Refer to

EXT-29, "Removal and Installation"

 .

3.

Remove engine room insulator. (for RHD).

4.

Drain clutch fluid in reservoir tank assembly and then remove hose.

5.

Remove master cylinder rod end from clutch pedal assembly.

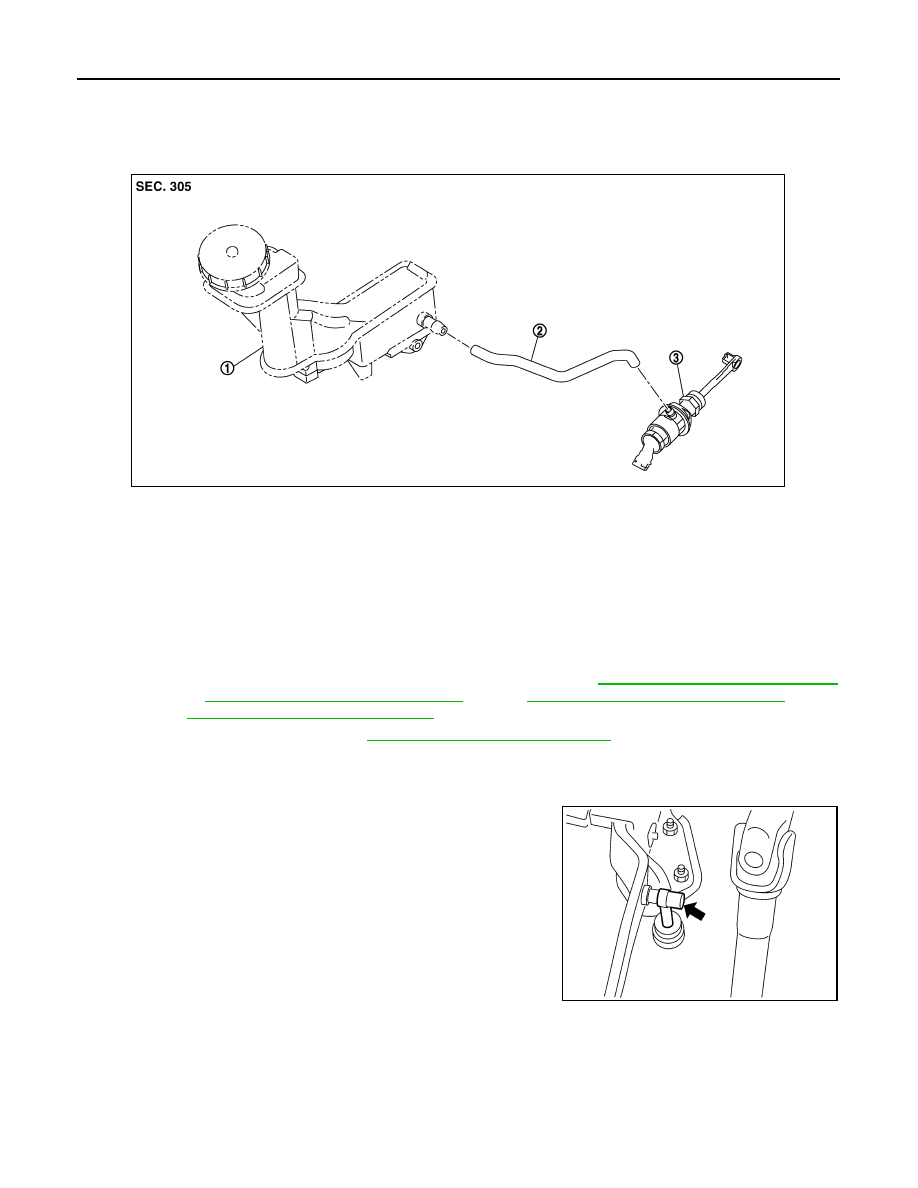

1.

Reservoir tank assembly

2.

Hose

3.

Master cylinder assembly

JPDIB0035ZZ

PCIB1491E

CLUTCH MASTER CYLINDER

CL-13

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

6.

Remove lock pin (1) from connector of master cylinder (2) and
separate clutch tube (3).

7.

Rotate master cylinder assembly clockwise by 45

°

 and then

remove master cylinder assembly from the vehicle.

INSTALLATION

CAUTION:

Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately
and wash the affected area with water.

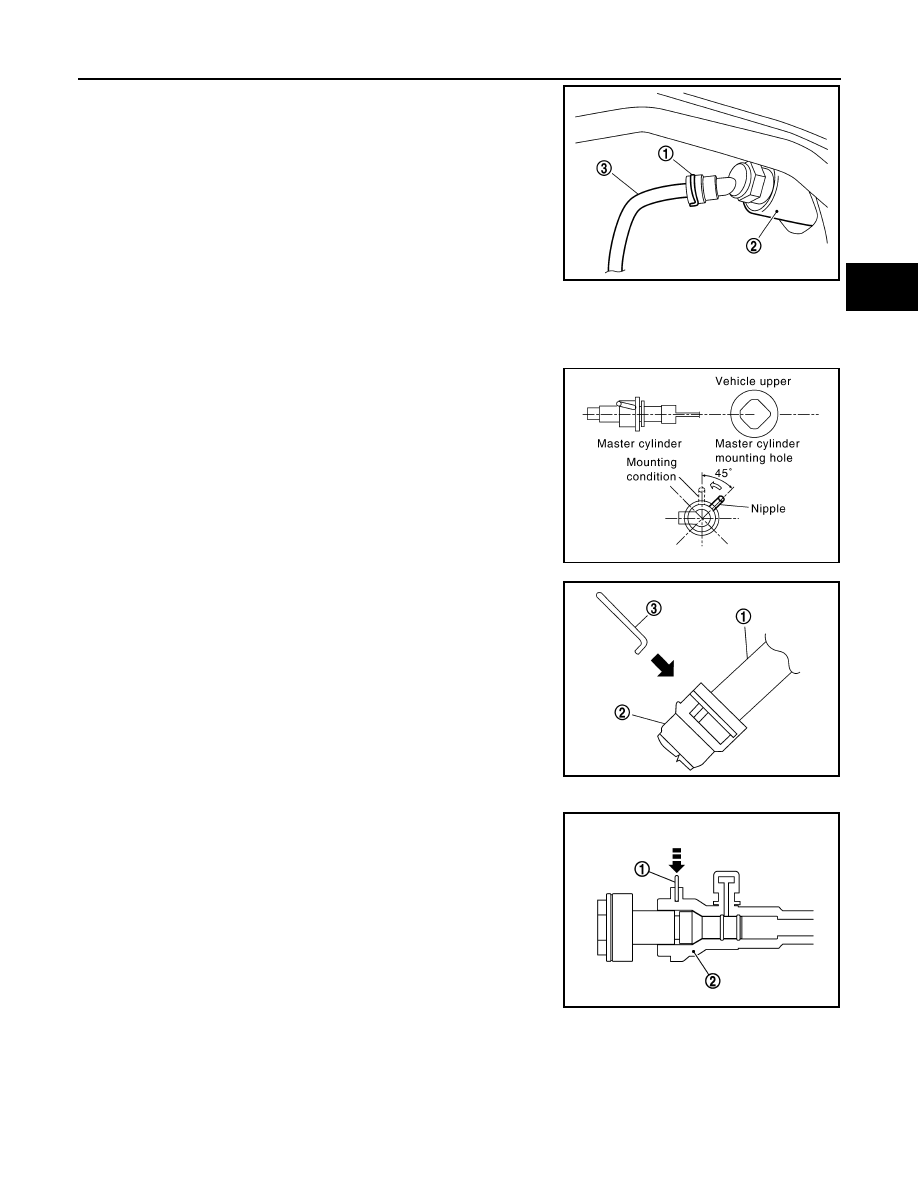

1.

Tilt master cylinder assembly clockwise by 45

°

 and insert it to

the mounting hole. Rotate counterclockwise and secure it. At
this time, nipple is upward of the vehicle.

2.

Install master cylinder rod end to clutch pedal assembly.

3.

Install hose to reservoir tank assembly and master cylinder
assembly.

CAUTION:

Set hose with painted mark facing upward.

4.

Install clutch tube (1) into connector of master cylinder assembly
(2) until it stops.

5.

Install lock pin (3) into connector of master cylinder assembly
until it stops.

6.

Fill new clutch fluid according to the following.

a.

Fill reservoir tank assembly with new clutch fluid.

b.

Connect a transparent vinyl hose to air bleeder of bleeding con-
nector.

c.

Push the lock pin (1) of the bleeding connector (2).
• RS6F94R, RS6F95R and RS6F52A

d.

Slide clutch tube (1) in the direction of the arrow as shown in the figure.

PCIB1497E

SCIA1286E

PCIB1500E
