- Using heated oxygen sensor wrench [SST: KV10114400] (A),

removal heated oxygen sensor 2

.

CAUTION:

Discard any sensor which has been dropped from a height of
more than 0.5 m (19.7 in) onto a hard surface such as a con-
crete floor; use a new one.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Always replace gaskets with new ones when reassembling.
• Discard any heated oxygen sensor 2 which has been dropped onto a hard surface such as a con-

crete floor. Use a new one.

• Before installing a new heated oxygen sensor 2, clean exhaust system threads using the heated oxy-

gen sensor thread cleaner [commercial service tool (J-43897-18 or J-43897-12)] and apply anti-seize
lubricant (commercial service tool).

• Never over torque heated oxygen sensor 2. Doing so may cause damage to the heated oxygen sen-

sor 2, resulting in the “MIL” coming on.

• If heat insulator is badly deformed, repair or replace it. If deposits such as mud pile up on the heat

insulator, remove them.

• When installing heat insulator avoid large gaps or interference between heat insulator and each

exhaust pipe.

• Remove deposits from the sealing surface of each connection. Connect them securely to avoid gas

leakage.

• Temporarily tighten mounting nuts and bolts. Check each part for unusual interference and mount-

ing rubber interference, and then tighten them to the specified torque.

• When installing each mounting rubber, avoid twisting or unusual extension in up/down, front/rear

and right/left directions.

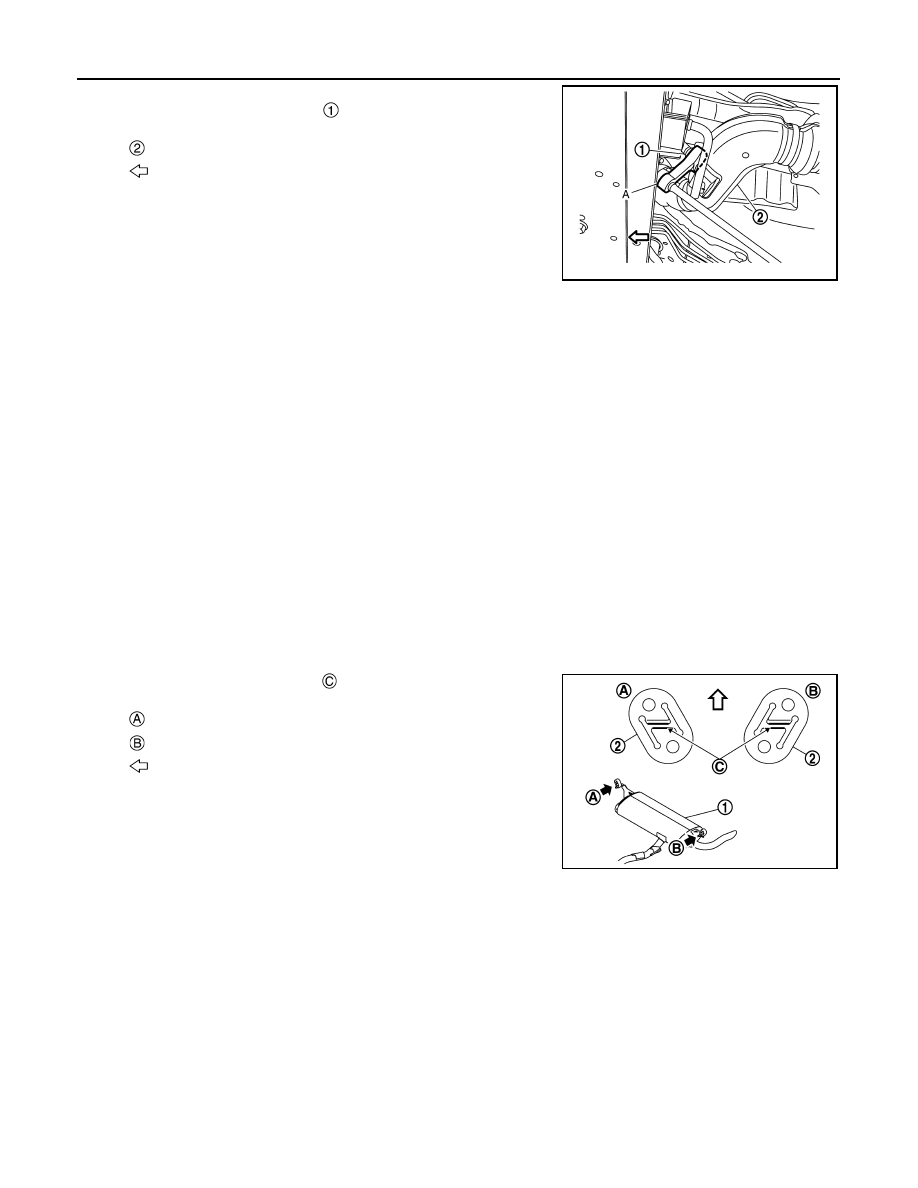

• Install mounting rubber, refer to the following instructions,
- Install slit of the mounting rubber

 is in a horizontal direction.

Inspection

INFOID:0000000010665056

INSPECTION AFTER INSTALLATION

• Check clearance between tail tube and rear bumper is even.
• With engine running, check exhaust tube joints for gas leakage and unusual noises.
• Check to ensure that mounting brackets and mounting rubbers are installed properly and free from undue

stress. Improper installation could result in excessive noise and vibration.

: Exhaust front tube

: Vehicle front

JSBIA4404ZZ

: RH

: LH

: Vehicle upper

JPBIA6874ZZ

PRECAUTIONS

EX-13

< PRECAUTION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

PRECAUTION

PRECAUTIONS

Removal and Installation

INFOID:0000000010427903

CAUTION:

• Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat

resistance, corrosion resistance, and shape.

• Perform the operation with the exhaust system fully cooled down because the system will be hot

just after engine stops.

• Never cut your hand on the heat insulator edge.

EX-14

< PERIODIC MAINTENANCE >

[K9K]

EXHAUST SYSTEM

PERIODIC MAINTENANCE

EXHAUST SYSTEM

Inspection

INFOID:0000000010427904

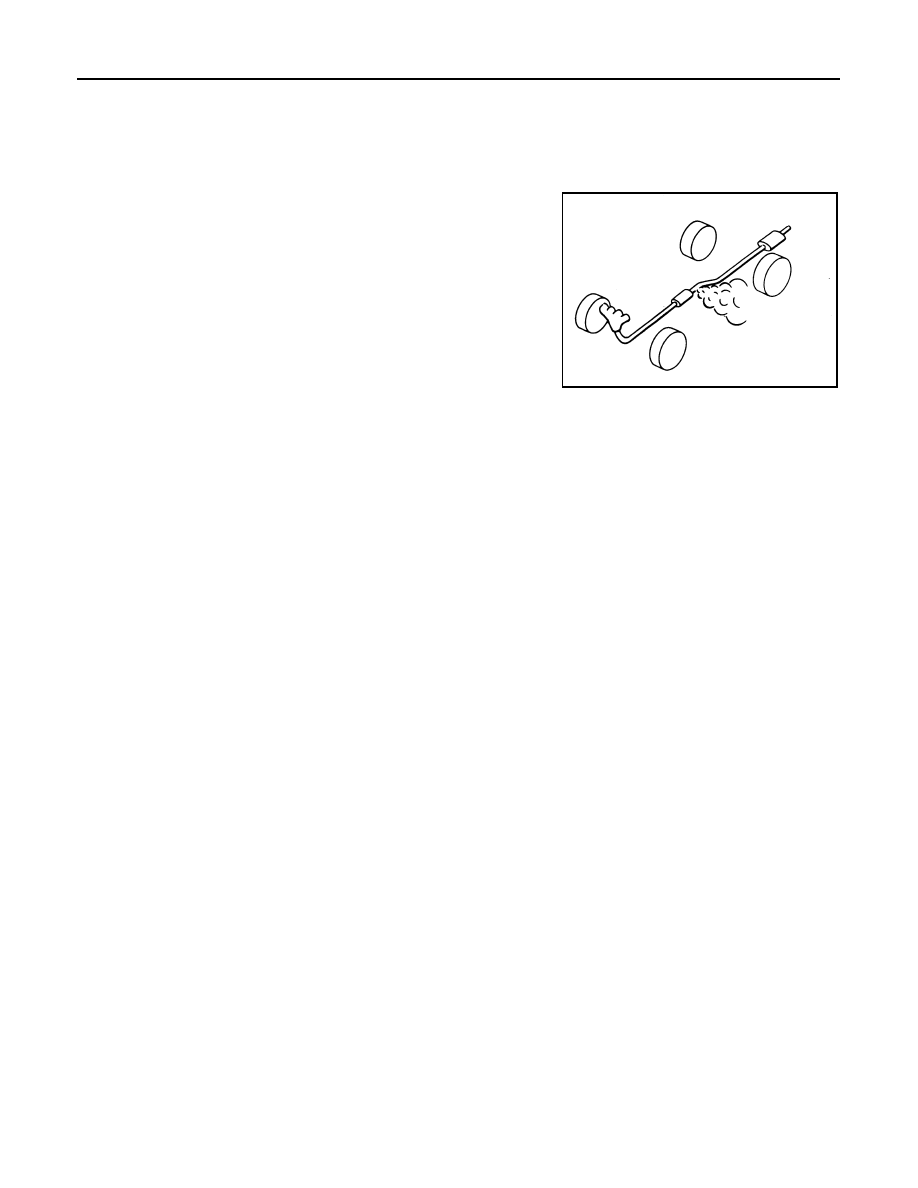

Check exhaust pipes, muffler and mounting for improper attachment,
leaks, cracks, damage or deterioration.
• If anything is found, repair or replace damaged parts.

SMA211A

EXHAUST SYSTEM

EX-15

< REMOVAL AND INSTALLATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

REMOVAL AND INSTALLATION

EXHAUST SYSTEM

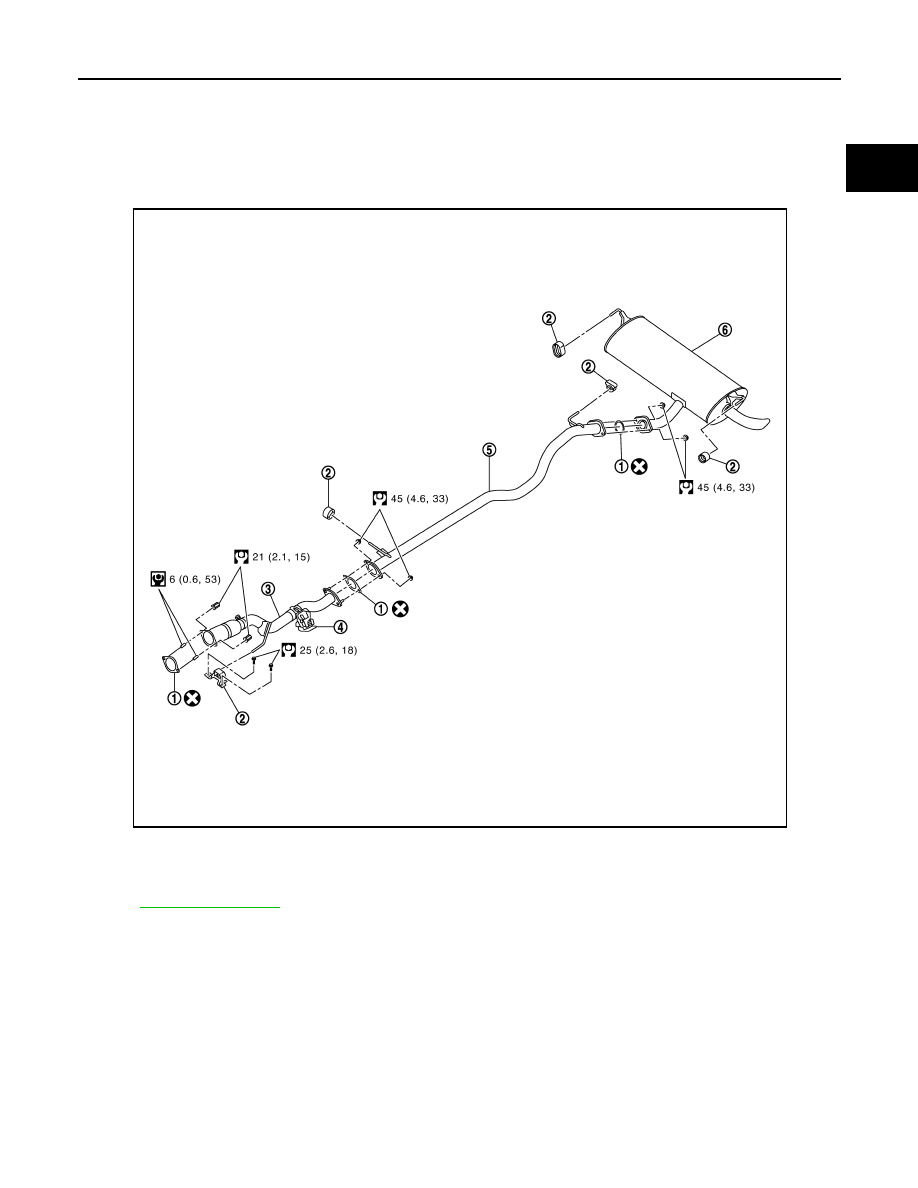

Exploded View

INFOID:0000000010427905

Refer to

GI-4, "Components"

 for symbols in the figure.

Removal and Installation

INFOID:0000000010427906

CAUTION:

• Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat

resistance, corrosion resistance and shape.

• Perform the operation with the exhaust system fully cooled down because the system is still hot just

after the engine stops.

• Never cut your hand on the insulator edge.

REMOVAL

1.

Remove main muffler.

2.

Remove center tube.

1.

Gasket

2.

Mounting rubber

3.

Exhaust front tube

4.

Exhaust shutter

5.

Exhaust center tube

6.

 Main muffler

E1BIA1126GB
