EX-16

< REMOVAL AND INSTALLATION >

[K9K]

EXHAUST SYSTEM

3.

Disconnect exhaust throttle valve connector.

4.

Unclip and move aside exhaust throttle valve harness.

5.

Remove front tube.

INSTALLATION

Note the following, and install in the reverse order of removal.

Exhaust Front Tube and Main Muffler

1.

When replacing the Exhaust electric throttle control actuator, this procedure must be performed. Refer to

ECK-130, "Special Repair Requirement List"

 .

CAUTION:

• Always replace exhaust gaskets with new ones when reassembling.
• If the insulator is badly deformed, repair or replace it. If deposits such as mud pile up on the insula-

tor, remove them.

• When installing the insulator avoid large gaps or interference between the insulator and each

exhaust pipe.

• Remove deposits from the sealing surface of each connection. Connect them securely to avoid gas

leakage.

• If it is difficult to install mounting rubber, use mild detergent for smooth installation.
• When installing each mounting rubber, avoid twisting or unusual extension in up/down and right/left

directions.

• Temporarily tighten mounting nuts. Check each part for unusual interference, and then tighten them

to the specified torque.

Inspection

INFOID:0000000010427907

INSPECTION AFTER INSTALLATION

• With the engine running, check exhaust tube joints for gas leakage and unusual noises.
• Check to ensure that mounting brackets and mounting insulators are installed properly and free from undue

stress. Improper installation could result in excessive noise and vibration.

PARTICLE FILTER

EX-17

< REMOVAL AND INSTALLATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

PARTICLE FILTER

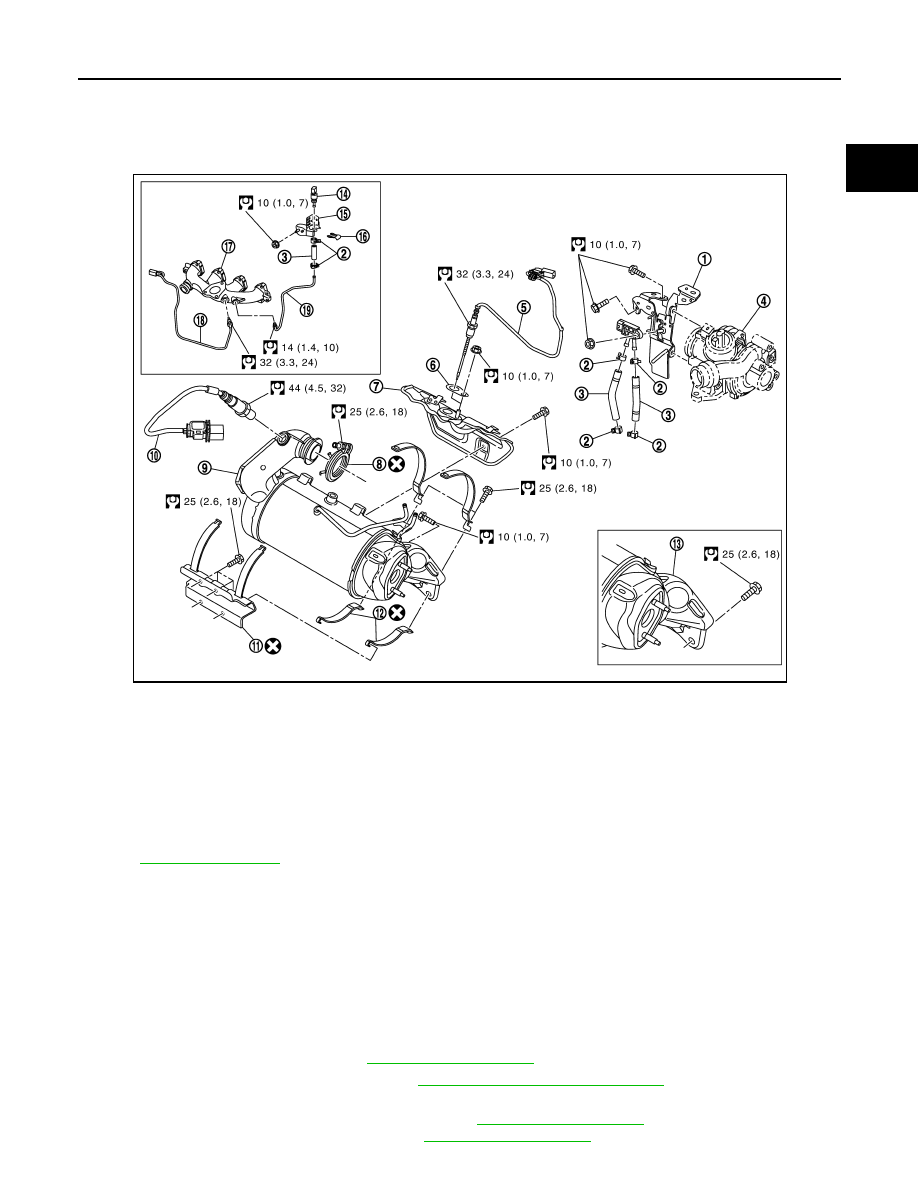

Exploded View

INFOID:0000000010427908

Refer to

GI-4, "Components"

 for symbols in the figure.

Removal and Installation

INFOID:0000000010427909

CAUTION:

• Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat

resistance, corrosion resistance and shape.

• Perform the operation with the exhaust system fully cooled down because the system is still hot just

after the engine stops.

• Be careful not to cut your hand on the insulator edge.

REMOVAL

1.

Remove exhaust front tube. Refer to

EX-15, "Exploded View"

.

2.

Remove front suspension member. Refer to

FSU-21, "Removal and Installation"

3.

Unclip and move aside:
• exhaust gas temperature sensor harness. Refer to

EX-17, "Exploded View"

.

• DPF temperature sensor harness. Refer to

EX-17, "Exploded View"

.

1.

DPF pressure sensor bracket

2.

Clamp

3.

Hose

4.

Turbocharger

5.

DPF temperature sensor

6.

Gasket

7.

DPF heat insulator

8.

V-band clamp

9.

Diesel Particle Filter

10. DPF oxygen sensor

11. DPF Bracket

12. DPF bracket strip

13. DPF exhaust gas exit

14. Exhaust gas pressure sensor

15. Exhaust gas pressure sensor bracket

16. Lock plate

17. Exhaust manifold

18. Exhaust gas temperature sensor

19. Exhaust gas pressure sensor tube

E1BIA0896GB

EX-18

< REMOVAL AND INSTALLATION >

[K9K]

PARTICLE FILTER

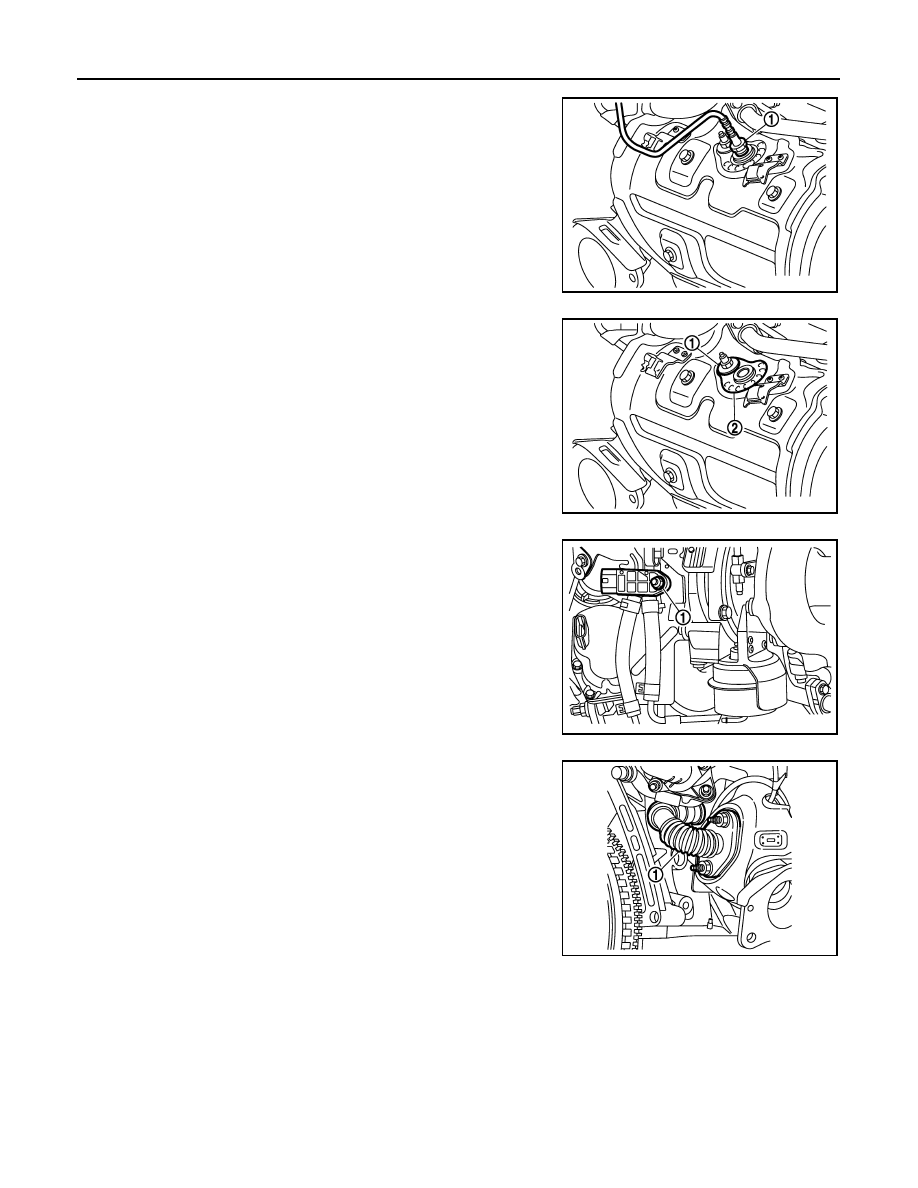

4.

Remove DPF temperature sensor (1).

5.

Remove:
• DPF temperature sensor gasket nut (1).
• DPF temperature sensor gasket (2).

6.

Remove DPF pressure sensor fixing nut (1).

7.

Remove EGR cooler tube nut (1) from DPF.

E1BIA0892ZZ

E1BIA0893ZZ

E1BIA0891ZZ

E1BIA0894ZZ

PARTICLE FILTER

EX-19

< REMOVAL AND INSTALLATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

8.

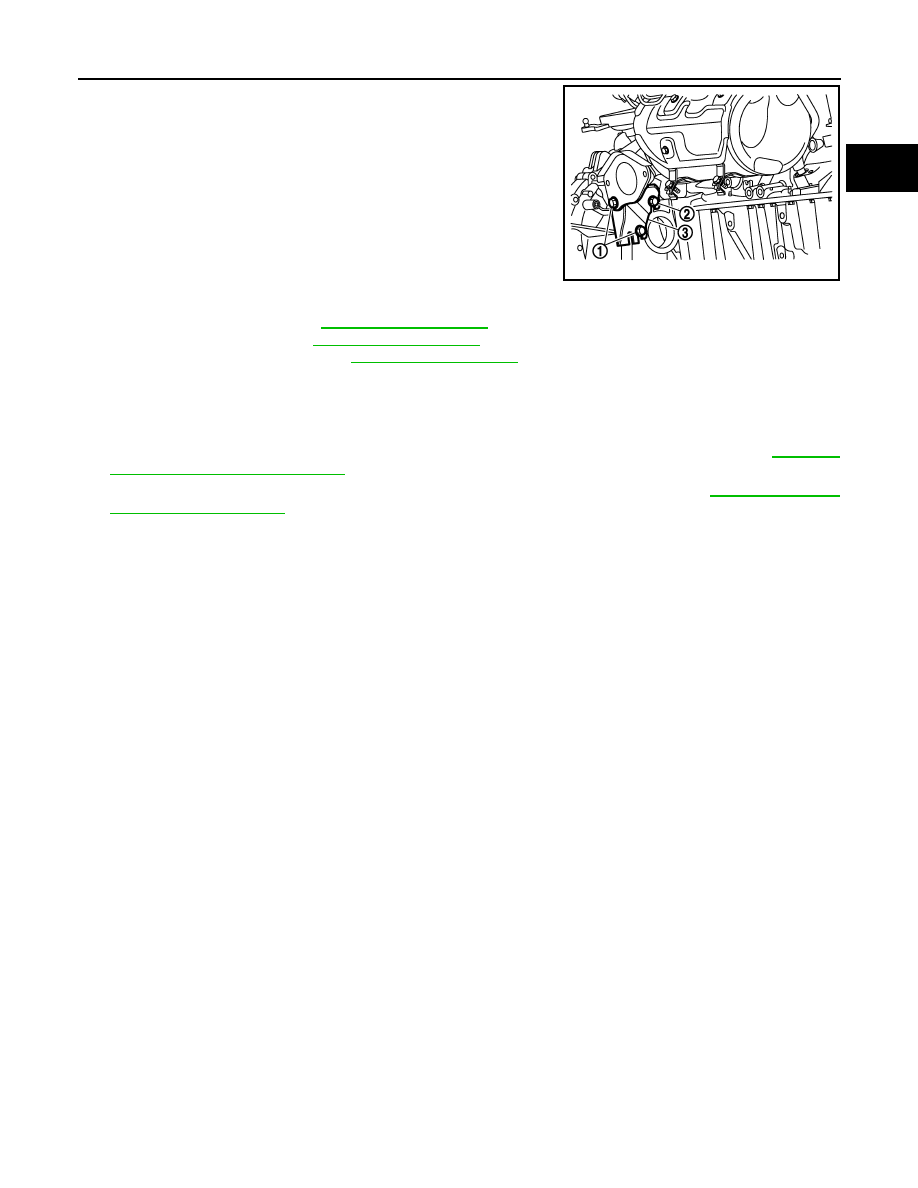

Remove bolts (1), nut (2) and DPF bracket (3).

9.

Remove:
• DPF heat insulator. Refer to

EX-17, "Exploded View"

.

• DPF bracket strip. Refer to

EX-17, "Exploded View"

.

• DPF from turbocharger. Refer to

EX-17, "Exploded View"

.

10. Remove oxygen sensor on the workbench using [SST: — (Mot.1495)].

11. Remove DPF pressure sensor hose from DPF.

INSTALLATION

1.

When replacing the differential pressure sensor, this procedure must be performed. Refer to

ECK-130,

"Special Repair Requirement List"

.

2.

When replacing the diesel particle filter, this procedure must be performed. Refer to

ECK-130, "Special

Repair Requirement List"

.

• Install in the reverse order of removal.

Inspection

INFOID:0000000010427910

INSPECTION AFTER INSTALLATION

• With the engine running, check exhaust tube joints for gas leakage and unusual noises.
• Check to ensure that mounting brackets and mounting insulators are installed properly and free from undue

stress. Improper installation could result in excessive noise and vibration.
