Nissan Qashqai J11. Manual - part 581





EX-4

< PREPARATION >

[HRA2DDT]

PREPARATION

PREPARATION

PREPARATION

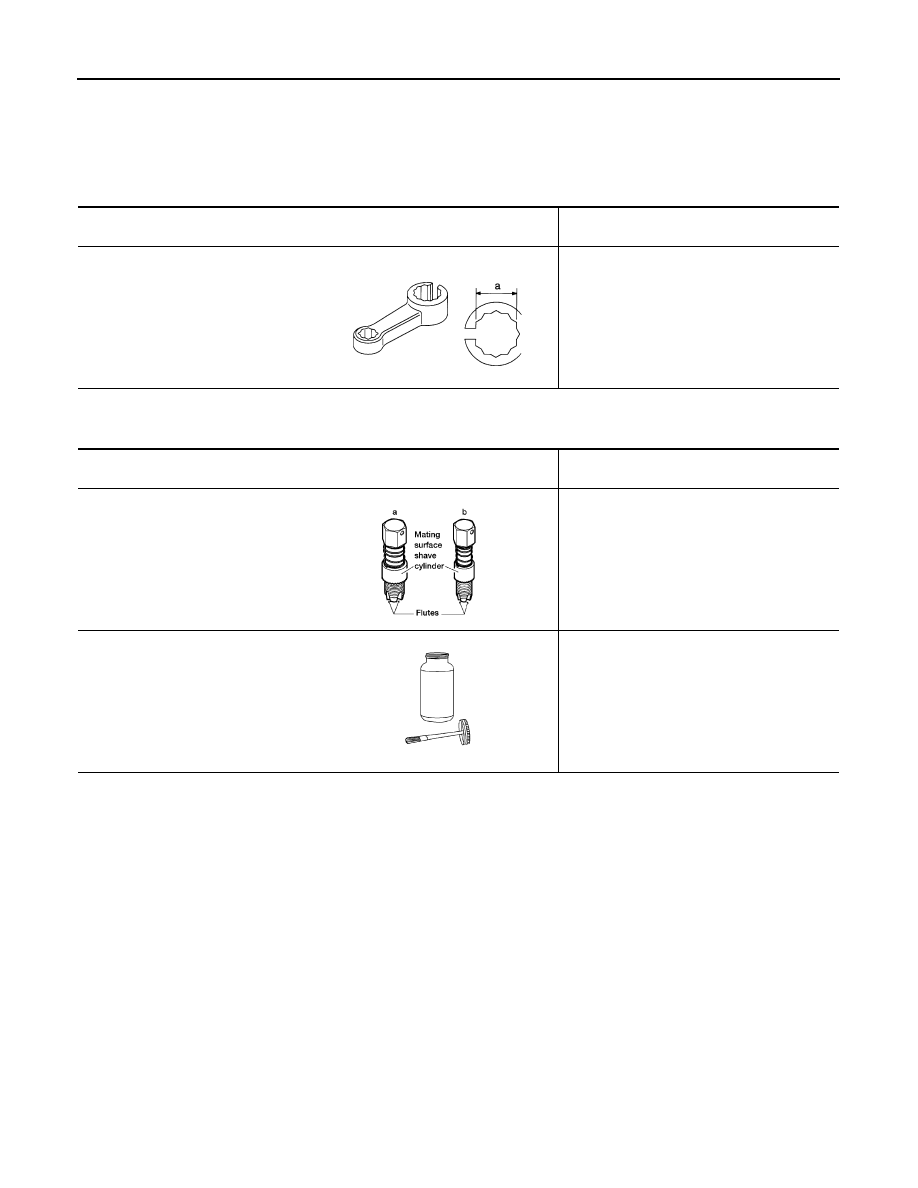

Special Service Tools

INFOID:0000000010287085

Commercial Service Tools

INFOID:0000000010287086

Tool number
Tool name

Description

KV10114400
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor 2
For 22 mm (0.87 in) width hexagon nut

S-NT636

Tool name

Description

Heated oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new heated oxygen sensor
(Use with anti-seize lubricant shown below.)
a: 18 mm (0.71 in) dia. for zirconia heated
oxygen sensor
b: 12 mm (0.47 in) dia. for titania heated ox-
ygen sensor

Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907)

Lubricating heated oxygen sensor thread
cleaner when reconditioning exhaust system
threads

AEM488

AEM489

EXHAUST SYSTEM

EX-5

< PERIODIC MAINTENANCE >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

PERIODIC MAINTENANCE

EXHAUST SYSTEM

Inspection

INFOID:0000000010287087

Check exhaust pipes, muffler and mounting for improper attachment,
leaks, cracks, damage or deterioration.
• If anything is found, repair or replace damaged parts.

SMA211A

EX-6

< REMOVAL AND INSTALLATION >

[HRA2DDT]

EXHAUST SYSTEM

REMOVAL AND INSTALLATION

EXHAUST SYSTEM

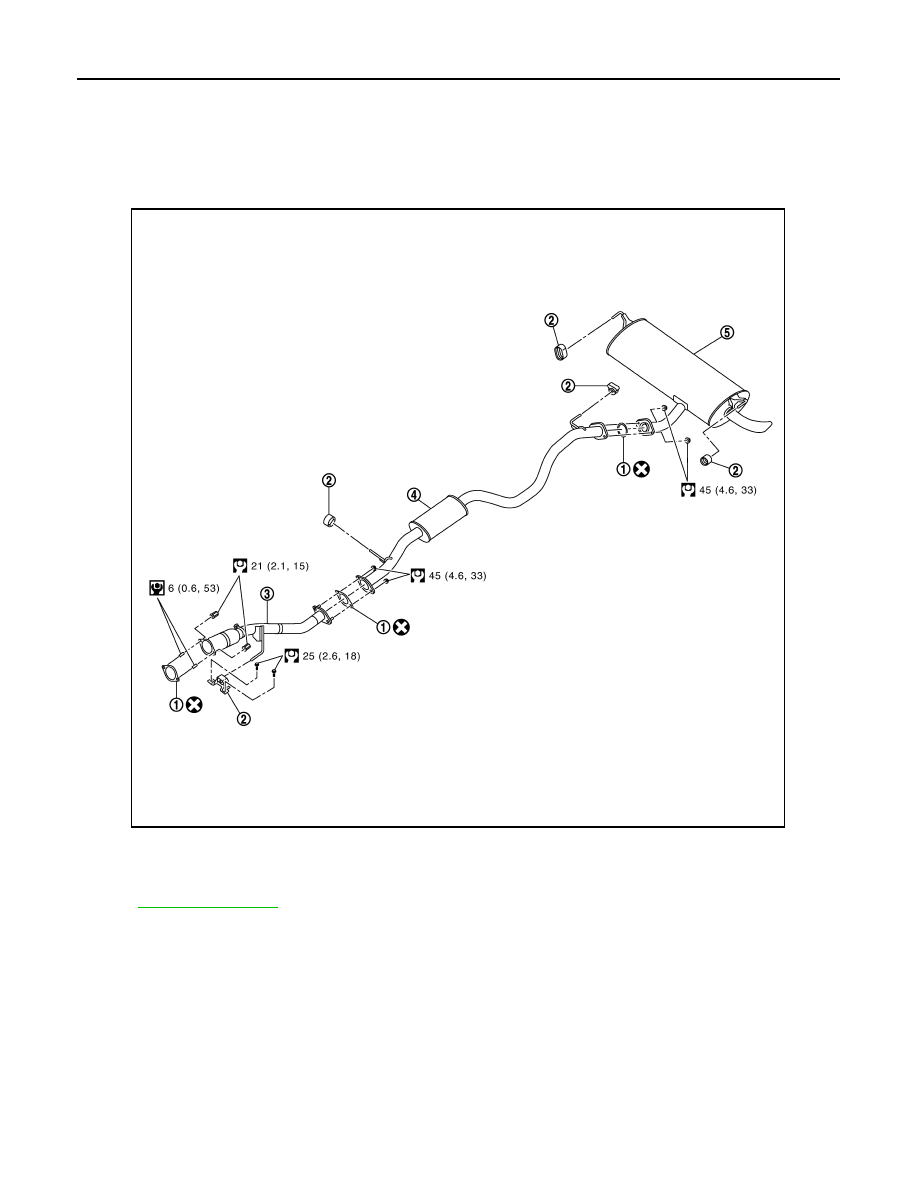

Exploded View

INFOID:0000000010287088

Refer to

GI-4, "Components"

 for symbol marks in the figure.

Removal and Installation

INFOID:0000000010287089

REMOVAL

1.

Remove main muffler.

2.

Remove center tube.

3.

Remove front tube.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Always replace exhaust gaskets with new ones when reassembling.

1.

Gasket

2.

Mounting rubber

3.

Exhaust front tube

4.

Center muffler

5.

Main muffler

E1BIA1125GB

EXHAUST SYSTEM

EX-7

< REMOVAL AND INSTALLATION >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

• If the insulator is badly deformed, repair or replace it. If deposits such as mud pile up on the insula-

tor, remove them.

• When installing the insulator avoir large gaps or interference between the insulator and each

exhaust pipe.

• Remove desits from the sealing surface or each connection. Connect them securely to avoid gas

leakage.

• If it is difficult to install mounting rubber, use mild detergent for smooth installation.
• When installing each mounting rubber, avoid twisting or unusual extension in up/down and right/left

directions.

• Temporarily tighten mounting nuts. Check each part for unusual interference, and then tighten them

to the specified torque.

Inspection

INFOID:0000000010287090

INSPECTION AFTER INSTALLATION

• Make sure clearance between tail tube and rear bumper is even.
• With engine running, check exhaust tube joints for gas leakage and unusual noises.
• Ensure that mounting brackets and mounting rubbers are installed properly and free from undue stress.

Improper installation could result in excessive noise and vibration.
