ECH-214

< DTC/CIRCUIT DIAGNOSIS >

[HRA2DDT]

P0340 CMP SENSOR (PHASE)

Component Inspection

INFOID:0000000010500338

1.

CHECK CAMSHAFT POSITION SENSOR-I

1.

Turn ignition switch OFF.

2.

Loosen the fixing bolt of the sensor.

3.

Disconnect camshaft position sensor harness connector.

4.

Remove the sensor.

5.

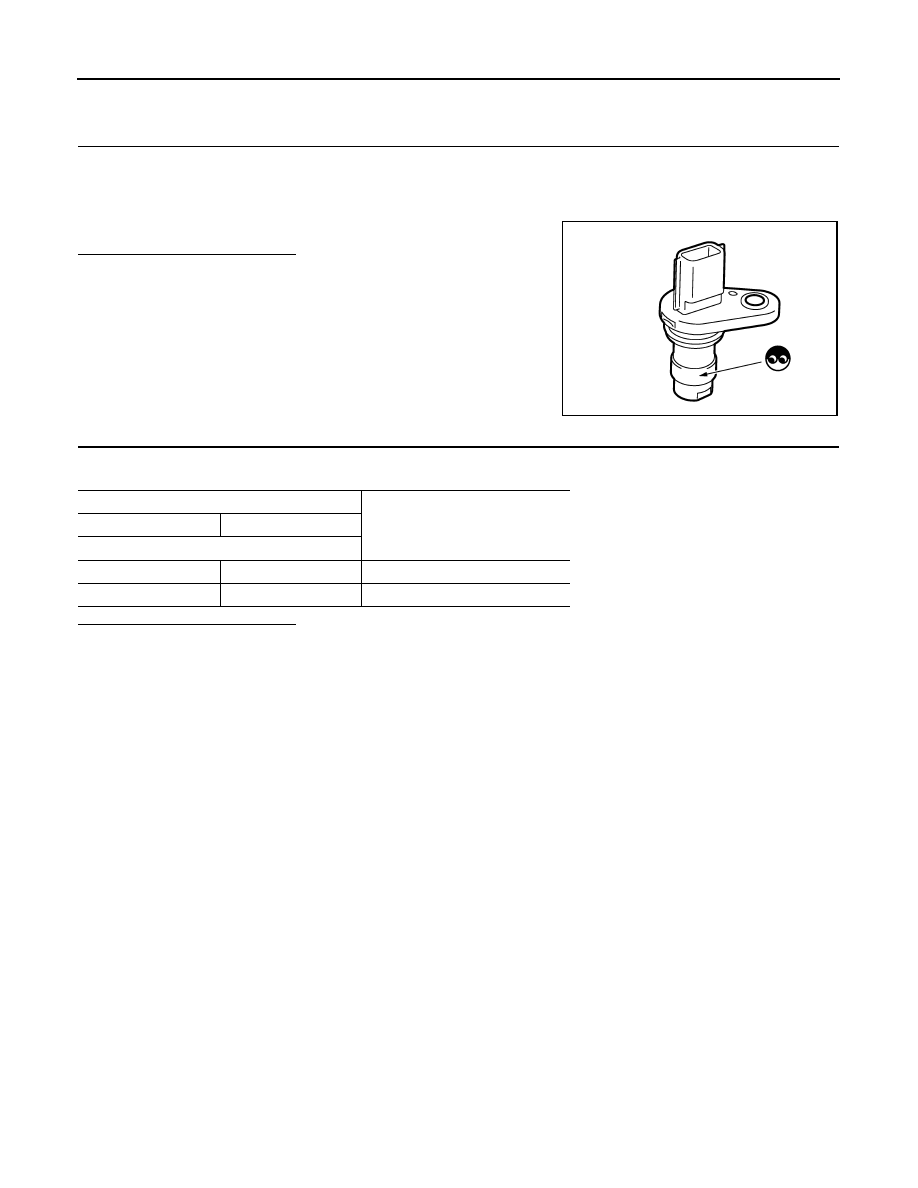

Visually check the sensor for chipping.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace camshaft position sensor.

2.

CHECK CAMSHAFT POSITION SENSOR-II

Check the resistance camshaft position sensor terminals as per the following.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace camshaft position sensor.

PBIA9210J

Camshaft position sensor

Resistance

+

−

Terminals (Polarity)

1

2

More than 100 k

Ω

2

3

More than 200 k

Ω

P0351, P0352, P0353, P0354 IGNITION COIL

ECH-215

< DTC/CIRCUIT DIAGNOSIS >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

P0351, P0352, P0353, P0354 IGNITION COIL

DTC Logic

INFOID:0000000010500388

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

Turn ignition switch OFF and wait at least 12 minutes.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Start the engine and let it idle at least 5 second.

2.

Check DTC.

Is DTC detected?

YES

>> Proceed to

ECH-215, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000010500389

1.

CHECK IGNITION COIL POWER SUPPLY CIRCUIT-1

1.

Turn ignition switch OFF.

2.

Disconnect condenser harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between condenser harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK IGNITION COIL POWER SUPPLY CIRCUIT-2

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R harness connector.

3.

Check the continuity between IPDM E/R harness connector and condenser harness connector.

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P0351

IGNITION COIL A
(Ignition coil “A” primary/sec-
ondary circuit)

• ECM detects the ignition coil circuit is

open.

• ECM detects the ignition coil circuit is

short to ground.

• ECM detects the ignition coil circuit is

short to power.

• Ignition signal circuit is open or shorted
• Ignition coil

P0352

IGNITION COIL B
(Ignition coil “” primary/second-
ary circuit)

P0353

IGNITION COIL C
(Ignition coil “C” primary/sec-
ondary circuit)

P0354

IGNITION COIL D
(Ignition coil “D” primary/sec-
ondary circuit)

+

-

Voltage

Condenser

Connector

Terminal

F200

1

Ground

Battery voltage

ECH-216

< DTC/CIRCUIT DIAGNOSIS >

[HRA2DDT]

P0351, P0352, P0353, P0354 IGNITION COIL

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> Proceed to

ECH-123, "Diagnosis Procedure"

.

NO

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.
• Harness for open or short between IPDM E/R and condenser

>> Repair or replace error-detected parts.

4.

CHECK CONDENSER GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Check the continuity between condenser harness connector and ground.

3.

Also check harness for short to power.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace error-detected parts.

5.

CHECK IGNITION COIL POWER SUPPLY CIRCUIT-4

1.

Reconnect all harness connectors disconnected.

2.

Disconnect ignition coil harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between ignition coil harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 6.

6.

DETECT MALFUNCTIONING PART

Check the following.
• Harness for open or short between ignition coil and harness connector

>> Repair or replace error-detected parts.

7.

CHECK IGNITION COIL GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

IPDM E/R

Condenser

Continuity

Connector

Terminal

Connector

Terminal

F90

96

F200

1

Existed

+

-

Continuity

Condenser

Connector

Terminal

F200

2

Ground

Existed

+

-

Voltage

Ignition coil

Cylinder

Connector

Terminal

1

F24

3

Ground

Battery voltage

2

F25

3

3

F26

3

4

F27

3

P0351, P0352, P0353, P0354 IGNITION COIL

ECH-217

< DTC/CIRCUIT DIAGNOSIS >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

2.

Check the continuity between ignition coil harness connector and ground.

3.

Also check harness for short to power.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Repair or replace error-detected parts.

8.

CHECK IGNITION COIL OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Disconnect ECM harness connector.

2.

Check the continuity between ignition coil harness connector and ECM harness connector.

3.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Repair or replace error-detected parts.

9.

CHECK IGNITION COIL WITH POWER TRANSISTOR

Check ignition coil with power transistor. Refer to

ECH-217, "Component Inspection (Ignition Coil)"

.

Is the inspection result normal?

YES

>> Replace condenser.

NO

>> Repair or replace error-detected parts.

Component Inspection (Ignition Coil)

INFOID:0000000010506429

1.

CHECK IGNITION COIL WITH POWER TRANSISTOR-1

1.

Turn ignition switch OFF.

2.

Disconnect ignition coil harness connector.

3.

Check resistance between ignition coil terminals as follows.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace malfunctioning ignition coil with power transistor.

+

-

Continuity

Ignition coil

Cylinder

Connector

Terminal

1

F24

2

Ground

Existed

2

F25

2

3

F26

2

4

F27

2

Ignition coil

ECM

Continuity

Cylinder

Connector

Terminal

Connector

Terminal

1

F24

1

F17

72

Existed

2

F25

1

76

3

F26

1

79

4

F27

1

80

Ignition coil

Resistance

+

−

Terminals

1

2

470

±

 5

Ω

1

3

2

3
