DAS-326

< SYSTEM DESCRIPTION >

[PARK ASSIST]

OPERATION

DISPLAY 2

System Display and Warning

INFOID:0000000010451335

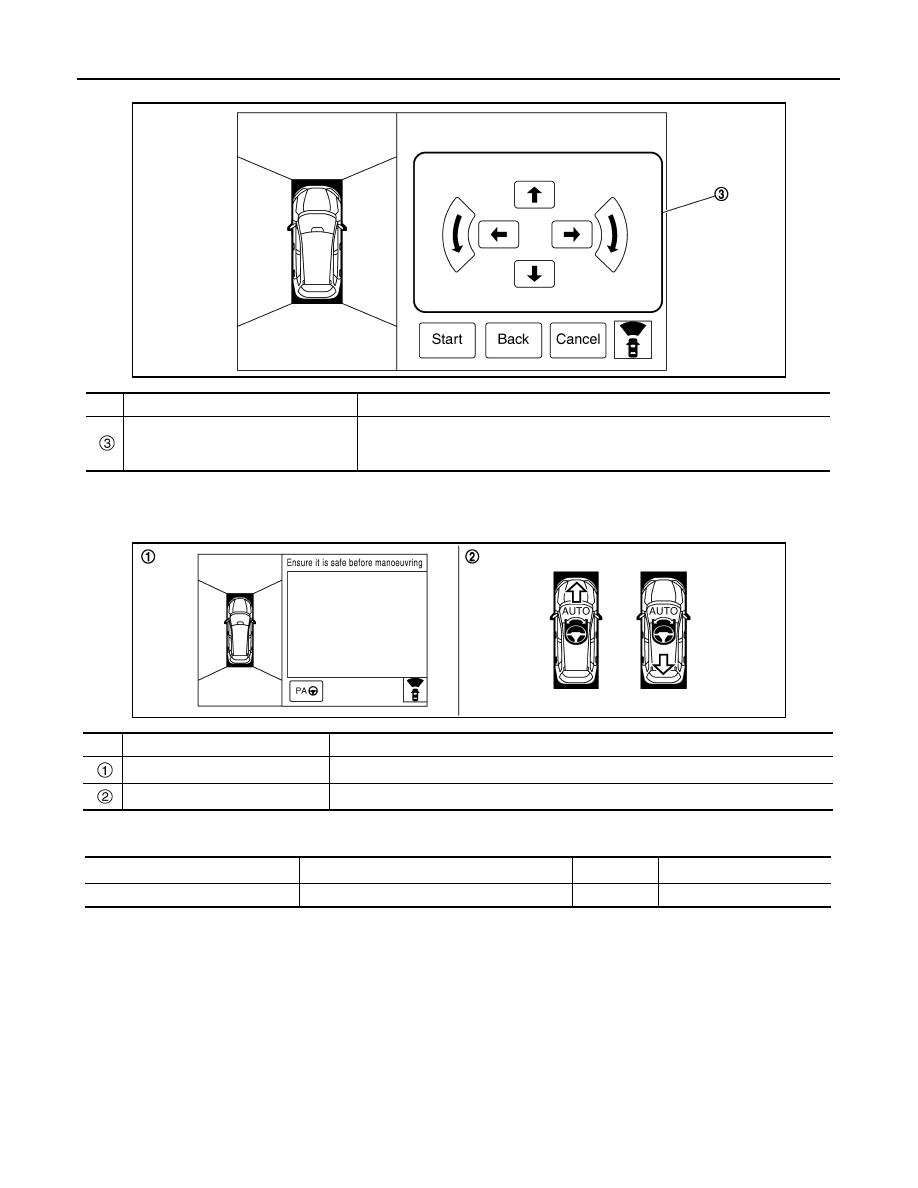

SYSTEM DISPLAY

WARNING DISPLAY AND VOICE GUIDANCE

JMOIA0052GB

No.

Switch name

Function

Parking box position adjustment switch

Performs fine adjustment of the parking guidance box.
NOTE:
Adjustment can be performed up to approximately 70 cm (27.6 in).

JMOIA0053GB

No.

Display name

Function

Camera image screen

Displays the vehicle surroundings and parking guidance box, etc.

Automatic steering status display

Displays while Around View Monitor with park assist is operating.

System status

Warning/display

Buzzer

*

Audio guide

OFF

DAS

OPERATION

DAS-327

< SYSTEM DESCRIPTION >

[PARK ASSIST]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

*: Sonar buzzer sounds.

ON

Vehicle movement judg-
ment in progress

Ensure it is safe before maneuvering

When setting the target
parking rectangle

Stop beside parking space to start Park Assist

When Park Assist starts

Drive forward

“Start Park Assist”

When vehicle starts to
move forward (when steer-
ing wheel is turned)

Drive forward

“Drive forward”

When vehicle speed is too
fast

Reduce speed

Short beep

When the vehicle is moving
forward and moves close to
the forward/reverse start-
ing position rectangle

Stop and select reverse gear

Long beep

“Select reverse gear”

When the vehicle is moving
in reverse and moves close
to the forward/reverse
starting position rectangle

Stop and select drive gear

Long beep

“Select drive gear”

When vehicle starts to
move in reverse

Drive backwards

“Drive backwards”

When the target parking
rectangle fine adjustment
screen is displayed

Adjust park position

When Park Assist ends

Park Assist finished

Long beep

“Park Assist finished”

When D position is not se-
lected

Select drive gear

“Park Assist could not start”

When steering wheel is not
in neutral position

Center steering wheel

“Park Assist could not start”

System malfunction

 Park Assist fault

Long beep

System limit

Park Assist canceled

Long beep

“Park Assist canceled”

When start is not possible

Park Assist unavailable

System status

Warning/display

Buzzer

*

Audio guide

DAS-328

< SYSTEM DESCRIPTION >

[PARK ASSIST]

HANDLING PRECAUTION

HANDLING PRECAUTION

Precautions for Around View Monitor with Parking Assist

INFOID:0000000010451336

• Around View Monitor with park assist is designed to assist steering wheel operation of the driver when park-

ing the vehicle. This function does not automatically adjust speed or avoid obstacles. The driver should
directly check the safety of the surroundings and the condition of the road surface using the mirrors and their
line of sight, as when performing normal parking operations.

• While the system is operating, move the vehicle slowly, and when it appears likely that the vehicle may con-

tact other vehicles, obstacles, or persons surrounding the vehicle, perform operations to avoid these obsta-
cles by fully depressing the brake, etc.

• Never touch the spoke part of the steering wheel while Around View Monitor with park assist is operating.

There is a risk of injuring hands or fingers. Never allow a scarf or neck tie, etc. to become entangled,
because it may result in an unexpected accident.

• Never drive the vehicle while looking only at the screen. Otherwise. it may result in contact with obstacles or

an unexpected accident.

• When assistance by Around View Monitor with park assist is no longer necessary, touch "Cancel" on the

screen and end the function. If Around View Monitor with park assist remains in operation, the steering oper-
ates automatically. This could result in an unexpected accident.

• Before using Around View Monitor with park assist, directly check visually that there is sufficient space sur-

rounding the vehicle for performing parking operations.

• Never use in the following conditions.
- Unmaintained road surfaces such as sand or gravel, etc.
- Slippery road surfaces where there is snow or ice, etc.
- Sloping roads or roads that are not flat where there is unevenness, or where there are curbs or grooves
-  Mechanically operated parking lots
- When snow chains or emergency tires are installed
- When towing
- When a door (including the back door) is not closed

DAS

DIAGNOSIS SYSTEM (AROUND VIEW MONITOR CONTROL UNIT)

DAS-329

< SYSTEM DESCRIPTION >

[PARK ASSIST]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

DIAGNOSIS SYSTEM (AROUND VIEW MONITOR CONTROL UNIT)

CONSULT Function

INFOID:0000000010505366

CONSULT FUNCTIONS

CONSULT performs the following functions via communication with the around view monitor control unit.

ECU IDENTIFICATION

The part number of around view monitor control unit is displayed.

SELF DIAGNOSTIC RESULT

Refer to

DAS-49, "DTC Index"

.

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Direct Diagnostic Mode

Description

ECU Identification

The around view monitor control unit part number is displayed.

Self Diagnostic Result

The around view monitor control unit self diagnostic results are displayed.

Data Monitor

The around view monitor control unit input/output data is displayed in real time.

Work support

The settings for around view monitor control unit functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing around view monitor control unit.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

Monitor Item

Description

ST ANGLE SENSOR SIGNAL [On/Off]

Indicates condition of steering angle sensor signal.

REVERSE SIGNAL [On/Off]

Indicates selector lever position.

VEHICLE SPEED SIGNAL [mph/km/h]

Indicates condition of vehicle speed signal.

ILL [On/Off]

Indicates status of dimmer signal.

CAMERA SWITCH SIGNAL [On/Off]

Indicates condition of camera switch signal.

CAMERA OFF SIGNAL [On/Off]

Indicates condition of camera OFF signal.

ST ANGLE SENSOR TYPE [Absolute]

Indicates steering angle sensor type.

STEERING GEAR RATIO TYPE [Type O]

Indicates steering gear ratio type.

STEERING POSITION [LHD/RHD]

Indicates LH or RH drive type.

REAR CAMERA IMAGE SIGNAL [OK/
NG]

Indicates condition of camera image signal.

WASH SW [On/Off]

Indicates state of wash switch indicator output.

R-CAMERA COMM STATUS [OK/NG]

Indicates status of rear camera communication.

R-CAMERA COMM LINE [OK/NG]

Indicates condition of rear camera communication line.

F-CAMERA IMAGE SIGNAL [OK/NG]

Indicates condition of camera image signal.

F-CAMERA COMM STATUS [OK/NG]

Indicates status of front camera communication.

F-CAMERA COMM LINE [OK/NG]

Indicates condition of front camera communication line.

DR-SIDE CAMERA IMAGE SIG [OK/NG]

Indicates condition of driver side camera image signal.

DR CAMERA COMM STATUS [OK/NG]

Indicates status of driver side camera communication.

DR-SIDE CAMERA COMM LINE [OK/
NG]

Indicates condition of driver side camera communication line.

PA-SIDE CAMERA IMAGE SIG [OK/NG]

Indicates condition of passenger side camera image signal.

PA CAMERA COMM STATUS [OK/NG]

Indicates status of passenger side camera communication.

PA-SIDE CAMERA COMM LINE [OK/NG]

Indicates condition of passenger side camera communication line.
