FUNCTION DESCRIPTION

• The BSW system can help alert the driver of other vehicles in adjacent lanes when changing lanes.
• The BSW system uses rear view camera near the rear bumper to detect vehicles in an adjacent lane.

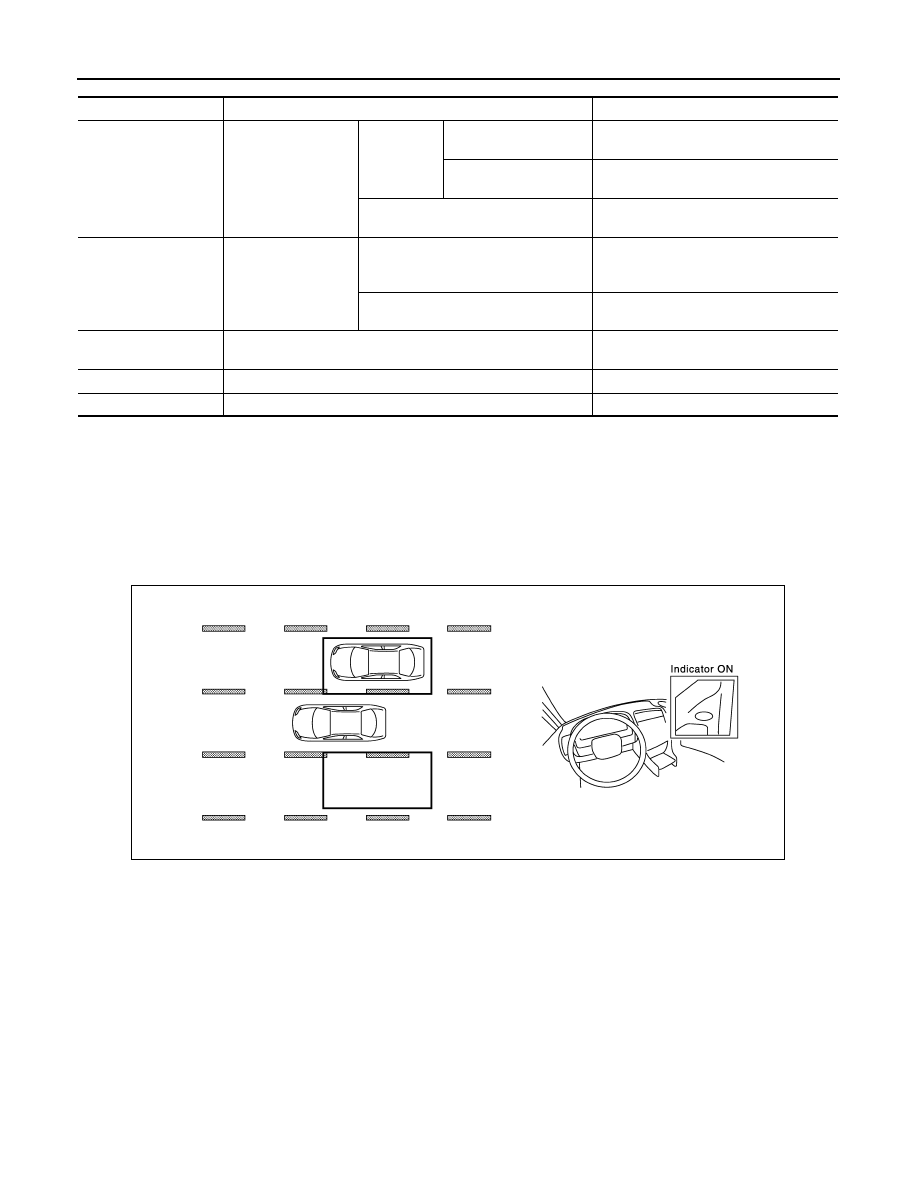

• The rear view camera can detect vehicles on either side of vehicle within the detection zone shown as illus-

trated.

• This detection zone starts from the back of the vehicle and extends approximately 3.0 m (10.0 ft) behind the

rear bumper, and approximately 3.0 m (10.0 ft) sideways.

• The BSW system operates above approximately 32 km/h (20 MPH).
• If the rear view camera detects vehicles in the detection zone, the blind spot warning indicator illuminates.

• If the driver then activates the turn signal, a buzzer will sound twice and the blind spot warning indicator will

blink.
NOTE:

Reception unit

Signal name

Description

Combination meter

CAN communication

Meter dis-
play signal

BSW warning signal

Transmits a meter display signal to turn
ON the BSW warning.

BSW ON indictor signal

Transmits a meter display signal to turn
ON the BSW ON indictor.

Buzzer output signal

Transmits a buzzer output signal to acti-
vates the warning buzzer.

Rear view camera
washer control unit

Communication line

Rear view camera washer signal

Transmits a rear view camera washer mo-
tor signal to activate the rear view camera
washer motor.

Rear view camera air blow signal

Transmits a rear view camera air blow sig-
nal to activate the air pump

Warning system ON in-
dicator

Warning systems ON indicator signal

Turns ON the warning system ON indica-
tor.

Warning buzzer

Warning buzzer operation signal

Activates the warning buzzer.

BSW indicator LH, RH

Indicator operation signal

Turns ON the BSW indicator LH, RH.

JSOIA0257GB

DAS

SYSTEM

DAS-19

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

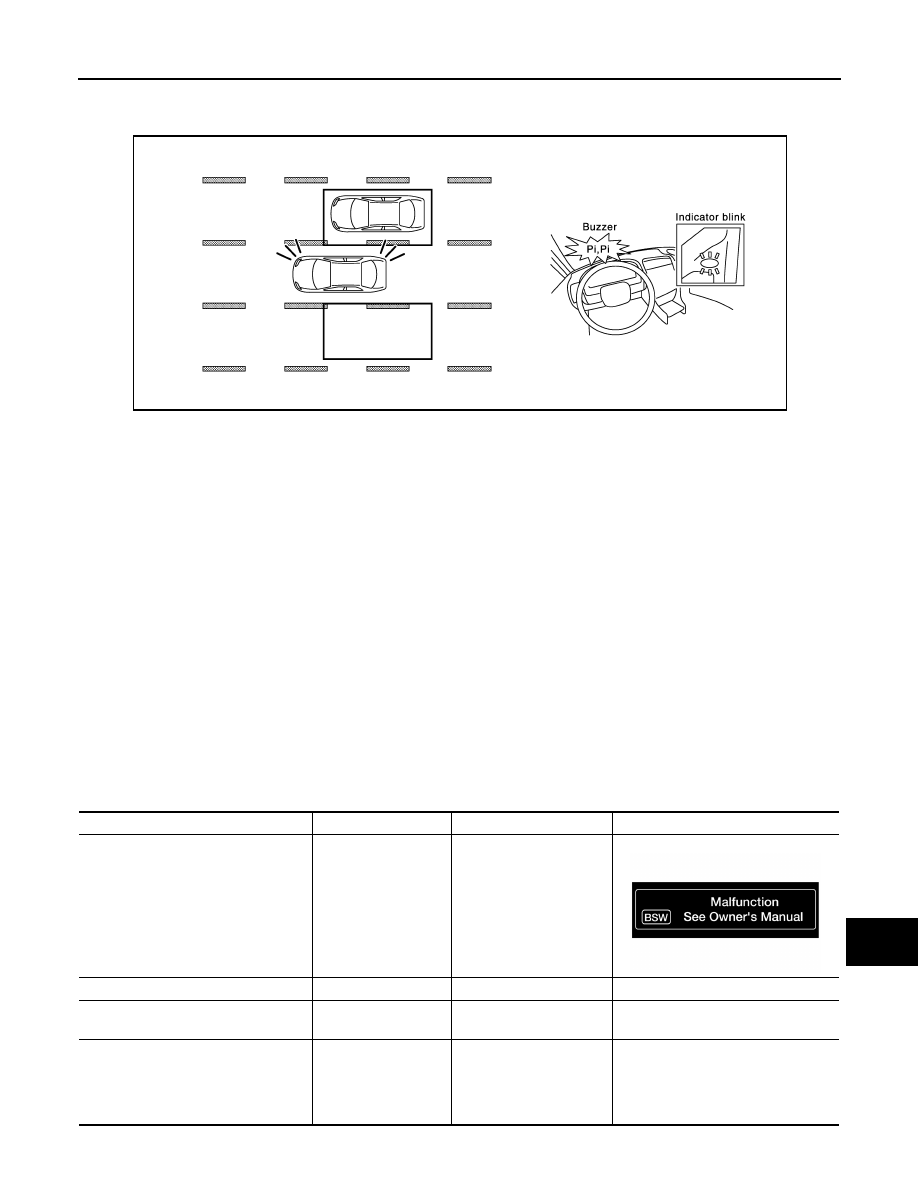

A buzzer sounds if the rear view camera has already detected vehicles when the driver activates the turn
signal. If a vehicle comes into the detection zone after the driver activates the turn signal, then only the blind
spot warning indicator blinks and no buzzer sounds.

OPERATION DESCRIPTION

• Control unit enables BSW system.
• The control unit turns on the BSW system when the warning systems switch is turned ON.
• Rear view camera detects a vehicle in the adjacent lane, and transmits the vehicle detection signal to control

unit.

• Control unit starts the control as follows, based on a vehicle detection signal and turn signal transmitted from

BCM via CAN communication:

- Buzzer signal transmission to warning buzzer.
• Around view monitor transmits a blind spot warning indicator signal LH or RH to the blind spot warning indi-

cator LH or RH.

Operation Condition of BSW System

 control unit performs the control when the following conditions are satisfied:
• When the warning system switch is turned ON

*

.

• When the vehicle drives at 32 km/h (20 MPH) or more in the forward direction.
NOTE:
*: When the BSW system setting on the vehicle information display screen is ON.
• After the operating conditions of warning are satisfied, the warning continues until the vehicle speed is

reduced below approximately 29 km/h (18 MPH).

• The BSW system may not function properly, depending on the situation.

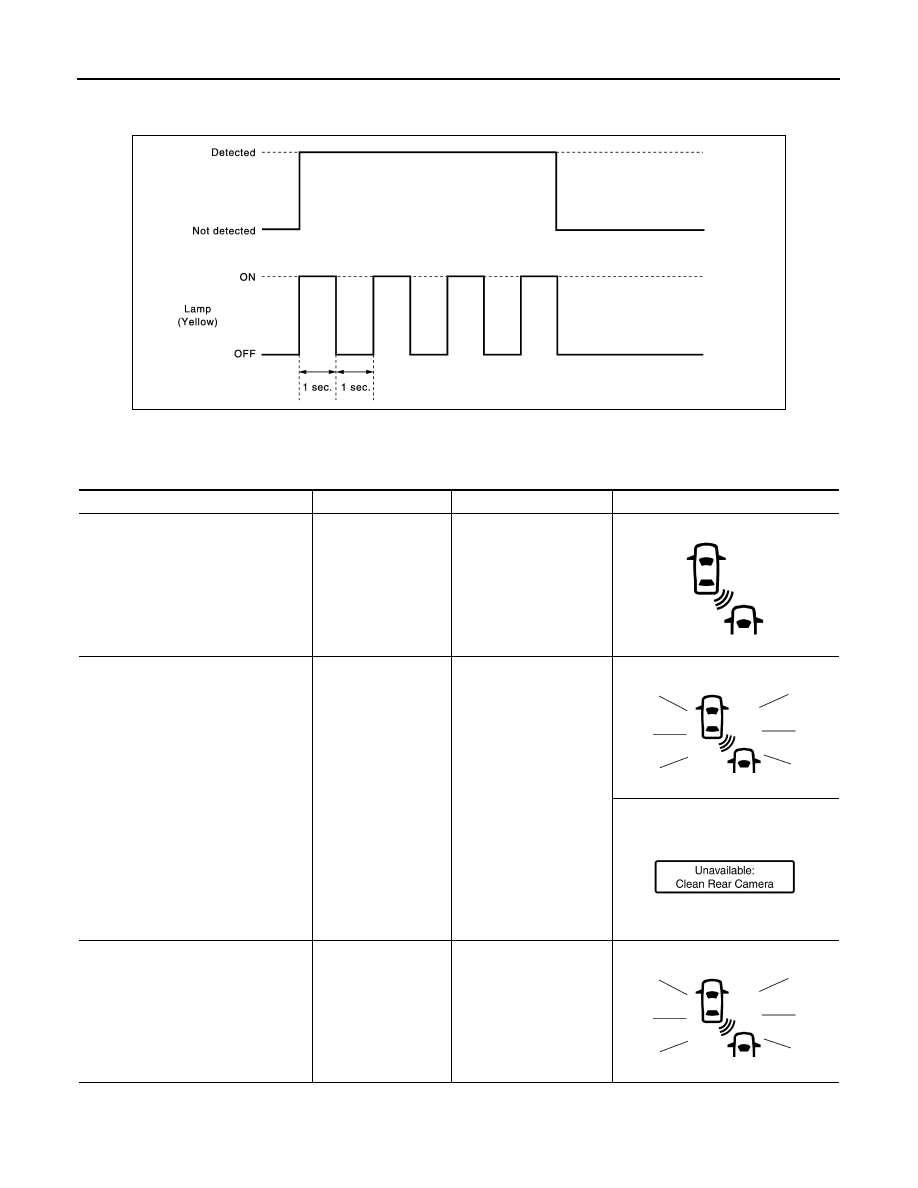

BULB CHECK ACTION AND FAIL-SAFE INDICATION

JSOIA0258GB

Vehicle condition/Driver

′

s operation

BSW indicator

BSW ON indicator

Indication on the combination meter

When DTC is detected.

OFF

ON

OFF

→

 Orange

Temporary disabled status.

OFF

ON

BSW light (white) will blink

When rear view camera needs clean-
ing.

OFF

ON

Unavailable: Clean Rear Camera

When the warning system switch is
pressed.
(When the settings of BSW system on
the combination meter information
screen are “OFF”).

OFF

Blink

—

ALOIA0172GB

DAS-20

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

SYSTEM

*: Blinking cycle when there is a rear view camera blockage condition or lane camera unit high temperature
condition

NOTE:
Time shown in the figure is approximate.

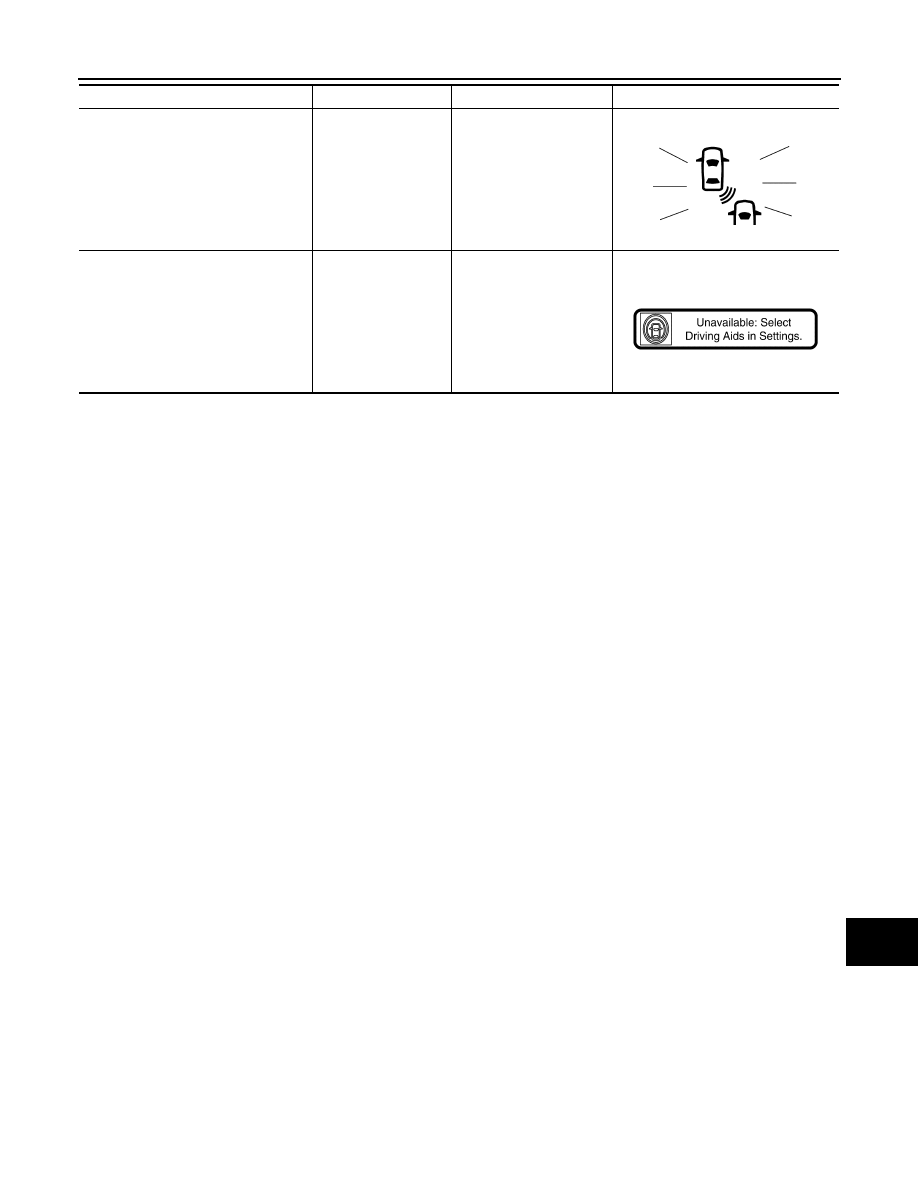

FAIL-SAFE INDICATION

JSOIA0358GB

Vehicle condition/Driver

′

s operation

BSW indicator

BSW ON indicator

Indication on the combination meter

When DTC is detected

OFF

ON

When vehicles cannot be detected due
to dirt on the rear view camera

OFF

ON

When the washer fluid level is low
(Low washer warning ON)

OFF

ON

Blinks at intervals of two seconds.

JSOIA1423ZZ

JSOIA1425ZZ

JSOIA0738ZZ

JSOIA1425ZZ

DAS

SYSTEM

DAS-21

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

REAR VIEW CAMERA WASHER OPERATION

• When judging that the rear view camera has water droplets, the around view monitor control unit transmits a

rear view camera washer activation signal or rear view camera air blow signal to the pump control unit via
serial communication.

• When receiving a rear view camera washer activation signal, the pump control unit simultaneously activates

the washer pump to clean the rear view camera by spraying washer fluid from the nozzle installed to the rear
view camera bracket.

• When receiving a rear view camera air blow signal, the pump control unit activates the air pump to clean the

rear view camera by blowing air from the nozzle installed to the rear view camera bracket.

OPERATION CONDITION

• Approximately 32km/h (20 MPH) or more
• When the around view monitor control unit judges that the rear view camera has water droplets.
• When the low washer fluid warning is OFF.
NOTE:
The camera is cleaned intermittently by spraying washer fluid and blowing air. When the around view monitor
control unit judges that dirt on the camera cannot be removed even after approximately 5 minutes from the
first detection of dirt, the activation of BSW is canceled.
