DAS-14

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

COMPONENT PARTS

ECM

• Transmits engine speed signal to around view monitor control unit via CAN communi-

cation.

• Refer to

ECH-12, "Component Parts Location"

 (HRA2DDT),

ECM-14, "ENGINE CON-

TROL SYSTEM : Component Parts Location"

 (MR20DD),

ECK-12, "Component Parts

Location"

 (K9K) or

EC9-12, "Component Parts Location"

 (R9M) for detailed installation

location.

BCM

• Transmits the turn indicator signal, dimmer signal, and back door switch signal to

around view monitor via CAN communication.

• Refer to

BCS-7, "BODY CONTROL SYSTEM : Component Parts Location"

 for detailed

installation location:

Blind spot warning indictor LH

• Installed on the front door corner finisher, the blind spot warning indicator warns the

driver by lighting/blinking.

• Receives a blind spot warning indicator operation signal from the around view monitor

control unit.

Rear view camera

• The rear view camera is installed in the back door finisher.
• With the mirror processing function, a mirror image is sent as if it is viewed by a rear

view mirror.

• Power for the camera is supplied from the around view monitor control unit, and the im-

age at the rear of the vehicle is sent to the around view monitor control unit.

• The rear view camera is equipped with a washer nozzle and air nozzle for cleaning

camera. A check valve is installed to the tube connected to the washer nozzle.

Rear view camera air pump motor

• Rear view camera air pump motor is installed to the rear left underbody.
• Air pump is activated and generates compressed air when power is supplied from the

rear view camera washer control unit.

• Compressed air jets out from the air nozzle of rear view camera via air tube.

Rear view camera washer control
unit

• Rear view camera washer control unit is installed under the luggage rear plate.
• Communicates with around view monitor control unit via serial communication line.
• Activates air pump and washer pump according to the signal from around view monitor

control unit.

Combination meter

• Displays the system status according to a signal received.
• Operates the buzzer according to the signal from the distance sensor.
• Refer to

MWI-6, "Component Parts Location"

 for detailed installation location.

Steering switch

Receives the various systems and camera signals via CAN communication and routes
them to the NAVI control unit display.
• Steering switches are installed in the steering wheel.
• Settings for driver assistance systems are possible.
• Switch is connected to the combination meter and signals are transmitted to the around

view monitor via CAN communication.

Warning system switch

• Installed to the back of the instrument lower panel LH, the warning system switch is

used to activate/deactivate the driver assistance system.

• Transmits a warning system switch signal to the around view monitor control unit.

Warning system buzzer

• Warning system buzzer is installed to the back of the instrument lower panel LH.
• When a warning buzzer signal is received from the around view monitor, the buzzer

sounds.

Steering angle sensor

• Transmits the steering angle sensor signal to around view monitor via CAN communi-

cation.

• Refer to

BRC-8, "Component Parts Location"

 for detailed installation location.

NAVI control unit

• Receives the various systems and camera signals via CAN communication and routes

them to the NAVI control unit display.

• Receives speed limit information in navigation data.
• Refer to

AV-128, "Component Parts Location"

 for detailed installation location.

No.

Component

Function

DAS

SYSTEM

DAS-15

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

SYSTEM

LDW

LDW : System Description

INFOID:0000000010416788

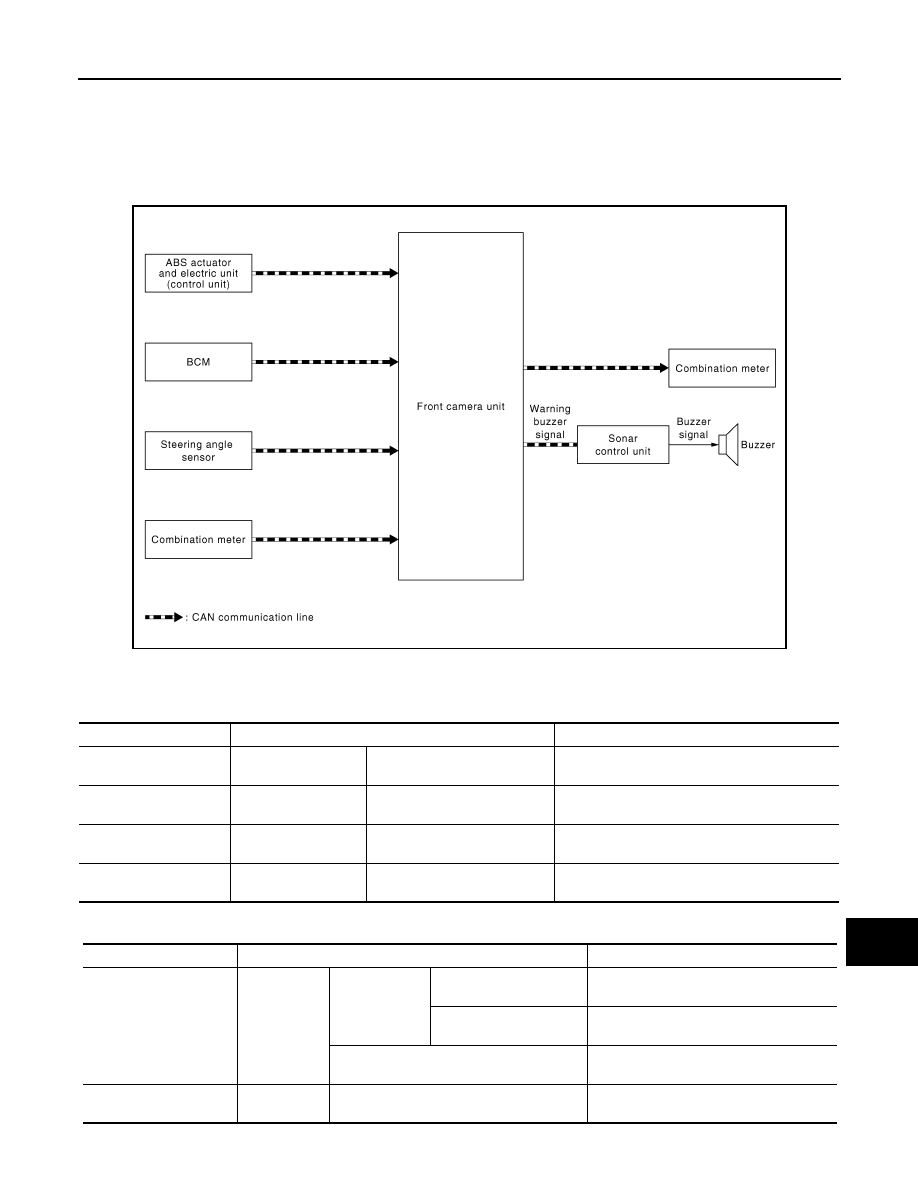

SYSTEM DIAGRAM

INPUT/OUTPUT SIGNAL ITEM

Input Signal Item

Output Signal Item

JMOIA0064GB

Transmit unit

Signal name

Description

BCM

CAN communication

Turn indicator signal

Receives an operational state of the turn signal
lamp and the hazard lamp

Combination meter

CAN communication

System selection signal

Receives a selection state of each item in “Driver
assistance” selected with the information display

Steering angle sensor

CAN communication

Steering angle sensor signal

Receives the number of revolutions, turning di-
rection of the steering wheel

ABS actuator and elec-
tric unit (control unit)

CAN communication

Vehicle speed signal (ABS)

Receives the wheel speed of the four wheels

Reception unit

Signal name

Description

Combination meter

CAN commu-
nication

Meter display
signal

LDW warning signal

Transmits a meter display signal to turn
ON the LDW warning

LDW ON indicator signal

Transmits a meter display signal to turn
ON the LDW ON indicator

Buzzer output signal

Transmits a buzzer output signal to acti-
vates the warning buzzer

Sonar control unit

CAN commu-
nication

Buzzer signal

Transmits signals and outputs LDW buzz-
er sound

DAS-16

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

SYSTEM

FUNCTION DESCRIPTION

• Lane Departure Warning (LDW) system provides a lane departure warning function when the vehicle is

driven at speeds of approximately 60 km/h (37 MPH) or more.

• When the vehicle approaches either the left or the right side of the traveling lane, a warning will sound and

LDW system display on the combination meter will blink to alert the driver.

• The warning does not occur during turn signal operation (Lane change side).
• The warning function will stop when the vehicle returns inside of the lane markers.

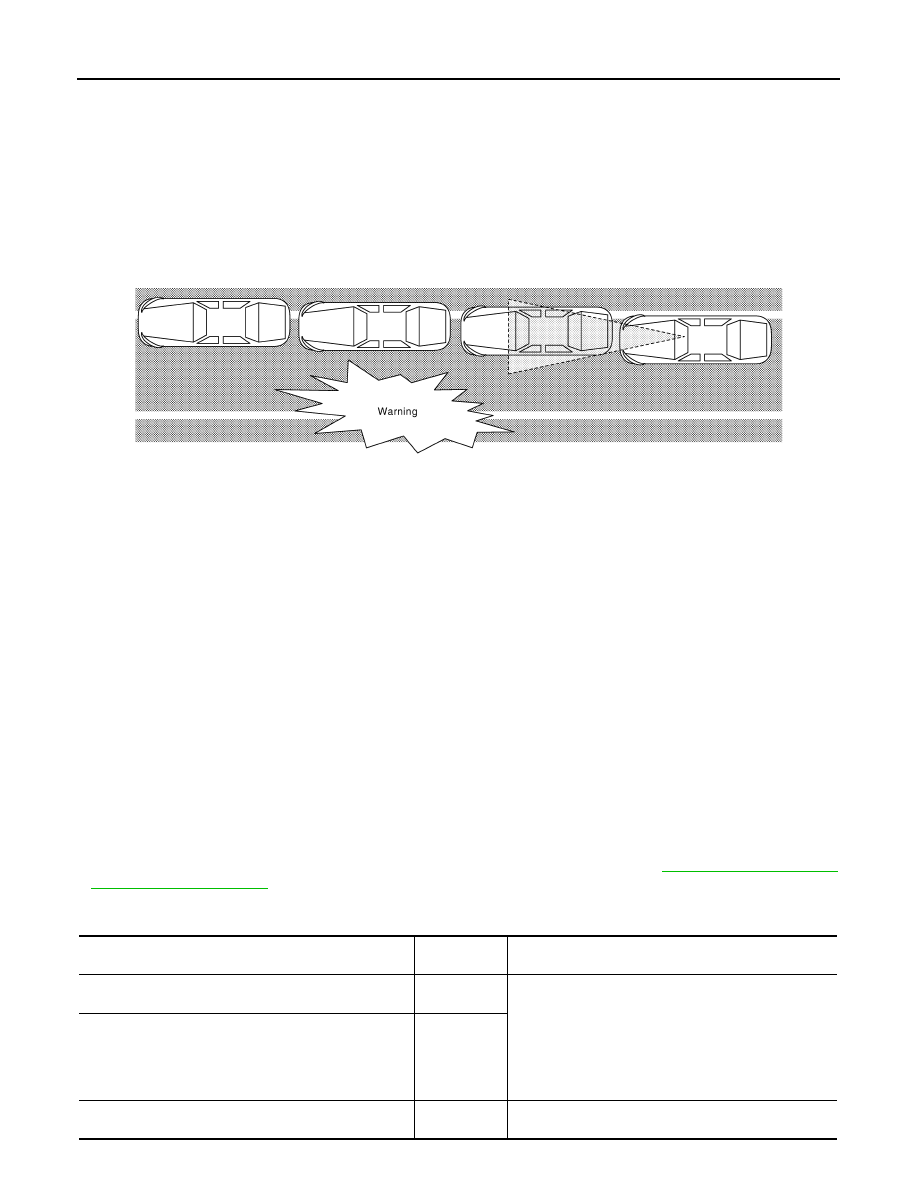

EXAMPLE

When the vehicle approaches the right lane marker, the driver is alerted by the buzzer and the blinking of LDW
system display.

OPERATION DESCRIPTION

• When the system is turned ON by operating the warning systems switch, front camera unit turns ON the

LDW ON indicator.

• Front camera unit monitors the traveling lane.
• When judging from a camera image signal that the vehicle is approaching the lane marker, front camera unit

controls the following item to alert the driver.

- Activates warning buzzer in the combination meter or transmits warning buzzer signal to sonar control unit.
- Front camera unit transmits a meter display signal to combination meter via CAN communication and turns

ON/OFF the LDW warning.

Operating Condition

• LDW ON indicator: ON
• Vehicle speed: approximately 60 km/h (37 MHP) or more
• Turn indicator signal: After 2 seconds or more from turned OFF
NOTE:
• When the LDW system setting on the combination meter is ON.
• After the operating conditions of warning are satisfied, the warning continues until the vehicle speed reaches

approximately 55 km/h (34 MHP).

• The LDW system may not function properly, depending on the situation. Refer to

DAS-31, "Precautions for

Lane Departure Warning"

.

Fail-safe Indication

JPOIA0014GB

Vehicle condition/ Driver's operation

LDW ON indi-

cator

Indication on the combination meter

When DTC is detected
(Except “C1B03”)

ON

The message of LDW malfunction

Camera aiming is not completed
(“C1B01” is detected)
NOTE:
This is detected while driving the vehicle and the indication
remains ON until the ignition switch is turned OFF

ON

Temporary disabled status at high temperature
(“C1B3” is detected)

OFF

The message of Camera High Temp

DAS

SYSTEM

DAS-17

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

BSW

BSW : System Description

INFOID:0000000010416789

SYSTEM DIAGRAM

INPUT/OUTPUT SIGNAL ITEM

Control unit receives signals via CAN communication. It also detects vehicle conditions that are necessary for
BSW control.

Input Signal Item

Output Signal Item

JMOIA0065GB

Transmit unit

Signal name

Description

BCM

CAN communication

Turn indicator signal

Receives an operational state of the turn signal lamp
and the hazard lamp.

Back door switch signal

Receives a state of the back door switch.

Combination meter

CAN communication

System selection signal

Receives a selection state of each item in “Driver assis-
tance” selected with the combination meter.

Steering angle sensor

CAN communication

Steering angle sensor signal

Receives the number of revolutions, turning direction of
the steering wheel.

ECM

CAN communication

Engine status signal

Receives the engine status.

ABS actuator and elec-
tric unit (control unit)

CAN communication

Wheel speed signal

Receives wheel speed.

Rear view camera

Communication line

Camera image signal

Receives the camera image signal.
