DAS-10

< PRECAUTION >

[DRIVER ASSISTANCE SYSTEM]

PRECAUTIONS

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Precaution for Work

INFOID:0000000010416770

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.
• Replace a deformed or damaged clip.
• If a part is specified as a non-reusable part, always replace it with a new one.
• Be sure to tighten bolts and nuts securely to the specified torque.
• After installation is complete, be sure to check that each part works properly.
• Follow the steps below to clean components:
- Water soluble dirt:
• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.
• Then rub with a soft, dry cloth.
- Oily dirt:
• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty

area.

• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.
• Then rub with a soft, dry cloth.
- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.
- For genuine leather seats, use a genuine leather seat cleaner.

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

DAS

PRECAUTIONS

DAS-11

< PRECAUTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

Precaution for LDW System Service

INFOID:0000000010868543

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

• Never perform the active test while driving.
• Never change LDW initial state ON

 OFF without the consent of the customer.

Precaution for BSW System Service

INFOID:0000000010868544

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

• Never perform the active test while driving.
• Never change BSW initial state ON

 OFF without the consent of the customer.

Precautions for Driver Assistance Systems

INFOID:0000000010619951

CAUTION:

• Do not use or disassemble the distance sensor removed from the vehicle.
• Erase DTC when replacing parts of FEB system, then check the operation of FEB system after align-

ment, if necessary.

WARNING:

Be cautious of traffic conditions and other vehicles when performing a road test.

CAUTION:

• Do not use the DAS system when driving with free rollers or on a chassis dynamometer.
• Do not disassemble or alter the rear view camera.
• Do not disable the DAS system without the consent of the customer.

OBSERVE THE FOLLOWING ITEMS IN ORDER TO KEEP THE DAS SYSTEM OPERATING PROP-
ERLY:

Rear view Camera Maintenance

The rear view camera for the DAS system is located in the back door. To keep the DAS system operating
properly and prevent a malfunction, be sure to observe the following:
• Always keep the camera lens area clean.
• Do not attach bumper stickers (including transparent materials) or install an accessory near the rear view-

camera.

• Do not strike or damage the areas around the rear view camera.
• Do not touch the camera lens (except for cleaning) or remove the rear view camera.

DAS-12

< PREPARATION >

[DRIVER ASSISTANCE SYSTEM]

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000010416774

NOTE:
For radar alignment, KV99112700 or a set of Kent-Moore No. SST are to be used.

Tool number
(SPX - North America No.)
Tool name

Description

KV99112700
(—)
ICC target board

Uses for radar alignment

JSOIA1012ZZ

DAS

COMPONENT PARTS

DAS-13

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

SYSTEM DESCRIPTION

COMPONENT PARTS

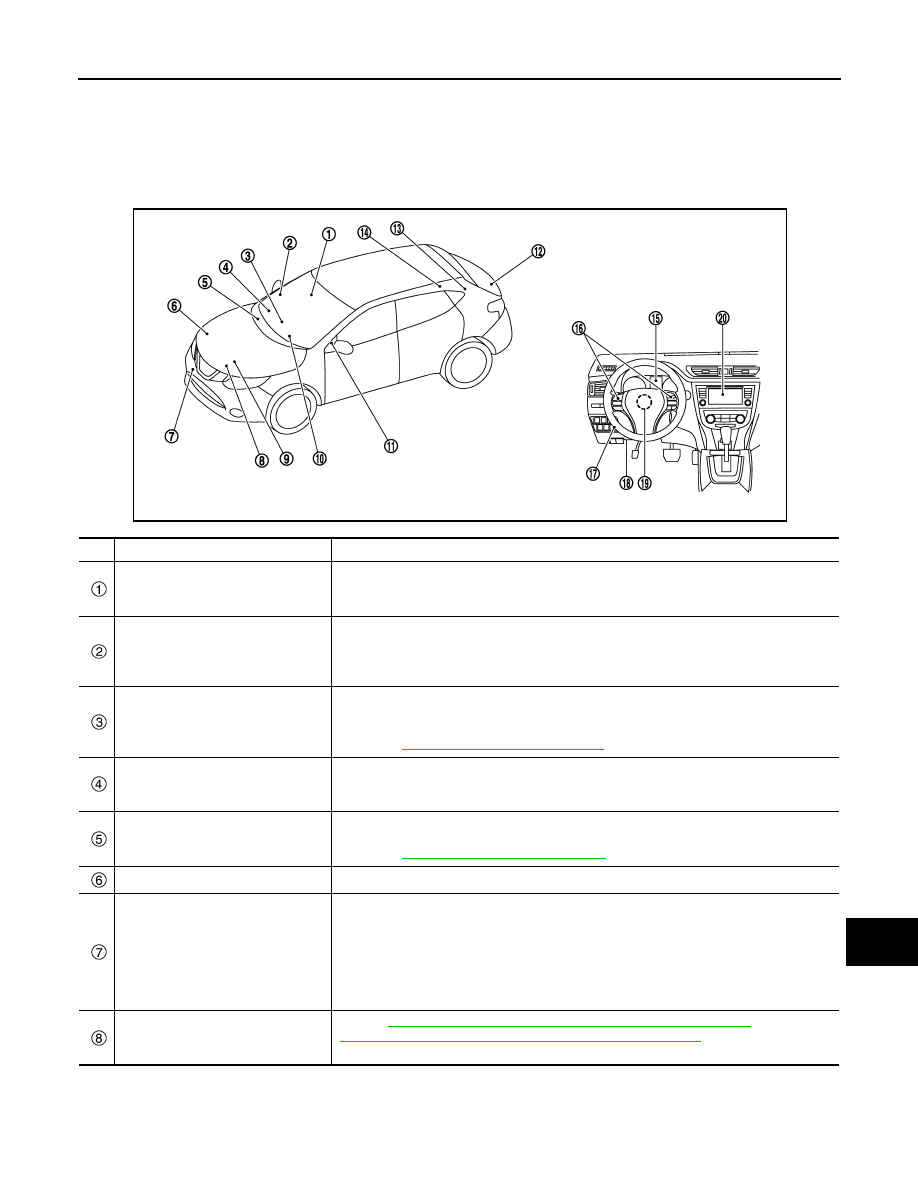

Component Parts Location

INFOID:0000000010416775

JMOIA0021ZZ

No.

Component

Function

Front camera unit

• Front camera unit is installed above the inside mirror.
• Detects the lane marker, the lighting condition in front of the vehicle and traffic sign in

travel lane.

Blind spot warning indictor RH

• Installed on the front door corner finisher, the blind spot warning indicator warns the

driver by lighting/blinking.

• Receives a blind spot warning indicator operation signal from the around view monitor

control unit.

Sonar control unit

• The warning buzzer outputs by inputting the sensor signal from sonar sensors.
• Sensor signal that corresponds to the detected distance to an obstacle is transmitted to

around view monitor control unit via can communication.

• Refer to

SN-58, "Component Parts Location"

 for detailed installation location.

Around view monitor control unit

• The around view monitor control unit is installed behind the glove box.
• Vehicle width guide lines, predicted course line, vehicle front guiding line and vehicle

side line, and vehicle icon are displayed and combined with camera images.

ABS actuator and electric unit (con-
trol unit)

• Transmits the vehicle speed signal (wheel speed) to around view monitor via CAN com-

munication

• Refer to

BRC-8, "Component Parts Location"

 for detailed installation location.

Rear view camera washer motor

Pumps washer fluid to the rear view camera.

Distance sensor

• Distance sensor is installed to the back of the front bumper and detects a vehicle ahead

by using millimeter waves.

• Distance sensor detects radar reflected from a vehicle ahead by irradiating radar for-

ward and calculates a distance from the vehicle ahead and relative speed, based on
the detected signal.

• Distance sensor transmits the presence/absence of vehicle ahead and the distance

from the vehicle to around view monitor control unit via CAN communication.

TCM

Refer to

TM-217, "CVT CONTROL SYSTEM : Component Parts Location"

 (RE0F10D) or

TM-430, "CVT CONTROL SYSTEM : Component Parts Location"

 (RE0F10G) for detailed

installation location.
