AV

SIDE CAMERA

AV-269

< REMOVAL AND INSTALLATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SIDE CAMERA

Removal and Installation

INFOID:0000000010435754

REMOVAL

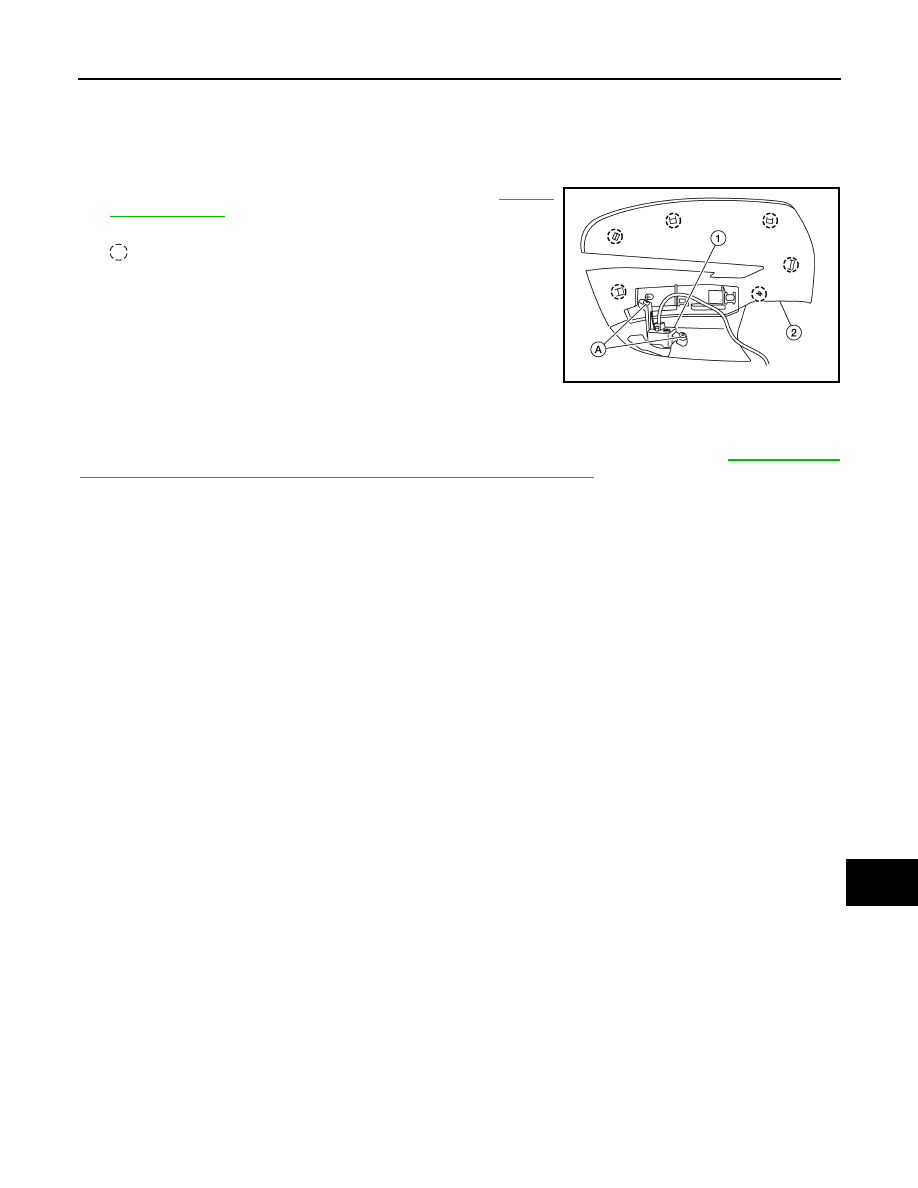

1.

Remove door mirror rear finisher (2). Refer to

MIR-31,

"Exploded View"

.

2.

Remove screws (A) and side camera (1).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Perform camera image calibration (if equipped with around view camera). Refer to

AV-180, "CALI-

BRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Description"

.

ALLIA1383ZZ

AV-270

< REMOVAL AND INSTALLATION >

[NAVIGATION]

REAR VIEW CAMERA

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000010435755

REMOVAL

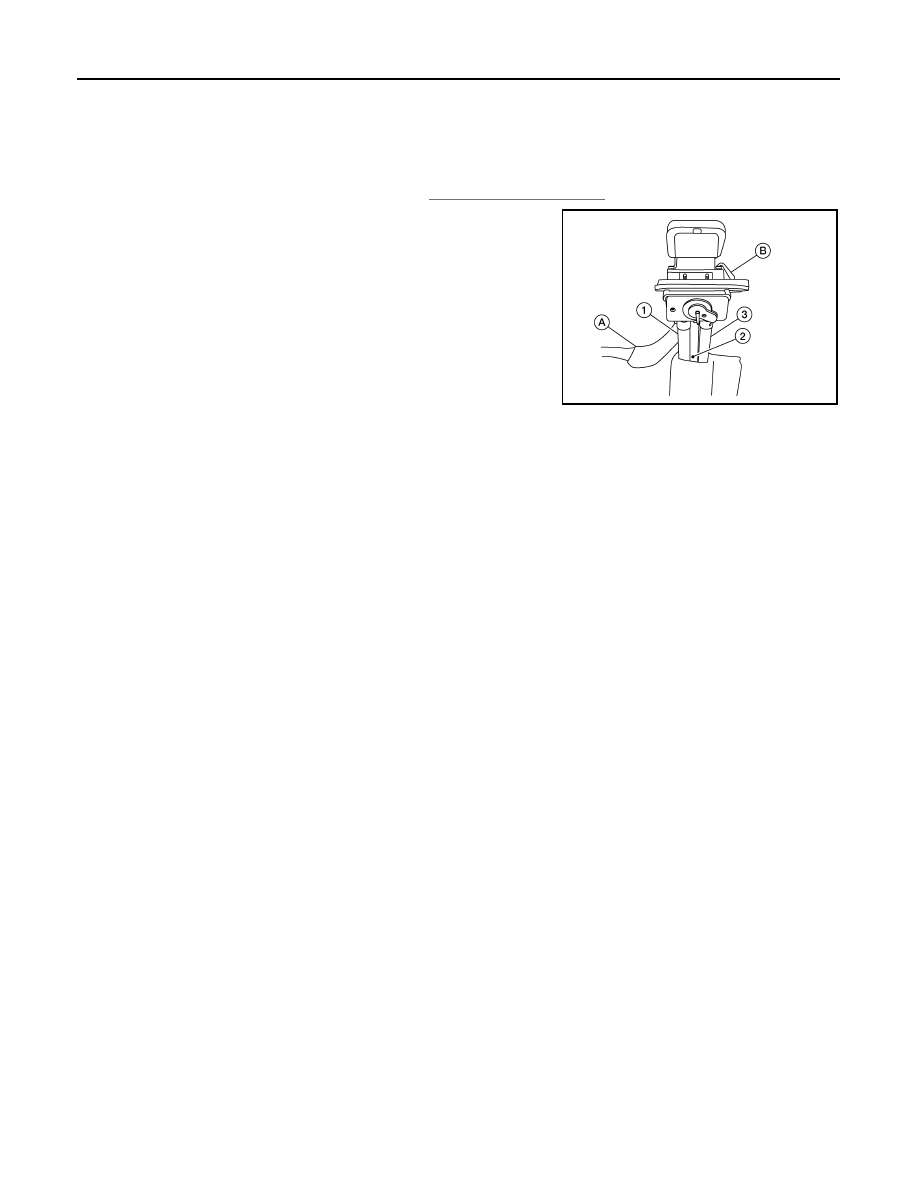

1.

Remove the back door outer finisher. Refer to

EXT-45, "Exploded View"

.

2.

Disconnect washer tubes (1,3) and air tube (2) (if equipped).

3.

Release pawl (B), disconnect harness connector (A) from rear
view camera and remove.

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3329ZZ

AV

GPS ANTENNA

AV-271

< REMOVAL AND INSTALLATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

GPS ANTENNA

Removal and Installation

INFOID:0000000010435756

REMOVAL

1.

Remove instrument panel. Refer to

IP-12, "Exploded View"

.

2.

Remove screw and the GPS antenna.

INSTALLATION

Installation is in the reverse order of removal.

AV-272

< REMOVAL AND INSTALLATION >

[NAVIGATION]

AUDIO ANTENNA

AUDIO ANTENNA

Removal and Installation

INFOID:0000000010435757

REMOVAL

1.

Remove the luggage side upper finisher (RH). Refer to

INT-28, "Exploded View"

.

2.

Partially lower headlining (rear). Refer to

INT-24, "Exploded View"

.

3.

Disconnect harness connectors from antenna feeder.

4.

Remove nut from audio antenna and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

If the audio antenna nut is not properly tightened, lower sensitivity of the antenna may be experi-
enced. If the nut is over tightened, this will deform the roof panel.

Audio antenna nut

: 6.5 N·m (0.66 kg-m, 58 in-lb)
