Nissan Qashqai J11. Manual - part 2144

AV

USB INTERFACE AND AUX IN JACK

AV-265

< REMOVAL AND INSTALLATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

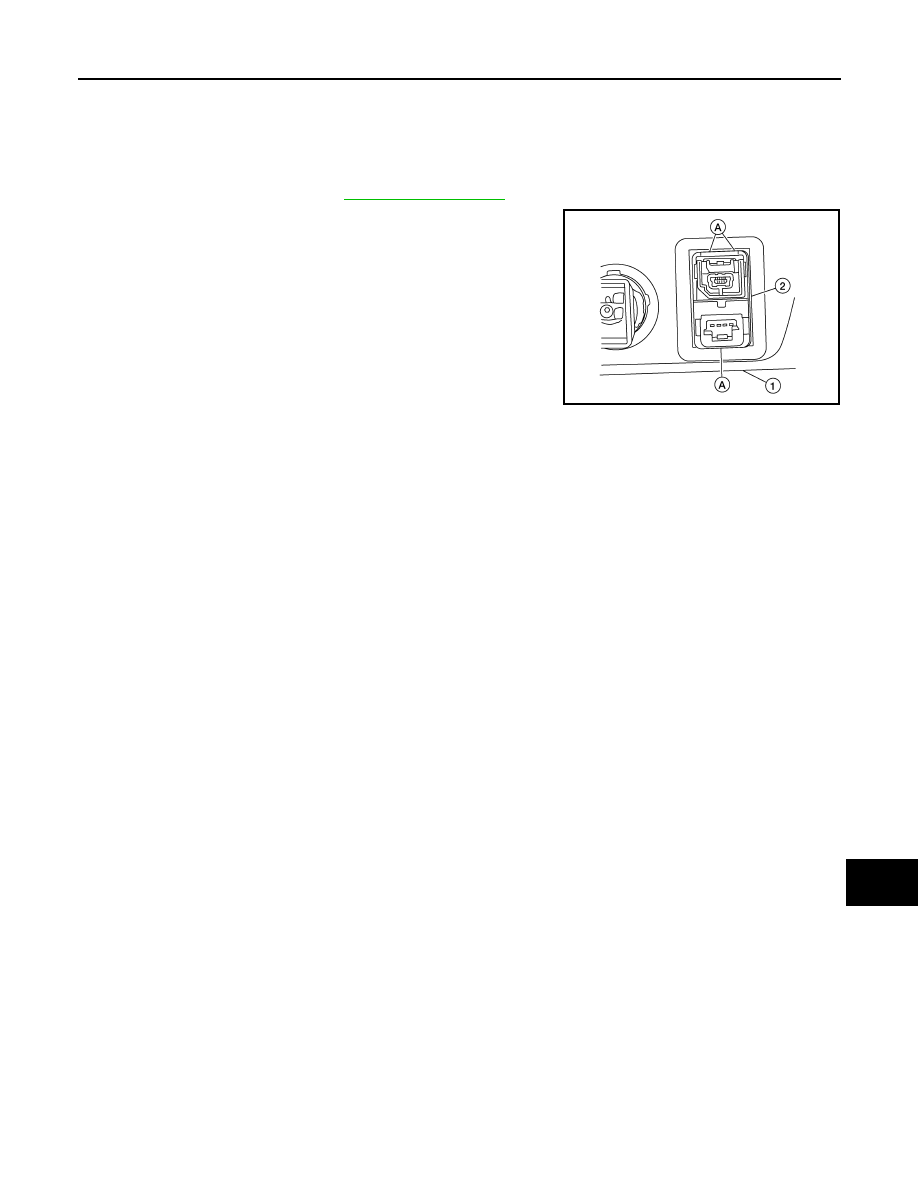

USB INTERFACE AND AUX IN JACK

Removal and Installation

INFOID:0000000010435748

REMOVAL

1.

Remove center console. Refer to

IP-18, "Exploded View"

.

2.

Release the pawls (A) on the back of USB interface and AUX in
jack (2).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1582ZZ

AV-266

< REMOVAL AND INSTALLATION >

[NAVIGATION]

MICROPHONE

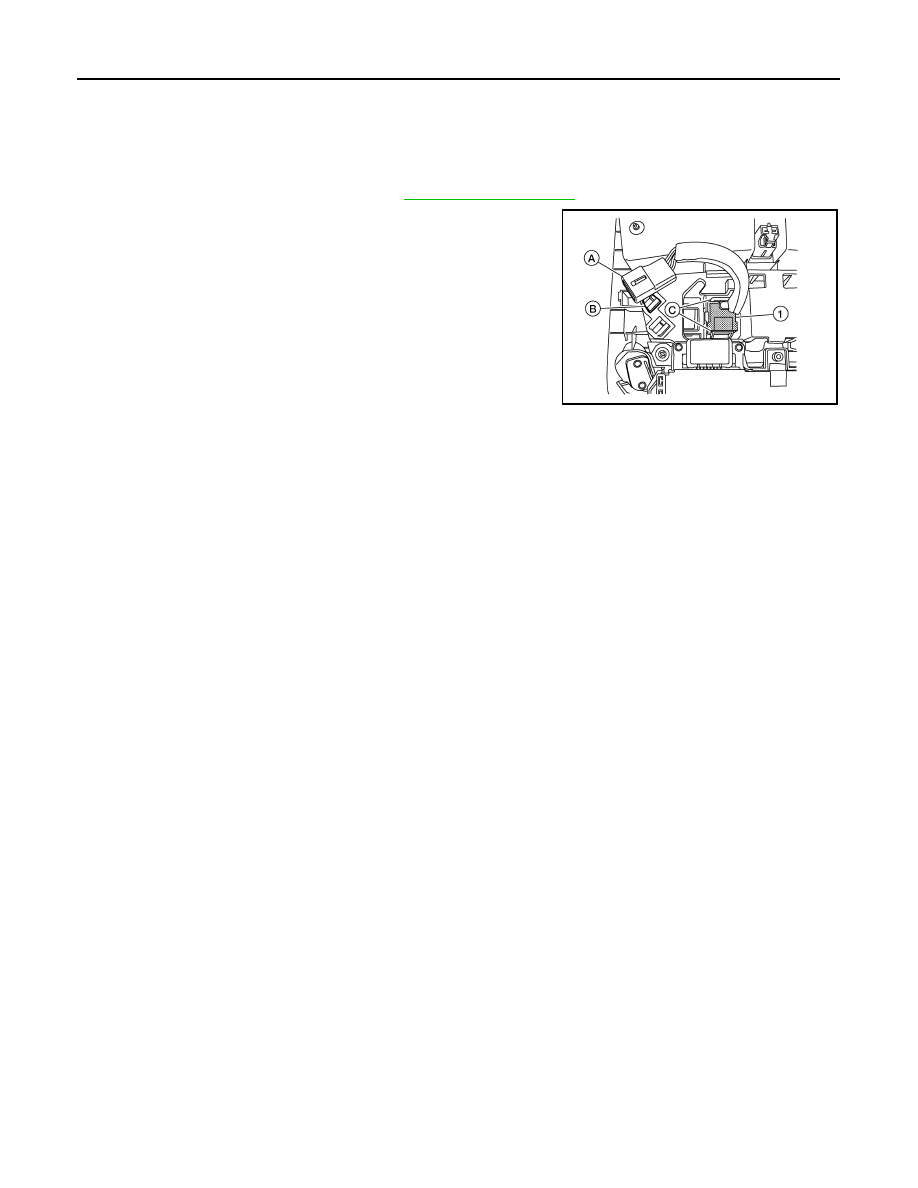

MICROPHONE

Removal and Installation

INFOID:0000000010435749

REMOVAL

1.

Remove the map lamp assembly. Refer to

INT-24, "Exploded View"

.

2.

Release harness connector (A) by sliding rearward to remove
from the pawl (B).

3.

Release pawls (C) and remove the microphone (1) from the
front room/map lamp assembly.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1583ZZ

AV

AROUND VIEW MONITOR CONTROL UNIT

AV-267

< REMOVAL AND INSTALLATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

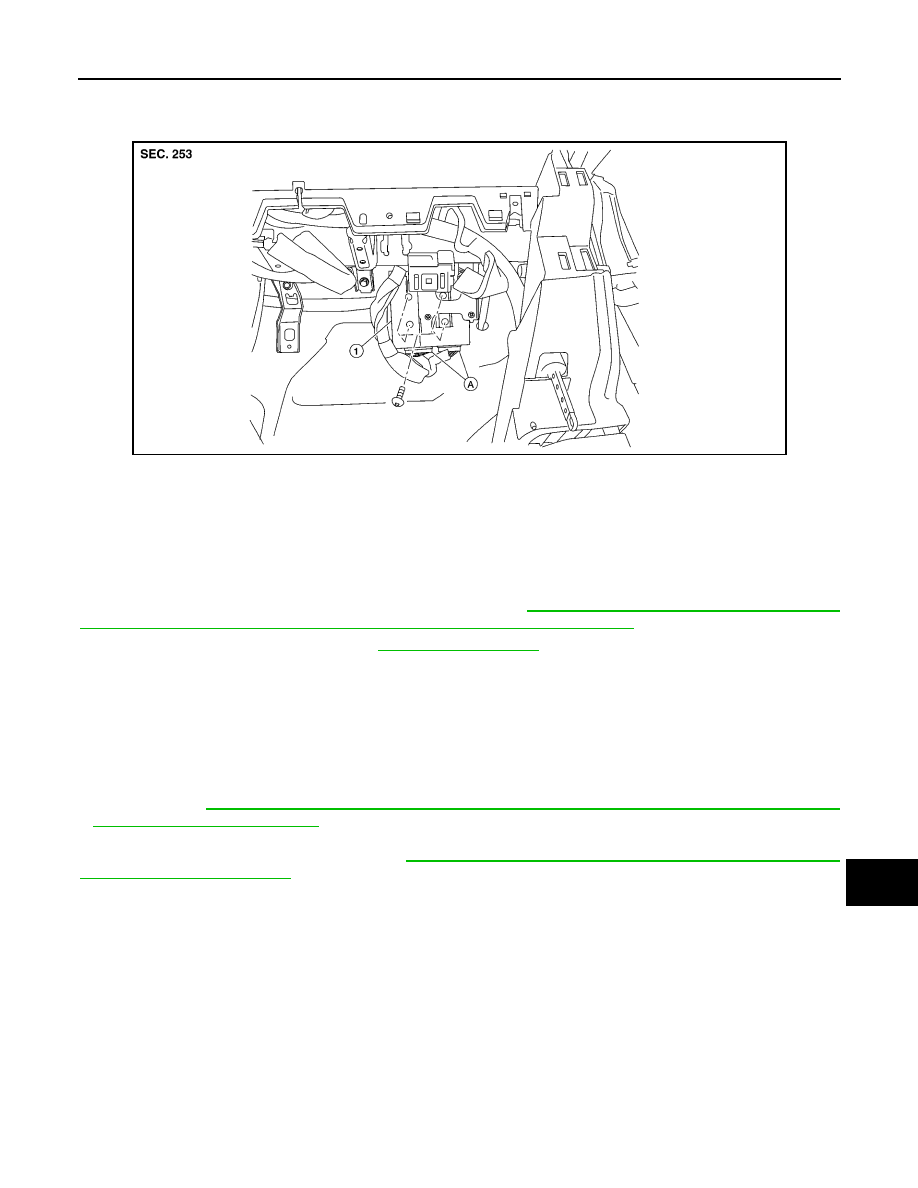

AROUND VIEW MONITOR CONTROL UNIT

Exploded View

INFOID:0000000010435750

Removal and Installation

INFOID:0000000010435751

REMOVAL

CAUTION:

Before replacing around view monitor control unit, save or print current vehicle specification with
CONSULT configuration before replacement. Refer to

AV-177, "ADDITIONAL SERVICE WHEN

REPLACING AROUND VIEW MONITOR CONTROL UNIT : Work Procedure"

.

1.

Remove glove box assembly. Refer to

IP-12, "Exploded View"

.

2.

Remove around view monitor control unit screws.

3.

Disconnect the harness connector from the around view monitor control unit and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Replace the around view monitor control unit if it has been dropped or sustained an impact.
• When replacing around view monitor control unit, you must perform "After Replace ECU" with CON-

SULT. Refer to

AV-177, "ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CON-

TROL UNIT : Work Procedure"

.

NOTE:
Perform camera image calibration. Refer to

AV-181, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Work Procedure"

.

ALNIA1600ZZ

1.

Around view monitor control unit A.

Harness connector

AV-268

< REMOVAL AND INSTALLATION >

[NAVIGATION]

FRONT CAMERA

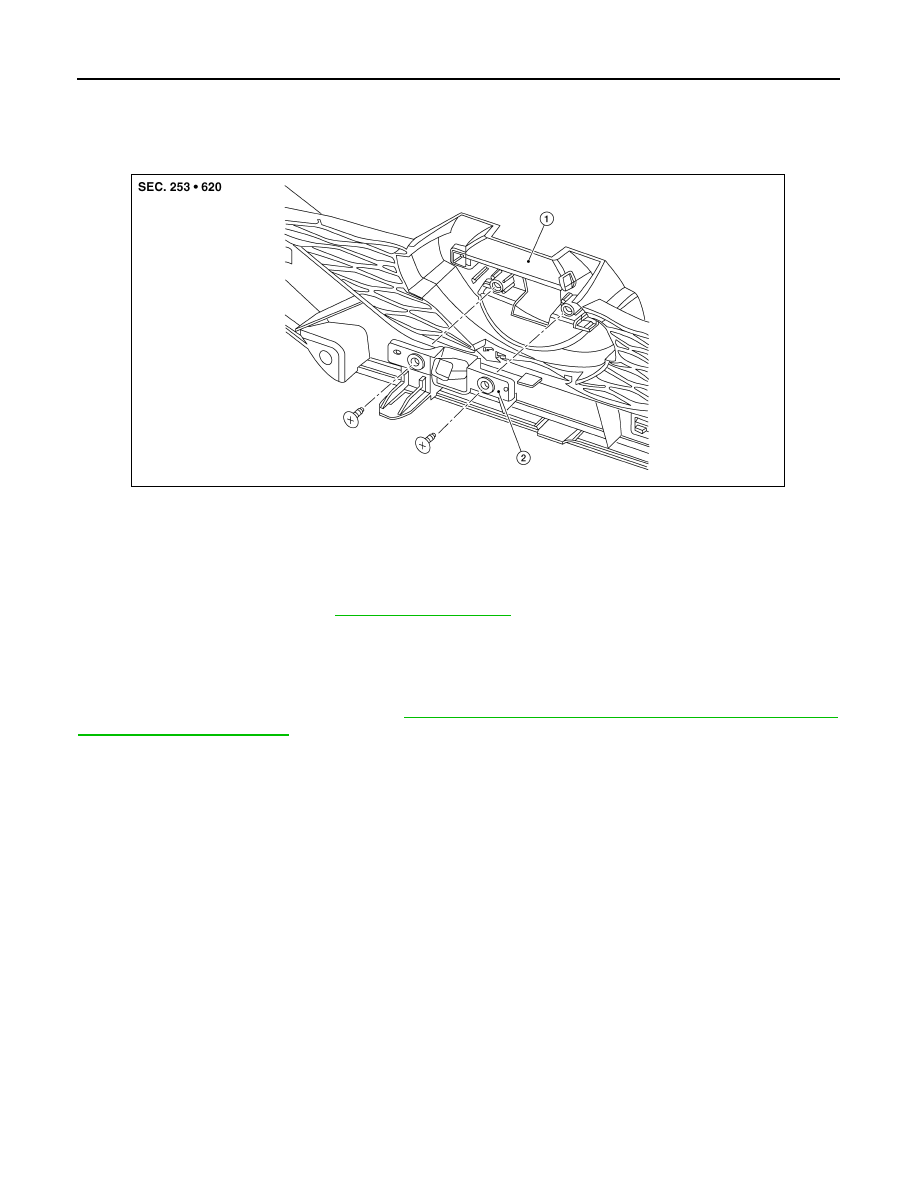

FRONT CAMERA

Exploded View

INFOID:0000000010435752

Removal and Installation

INFOID:0000000010435753

REMOVAL

1.

Remove the front grille. Refer to

EXT-25, "Exploded View"

.

2.

Remove screws and front camera.

INSTALLATION

Installation is in the reverse order of removal.
NOTE:
Perform camera image calibration. Refer to

AV-181, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Work Procedure"

.

1.

Front grille

2.

Front camera

ALNIA1612ZZ
