STEERING SWITCH

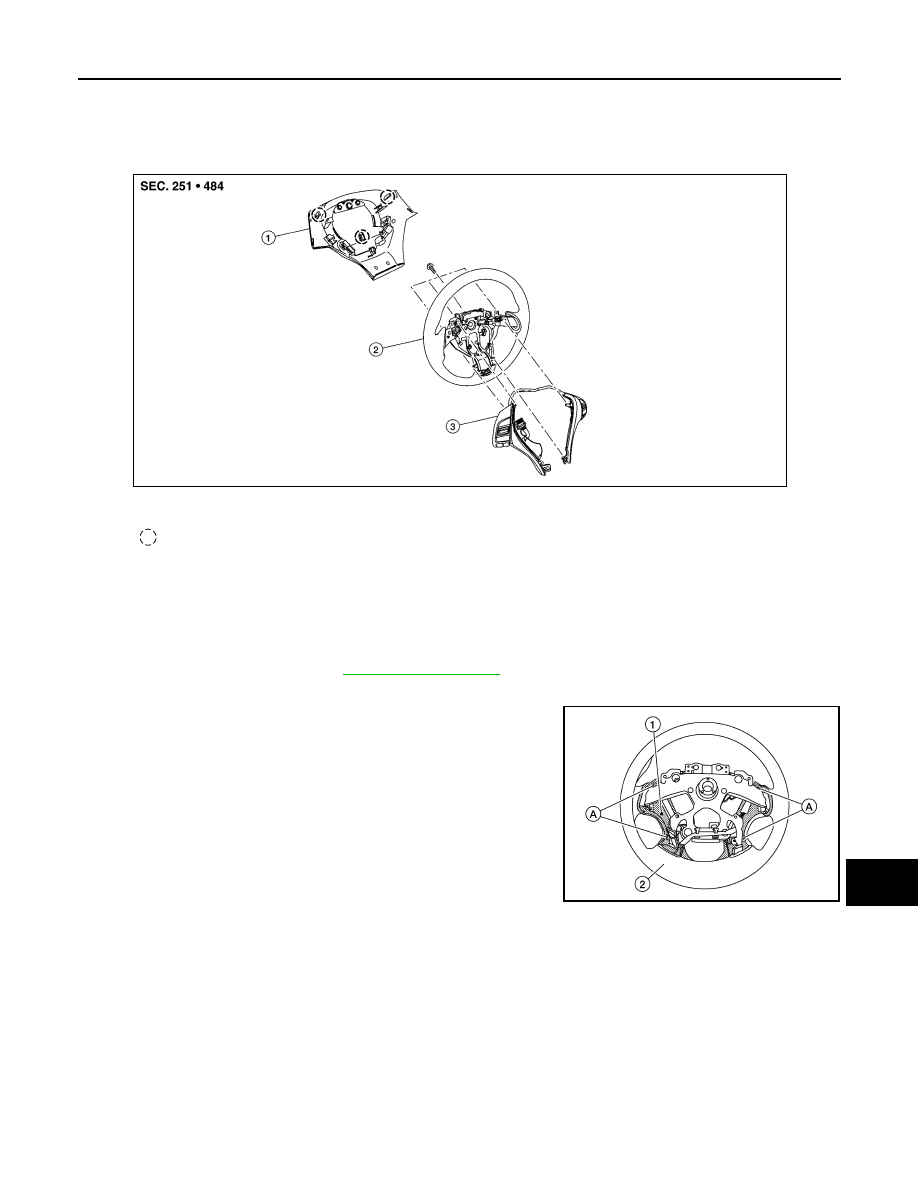

Exploded View

INFOID:0000000010435741

Removal and Installation

INFOID:0000000010435742

REMOVAL

NOTE:
The steering switches are serviced as an assembly.

1.

Remove steering wheel. Refer to

ST-8, "Exploded View"

.

2.

Release pawls on the steering wheel rear finisher and remove.

3.

Remove screws (A) and steering switches (1) from steering
wheel (2).

INSTALLATION

Installation is in the reverse order of removal.

1.

Steering wheel rear finisher

2.

Steering wheel

3.

Steering switches

Pawl

AWNIA3342ZZ

AWNIA3326ZZ

AV-262

< REMOVAL AND INSTALLATION >

[NAVIGATION]

FRONT TWEETER

FRONT TWEETER

Removal and Installation

INFOID:0000000010435743

REMOVAL

1.

Remove defroster grille. Refer to

IP-12, "Exploded View"

.

2.

Remove bolts and pull out the front tweeter.

3.

Disconnect the harness connector from the front tweeter and remove.

INSTALLATION

Installation is in the reverse order of removal.

AV

FRONT DOOR SPEAKER

AV-263

< REMOVAL AND INSTALLATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT DOOR SPEAKER

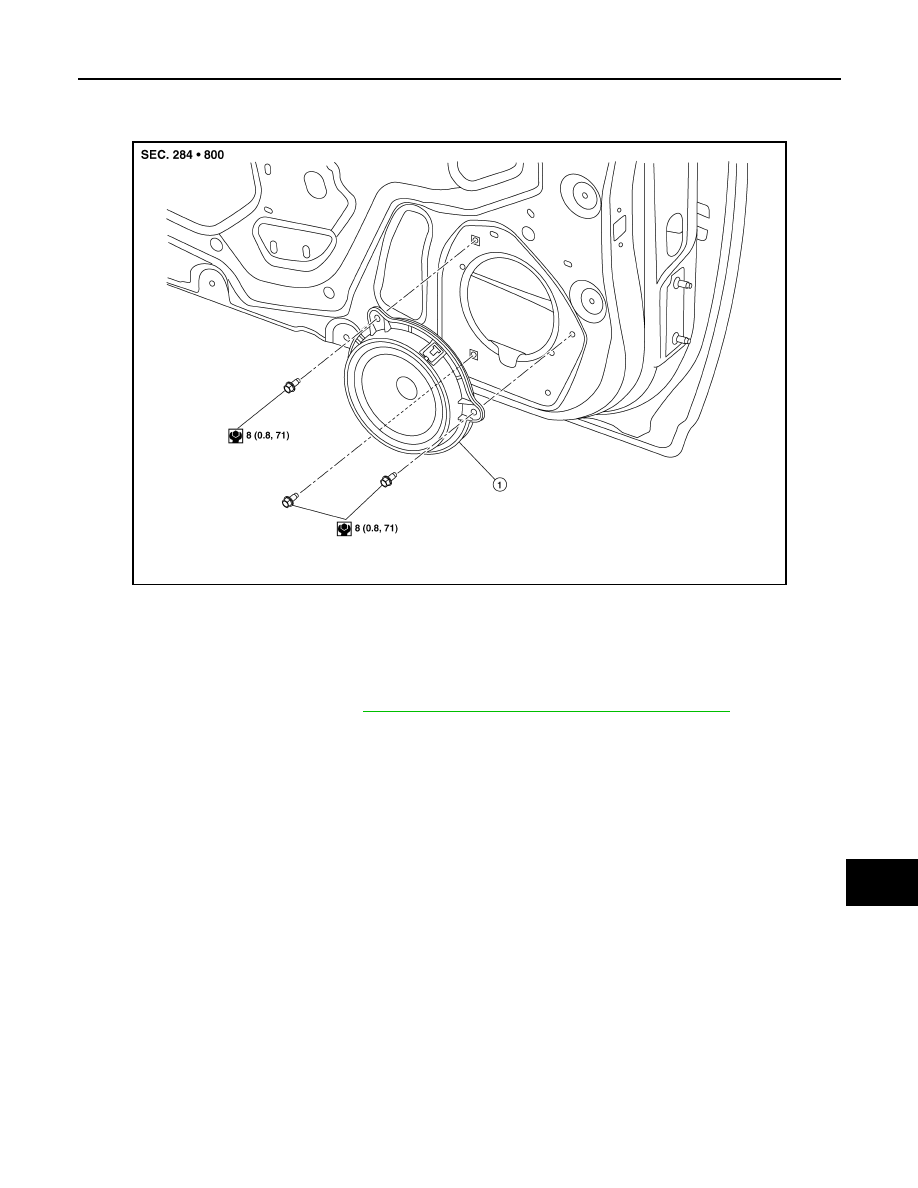

Exploded View

INFOID:0000000010435744

Removal and Installation

INFOID:0000000010435745

REMOVAL

1.

Remove front door finisher. Refer to

INT-12, "FRONT DOOR FINISHER : Exploded View"

.

2.

Remove front door speaker bolts, then pull out front door speaker.

3.

Disconnect the harness connector from front door speaker and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1580ZZ

1.

Front door speaker

AV-264

< REMOVAL AND INSTALLATION >

[NAVIGATION]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

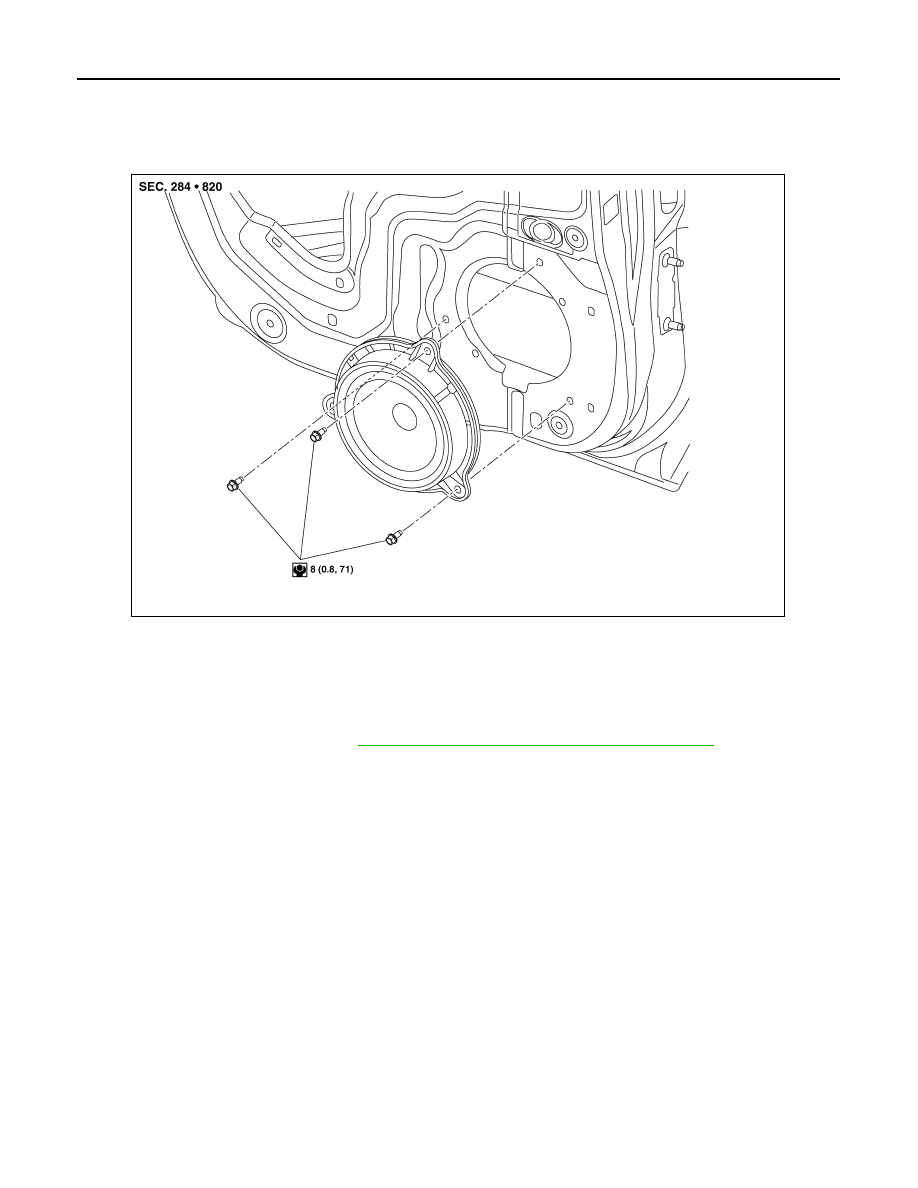

Exploded View

INFOID:0000000010435746

Removal and Installation

INFOID:0000000010435747

REMOVAL

1.

Remove rear door finisher. Refer to

INT-15, "REAR DOOR FINISHER : Exploded View"

.

2.

Remove rear door speaker bolts, then pull out rear door speaker.

3.

Disconnect the harness connector from the rear door speaker and remove.

INSTALLATION

Installation is in the reverse order of removal.

1.

Rear door speaker

ALNIA1581ZZ
