Nissan Qashqai J11. Manual - part 2127





AV

U111B SIDE CAMERA RH IMAGE SIGNAL CIRCUIT

AV-197

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

CHECK RH SIDE CAMERA POWER SUPPLY VOLTAGE

1.

Connect around view monitor control unit and RH side camera connectors.

2.

Turn ignition switch ON.

3.

Check voltage between around view monitor control unit connector M8 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

3.

CHECK RH SIDE CAMERA IMAGE SIGNAL AND IMAGE SIGNAL GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit and RH side camera connectors.

3.

Check continuity between around view monitor control unit connector M8 and RH side camera connector
D27.

4.

Check continuity between around view monitor control unit connector M8 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness or connectors.

4.

CHECK RH SIDE CAMERA IMAGE SIGNAL

1.

Connect around view monitor control unit and RH side camera connectors.

2.

Turn ignition switch ON.

3.

Check signal between the terminals of around view monitor control unit connector M8.

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M8

62

No

Around view monitor control unit

Ground

Condition

Voltage

(Approx.)

Connector

Terminal

M8

62

—

CAMERA switch is ON or
selector lever in R (re-
verse).

6.0 V

Around view monitor control unit

RH side camera

Continuity

Connector

Terminals

Connector

Terminals

M8

65

D27

16

Yes

66

15

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M8

65

No

AV-198

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

U111B SIDE CAMERA RH IMAGE SIGNAL CIRCUIT

Is the inspection result normal?

YES

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

NO

>> Replace RH side camera. Refer to

AV-269, "Removal and Installation"

.

Around view monitor control unit connector M8

Condition

Reference value

(+)

(

−

)

Terminal

Terminal

65

66

CAMERA switch is ON or se-
lector lever in R (reverse).

JSNIA0834GB

AV

U111C FRONT CAMERA IMAGE SIGNAL CIRCUIT

AV-199

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

U111C FRONT CAMERA IMAGE SIGNAL CIRCUIT

DTC Logic

INFOID:0000000010435694

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000010435695

Regarding Wiring Diagram information, refer to

AV-159, "Wiring Diagram"

.

WITHOUT DRIVER ASSISTANCE SYSTEM

1.

CHECK FRONT CAMERA POWER SUPPLY AND GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit and front camera connectors.

3.

Check continuity between around view monitor control unit connector M95 and front camera connector
E106.

4.

Check continuity between around view monitor control unit connector M95 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

CHECK FRONT CAMERA POWER SUPPLY VOLTAGE

1.

Connect around view monitor control unit and front camera connectors.

2.

Turn ignition switch ON.

3.

Check voltage between around view monitor control unit connector M95 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

3.

CHECK FRONT CAMERA IMAGE SIGNAL AND IMAGE SIGNAL GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit and front camera connectors.

CONSULT Display

DTC Detection Condition

Possible Cause

Front display output signal diag-
nosis (Harness disconnection)
[U111C]

Front camera image signal circuit open or short.

Check front camera image signal circuit.

Around view monitor control unit

Front camera

Continuity

Connector

Terminals

Connector

Terminals

M95

38

E106

2

Yes

37

1

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M95

38

No

Around view monitor control unit

Ground

Condition

Voltage

(Approx.)

Connector

Terminal

M95

38

—

CAMERA switch is ON or
selector lever in R (re-
verse).

6.0 V

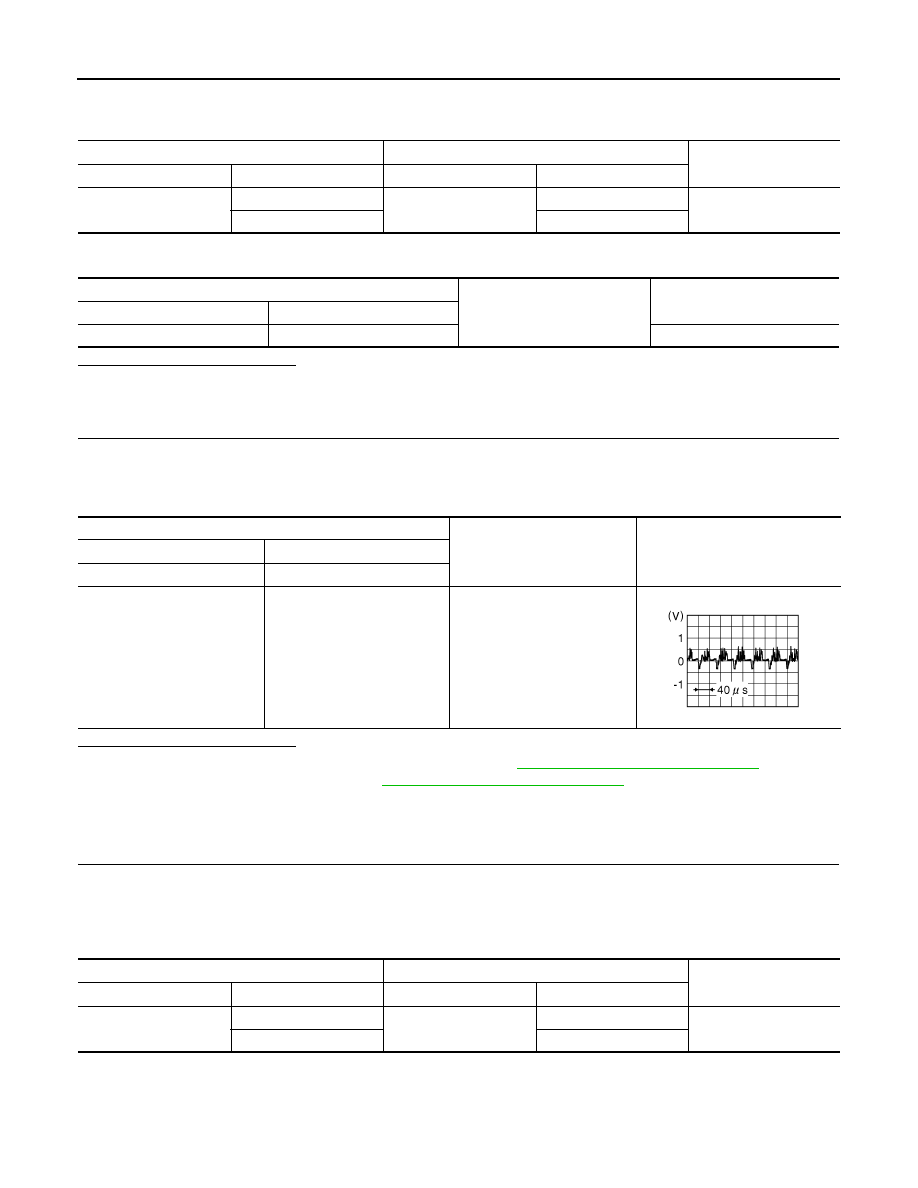

AV-200

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

U111C FRONT CAMERA IMAGE SIGNAL CIRCUIT

3.

Check continuity between around view monitor control unit connector M95 and front camera connector
E106.

4.

Check continuity between around view monitor control unit connector M95 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness or connectors.

4.

CHECK FRONT CAMERA IMAGE SIGNAL

1.

Connect around view monitor control unit and front camera connectors.

2.

Turn ignition switch ON.

3.

Check signal between the terminals of around view monitor control unit connector M95.

Is the inspection result normal?

YES

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

NO

>> Replace front camera. Refer to

AV-268, "Removal and Installation"

.

WITH DRIVER ASSISTANCE SYSTEM

1.

CHECK FRONT CAMERA POWER SUPPLY AND GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit and front camera connectors.

3.

Check continuity between around view monitor control unit connector M8 and front camera connector
E106.

4.

Check continuity between around view monitor control unit connector M8 and ground.

Around view monitor control unit

Front camera

Continuity

Connector

Terminals

Connector

Terminals

M95

40

E106

4

Yes

39

5

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M95

40

No

Around view monitor control unit connector M95

Condition

Reference value

(+)

(

−

)

Terminal

Terminal

40

39

CAMERA switch is ON or se-
lector lever in R (reverse).

JSNIA0834GB

Around view monitor control unit

Front camera

Continuity

Connector

Terminals

Connector

Terminals

M8

68

E106

2

Yes

70

1
