Nissan Qashqai J11. Manual - part 2126

AV

U111A REAR CAMERA IMAGE SIGNAL CIRCUIT

AV-193

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

CHECK REAR VIEW CAMERA POWER SUPPLY VOLTAGE

1.

Connect around view monitor control unit and rear view camera connectors.

2.

Turn ignition switch ON.

3.

Check voltage between around view monitor control unit connector M8 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

3.

CHECK REAR VIEW CAMERA IMAGE SIGNAL AND IMAGE SIGNAL GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit and rear view camera connectors.

3.

Check continuity between around view monitor control unit connector M8 and rear view camera connector
D80.

4.

Check continuity between around view monitor control unit connector M8 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness or connectors.

4.

CHECK REAR VIEW CAMERA IMAGE SIGNAL

1.

Connect around view monitor control unit and rear view camera connectors.

2.

Turn ignition switch ON.

3.

Check signal between the terminals of around view monitor control unit connector M8.

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M8

50

No

Around view monitor control unit

Ground

Condition

Voltage

(Approx.)

Connector

Terminal

M8

50

—

CAMERA switch is ON or
selector lever in R (re-
verse).

6.0 V

Around view monitor control unit

Rear view camera

Continuity

Connector

Terminals

Connector

Terminals

M8

53

D80

5

Yes

54

1

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M8

53

No

AV-194

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

U111A REAR CAMERA IMAGE SIGNAL CIRCUIT

Is the inspection result normal?

YES

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

NO

>> Replace rear view camera. Refer to

AV-270, "Removal and Installation"

.

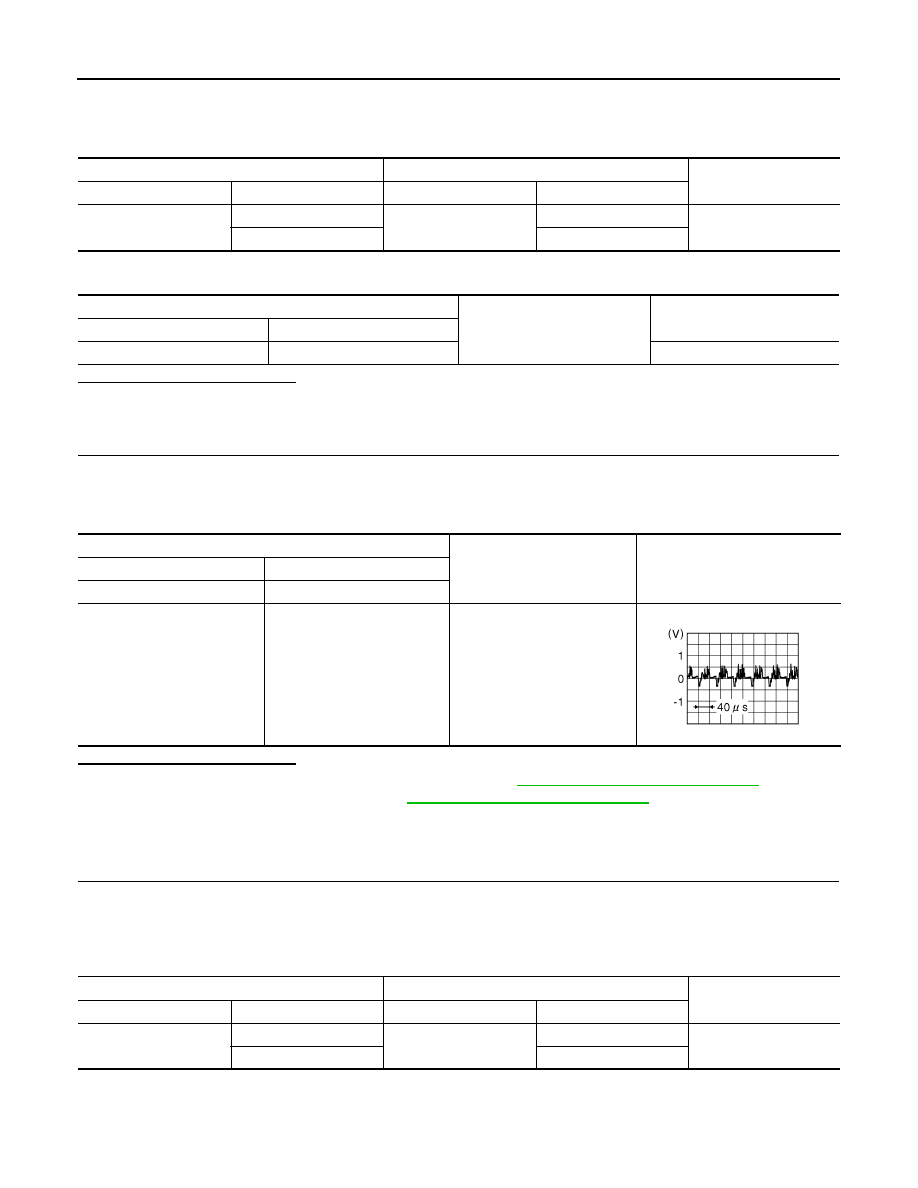

Around view monitor control unit connector M8

Condition

Reference value

(+)

(

−

)

Terminal

Terminal

53

54

CAMERA switch is ON or se-
lector lever in R (reverse).

JSNIA0834GB

AV

U111B SIDE CAMERA RH IMAGE SIGNAL CIRCUIT

AV-195

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

U111B SIDE CAMERA RH IMAGE SIGNAL CIRCUIT

DTC Logic

INFOID:0000000010435692

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000010435693

Regarding Wiring Diagram information, refer to

AV-159, "Wiring Diagram"

.

WITHOUT DRIVER ASSISTANCE SYSTEM

1.

CHECK RH SIDE CAMERA POWER SUPPLY AND GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit and RH side camera connectors.

3.

Check continuity between around view monitor control unit connector M103 and RH side camera connec-
tor D107.

4.

Check continuity between around view monitor control unit connector M95 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

CHECK RH SIDE CAMERA POWER SUPPLY VOLTAGE

1.

Connect around view monitor control unit and RH side camera connectors.

2.

Turn ignition switch ON.

3.

Check voltage between around view monitor control unit connector M95 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

3.

CHECK RH SIDE CAMERA IMAGE SIGNAL AND IMAGE SIGNAL GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

CONSULT Display

DTC Detection Condition

Possible Cause

Right side display output signal
diagnosis (Harness disconnec-
tion)
[U111B]

Right side camera image signal circuit open or
short.

Check right side camera image signal circuit.

Around view monitor control unit

RH side camera

Continuity

Connector

Terminals

Connector

Terminals

M95

34

D27

7

Yes

33

8

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M95

34

No

Around view monitor control unit

Ground

Condition

Voltage

(Approx.)

Connector

Terminal

M95

34

—

CAMERA switch is ON or
selector lever in R (re-
verse).

6.0 V

AV-196

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

U111B SIDE CAMERA RH IMAGE SIGNAL CIRCUIT

2.

Disconnect around view monitor control unit and RH side camera connectors.

3.

Check continuity between around view monitor control unit connector M95 and RH side camera connector
D27.

4.

Check continuity between around view monitor control unit connector M103 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness or connectors.

4.

CHECK RH SIDE CAMERA IMAGE SIGNAL

1.

Connect around view monitor control unit and RH side camera connectors.

2.

Turn ignition switch ON.

3.

Check signal between the terminals of around view monitor control unit connector M95.

Is the inspection result normal?

YES

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

NO

>> Replace RH side camera. Refer to

AV-269, "Removal and Installation"

.

WITH DRIVER ASSISTANCE SYSTEM

1.

CHECK RH SIDE CAMERA POWER SUPPLY AND GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit and RH side camera connectors.

3.

Check continuity between around view monitor control unit connector M8 and RH side camera connector
D27.

4.

Check continuity between around view monitor control unit connector M8 and ground.

Around view monitor control unit

RH side camera

Continuity

Connector

Terminals

Connector

Terminals

M95

36

D27

16

Yes

35

15

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M95

36

No

Around view monitor control unit connector M95

Condition

Reference value

(+)

(

−

)

Terminal

Terminal

36

35

CAMERA switch is ON or se-
lector lever in R (reverse).

JSNIA0834GB

Around view monitor control unit

RH side camera

Continuity

Connector

Terminals

Connector

Terminals

M8

62

D27

7

Yes

64

8
