DIAGNOSIS SYSTEM (AUDIO UNIT)

AV-77

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

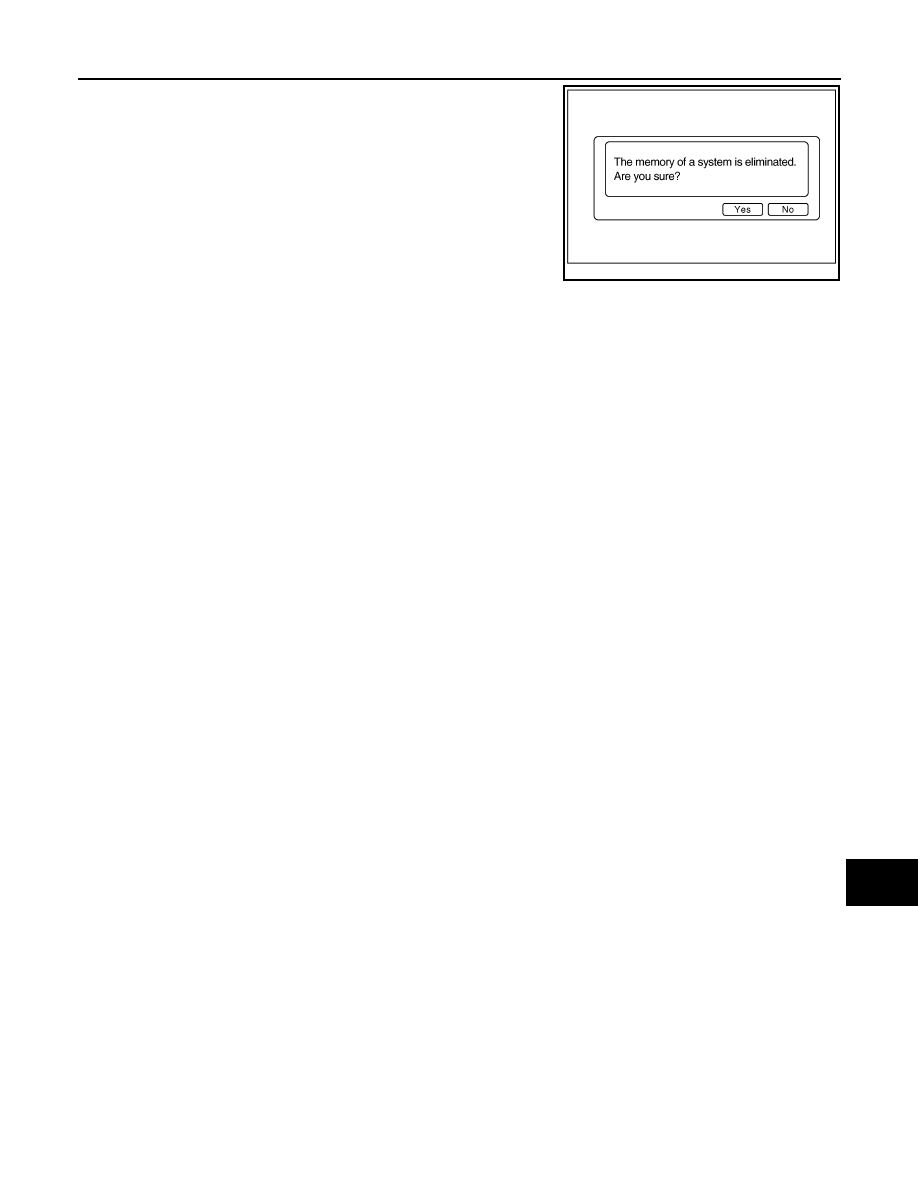

Deletes data stored from the audio unit.

JSNIA0155GB

AV-78

< ECU DIAGNOSIS INFORMATION >

[DISPLAY AUDIO]

AUDIO UNIT

ECU DIAGNOSIS INFORMATION

AUDIO UNIT

Reference Value

INFOID:0000000010435605

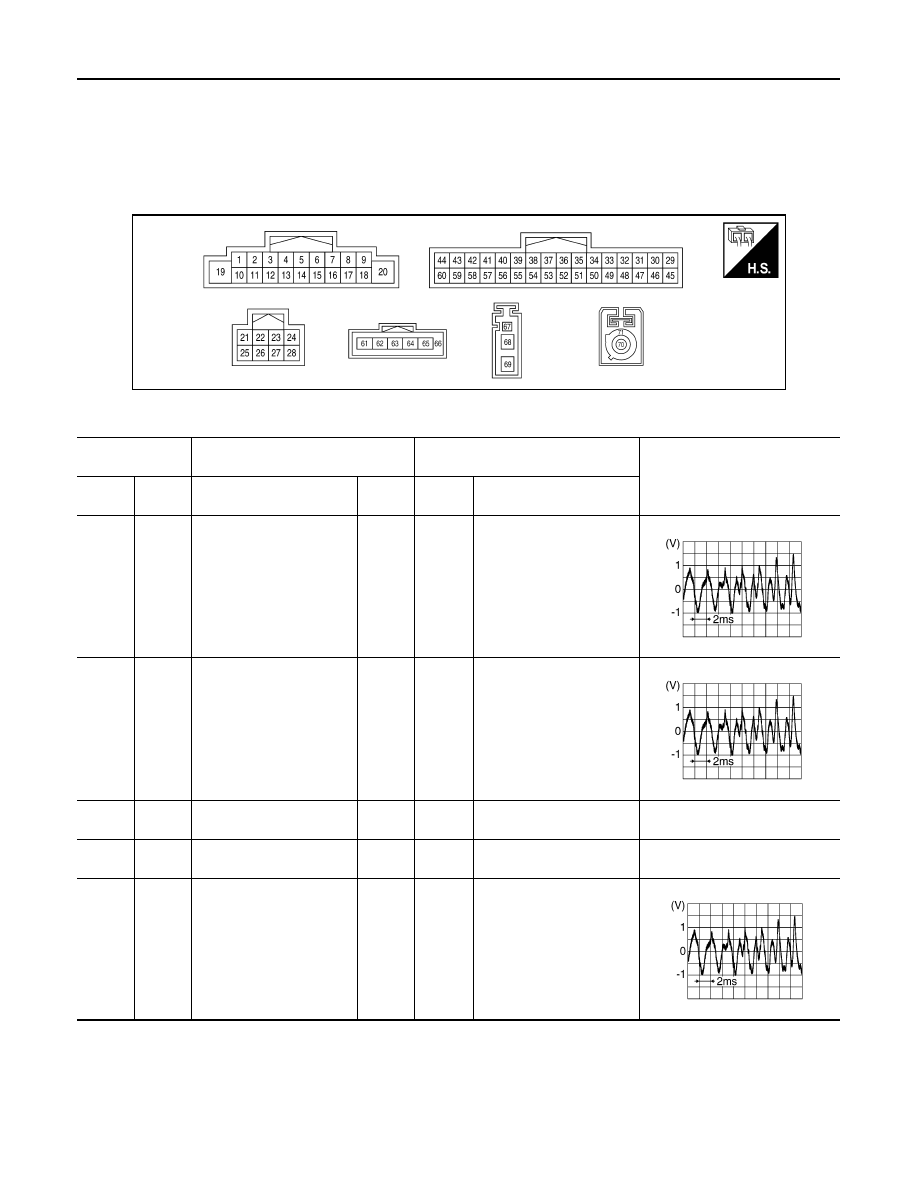

TERMINAL LAYOUT

PHYSICAL VALUES

AWNIA3347ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

2

(L)

3

(V)

Sound signal front door
speaker and front tweeter
LH

Output

ON

Sound output

4

(W)

5

(Y)

Sound signal rear door
speaker LH

Output

ON

Sound output

7

(LG)

Ground

Ignition power supply

Input

ON

—

Battery voltage

9

 (BR)

8

(R)

Illumination control signal

Input

ON

Headlamps ON

Battery voltage

11

(G)

12

(R)

Sound signal front door
speaker and front tweeter
RH

Output

ON

Sound output

SKIB3609E

SKIB3609E

SKIB3609E

AV

AUDIO UNIT

AV-79

< ECU DIAGNOSIS INFORMATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

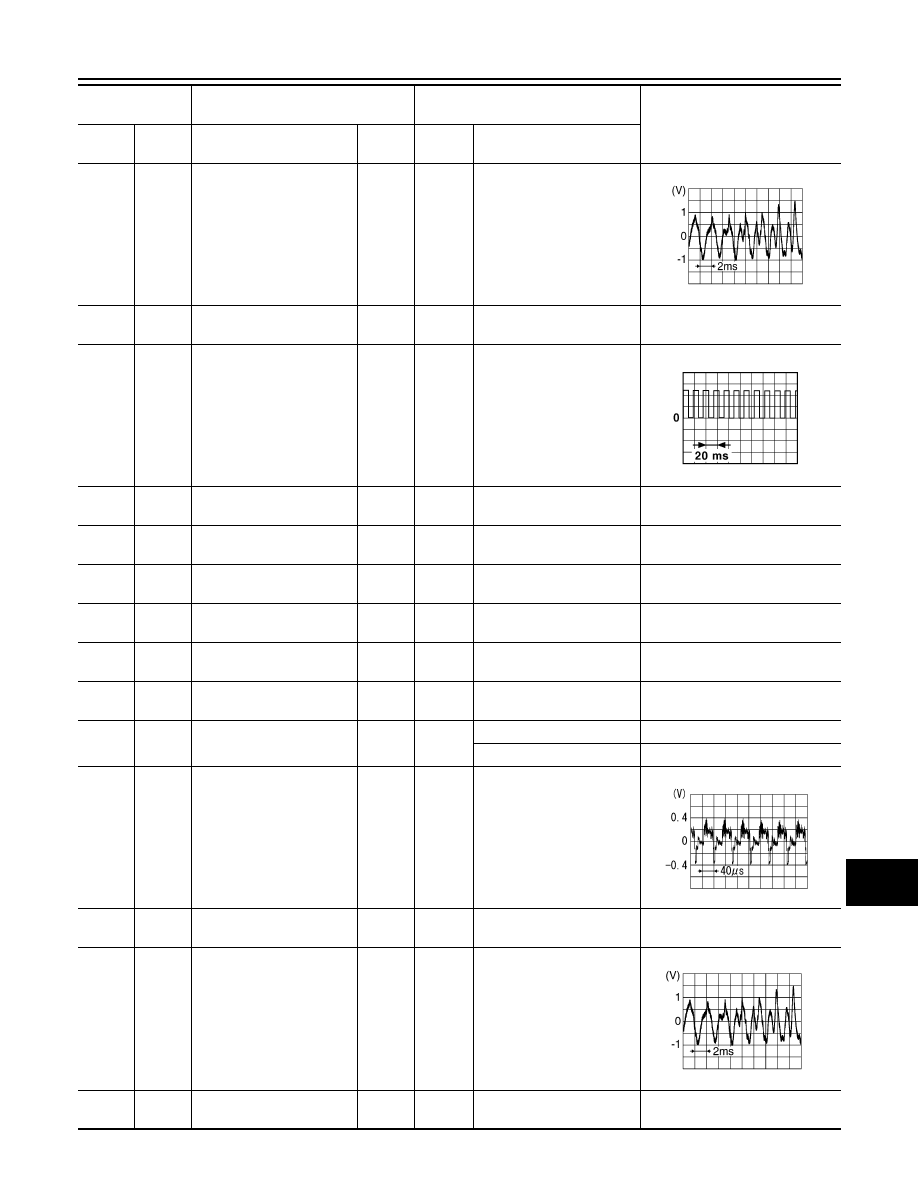

13

(LG)

14

(GR)

Sound signal rear door
speaker RH

Output

ON

Sound output

17

(P)

Ground

Dongle / AUDIO LINK

—

—

—

—

18

(P)

Ground

Vehicle speed signal

Input

ON

When vehicle speed is ap-
prox. 40 km/h (25 MPH)

19

(L)

Ground

Battery power supply

Input

OFF

—

Battery voltage

20

(B)

Ground

Ground

—

ON

—

0 V

27

(W)

Ground

ACC power supply

Input

ON

—

Battery voltage

31

(SB)

—

CAN  H

—

—

—

—

32

(LG)

—

CAN  L

—

—

—

—

33

(B)

Ground

Camera ground

—

ON

—

0 V

34

(R)

Ground

Camera power supply

Output

ON

Camera image displayed

6.0 V

Except for above

0 V

34

(R)

44

(GR)

Camera image signal

Input

ON

Camera image displayed

35

(W)

Ground

Camera detection

—

ON

—

0 V

37

(W)

39

(Shield)

Microphone signal

Input

ON

While speaking into micro-
phone.

38

(BG)

—

MIC VCC

Input

ON

—

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

SKIB3609E

JSNIA0012GB

SKIB2251J

SKIB3609E

AV-80

< ECU DIAGNOSIS INFORMATION >

[DISPLAY AUDIO]

AUDIO UNIT

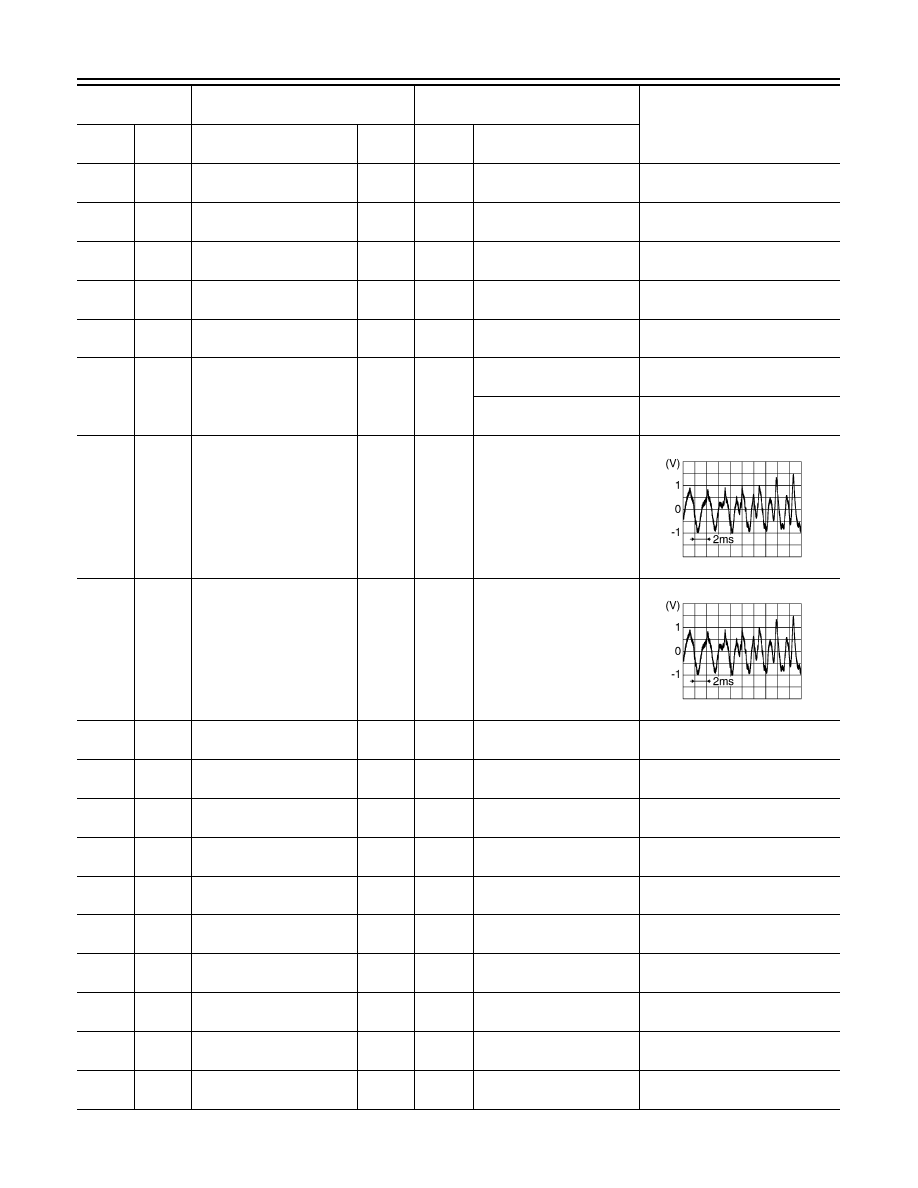

40

(LG)

—

AV communication (L)

Input/

Output

—

—

—

41

(SB)

—

AV communication (H)

Input/

Output

—

—

—

42

(LG)

—

AV communication (L)

Input/

Output

—

—

—

43

(SB)

—

AV communication (H)

Input/

Output

—

—

—

45

(B)

—

EQ1

—

—

—

—

50

(G)

Ground

Reverse signal

Input

ON

Selector lever in R (re-
verse)

Battery voltage

Selector lever in any posi-
tion other than R (reverse)

0 V

53

(B)

Ground

AUX jack audio signal LH

Input

ON

Received audio signal
(AUX input)

54

(R)

Ground

AUX jack audio signal RH

Input

ON

Received audio signal
(AUX input)

55

(W)

Ground

AUX ground

—

ON

—

0V

56

(Shield)

—

AUX signal shield

—

—

—

—

129

(G)

—

USB ground

—

—

—

—

130

(R)

—

USB D

−

 signal

—

—

—

—

131
(W)

—

V BUS signal

—

—

—

—

133

(Shield)

—

USB shield

—

—

—

—

132

(L)

—

USB D+ signal

—

—

—

—

150

—

Ground

FN sub signal

Input

ON

Audio unit ON, XM select-
ed.

5.0 V

152

—

Ground

Antenna amp. ON signal

Output

ON

Audio unit ON, FM-AM se-
lected.

Battery voltage

151

—

Ground

AM/FM antenna signal

Input

ON

Audio unit ON, FM-AM se-
lected.

5.0 V

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

SKIB3609E

SKIB3609E
