AV

COMPONENT PARTS

AV-69

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

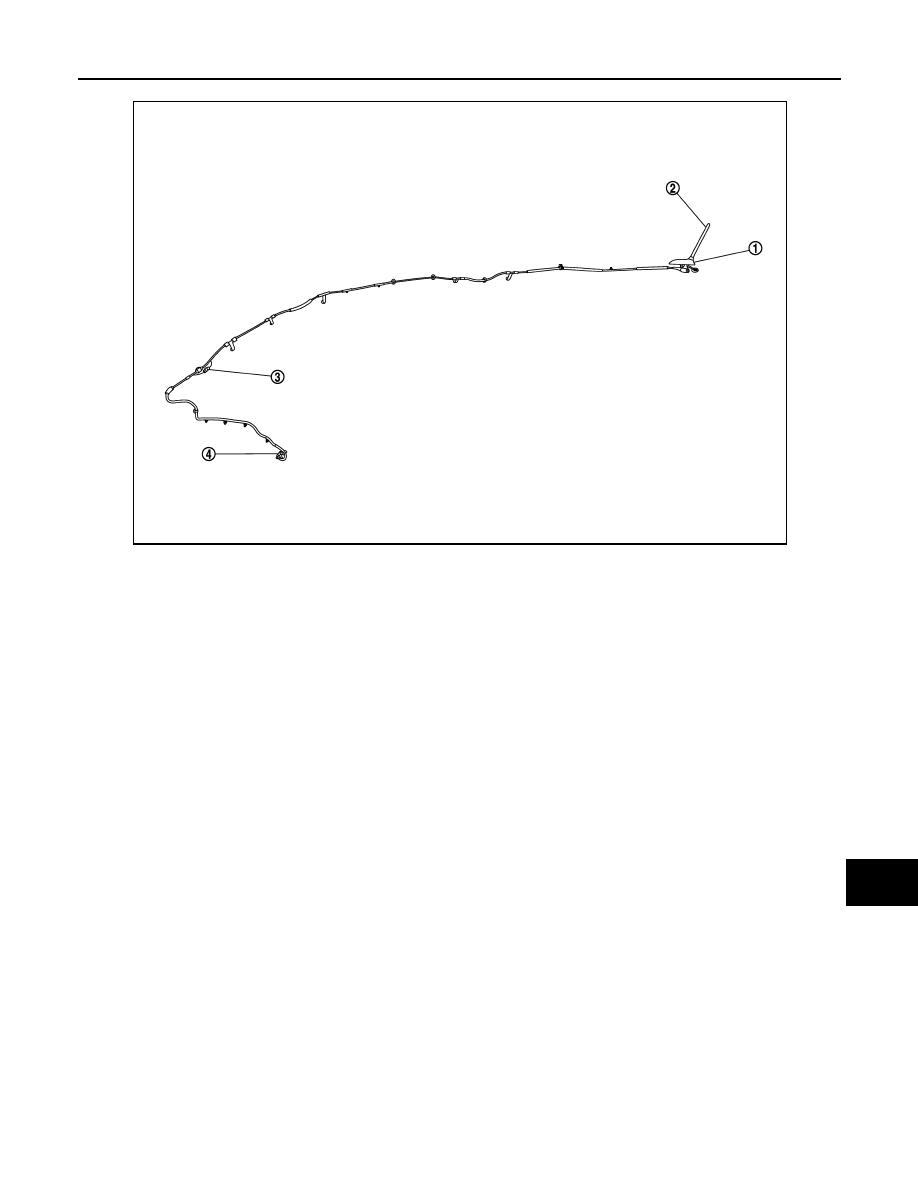

1.

Antenna base (antenna amp. and
satellite antenna)

2.

Rod Antenna

3.

M394

4.

M385

E1NIA0073ZZ

AV-70

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

SYSTEM

SYSTEM

System Description

INFOID:0000000010435602

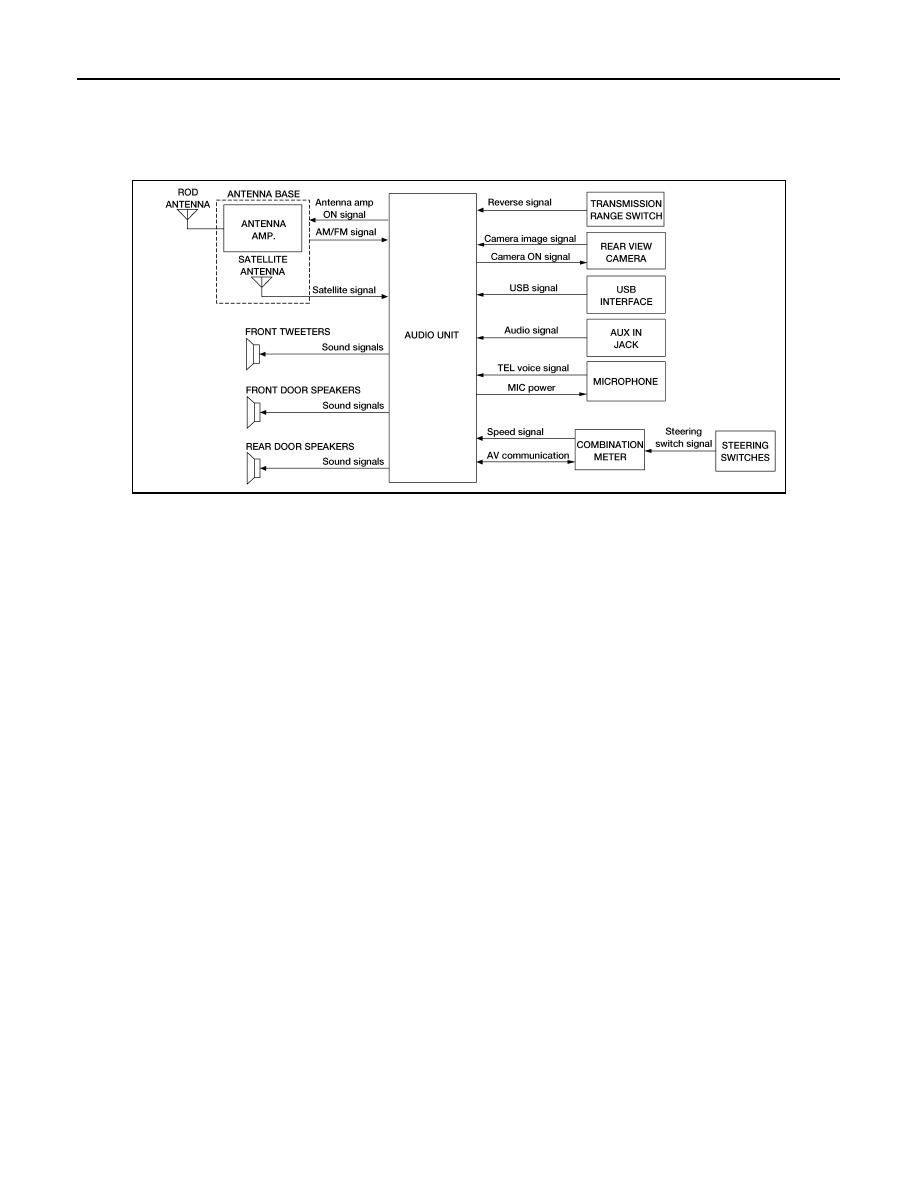

SYSTEM DIAGRAM

AUDIO SYSTEM

The audio system consists of the following components
• Audio unit
• Front tweeters
• Front door speakers
• Rear door speakers
• USB interface
• AUX in jack
• Steering switches
• Antenna base (rod antenna, antenna amp. and satellite antenna)
When the audio system is on, AM/FM signals received by the rod antenna are amplified by the antenna amp.
and sent to the audio unit. The audio unit then sends audio signals to the front tweeters, front door speakers
and rear door speakers.
Refer to Owner's Manual for audio system operating instructions.

HANDS-FREE PHONE SYSTEM

• Bluetooth

®

 control is built into audio unit.

• The connection between cellular phone and audio unit is performed with Bluetooth

®

 communication.

• The voice guidance signal is input from the audio unit and output to the front speakers when operating the

cellular phone.

When A Call Is Originated

• Spoken voice sound output from the microphone (microphone signal) is input to audio unit.
• Audio unit outputs to cellular phone with Bluetooth

®

 communication as a TEL voice signal.

• Voice sound is then heard at the other party.

When Receiving A Call

• Voice sound is input to own cellular phone from the other party.
• TEL voice signal is input to audio unit by establishing Bluetooth

®

 communication from cellular phone, and

the signal is output to front speakers.

SPEED SENSITIVE VOLUME SYSTEM

Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control
level can be selected by the customer. Refer to Owner's Manual for operating instructions.

REAR VIEW MONITOR FUNCTION

Camera Image Operation Principle

AWNIA3341GB

AV

SYSTEM

AV-71

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• The audio unit supplies power to the rear view camera when receiving a reverse signal.
• The rear view camera transmits camera images to the audio unit when power is supplied from the audio unit.
• The audio unit combines a warning message and fixed guide lines with an image received from the rear view

camera to display a rear view camera image on the screen.

AV-72

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

DIAGNOSIS SYSTEM (AUDIO UNIT)

DIAGNOSIS SYSTEM (AUDIO UNIT)

Description

INFOID:0000000010435603

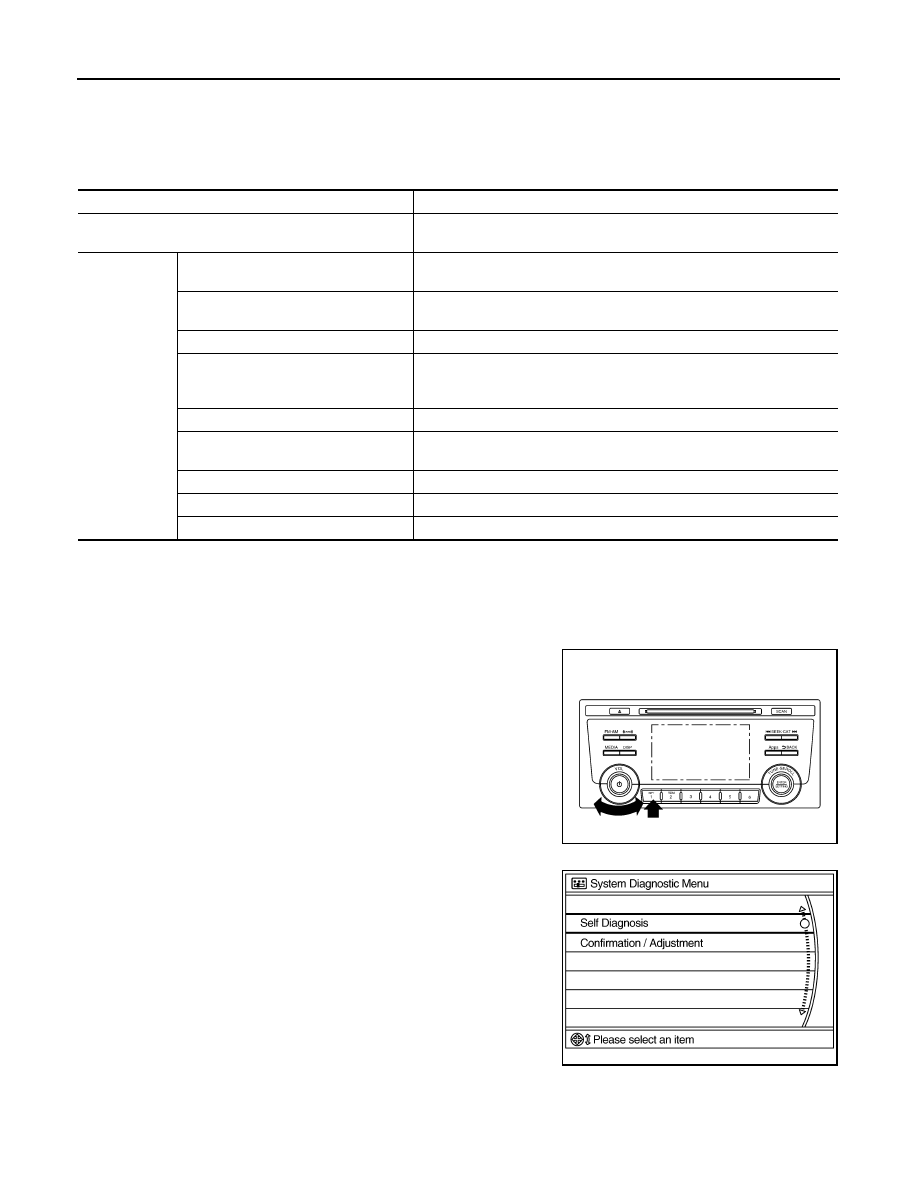

The audio unit on board diagnosis performs the functions listed in the table below:

On Board Diagnosis Function

INFOID:0000000010435604

METHOD OF STARTING

1.

Turn the ignition ON.

2.

Turn the audio system OFF.

3.

While pressing the preset 1 button, turn the volume control dial
clockwise or counterclockwise for 40 clicks or more. Shifting
from current screen to previous screen is performed by pressing
BACK button.

4.

The trouble diagnosis initial screen is displayed, and Self Diag-
nosis or Confirmation/Adjustment can be selected.

SELF DIAGNOSIS MODE

Audio Unit Self Diagnosis

1.

Select Self Diagnosis.

Mode

Description

Self Diagnosis

• Audio unit diagnosis.
• Diagnoses the connections across system components.

Confirmation/

Adjustment

Display Diagnosis

The following check functions are available: color tone check by color bar
display and white display, light and shade check by gray scale display.

Vehicle Signals

Diagnosis of signals can be performed for vehicle speed, lights, reverse,
EQ pin, destination and camera type.

Speaker Test

The connection of a speaker can be confirmed by test tone.

Error History

The system malfunction and the frequency when occurring in the past are
displayed. When the malfunctioning item is selected, the time and place
that the selected malfunction last occurred are displayed.

Camera System

Displayed but not used.

AV COMM Diagnosis

The communication condition of each unit of display audio system can be
monitored.

Delete Unit Connection Log

Erase the connection history of unit and error history.

Version Information

Audio unit software and hardware versions are displayed.

Initialize Setting

Initializes the audio unit memory.

ALNIA1598ZZ

JSNIA0138GB
