FUSIBLE LINK INSPECTION

How To Check

INFOID:0000000010464101

A melted fusible link can be detected either by visual inspection or by feeling with finger tip. If its condition is
questionable, use circuit tester or test lamp.

CAUTION:

• If fusible link should melt, it is possible that critical circuit (power supply or large current carrying

circuit) is shorted. In such a case, carefully check and eliminate cause of malfunction.

• Never wrap outside of fusible link with vinyl tape. Important: Never let fusible link touch any other

wiring harness, vinyl or rubber parts.

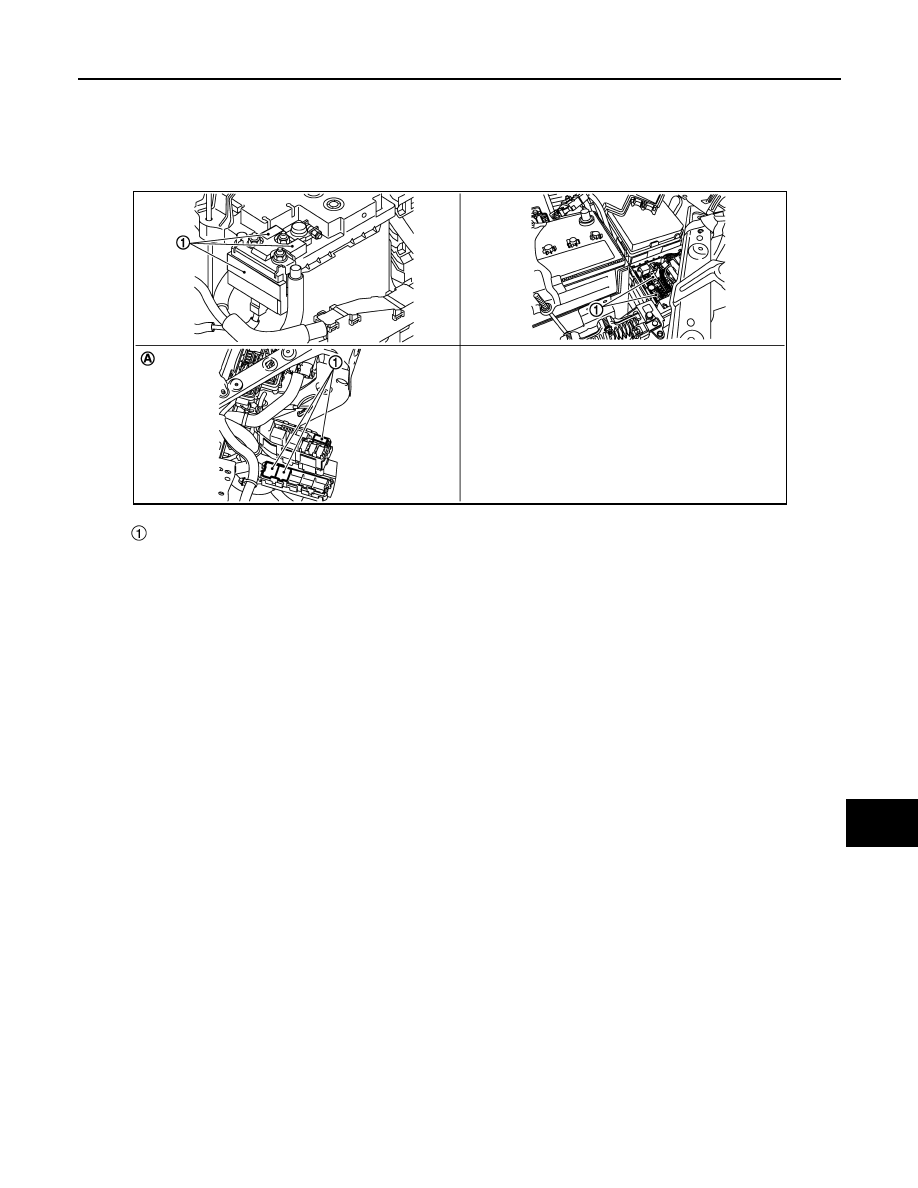

:Fusible link

JMMIA1915ZZ

PG-154

< REMOVAL AND INSTALLATION >

BATTERY

REMOVAL AND INSTALLATION

BATTERY

Exploded View

INFOID:0000000010464105

JMMIA1768GB

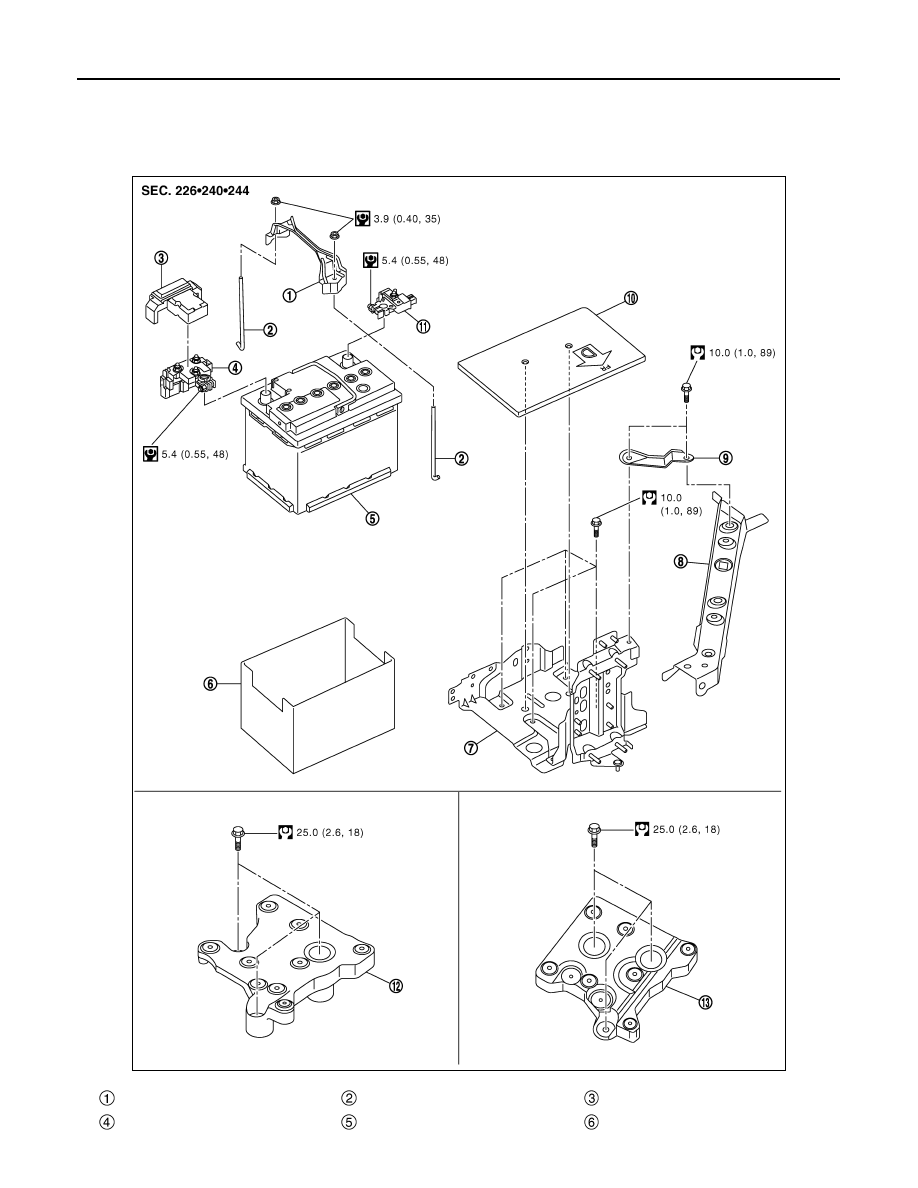

Battery fix frame

Battery fix rod

Cover

Battery terminal with fusible link

Battery

Battery cover

PG

BATTERY

PG-155

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Removal and Installation

INFOID:0000000010464106

REMOVAL

CAUTION:

After the battery of a vehicle equipped with the Stop/Start System is replaced, the cumulative battery
discharge current value stored in IPDM E/R must be erased, using CONSULT. Refer to

PCS-60, "Work

Procedure"

 (With Stop/Start System).

1.

Disconnect the battery cable from the negative terminal.

CAUTION:

To prevent damage to the parts, disconnect the battery cable from the negative terminal first.

2.

Remove cover of battery positive terminal.

3.

Disconnect the battery cable from the positive terminal.

4.

Remove battery fix frame mounting nuts and battery fix frame.

5.

Remove battery.

6.

Remove tray.

7.

Remove battery mounting bracket assembly mounting bolts, and then remove battery mounting bracket
assembly.

8.

Remove battery mounting bracket mounting bolts, and then remove battery mounting bracket. (if
equipped)

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

To install the battery, carefully read the following instructions.

• To prevent damage to the parts, connect the battery cable to the positive terminal first.
• After connecting battery cables, to securely supply battery voltage, ensure that they are tightly

clamped to battery terminals for good contact.

• To securely supply battery voltage, check battery terminal for poor connection caused by corrosion.
Reset electronic systems as necessary. Refer to

GI-63, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Required Procedure After Battery Disconnection"

.

Battery mounting bracket assembly

Radiator core support LH

Battery bracket

Battery tray

Battery current sensor

Battery mounting bracket
(if equipped)

Battery mounting bracket
(if equipped)

: N·m (kg-m, ft-lb)

: N·m (Kg-m, ft-lb)

PG-156

< REMOVAL AND INSTALLATION >

BATTERY TERMINAL WITH FUSIBLE LINK

BATTERY TERMINAL WITH FUSIBLE LINK

Exploded View

INFOID:0000000010464107

Removal and Installation

INFOID:0000000010464108

REMOVAL

1.

Disconnect the battery cable from the negative terminal. Refer to

PG-154, "Exploded View"

.

CAUTION:

To prevent damage to the parts, disconnect the battery cable from the negative terminal first.

2.

Remove cover of battery positive terminal.

3.

Disconnect battery cable from the positive terminal. Refer to

PG-154, "Exploded View"

.

4.

Remove harness mounting nut and battery terminal with fusible link mounting nut.

5.

Disconnect harness connector and remove battery terminal with fusible link.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

To prevent damage to the parts, connect the battery cable to the positive terminal first.

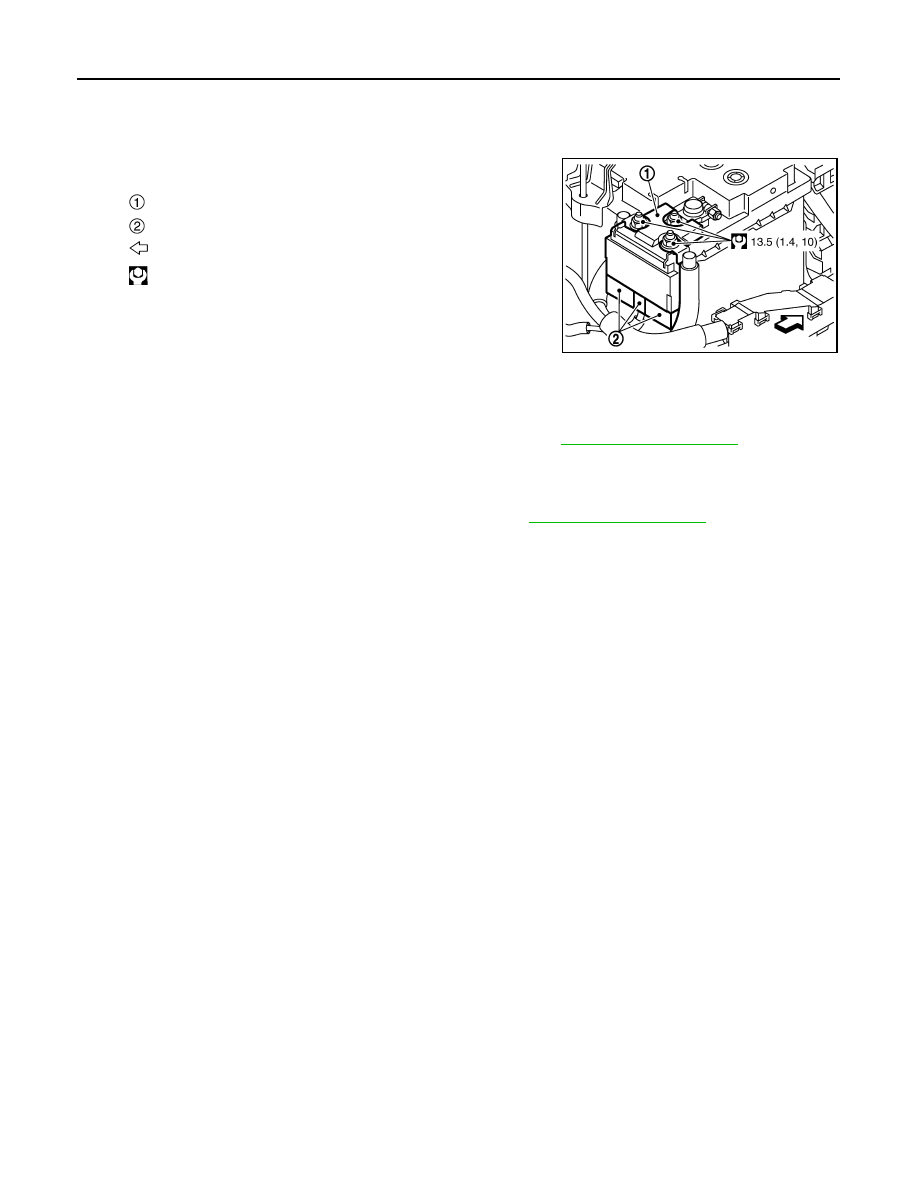

: Battery terminal with fusible link

: Harness connector

: Vehicle front

: N·m (kg-m, ft-lb)

JMMIA1770GB
