Nissan Qashqai J11. Manual - part 2016

PG

BATTERY CURRENT SENSOR

PG-157

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BATTERY CURRENT SENSOR

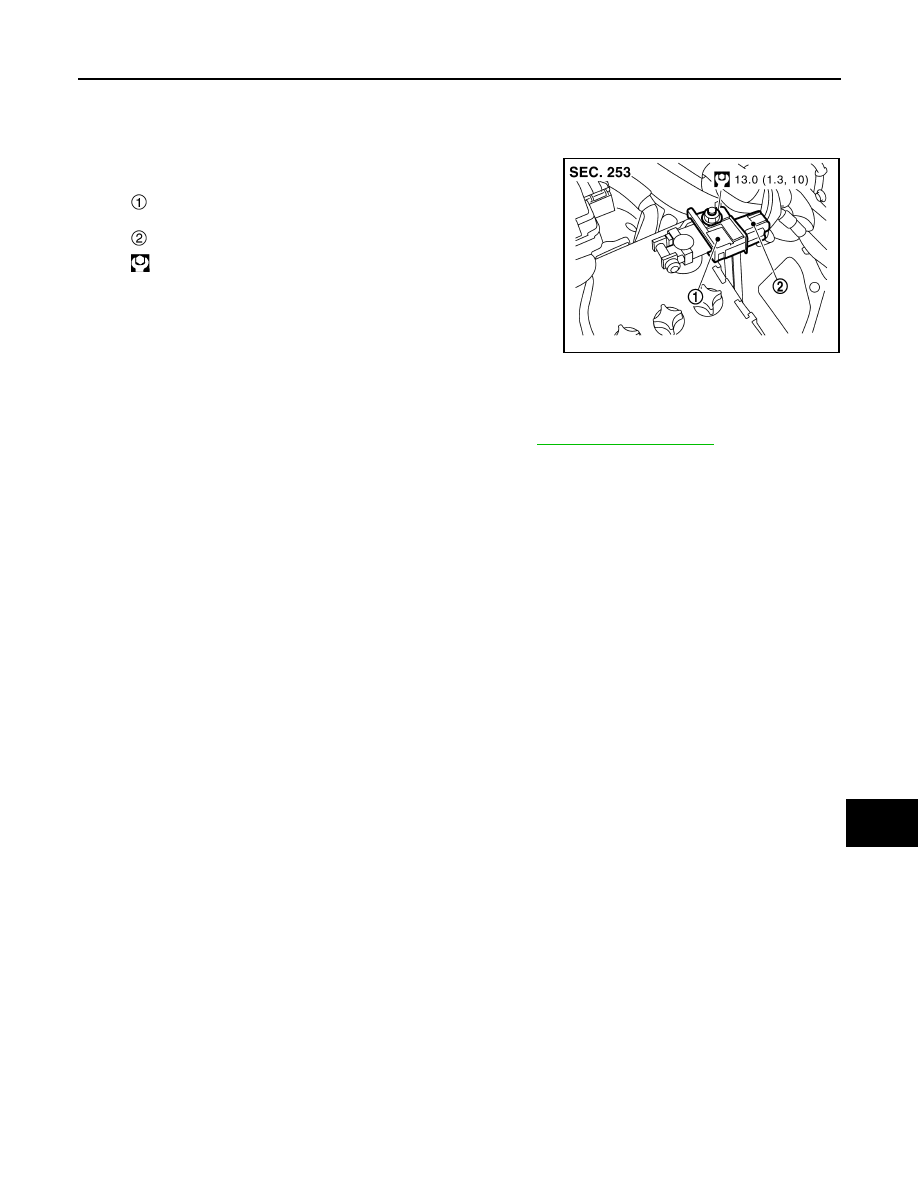

Exploded View

INFOID:0000000010464109

Removal and Installation

INFOID:0000000010464110

REMOVAL

1.

Disconnect battery cable from the negative terminal. Refer to

PG-154, "Exploded View"

.

2.

Disconnect battery current sensor connector.

3.

Remove battery current sensor mounting nut.

4.

Remove battery current sensor from battery cable.

INSTALLATION

Install in the reverse order of removal.

: Battery current sensor
(With battery temperature sensor)

: Harness connector

: N·m (kg-m, ft-lb)

JSMIA1127GB

PG-158

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Battery

INFOID:0000000010464111

Type

L2

L3

20 hour rate capacity

[V – Ah]

12 – 60

12 – 70

Cold cranking current (For reference value)

[A]

510

720

MWI

MWI-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

MWI

A

O

P

CONTENTS

METER, WARNING LAMP & INDICATOR

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

Precautions for Removing Battery Terminal  .............

3

PREPARATION ............................................

5

PREPARATION ...................................................

5

Commercial Service Tools  ........................................

5

SYSTEM DESCRIPTION  ..............................

6

COMPONENT PARTS  ........................................

6

Component Parts Location ........................................

6

Component Description .............................................

7

SYSTEM (METER SYSTEM)  ..............................

8

METER SYSTEM  .........................................................

8

METER SYSTEM : System Diagram ........................

8

METER SYSTEM : System Description  ....................

9

METER SYSTEM : Fail-safe ...................................

11

SPEEDOMETER ........................................................

12

SPEEDOMETER : System Diagram  .......................

12

SPEEDOMETER : System Description ...................

12

TACHOMETER ..........................................................

12

TACHOMETER : System Diagram  .........................

13

TACHOMETER : System Description  .....................

13

ENGINE COOLANT TEMPERATURE GAUGE  ........

13

ENGINE COOLANT TEMPERATURE GAUGE :
System Diagram ......................................................

13

ENGINE COOLANT TEMPERATURE GAUGE :
System Description  .................................................

13

FUEL GAUGE ............................................................

13

FUEL GAUGE : System Diagram  ...........................

13

FUEL GAUGE : System Description  .......................

14

OIL PRESSURE WARNING LAMP ...........................

14

OIL PRESSURE WARNING LAMP : System Dia-
gram ........................................................................

14

OIL PRESSURE WARNING LAMP : System De-
scription ...................................................................

14

MASTER WARNING LAMP .......................................

14

MASTER WARNING LAMP : System Diagram .......

15

MASTER WARNING LAMP : System Description ....

15

METER ILLUMINATION CONTROL  .........................

15

METER ILLUMINATION CONTROL : System Di-
agram ......................................................................

15

METER ILLUMINATION CONTROL : System De-
scription ...................................................................

15

METER EFFECT FUNCTION  ....................................

16

METER EFFECT FUNCTION : System Descrip-
tion ...........................................................................

16

INFORMATION DISPLAY ..........................................

16

INFORMATION DISPLAY : System Diagram ..........

17

INFORMATION DISPLAY : System Description  .....

17

OPERATION .....................................................

26

Switch Name and Function ......................................

26

DIAGNOSIS SYSTEM (COMBINATION
METER) .............................................................

27

Description ...............................................................

27

CONSULT Function (METER/M&A) ........................

29

ECU DIAGNOSIS INFORMATION ..............

32

COMBINATION METER  ...................................

32

Reference Value ......................................................

32

Fail-safe ...................................................................

38

DTC Index  ...............................................................

39

IPDM E/R ...........................................................

40

List of ECU Reference .............................................

40

WIRING DIAGRAM  ......................................

41

MWI-2

METER SYSTEM  ...............................................

41

Wiring Diagram  .......................................................

41

BASIC INSPECTION ...................................

54

DIAGNOSIS AND REPAIR WORKFLOW
(METER SYSTEM) .............................................

54

Work flow  ................................................................

54

DTC/CIRCUIT DIAGNOSIS .........................

56

U1000 CAN COMM CIRCUIT  ............................

56

Description ..............................................................

56

DTC Logic ...............................................................

56

Diagnosis Procedure  ..............................................

56

U1010 CONTROL UNIT (CAN)  .........................

57

Description ..............................................................

57

DTC Logic ...............................................................

57

Diagnosis Procedure  ..............................................

57

B2205 VEHICLE SPEED  ...................................

58

Description ..............................................................

58

DTC Logic ...............................................................

58

Diagnosis Procedure  ..............................................

58

B2267 ENGINE SPEED  .....................................

59

Description ..............................................................

59

DTC Logic ...............................................................

59

Diagnosis Procedure  ..............................................

59

B2268 WATER TEMP ........................................

60

Description ..............................................................

60

DTC Logic ...............................................................

60

Diagnosis Procedure  ..............................................

60

POWER SUPPLY AND GROUND CIRCUIT  .....

61

COMBINATION METER  ...........................................

61

COMBINATION METER : Diagnosis Procedure  ....

61

PARKING BRAKE SWITCH SIGNAL CIR-
CUIT ...................................................................

62

Diagnosis Procedure  ..............................................

62

FUEL LEVEL SENSOR SIGNAL CIRCUIT  .......

63

Component Function Check  ...................................

63

Diagnosis Procedure  ..............................................

63

Component Inspection ............................................

65

OIL LEVEL SENSOR SIGNAL CIRCUIT  ..........

67

Component Function Check  ...................................

67

Diagnosis Procedure  ..............................................

67

Component Inspection ............................................

67

AMBIENT SENSOR SIGNAL CIRCUIT .............

68

Diagnosis Procedure  ..............................................

68

Component Inspection ............................................

68

METER CONTROL SWITCH SIGNAL CIR-
CUIT ...................................................................

69

Diagnosis Procedure ...............................................

69

Component Inspection  ............................................

70

STEERING SWITCH ..........................................

71

Description ..............................................................

71

Diagnosis Procedure ...............................................

71

Component Inspection  ............................................

71

SYMPTOM DIAGNOSIS  ............................

73

THE FUEL GAUGE DOES NOT MOVE  ............

73

Description ..............................................................

73

Diagnosis Procedure ...............................................

73

THE OIL PRESSURE WARNING CONTIN-
UES DISPLAYING, OR DOES NOT DISPLAY ...

74

Description ..............................................................

74

Diagnosis Procedure ...............................................

74

THE AMBIENT TEMPERATURE DISPLAY IS
INCORRECT ......................................................

75

Description ..............................................................

75

Diagnosis Procedure ...............................................

75

THE DOOR OPEN WARNING CONTINUES
DISPLAYING, OR DOES NOT DISPLAY  .........

76

Description ..............................................................

76

Diagnosis Procedure ...............................................

76

THE METER CONTROL SWITCH IS INOPER-
ATIVE .................................................................

77

Description ..............................................................

77

Diagnosis Procedure ...............................................

77

THE STEERING SWITCHES ARE INOPERA-
TIVE ...................................................................

78

Description ..............................................................

78

Diagnosis Procedure ...............................................

78

NORMAL OPERATING CONDITION  ................

79

INFORMATION DISPLAY  .........................................

79

INFORMATION DISPLAY : Description ..................

79

REMOVAL AND INSTALLATION ..............

80

COMBINATION METER  ....................................

80

Removal and Installation .........................................

80

METER CONTROL SWITCH .............................

81

Removal and Installation .........................................

81

UNIT DISASSEMBLY AND ASSEMBLY ...

82

COMBINATION METER  ....................................

82

Exploded View  ........................................................

82

Disassembly and Assembly  ....................................

82
