REMOVAL AND INSTALLATION

ALTERNATOR

HRA2DDT

HRA2DDT : Exploded View

INFOID:0000000010671030

HRA2DDT : Removal and Installation

INFOID:0000000010671031

REMOVAL

1.

Disconnect the battery cable from the negative terminal. Refer to

PG-155, "Removal and Installation"

.

2.

Remove drive belt. Refer to

EM-16, "Removal and Installation"

.

3.

Remove intake manifold. Refer to

EM-25, "Removal and Installation"

.

4.

Disconnect alternator connector.

5.

Remove “B” terminal nut and disconnect “B” terminal harness.

6.

Remove upper alternator mounting bolt and alternator lower mounting bolt.

7.

Remove alternator upward from the vehicle.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Temporarily tighten the alternator bolts in order from the upper to the lower, and then tighten them in

order from the upper to the lower.
For the alternator, the front side (pulley side) surface is the reference surface. Fit the reference sur-
face to the alternator mounting part, and then tighten the bolts.

• Be careful to tighten “B” terminal nut to the specified torque.
• Install alternator, and check tension of belt. Refer to

EM-16, "Checking"

.

NOTE:

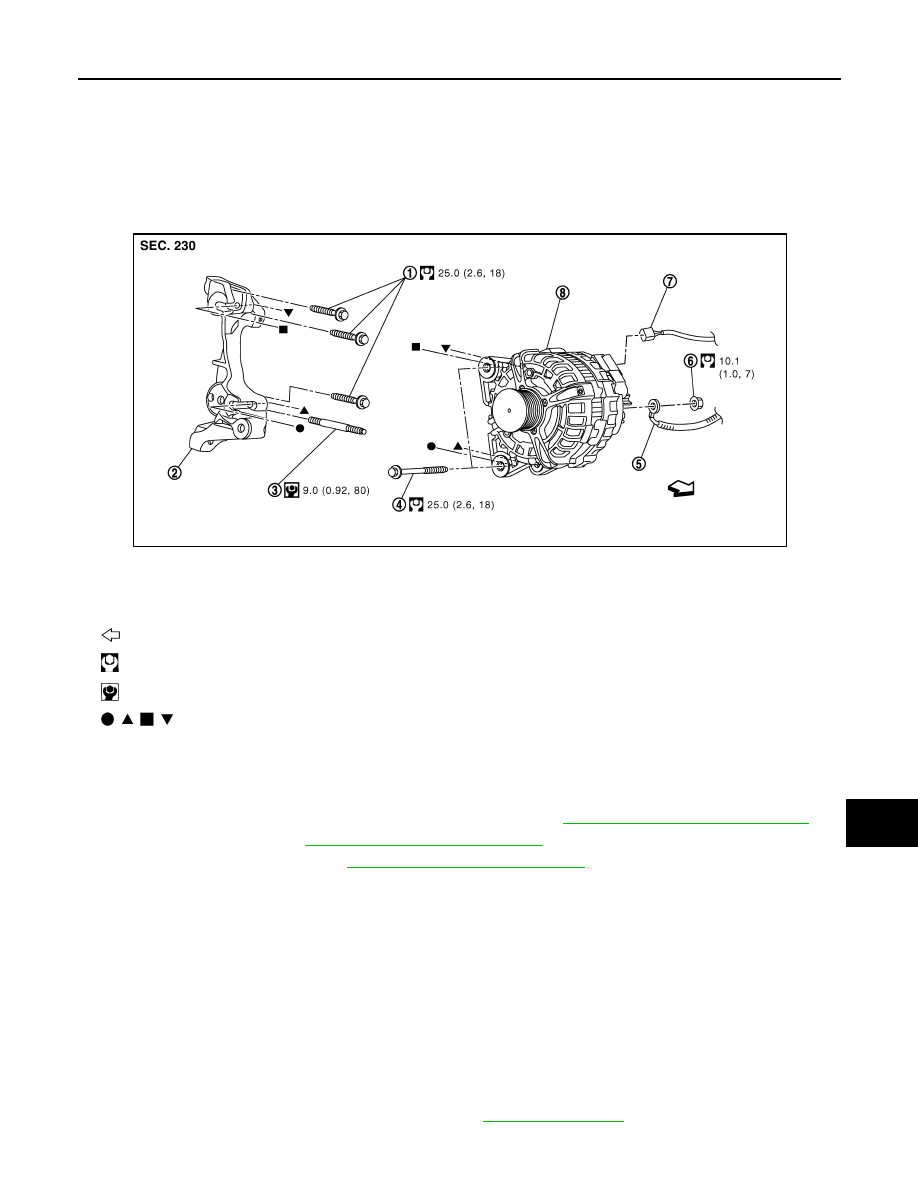

1.

Alternator bracket mounting bolt

2.

Alternator bracket

3.

Stud bolt

4.

Alternator mounting bolt

5.

“B” terminal harness

6.

“B” terminal nut

7.

Alternator connector

8.

Alternator

: Vehicle front

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

,

,

,

 : Indicates that the part is connected at points with same symbol in actual vehicle.

JMMIA1619GB

CHG-52

< REMOVAL AND INSTALLATION >

[TYPE 2]

ALTERNATOR

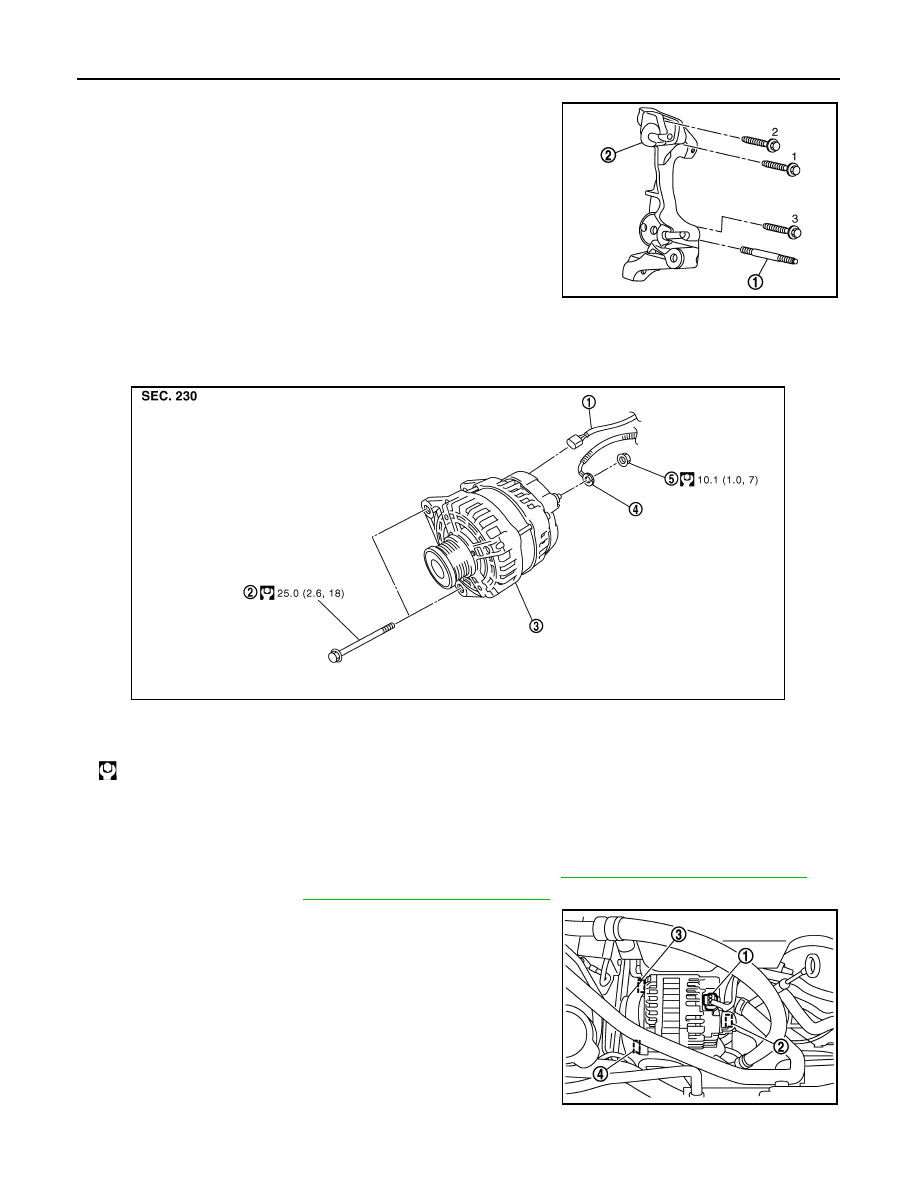

Install alternator bracket according to the following procedures.
1.

Install and tighten stud bolt (1).

2.

Set alternator bracket (2) on stud bolt.

3.

Temporarily tighten mounting bolts.

4.

Tighten mounting bolts in numerical order as shown in the fig-
ure.

MR20DD

MR20DD : Exploded View

INFOID:0000000010671032

MR20DD : Removal and Installation

INFOID:0000000010671033

REMOVAL

1.

Disconnect the battery cable from the negative terminal. Refer to

PG-155, "Removal and Installation"

.

2.

Remove drive belt. Refer to

EM-139, "Removal and Installation"

.

3.

Disconnect alternator connector (1).

4.

Remove “B” terminal nut (2) and disconnect “B” terminal har-
ness.

5.

Remove upper alternator mounting bolt (3).

6.

Completely loosen lower alternator mounting bolt (4), and pull it
out until the bolt head is in contact with the side member. And
then, remove the alternator by pulling it forward.
NOTE:
The alternator can be removed together with the bolts by pulling
it forward and using the alternator bracket bolt hole cutout.

7.

Remove alternator upward from the vehicle.

INSTALLATION

JMMIA1620ZZ

1.

Alternator connector

2.

Alternator mounting bolt

3.

Alternator

4.

“B” terminal harness

5.

“B” terminal nut

: N·m (kg-m, ft-lb)

PKID0787E

JPMIA0082ZZ

CHG

ALTERNATOR

CHG-53

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Temporarily tighten the alternator bolts in order from the lower to the upper, and then tighten them in

order from the upper to the lower.
For the alternator, the front side (pulley side) surface is the reference surface. Fit the reference sur-
face to the alternator mounting part, and then tighten the bolts.

• Be careful to tighten “B” terminal nut to the specified torque.
• Install alternator, and check tension of belt. Refer to

EM-140, "Inspection"

.

R9M

R9M : Exploded View

INFOID:0000000010677262

R9M : Removal and Installation

INFOID:0000000010677263

REMOVAL

1.

Disconnect the battery cable from the negative terminal. Refer to

PG-155, "Removal and Installation"

.

2.

Remove wheel nuts, and then tire assembly RH. Refer to

WT-60, "Removal and Installation"

.

3.

Remove engine under cover. Refer to

EXT-19, "Exploded View"

.

4.

Remove front fender protector RH partially. Refer to

EXT-31, "Exploded View"

.

5.

Remove drive belt. Refer to

EM-373, "Removal and Installation"

.

6.

Remove air duct (inlet). Refer to

EM-380, "Exploded View"

.

7.

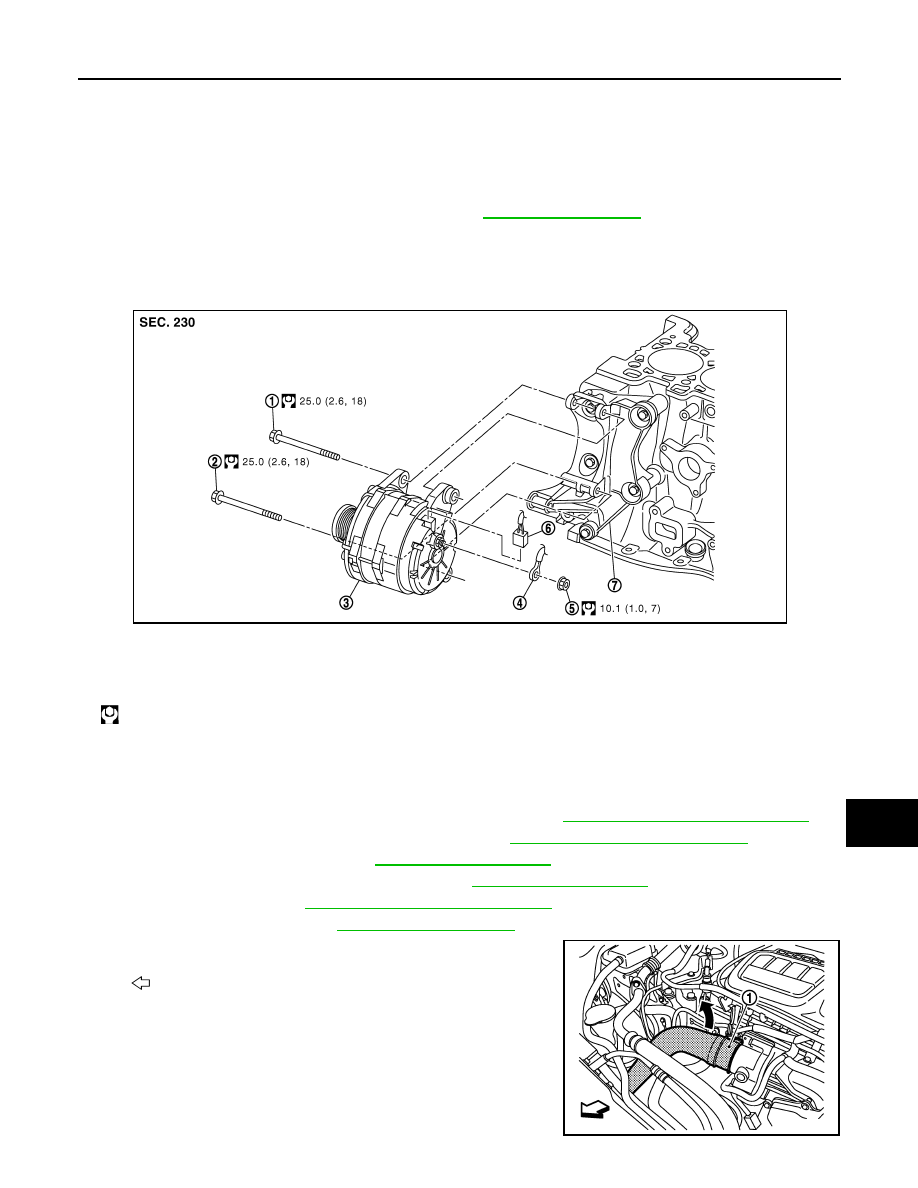

Get air inlet hose 1 (1) out of alternator removal area.

1.

Alternator mounting bolt (upper)

2.

Alternator mounting bolt (lower)

3.

Alternator

4.

“B” terminal harness

5.

“B” terminal nut

6.

Alternator connector

7.

Alternator bracket

: N·m (kg-m, ft-lb)

JMMIA0962GB

: Vehicle front

JMMIA0963ZZ

CHG-54

< REMOVAL AND INSTALLATION >

[TYPE 2]

ALTERNATOR

8.

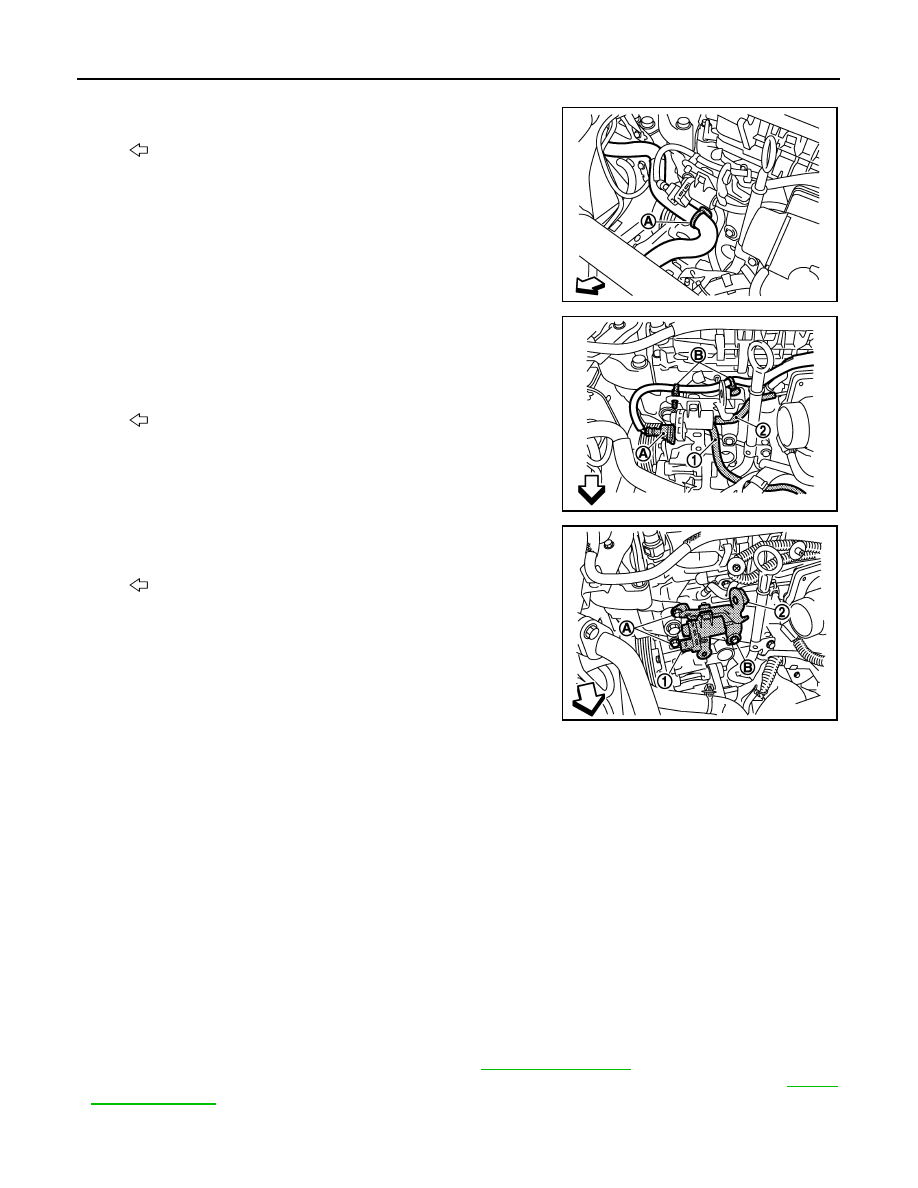

Remove solenoid valve and bracket assembly.

a.

Remove water hose fixing clip (A) from solenoid valve bracket.

b.

Disconnect vacuum hose (1) and (2) from solenoid valve.

c.

Disconnect solenoid valve connector (A).

d.

Remove solenoid valve harness fixing clips (B) from solenoid
valve bracket.

e.

Remove mounting bolts (A) and (B), and then remove solenoid
valve (1) and bracket assembly (2) as a set.

9.

Disconnect alternator connector.

10. Remove “B” terminal nut and disconnect “B” terminal harness.

11. Remove alternator mounting bolt (upper).

12. Completely loosen lower alternator mounting bolt (lower), and pull it out until the bolt head is in contact

with the side member. And then, remove the alternator by pulling it forward.
NOTE:
The alternator can be removed together with the bolts by pulling it forward and using the alternator bracket
bolt hole cutout.

13. Remove alternator upward from the vehicle.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Temporarily tighten the alternator bolts in order from the upper to the lower, and then tighten them in

order from the upper to the lower.
For the alternator, the front side (pulley side) surface is the reference surface. Fit the reference sur-
face to the alternator mounting part, and then tighten the bolts.

• Be careful to tighten “B” terminal nut to the specified torque.
• Install alternator, and check tension of belt. Refer to

EM-373, "Checking"

.

• When installing the tire assembly, tighten wheel nuts to the specified torque. Refer to

WT-60,

"Exploded View"

.

: Vehicle front

JMMIA0964ZZ

: Vehicle front

JMMIA0965ZZ

: Vehicle front

JMMIA0966ZZ
