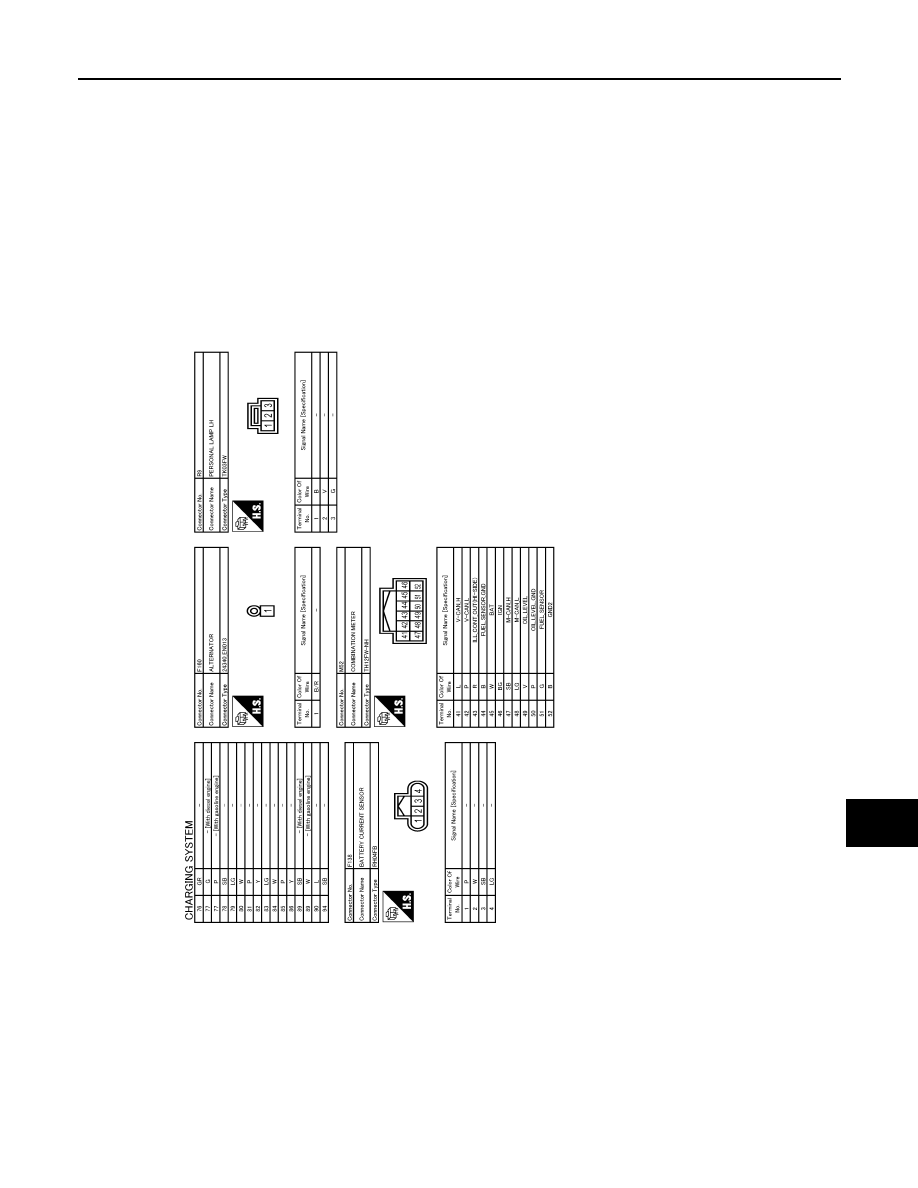

Nissan Qashqai J11. Manual - part 1974

CHG

CHARGING SYSTEM

CHG-43

< WIRING DIAGRAM >

[TYPE 2]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWE9588GB

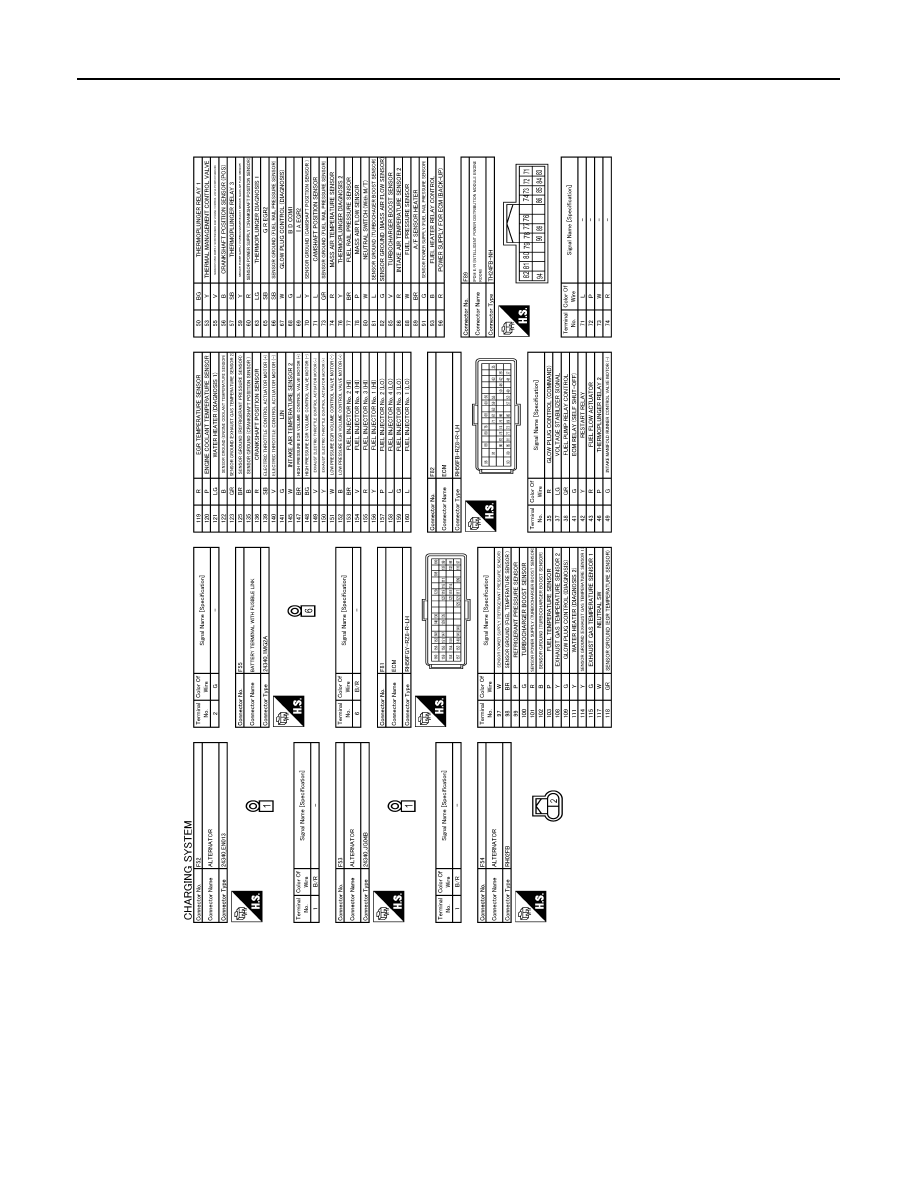

CHG-44

< WIRING DIAGRAM >

[TYPE 2]

CHARGING SYSTEM

JRMWE9589GB

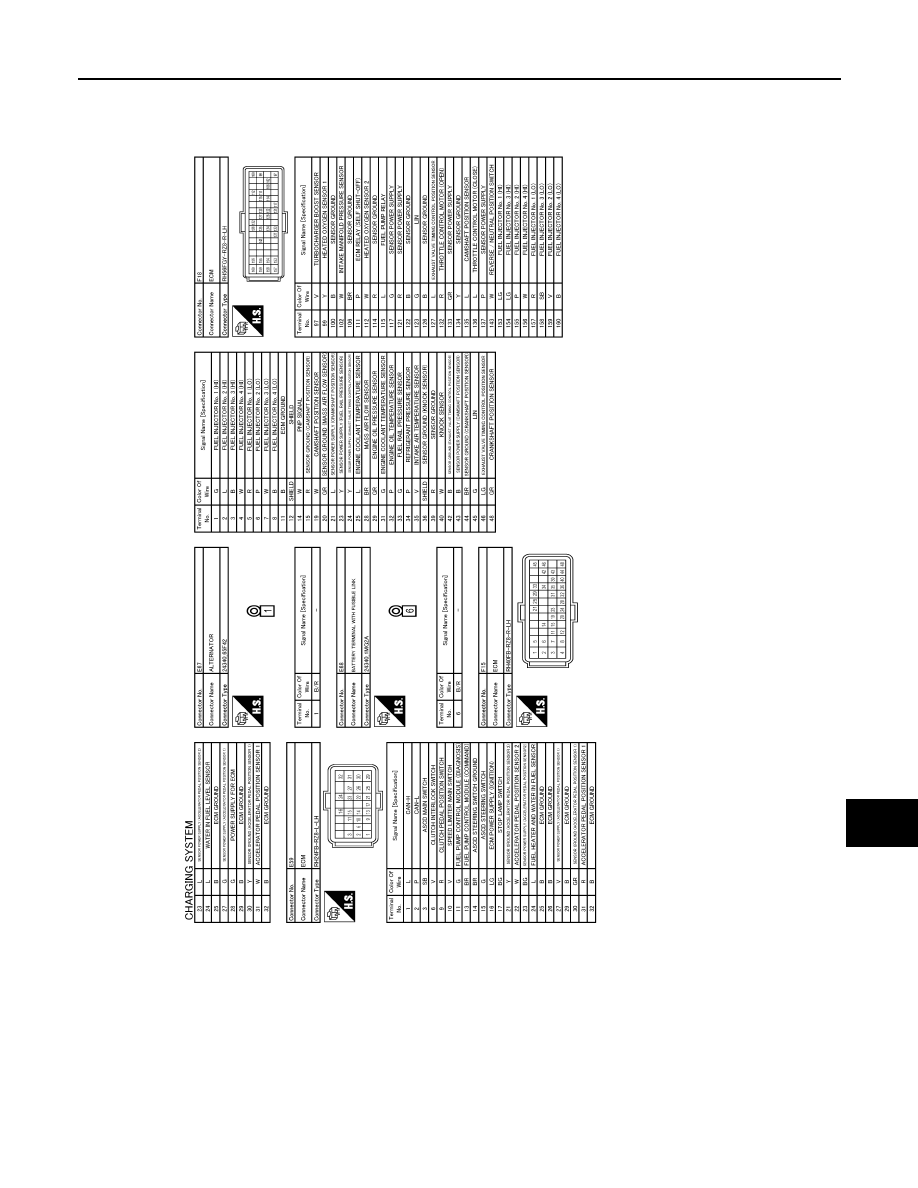

CHG

CHARGING SYSTEM

CHG-45

< WIRING DIAGRAM >

[TYPE 2]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWE9590GB

CHG-46

< BASIC INSPECTION >

[TYPE 2]

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000010671007

DETAILED FLOW

1.

CHECK FOR DTC

Perform self diagnosis with CONSULT.
Is any DTC detected?

YES

>> Repair as needed.

NO

>> GO TO 2.

2.

PRELIMINARY INSPECTION

Perform the preliminary inspection. Refer to

CHG-47, "Inspection Procedure"

.

>> GO TO 3.

3.

INSPECTION WITH CHARGE WARNING LAMP (IDLING)

Start the engine and run it at idle.

Does the charge warning lamp turn OFF?

YES

>> GO TO 4.

NO

>> GO TO 5.

4.

INSPECTION WITH CHARGE WARNING LAMP (ENGINE AT 2,500 RPM)

Increase and maintain the engine speed at 2,500 rpm.
Does the charge warning lamp illuminate?

YES

>> GO TO 5.

NO

>> INSPECTION END

5.

MEASURE “B” TERMINAL VOLTAGE

Start engine. With engine running at 2,500 rpm, measure “B” terminal voltage.

What voltage does the measurement result show?

Less than 13.0 V>>GO TO 6.
More than 16.0 V>>Replace  alternator.  Refer  to

CHG-51, "HRA2DDT : Removal and Installation"

 (HR

engine),

CHG-52, "MR20DD : Removal and Installation"

 (MR engine) or

CHG-53, "R9M :

Removal and Installation"

 (R9M engine).

6.

“B” TERMINAL CIRCUIT INSPECTION

Check “B” terminal circuit. Refer to

CHG-48, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Replace alternator. Refer to

CHG-51, "HRA2DDT : Removal and Installation"

 (HR engine),

CHG-

52, "MR20DD : Removal and Installation"

 (MR engine) or

CHG-53, "R9M : Removal and Installa-

tion"

 (R9M engine).

NO

>> Repair as needed.
