Nissan Qashqai J11. Manual - part 1964





CHG

APPLICATION NOTICE

CHG-3

< HOW TO USE THIS MANUAL >

[TYPE 1]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

HOW TO USE THIS MANUAL

APPLICATION NOTICE

Information

INFOID:0000000010671016

Check the vehicle type to use the service information in this section.

Service information

System

TYPE 1

With stop/start system

TYPE 2

Without stop/start system

CHG-4

< PRECAUTION >

[TYPE 1]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010463832

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Removing Battery Terminal

INFOID:0000000010503206

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

SEF289H

CHG

PRECAUTIONS

CHG-5

< PRECAUTION >

[TYPE 1]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Precaution for Stop/Start System Service

INFOID:0000000010503207

CAUTION:

When performing an inspection and its related work with the engine at idle, always open the hood and
release the stop/start system.

Precaution for Energy Management System

INFOID:0000000010464044

CAUTION:

Never connect the electrical component or the ground wire directly to the battery terminal. The con-
nection causes the malfunction of the energy management system, and then the battery discharge
may occur.

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

CHG-6

< SYSTEM DESCRIPTION >

[TYPE 1]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

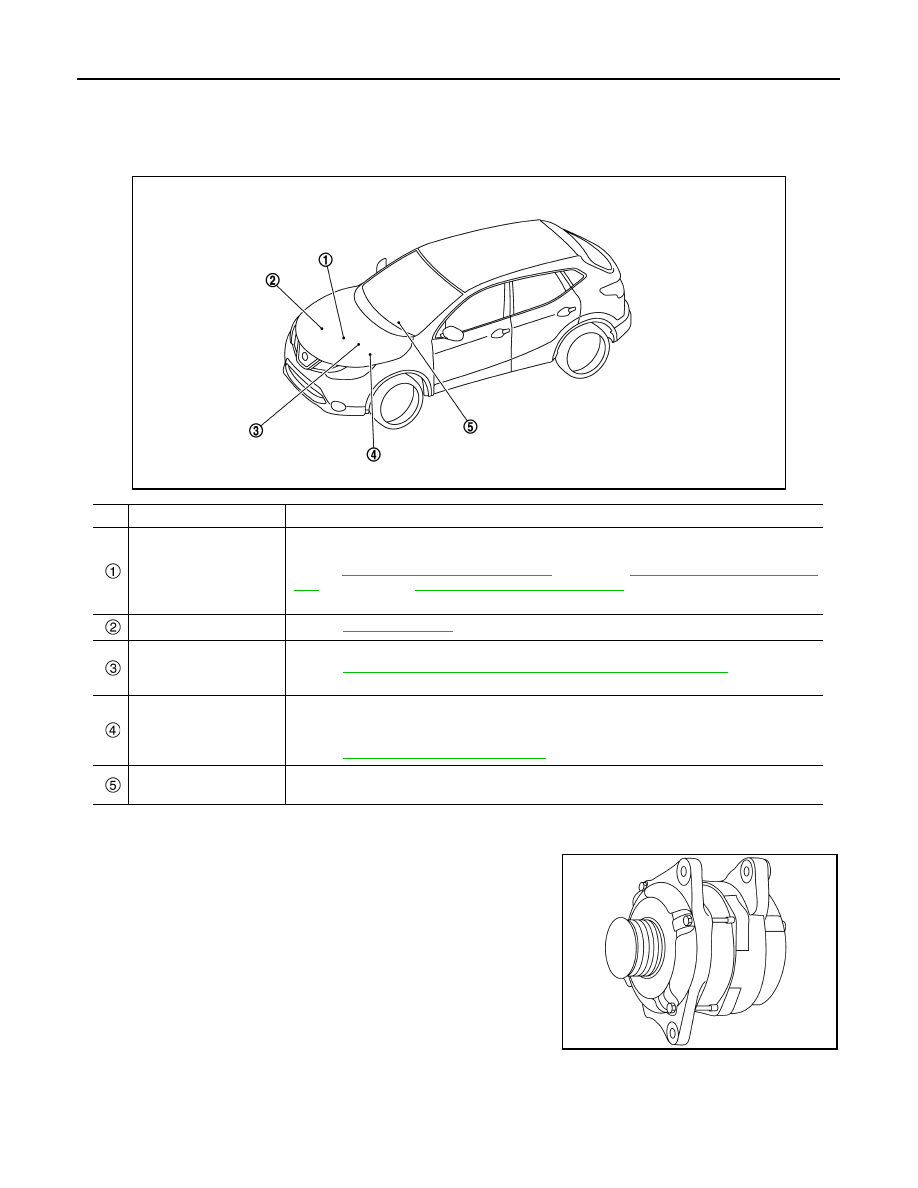

Component Parts Location

INFOID:0000000010431012

Alternator

INFOID:0000000010431013

The alternator provides DC voltage to operate the vehicle's electrical
system and to keep the battery charged.

Battery Current Sensor (With Battery Temperature Sensor)

INFOID:0000000010464042

BATTERY CURRENT SENSOR

JMMIA1765ZZ

No.

Component

Function

ECM

ECM transmits the received alternator voltage request signal to alternator via LIN communica-
tion.
Refer to

ECH-12, "Component Parts Location"

 (HR engine),

ECK-12, "Component Parts Loca-

tion"

 (K9K engine) or

EC9-12, "Component Parts Location"

 (R9M engine) for detailed installa-

tion location.

Alternator

Refer to

CHG-6, "Alternator"

.

Battery current sensor
(With battery temperature
sensor)

Refer to

CHG-6, "Battery Current Sensor (With Battery Temperature Sensor)"

.

IPDM E/R

IPDM E/R calculates the target power generation voltage according to the battery condition and
sends the calculated value as alternator voltage request signal to ECM via CAN communica-
tion.
Refer to

PCS-5, "Component Parts Location"

 for detailed installation location.

Combination meter

Combination meter turns ON charge warning lamp to warn the driver power generation of al-
ternator is not normal.

JMMIA1018ZZ
