PCS-120

< SYMPTOM DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

PUSH-BUTTON IGNITION SWITCH DOES NOT OPERATE

SYMPTOM DIAGNOSIS

PUSH-BUTTON IGNITION SWITCH DOES NOT OPERATE

Diagnosis Procedure

INFOID:0000000010434076

1.

PERFORM WORK SUPPORT

Perform “INSIDE ANT DIAGNOSIS” on Work Support of “INTELLIGENT KEY”.
Refer to

DLK-48, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 1)"

.

>> GO TO 2.

2.

PERFORM SELF-DIAGNOSIS RESULT

Perform Self-Diagnosis Result of “BCM”.

Is DTC detected?

YES

>> Refer to

PCS-37, "DTC Index"

.

NO

>> GO TO 3.

3.

CHECK PUSH-BUTTON IGNITION SWITCH

Check push-button ignition switch.
Refer to

PCS-117, "Component Function Check"

.

Is the operation normal?

YES

>> GO TO 4.

NO

>> Repair or replace malfunctioning parts.

4.

REPLACE BCM

Replace BCM. Refer to

BCS-132, "Removal and Installation"

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

PCS

ACCESSORY POWER SUPPLY IS NOT SUPPLIED EVEN IF DOOR IS UN-

LOCKED BY KEY

PCS-121

< SYMPTOM DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ACCESSORY POWER SUPPLY IS NOT SUPPLIED EVEN IF DOOR IS UN-
LOCKED BY KEY

ALL SWITCHES AND UNITS

ALL SWITCHES AND UNITS : Diagnosis Procedure

INFOID:0000000010434077

1.

CHECK ACCESSORY RELAY

Check accessory relay
Refer to

PCS-114, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK BCM–AV CONTROL UNIT CIRCUIT

Check BCM–AV control unit circuit.
Refer to

PCS-116, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

REPLACE BCM

Replace BCM. Refer to

BCS-132, "Removal and Installation"

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

EXCEPT AUDIO/NAVIGATION

EXCEPT AUDIO/NAVIGATION : Diagnosis Procedure

INFOID:0000000010519157

1.

CHECK ACCESSORY RELAY

Check accessory relay
Refer to

PCS-114, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

Replace BCM. Refer to

BCS-132, "Removal and Installation"

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

AUDIO/NAVIGATION ONLY

AUDIO/NAVIGATION ONLY : Diagnosis Procedure

INFOID:0000000010519158

1.

CHECK BCM–AV CONTROL UNIT CIRCUIT

Check BCM–AV control unit circuit.
Refer to

PCS-116, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

Replace BCM. Refer to

BCS-132, "Removal and Installation"

PCS-122

< SYMPTOM DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

ACCESSORY POWER SUPPLY IS NOT SUPPLIED EVEN IF DOOR IS UN-

LOCKED BY KEY

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

PCS

PUSH-BUTTON IGNITION SWITCH

PCS-123

< REMOVAL AND INSTALLATION >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

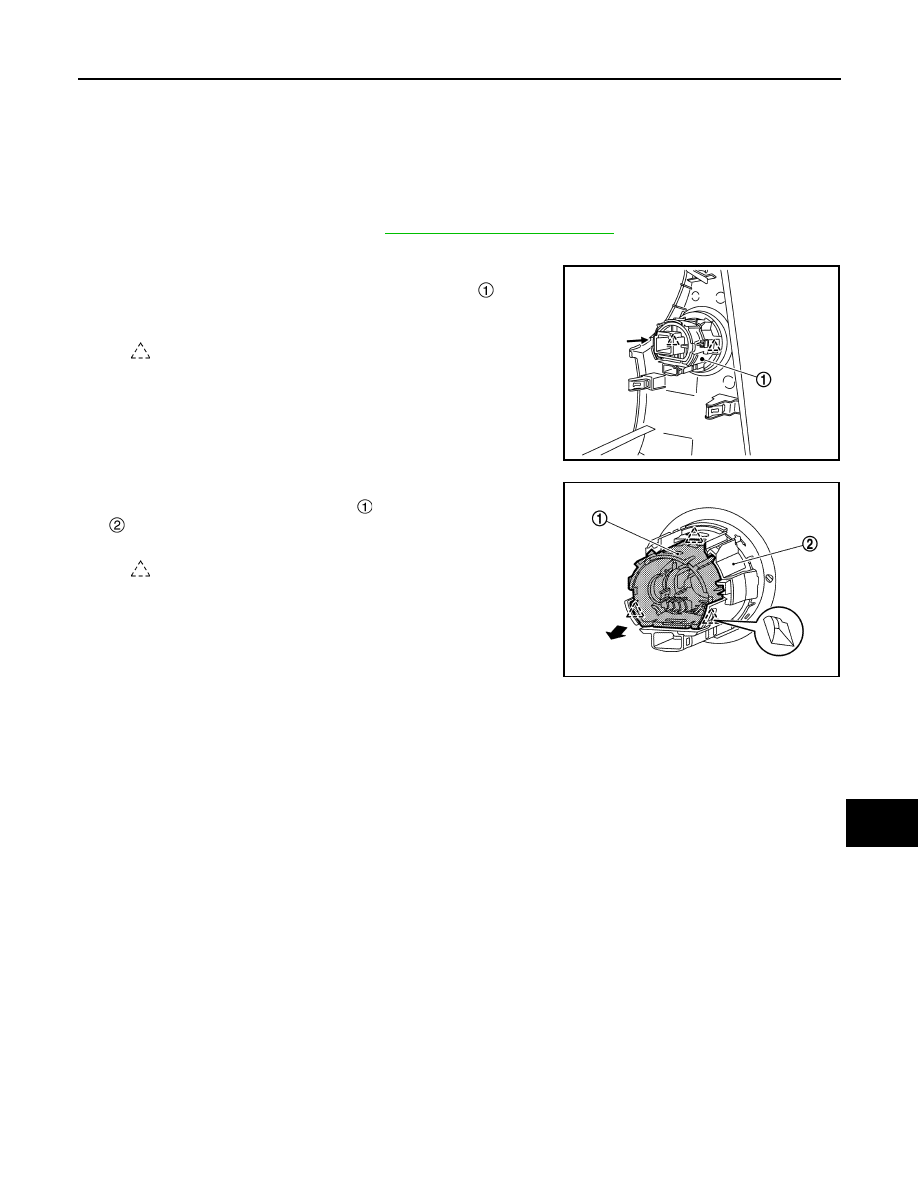

REMOVAL AND INSTALLATION

PUSH-BUTTON IGNITION SWITCH

Removal and Installation

INFOID:0000000010434078

REMOVAL

1.

Remove instrument finisher E. Refer to

IP-13, "Removal and Installation"

.

2.

Disconnect push-button ignition switch connector and NATS antenna amp. connector.

3.

Disengage NATS antenna amp. fixing pawls and then remove
NATS antenna amp. and push-button ignition switch

 as a set

from instrument finisher E.

4.

Disengage push-button ignition switch fixing pawl and then
remove push-button ignition switch

 from NATS antenna amp.

.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMMIA1607JP

: Pawl

JMMIA1435ZZ
