WW-82

< REMOVAL AND INSTALLATION >

FRONT WASHER

FRONT WASHER

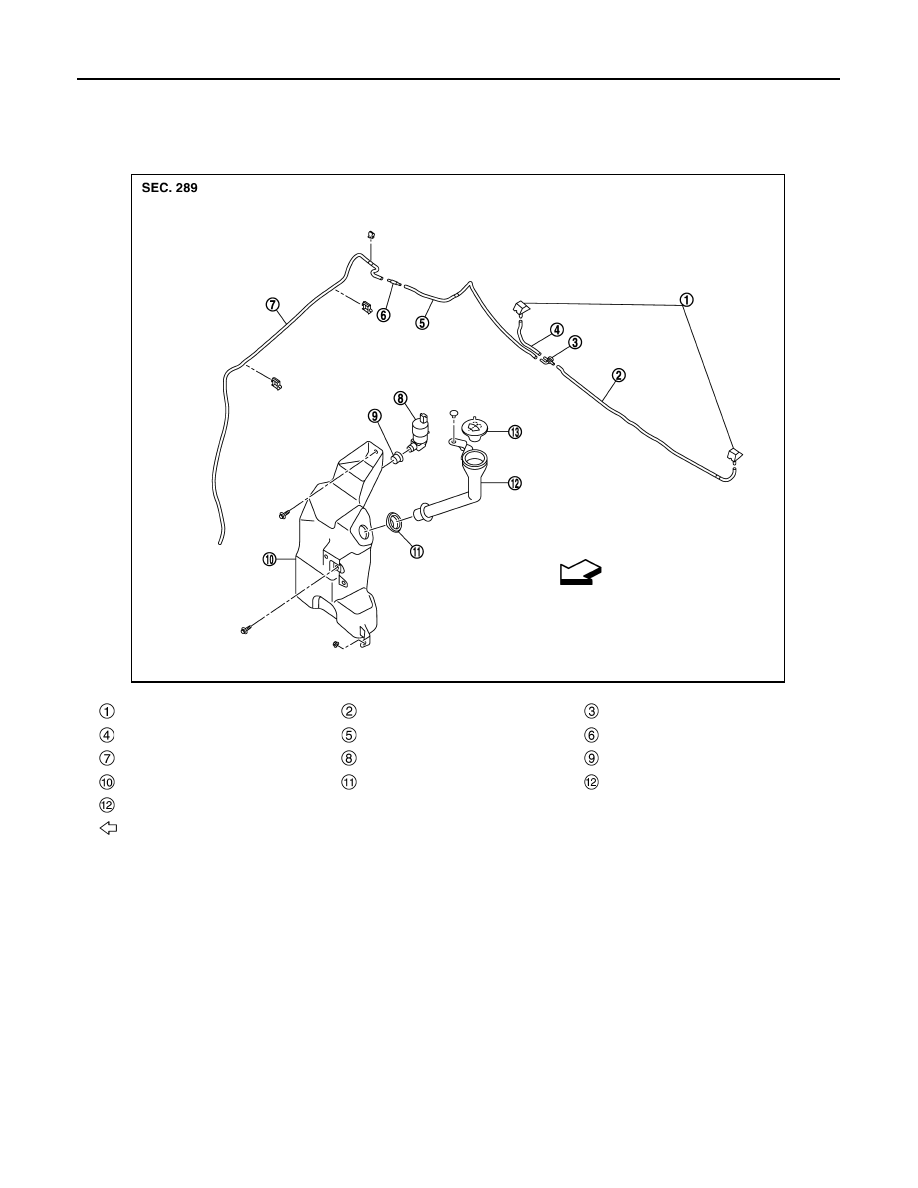

Exploded View

INFOID:0000000010479833

Washer nozzle

Washer tube

Check valve

Washer tube

Washer tube

Straight connector

Washer tube

Washer pump

Packing

Washer tank

Washer tank packing

Washer tank inlet

Washer tank cap

: Vehicle front

JMLIA5161ZZ

FRONT WASHER

WW-83

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

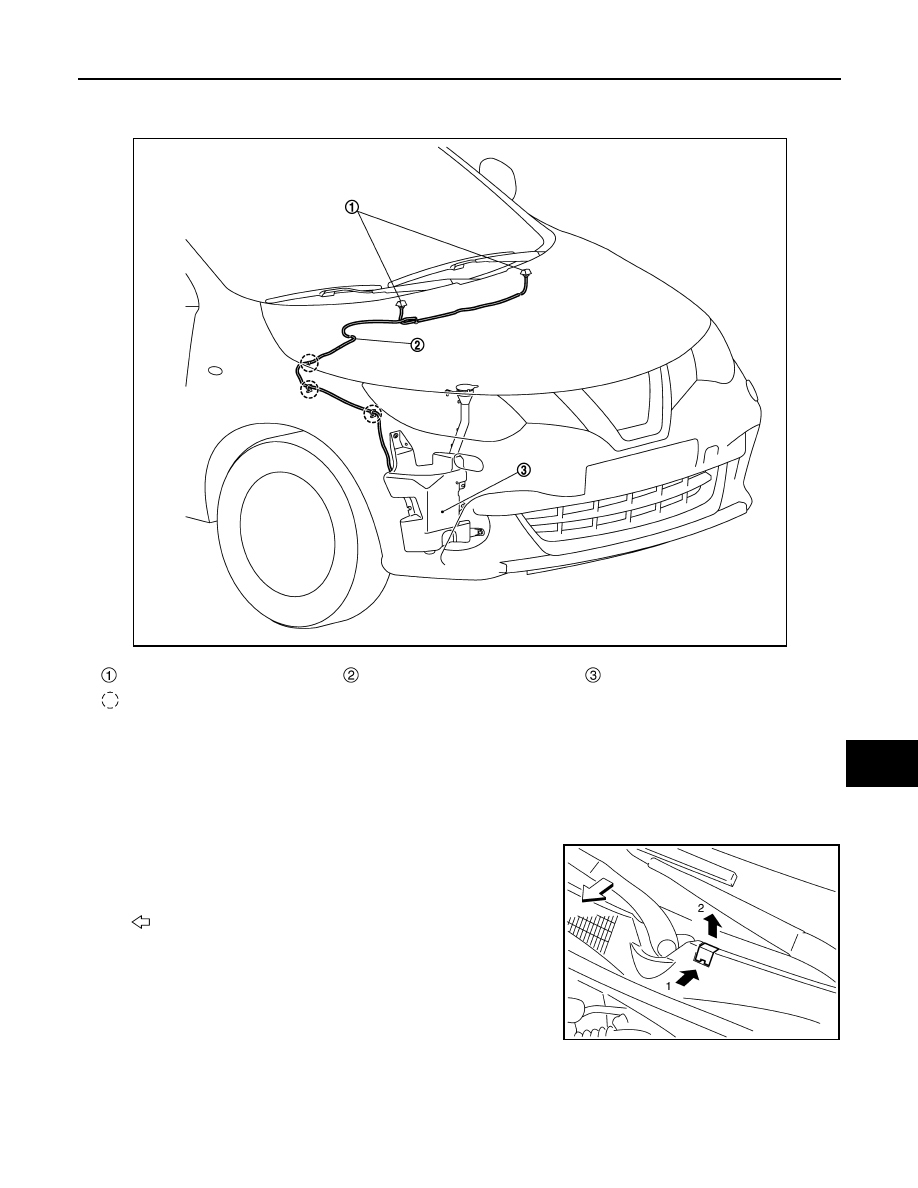

Hydraulic Layout

INFOID:0000000010479834

WASHER NOZZLE

WASHER NOZZLE : Removal and Installation

INFOID:0000000010491780

REMOVAL

1.

Open the hood.

2.

Remove front washer nozzle with a small flat-bladed screwdriver
in according to numerical order 1

→

2 indicated by arrows as

shown in the figure.

3.

Remove the front washer tube from the front washer nozzle.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

Washer nozzle

Washer tube

Washer tank

: Fixing point

JMLIA5162ZZ

: Vehicle front

JPLIA0274ZZ

WW-84

< REMOVAL AND INSTALLATION >

FRONT WASHER

• After installation, check that there is no leakage at operated washer.
• After installation, check that spray position. Refer to

WW-84, "WASHER NOZZLE : Inspection"

.

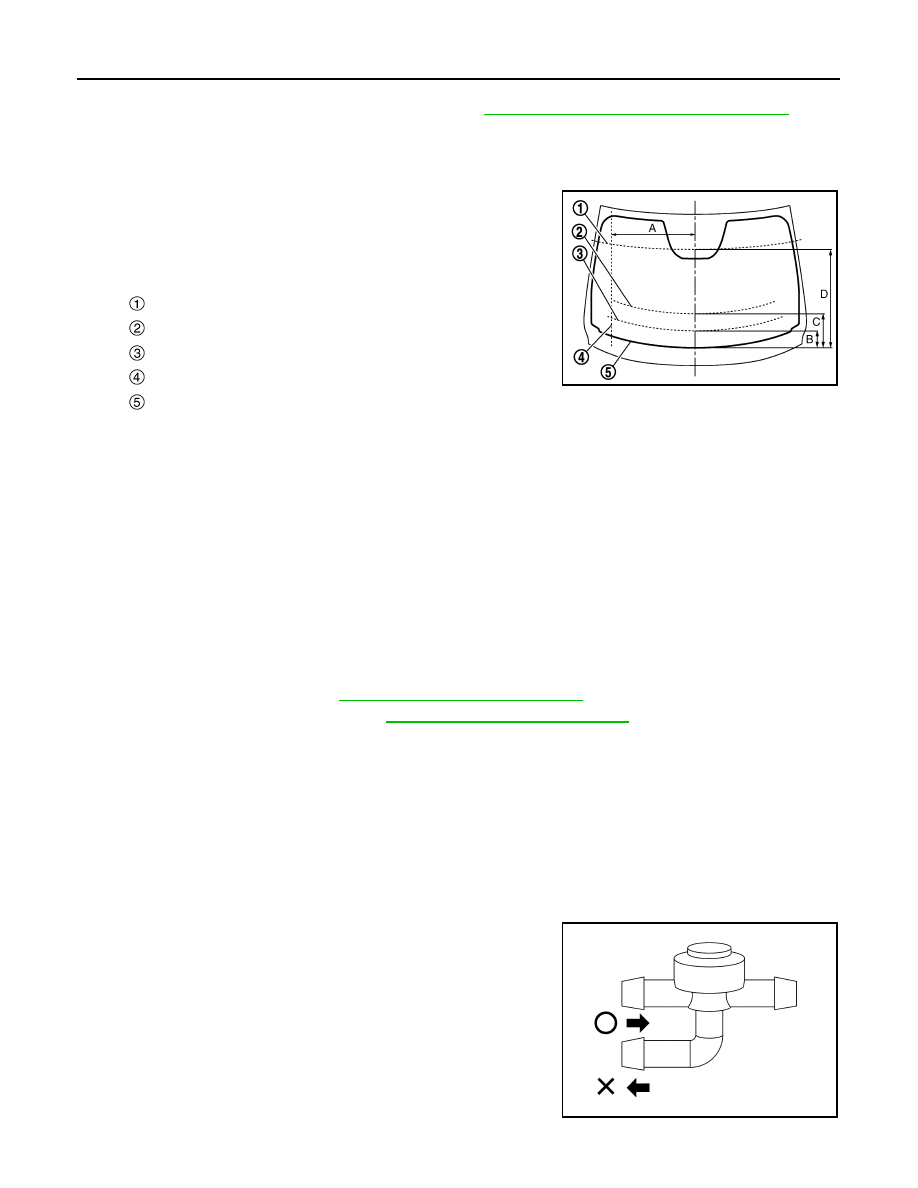

WASHER NOZZLE : Inspection

INFOID:0000000010491781

WASHER NOZZLE SPRAY POSITION INSPECTION

Check spray positions to match the positions shown in the figure.

CAUTION:

Can not adjust splay position.
Replace the washer nozzle, when the splay position is out of the
figure.

WASHER TUBE

WASHER TUBE : Removal and Installation

INFOID:0000000010479864

CAUTION:

When the washer tube is removed, washer fluid may come out so prepare a container to receive the
fluid and never allow fluid to be sprinkled.

REMOVAL

1.

Remove cowl top cover. Refer to

EXT-29, "Removal and Installation"

.

2.

Remove front fender protector. Refer to

EXT-32, "Removal and Installation"

.

3.

Pull out washer tube from washer pump.

4.

Disengage washer tube fixing clip, and then remove washer tube.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check that there is no leakage at operated washer.

WASHER TUBE : Inspection

INFOID:0000000010499382

CHECK VALVE INSPECTION

Check that air can pass through the hose by blowing forward [toward
the nozzle, and check that air cannot pass through by sucking
[toward the washer tank].

WASHER TANK

: Upper allowable limit of aiming.

: Aiming target.

: Lower allowable limit of aiming.

: Approx outer edge of fan.

: Edge of black coating.

A

: 540 mm (21.3 in)

B

: 110 mm (4.33 in)

C

: 220 mm (8.66 in)

D

: 630 mm (24.8 in)

JMLIA5254ZZ

JPLIA0275ZZ

FRONT WASHER

WW-85

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WASHER TANK : Removal and Installation

INFOID:0000000010479837

REMOVAL

CAUTION:

When the washer tank inlet and washer tube is removed, washer fluid may come out so prepare a con-
tainer to receive the fluid and never allow fluid to be sprinkled.

1.

Remove front bumper fascia assembly. Refer to

EXT-19, "Removal and Installation"

.

2.

Remove front fender protector. Refer to

EXT-32, "Removal and Installation"

.

3.

Remove washer tank inlet.

a.

Remove washer tank inlet fixing clip.

b.

Pull out washer tank inlet from washer tank.

4.

Pull out washer tube from washer pump.

5.

Disconnect washer pump harness connector.

6.

Disengage harness clips, and then remove harness form washer tank.

7.

Remove washer tank fixing bolts and nut, and then remove washer tank.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Add washer liquid up to the top of the washer tank inlet after installing. Check that there is no leak-

age.

• After installation, check that there is no leakage at operated washer.

WASHER PUMP

WASHER PUMP : Removal and Installation

INFOID:0000000010479838

REMOVAL

CAUTION:

When the washer tube and washer pump is removed, washer fluid may come out so prepare a con-
tainer to receive the fluid and never allow fluid to be sprinkled.

1.

Remove front fender protector. Refer to

EXT-32, "Removal and Installation"

.

2.

Pull out washer tube from washer pump.

3.

Disconnect washer pump harness connector, pull out washer pump, and then remove washer pump.

4.

Remove packing.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Check that packing is inserted fully. (This may be the cause of washer fluid leakage and washer

pump looseness.)

• Add washer liquid up to the top of the washer tank inlet after installing. Check that there is no leak-

age.

• After installation, check that there is no leakage at operated washer.
