WW-78

< REMOVAL AND INSTALLATION >

FRONT WIPER

3.

Engage wiper refill stopper hole, and wiper blade pawl with imprinted “SET” mark (“

” mark).

4.

Check the following items after installing.
• Wiper refill thoroughly fits in the pawl on wiper blade.
• Wiper refill is not deformed (waving / tucking).

NOTE:

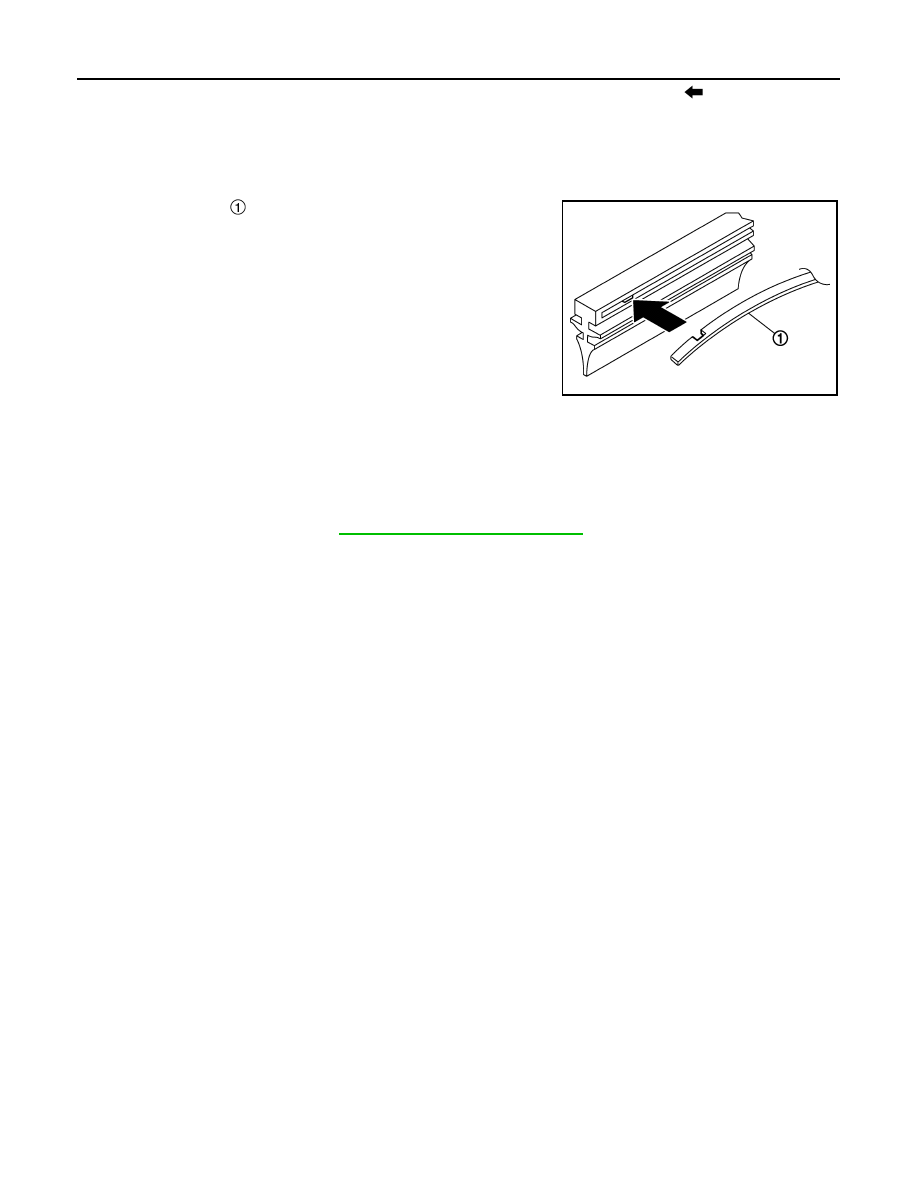

When the vertebra is detached

• Insert the vertebra

 into the wiper blade to the same bending

direction.

• If a vertebra has a notch, fit it to a protrusion inside the wiper refill.

WIPER DRIVE ASSEMBLY

WIPER DRIVE ASSEMBLY : Removal and Installation

INFOID:0000000010479831

REMOVAL

1.

Remove cowl top cover. Refer to

EXT-29, "Removal and Installation"

.

2.

Disconnect wiper motor harness connector, disengage wiper motor harness clip, remove wiper drive
assembly fixing bolts, and then remove wiper drive assembly.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

When installing, temporarily tighten all fixing bolts, and then tighten bolts to specified torque.

JPLIA1586ZZ

REAR WIPER

WW-79

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

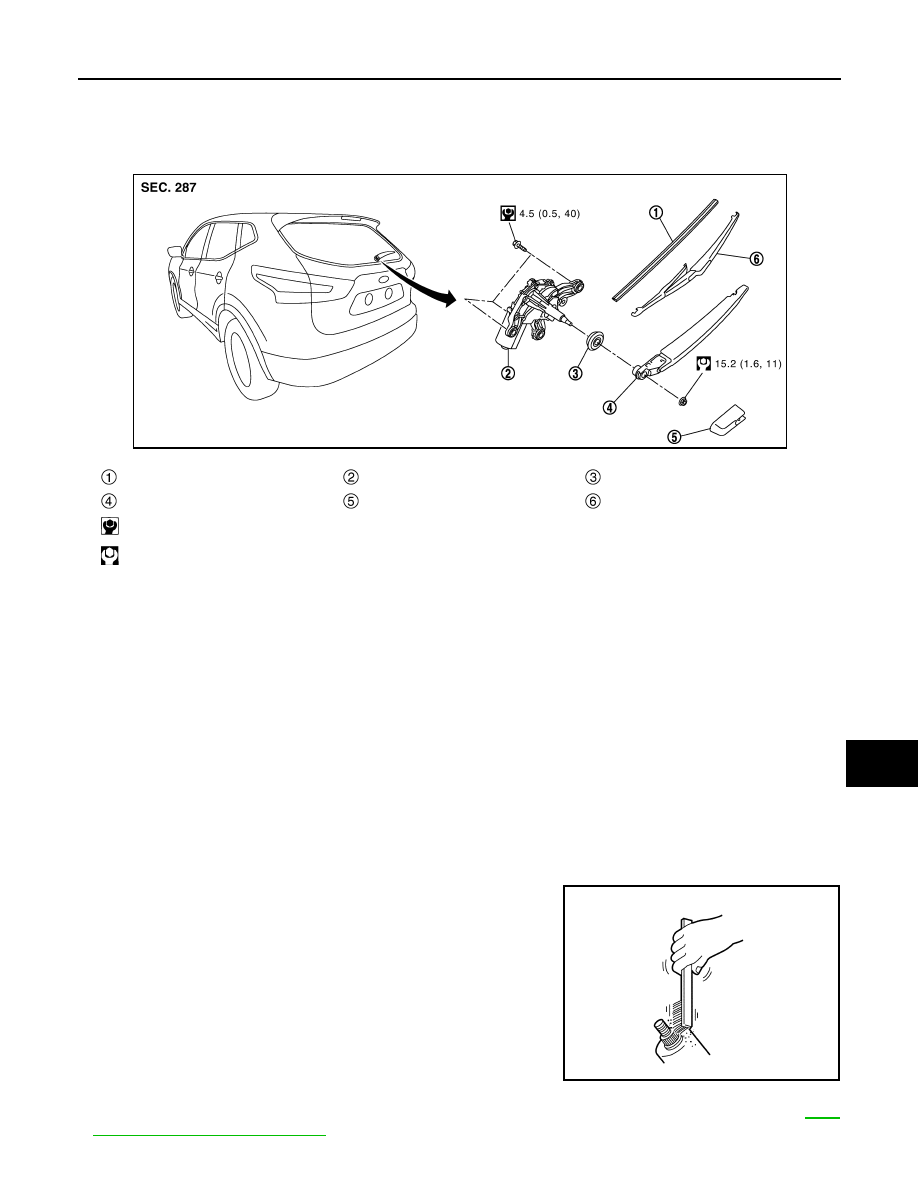

REAR WIPER

Exploded View

INFOID:0000000010479850

WIPER ARM

WIPER ARM : Removal and Installation

INFOID:0000000010491763

CAUTION:

Clean the rear windshield glass and rear wiper refill so that the rear windshield glass may not be dam-
aged by dust, etc.

REMOVAL

1.

Operate rear wiper to the auto stop position.

2.

Open rear wiper arm cover.

3.

Remove rear wiper arm fixing nut.

4.

Remove wiper arm from the vehicle.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Clean wiper arm installation location as shown in the figure,

and then fully insert wiper arm to prevent nut from being loos-
ened by shakiness.

• When installing the wiper arm, install so that it is within the standard. For the standard, refer to

WW-

80, "WIPER ARM : Adjustment"

.

Rear wiper refill

Rear wiper motor

Rear wiper pivot seal

Rear wiper arm

Rear wiper arm cover

Rear wiper blade

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

JMLIA5160GB

SKIA0082J

WW-80

< REMOVAL AND INSTALLATION >

REAR WIPER

• After installation, operate front wiper, and then check that the wiper blades stop at the specified

position. Refer to

WW-80, "WIPER ARM : Adjustment"

.

WIPER ARM : Adjustment

INFOID:0000000010491764

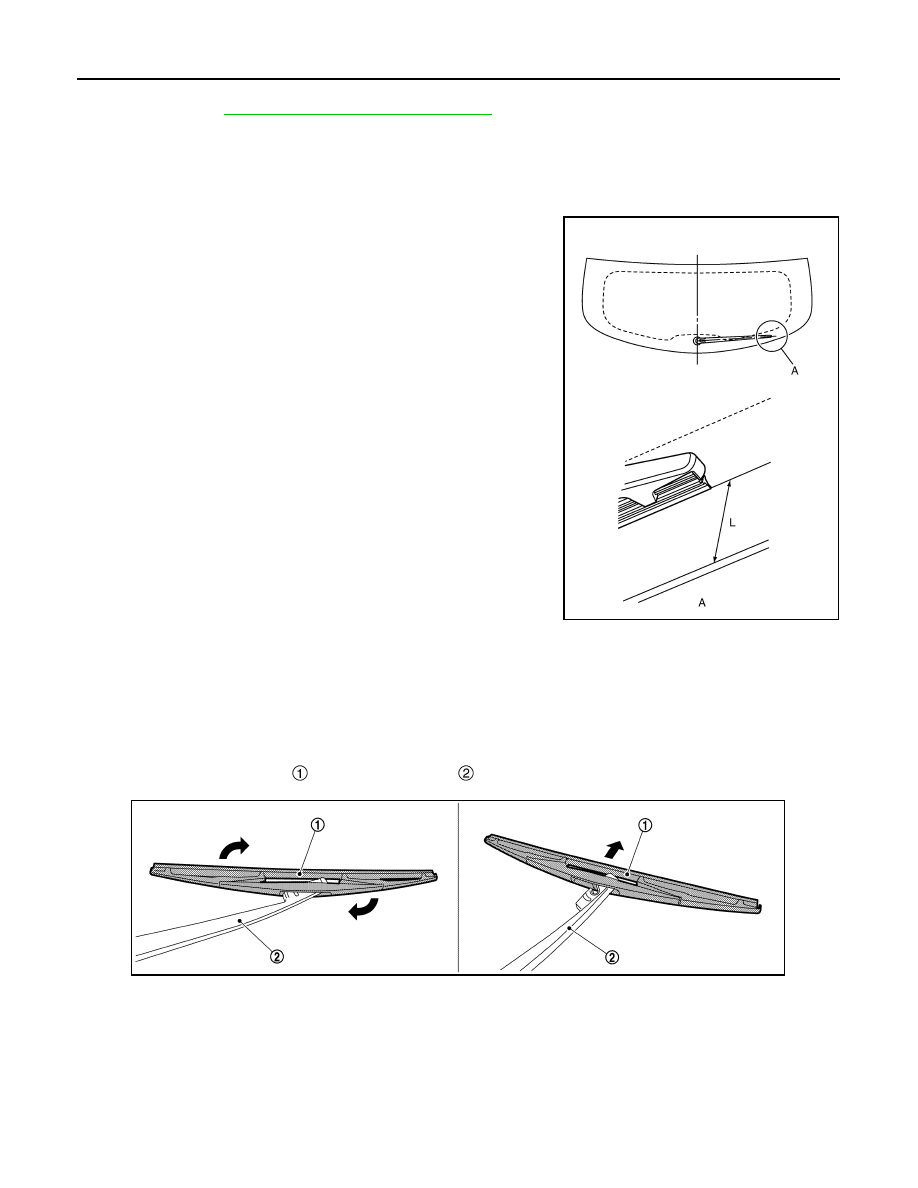

REAR WIPER BLADE POSITION ADJUSTMENT

Clearance between the end of back door glass and top of wiper blade center.

Standard clearance

WIPER BLADE

WIPER BLADE : Removal and Installation

INFOID:0000000010479853

REMOVAL

1.

Lift up and hold rear wiper arm.

2.

Remove rear wiper blade

 from rear wiper arm

 while rotating rear wiper blade in the direction indi-

cated by the arrow as shown in the figure.

CAUTION:

After the wiper blade is removed, wrap the wiper arm tip with a shop cloth and fold it down so that
the wiper arm does not fall against and damage the windshield glass.

INSTALLATION

Install in the reverse order of removal.

WIPER MOTOR

L

: 40.5 mm (1.59 in)

JPLIA0966ZZ

JMLIA1989ZZ

REAR WIPER

WW-81

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WIPER MOTOR : Removal and Installation

INFOID:0000000010491661

REMOVAL

1.

Remove the rear wiper arm. Refer to

WW-79, "WIPER ARM : Removal and Installation"

.

2.

Remove the back door lower finisher. Refer to

INT-31, "Removal and Installation"

.

3.

Disconnect the harness connector from the rear wiper motor.

4.

Remove the rear wiper motor fixing bolts, and then remove rear wiper motor.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

When installing, temporarily tighten all fixing bolts, and then tighten bolts to specified torque.
