PERSONAL LAMP

INL-77

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

PERSONAL LAMP

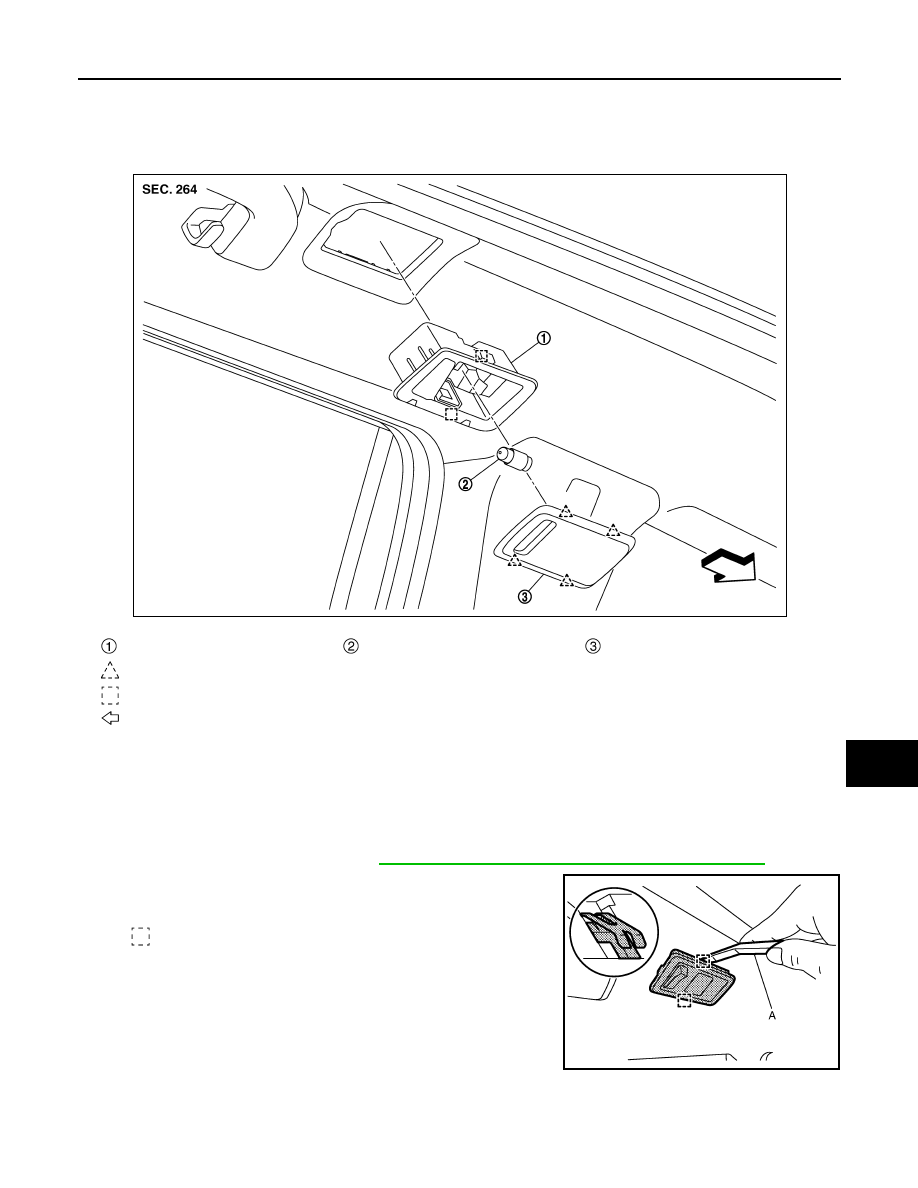

Exploded View

INFOID:0000000010430933

Removal and Installation

INFOID:0000000010430934

REMOVAL

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation
for preventing electric leakage. Refer to

INL-3, "Precautions for Removing Battery Terminal"

.

1.

Disengage personal lamp assembly fixing metal clips using a
remover tool (A).

2.

Disconnect harness connector, and then remove personal lamp assembly.

INSTALLATION

Personal lamp base

Bulb

Lens

: Pawl

: Metal clip

: Vehicle front

JMLIA5188ZZ

: Metal clip

JMLIA5194ZZ

INL-78

< REMOVAL AND INSTALLATION >

PERSONAL LAMP

Install in the reverse order of removal.

Replacement

INFOID:0000000010430935

PERSONAL LAMP BULB

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

INL-3, "Precautions for Removing Battery Terminal"

.

• Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it for pre-

venting damage to the bulb.

• The surface of the bulb is very hot just after the lamp is turned OFF. Never touch the glass surface of

the bulb with bare hands for preventing burns.

• Leaving the bulb removed from housing for a long period of time can deteriorate performance of the

lens and reflector (due to dirt or clouding). Always prepare a new bulb and have it on hand when
replacing the bulb.

1.

Remove personal lamp assembly. Refer to

INL-77, "Removal and Installation"

.

2.

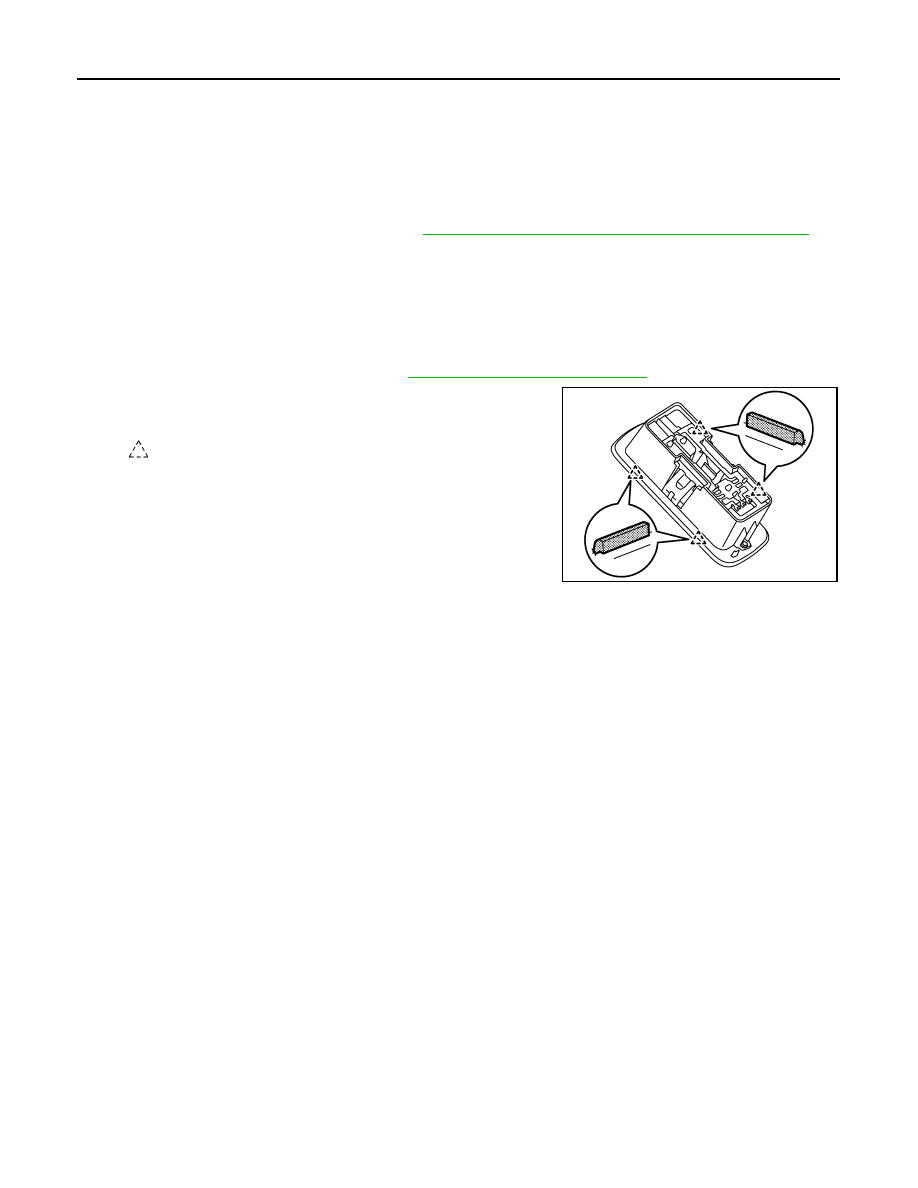

Disengage lens fixing pawls using a remover tool, and then
remove lens.

3.

Remove bulb.

: Pawl

JMLIA5195ZZ

LUGGAGE ROOM LAMP

INL-79

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

LUGGAGE ROOM LAMP

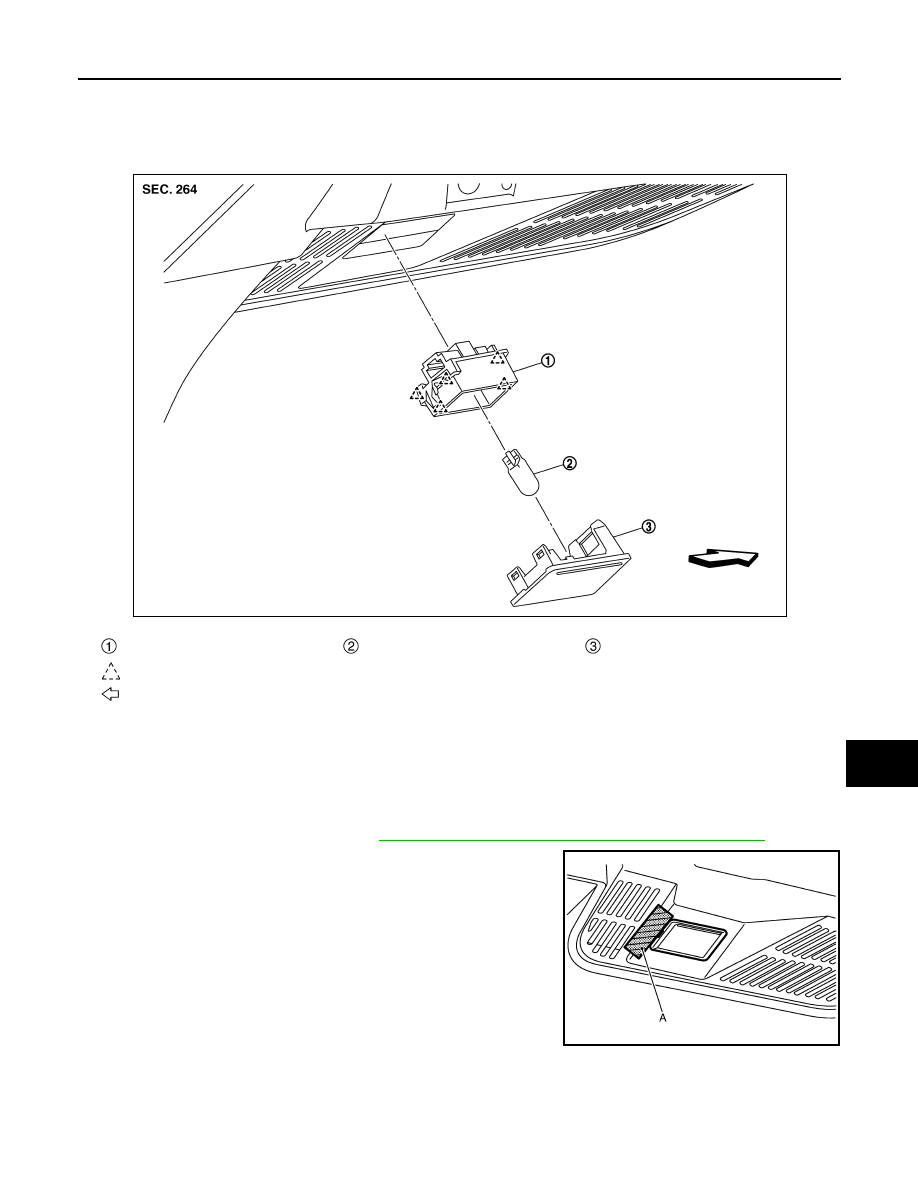

Exploded View

INFOID:0000000010430936

Removal and Installation

INFOID:0000000010430937

REMOVAL

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation
for preventing electric leakage. Refer to

INL-3, "Precautions for Removing Battery Terminal"

.

1.

Apply protective tape (A) to rear pillar finisher LH of surface for
protecting it from damage.

Shade

Bulb

Lens

: Pawl

: Vehicle front

JMLIA5189ZZ

JMLIA5196ZZ

INL-80

< REMOVAL AND INSTALLATION >

LUGGAGE ROOM LAMP

2.

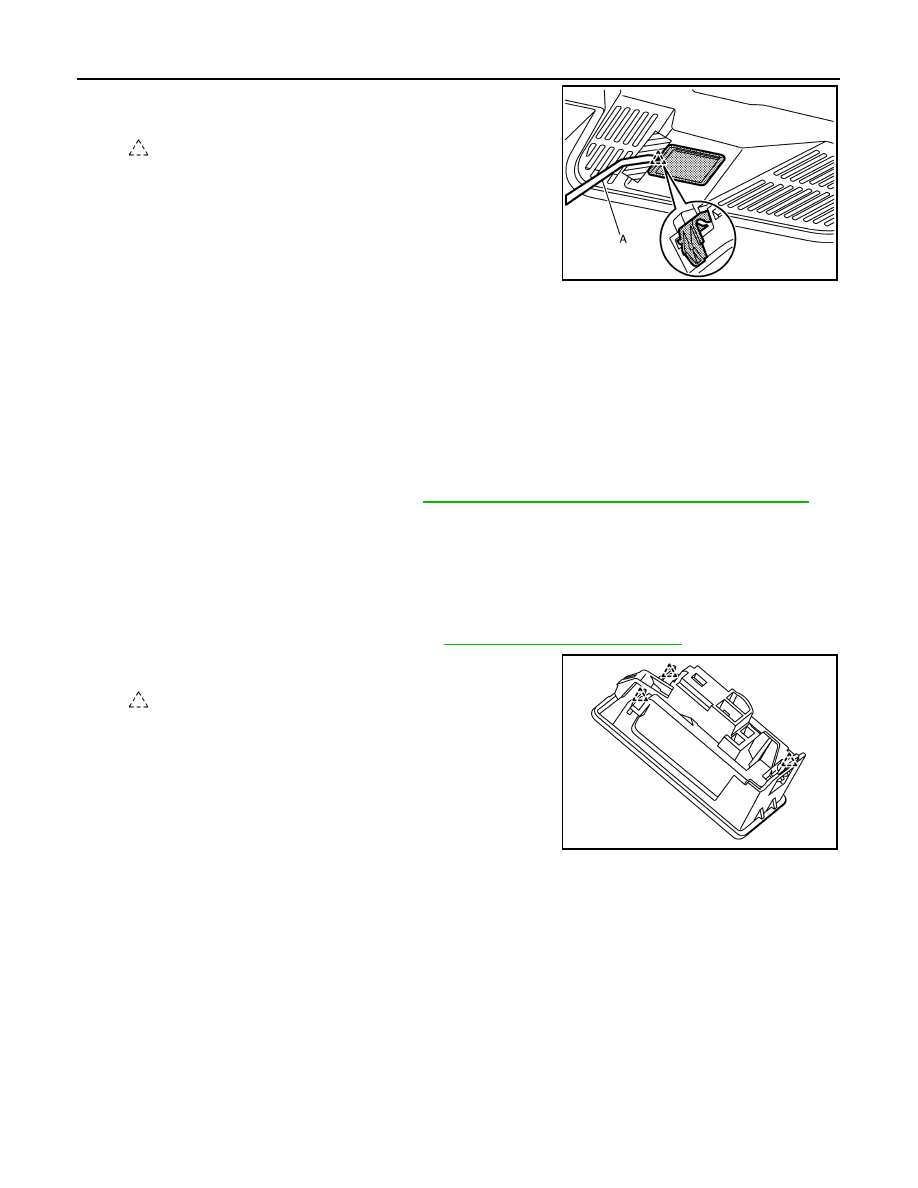

Disengage luggage room lamp assembly fixing pawl using a
remover tool (A).

3.

Disconnect harness connector, and then remove luggage room lamp assembly.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000010430938

LUGGAGE ROOM LAMP BULB

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

INL-3, "Precautions for Removing Battery Terminal"

.

• Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it for pre-

venting damage to the bulb.

• The surface of the bulb is very hot just after the lamp is turned OFF. Never touch the glass surface of

the bulb with bare hands for preventing burns.

• Leaving the bulb removed from housing for a long period of time can deteriorate performance of the

lens and reflector (due to dirt or clouding). Always prepare a new bulb and have it on hand when
replacing the bulb.

1.

Remove luggage room lamp assembly. Refer to

INL-79, "Removal and Installation"

.

2.

Remove lens fixing pawls, and then remove lens.

3.

Remove bulb.

: Pawl

JMLIA5197ZZ

: Pawl

JMLIA5247ZZ
