Nissan Qashqai J11. Manual - part 1777

SPICY ILLUMINATION

INL-73

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

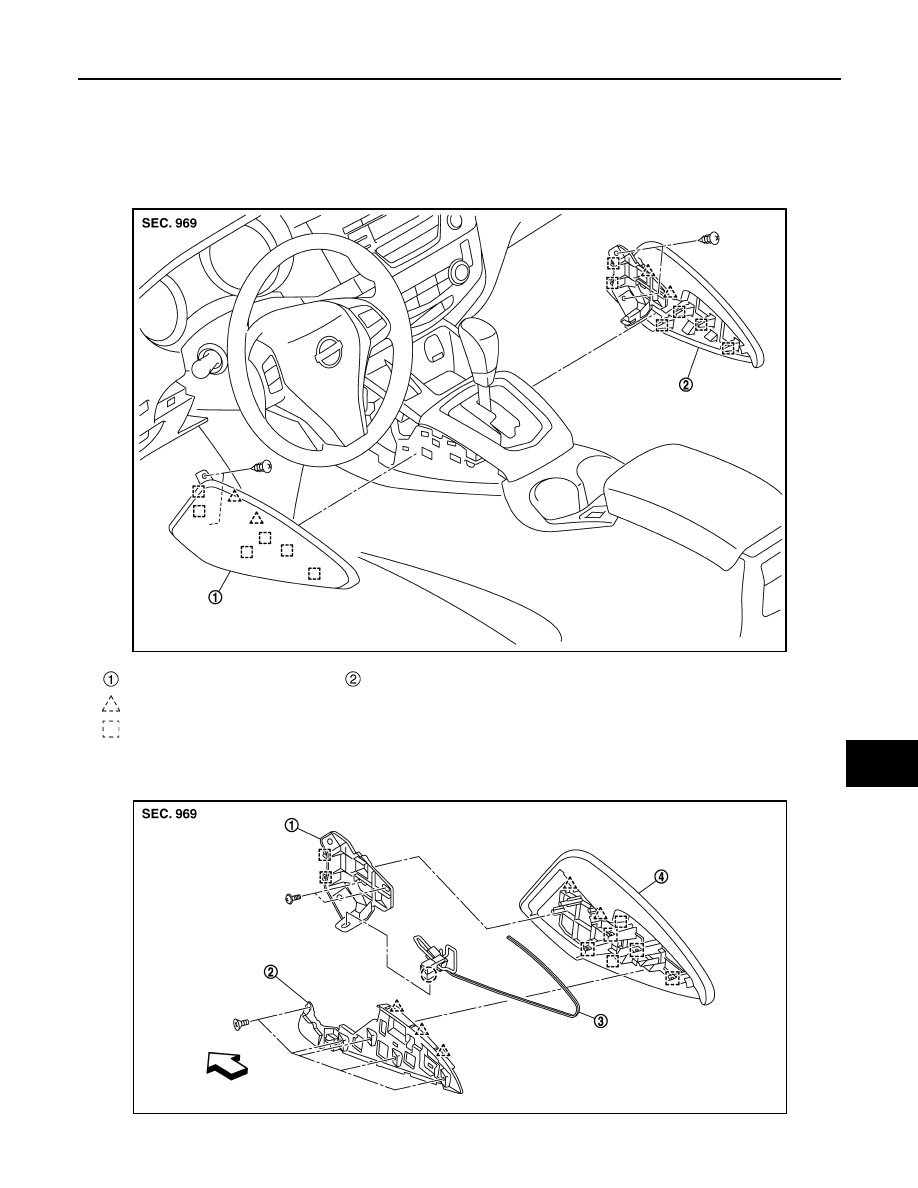

SPICY ILLUMINATION

Exploded View

INFOID:0000000010430930

REMOVAL

LHD models

DISASSEMBLY

JMLIA5186ZZ

Console panel assembly LH

Console panel assembly RH

: Pawl

: Metal clip

JMLIA5187ZZ

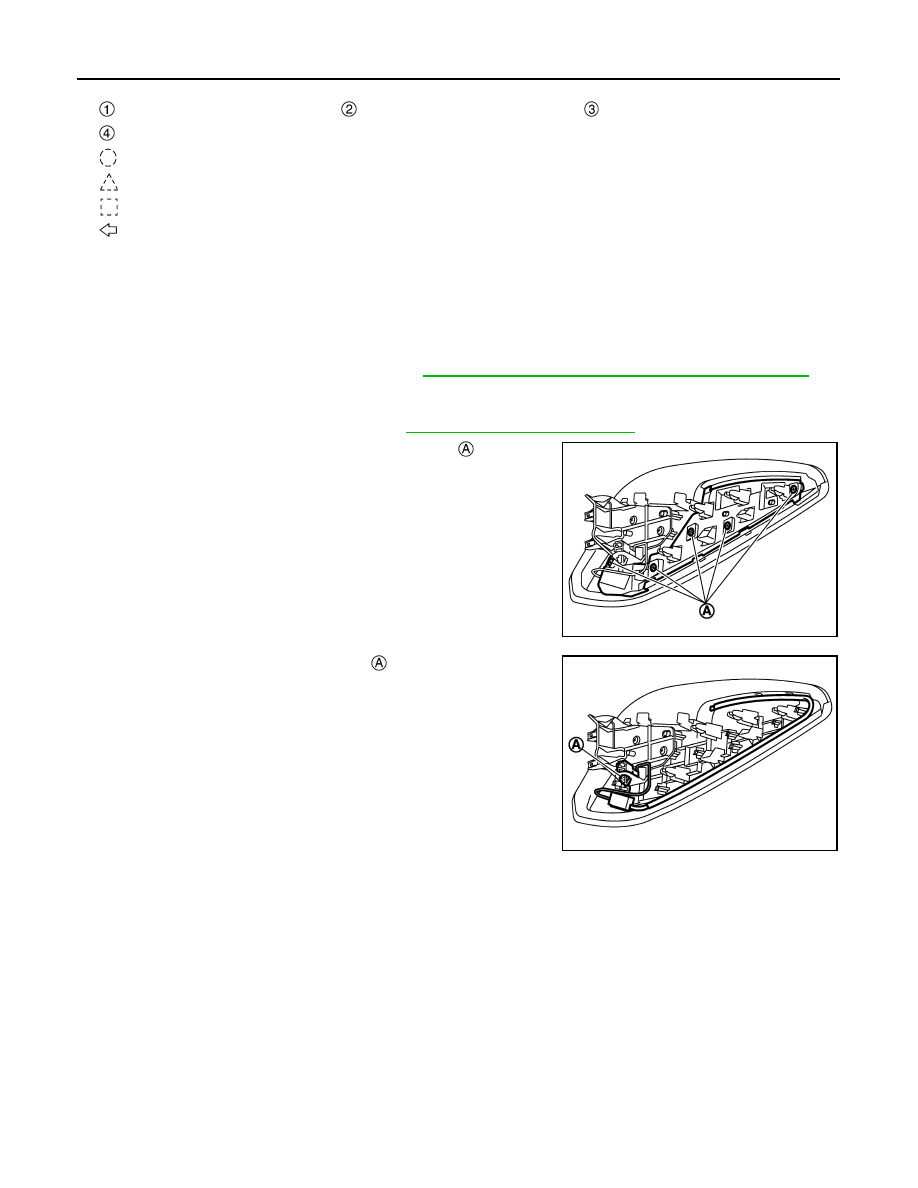

INL-74

< REMOVAL AND INSTALLATION >

SPICY ILLUMINATION

Replacement

INFOID:0000000010430932

SPICY ILLUMINATION BULB

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

INL-3, "Precautions for Removing Battery Terminal"

.

• Replacement of a single part is not possible due to the adoption of LED. For replacement, replace

spicy illumination assembly.

1.

Remove console panel assembly. Refer to

IP-19, "Removal and Installation"

.

2.

Remove console panel mask lid fixing screws

, and then

remove console panel mask lid.

3.

Remove harness connector fixing clip

, and then remove spicy

illumination assembly.

Console panel bracket RH

Console panel mask lid RH

Spicy illumination assembly

Console panel RH

: Clip

: Pawl

: Metal clip

: Vehicle front

JMLIA5192ZZ

JMLIA5193ZZ

ROOM LAMP

INL-75

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

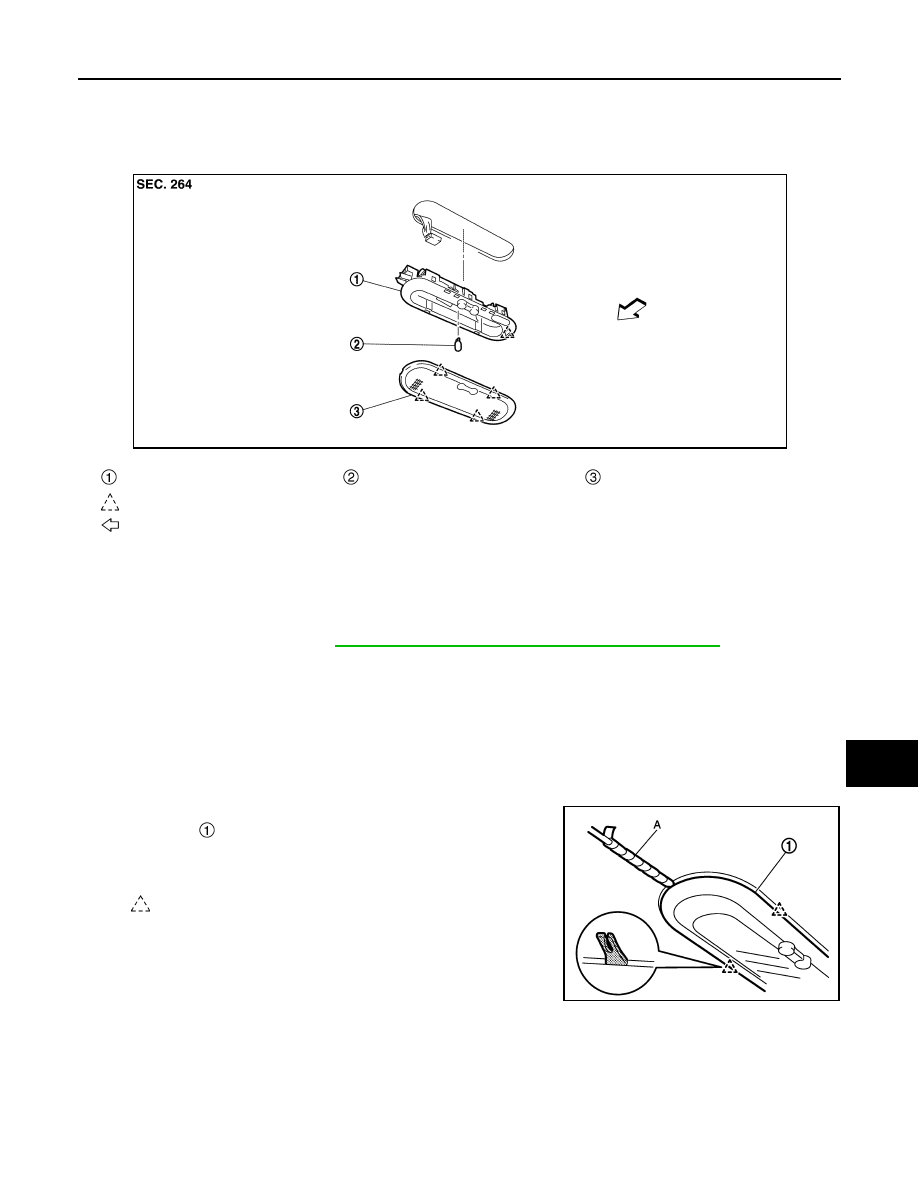

ROOM LAMP

Exploded View

INFOID:0000000010451272

Removal and Installation

INFOID:0000000010451273

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse while performing the opera-

tion to electric leakage. Refer to

INL-3, "Precautions for Removing Battery Terminal"

.

• Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to the bulb.

• Never touch the glass surface of the bulb with bare hands because the surface is very hot just after

the lamp is turned OFF to prevent a burns.

• Leaving the bulb removed from housing for a long period of time can deteriorate performance of the

lens and reflector (causing dirty or clouding). Always prepare a new bulb and have it on hand when
replacing the bulb.

REMOVAL

1.

Disengage lens fixing pawls using a remover tool (A), and then
remove lens

.

CAUTION:

Apply protect tape on remover tool.

Lamp housing

Bulb

Lens

: Pawl

: Vehicle front

JMLIA2093ZZ

: Pawl

JMLIA1230ZZ

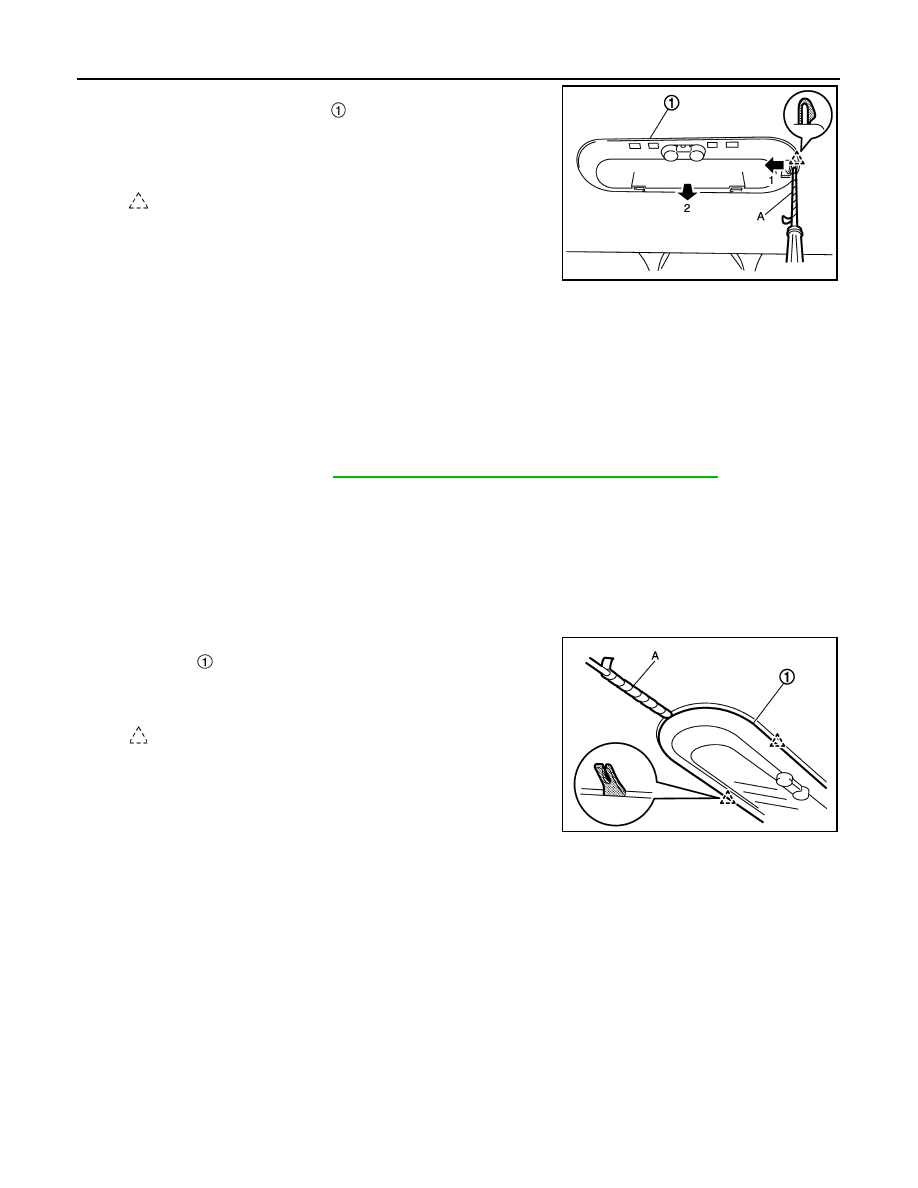

INL-76

< REMOVAL AND INSTALLATION >

ROOM LAMP

2.

Disengage lamp housing fixing pawl using a remover tool (A),
and then pull out lamp housing

 according to numerical order

1

→

2 indicated by arrows as shown in the figure.

CAUTION:

Apply protect tape on remover tool.

3.

Disconnect harness connector, and then remove lamp housing.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000010451274

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse while performing the opera-

tion to electric leakage. Refer to

INL-3, "Precautions for Removing Battery Terminal"

.

• Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to the bulb.

• Never touch the glass surface of the bulb with bare hands because the surface is very hot just after

the lamp is turned OFF to prevent a burns.

• Leaving the bulb removed from housing for a long period of time can deteriorate performance of the

lens and reflector (causing dirty or clouding). Always prepare a new bulb and have it on hand when
replacing the bulb.

ROOM LAMP BULB

1.

Disengage lens fixing pawls using a remover tool (A), and then
remove lens

.

CAUTION:

Apply protect tape on remover tool.

2.

Remove bulb.

: Pawl

JMLIA1231ZZ

: Pawl

JMLIA1230ZZ
