SYSTEM

INL-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

Control by combination meter

• Illumination control function

ILLUMINATION CONTROL

• BCM detects the combination switch condition by the combination switch reading function.
• BCM transmits position light request signal to IPDM E/R and combination meter according to tail lamp ON

condition. Refer to

EXL-26, "PARKING, LICENSE PLATE AND TAIL LAMP SYSTEM : System Description"

(LED headlamp) or

EXL-195, "PARKING, LICENSE PLATE AND TAIL LAMP SYSTEM : System Descrip-

tion"

 (halogen headlamp).

• IPDM E/R turns the integrated smart FET ON according to position light request signal. It provides the power

supply to illumination lamp.

• Combination meter enters in the nighttime mode according to position light request signal and provides the

power supply to illumination lamp.

SPICY ILLUMINATION CONTROL SYSTEM

SPICY ILLUMINATION CONTROL SYSTEM : System Description

INFOID:0000000010335134

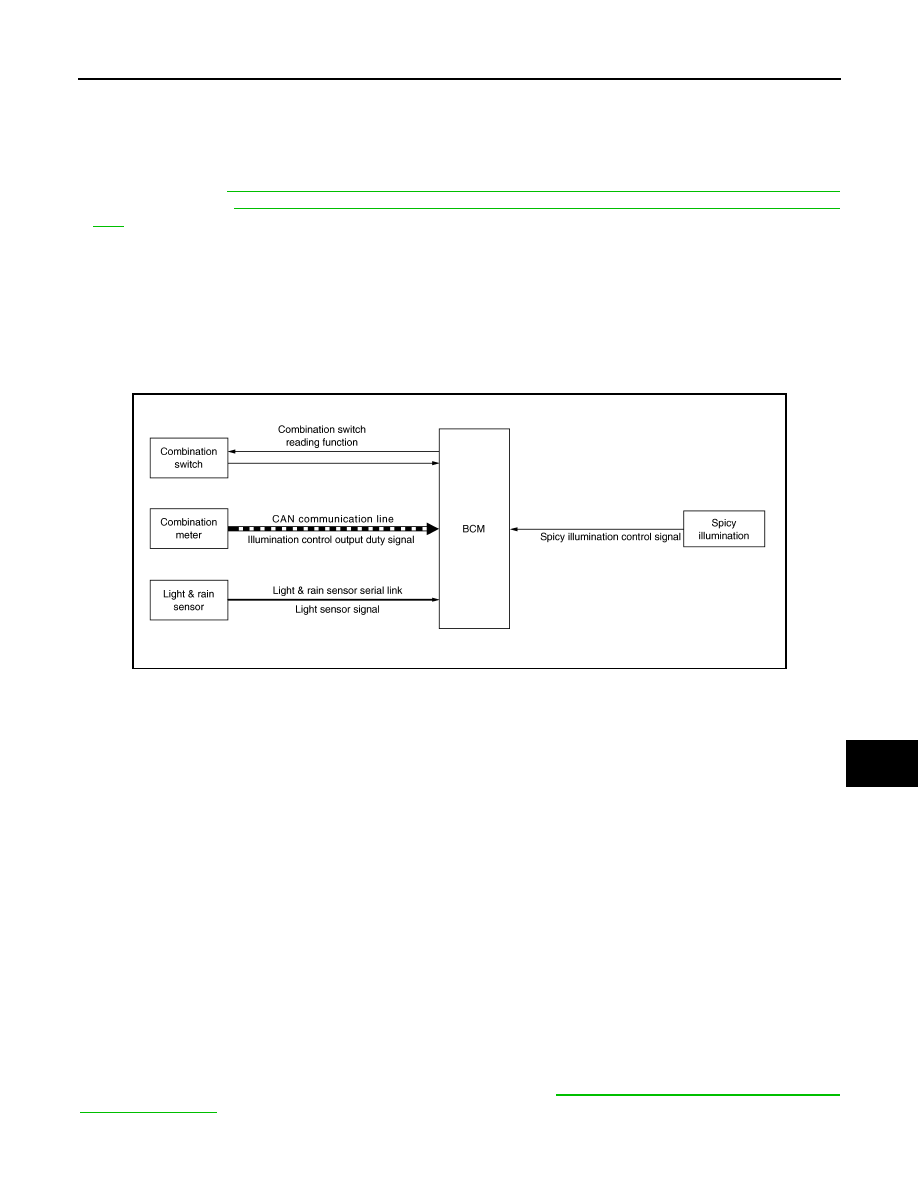

SYSTEM DIAGRAM

OUTLINE

Spicy illumination is controlled by each function or BCM and combination meter.

Control by BCM

• Combination switch reading function
• Auto light function

Control by combination meter

• Illumination control function

SPICY ILLUMINATION CONTROL

Spicy Illumination ON/OFF operation

Spicy illumination turns ON/OFF when interior room lamp is turned ON/OFF by interior room lamp timer con-
trol.

Spicy Illumination Output Duty

• BCM detects the combination switch condition by the combination switch reading function.
• BCM receives light sensor signal from light & rain sensor via light & rain sensor serial link.
• BCM judges daytime or nighttime according to the combination switch condition and light sensor signal.
• BCM decides the output duty of spicy illumination depends on the judgement of daytime or nighttime and

illumination control output duty signal from combination meter.

• Spicy illumination turns ON gradually and turns OFF gradually (Gradual brightening time and gradual dim-

ming time are changed with the output duty of spicy illumination).

NOTE:
Each function of spicy illumination can be set by CONSULT. Refer to

INL-15, "INT LAMP : CONSULT Function

(BCM - INT LAMP)"

.

JMLIA5151GB

INL-14

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010501099

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

NOTE:
*: This item is displayed, but not used.

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Exterior lamp

HEAD LAMP

×

×

×

Interior room lamp control

INT LAMP

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

—

AIR CONDITONER*

×

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

Interior room lamp battery saver

BATTERY SAVER

×

Back door open

TRUNK

×

Vehicle security

THEFT ALM

×

×

RAP

RETAINED PWR

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

Signal buffer system

SIGNAL BUFFER

×

×

DIAGNOSIS SYSTEM (BCM)

INL-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

INT LAMP

INT LAMP : CONSULT Function (BCM - INT LAMP)

INFOID:0000000010335139

WORK SUPPORT

*

1

: Factory setting

*

2

: With spicy illumination

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

CONSULT screen item

Indication/Unit

Description

BATTERY VOLTAGE

V

Battery voltage of the moment a particular DTC is detected.

VEHICLE SPEED

km/h

Vehicle speed of the moment a particular DTC is detected.

EXTERNAL TEMP

°

C

External temperature of the moment a particular DTC is detected

VEHICLE COND

—

NOTE:
This item is displayed, but cannot be use this item.

DOOR LOCK STATUS

—

NOTE:
This item is displayed, but cannot be use this item.

POWER SUPPLY
COUNTER

min

Displays the cumulative time from the time that the battery terminal is connected.

Service item

Setting item

Setting

SET I/L D-UNLCK INTCON

On*

1

With interior room lamp timer function

Off

Without interior room lamp timer function

FOG LAMP OVERRIDE

On*

1

With front fog override function

Off

Without front fog override function

SPICY BRIGHTNESS SETTING*

2

MODE1

Turns spicy illumination function OFF

MODE2

Sets spicy illumination brightness.

MODE3

MODE4

MODE5*

1

MODE6

MODE7

MODE8

Monitor item

[Unit]

Description

REQ SW-DR
[On/Off]

Indicated [On/Off] condition of door request switch (driver side)

REQ SW-AS
[On/Off]

Indicated [On/Off] condition of door request switch (passenger side)

PUSH SW
[On/Off]

Indicates [On/Off] condition of push-button ignition switch

DOOR SW-DR
[On/Off]

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS
[On/Off]

Indicated [On/Off] condition of front door switch (passenger side)

INL-16

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

BATTERY SAVER

BATTERY SAVER : CONSULT Function (BCM - BATTERY SAVER)

INFOID:0000000010335140

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

DOOR SW-RR
[On/Off]

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL
[On/Off]

Indicated [On/Off] condition of rear door switch LH

DOOR SW-BK
[On/Off]

Indicated [On/Off] condition of back door switch

CDL LOCK SW
[On/Off]

Indicated [On/Off] condition of lock signal from door lock and unlock switch

CDL UNLOCK SW
[On/Off]

Indicated [On/Off] condition of unlock signal from door lock and unlock switch

KEY CYL LK-SW
[On/Off]

NOTE:
This item is displayed, but cannot be monitored

KEY CYL UN-SW
[On/Off]

NOTE:
This item is displayed, but cannot be monitored

RKE-LOCK
[On/Off]

Indicates [On/Off] condition of LOCK signal from Intelligent Key

RKE-UNLOCK
[On/Off]

Indicates [On/Off] condition of UNLOCK signal from Intelligent Key

KEY SW
[On/Off]

NOTE:
This item is displayed, but cannot be monitored

Monitor item

[Unit]

Description

Test item

Operation

Description

INT LAMP

On

Outputs interior room lamp control signal.

Off

Stops interior room lamp control signal.

Monitor item

[Unit]

Description

REQ SW-DR
[On/Off]

Indicated [On/Off] condition of door request switch (driver side)

REQ SW-AS
[On/Off]

Indicated [On/Off] condition of door request switch (passenger side)

PUSH SW
[On/Off]

Indicates [On/Off] condition of push-button ignition switch

DOOR SW-DR
[On/Off]

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS
[On/Off]

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR
[On/Off]

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL
[On/Off]

Indicated [On/Off] condition of rear door switch LH
