SYSTEM DESCRIPTION

COMPONENT PARTS

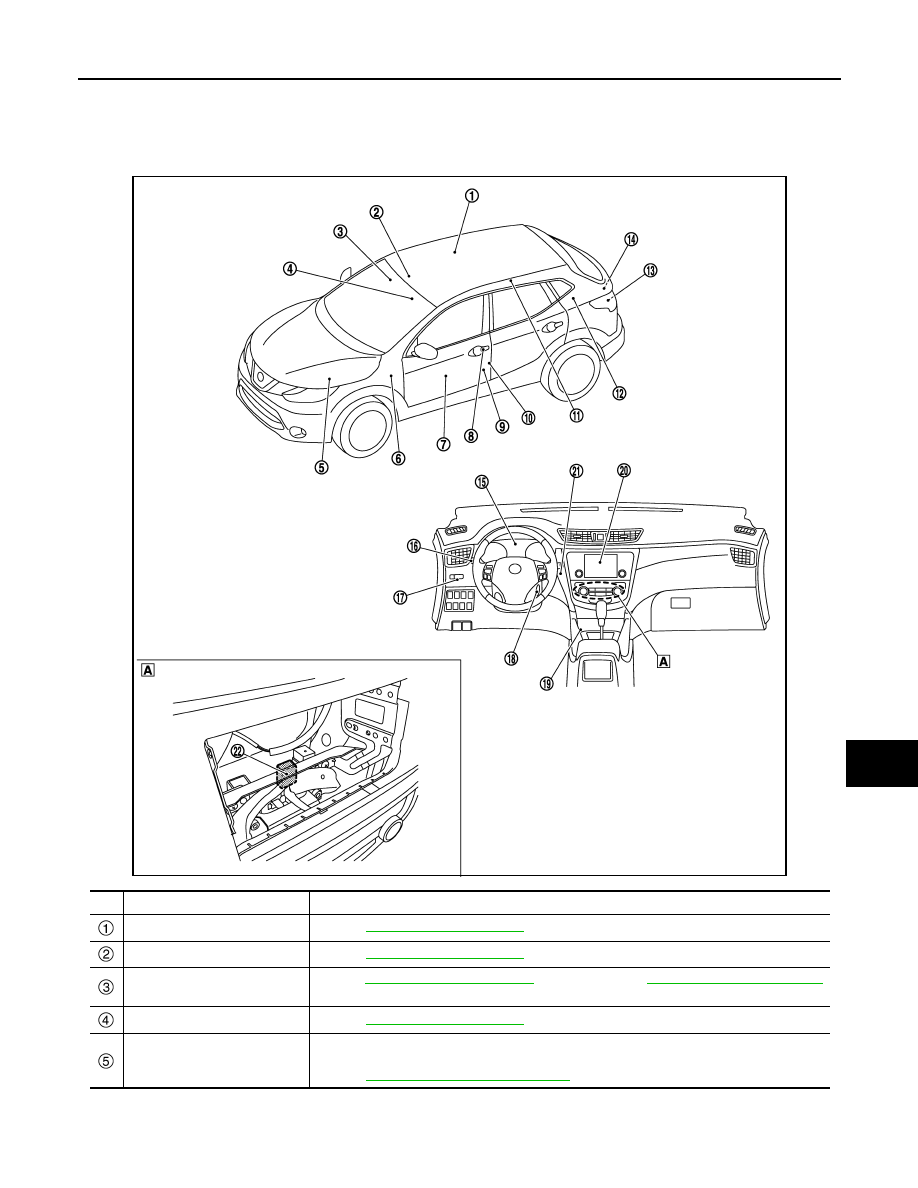

Component Parts Location

INFOID:0000000010335129

JMLIA5169ZZ

No.

Component

Function

Room lamp*

1

Refer to

INL-81, "bulb specifications"

.

Map lamp

Refer to

INL-81, "bulb specifications"

.

Light & rain sensor*

2

Refer to

EXL-16, "Light & Rain Sensor"

 (LED headlamp) or

EXL-188, "Light & Rain Sensor"



(halogen headlamp).

Vanity mirror lamp*

3

Refer to

INL-81, "bulb specifications"

.

IPDM E/R

Controls the integrated relay and smart FET according to the request signal from BCM (via
CAN communication).
Refer to

PCS-5, "Component Parts Location"

 for detailed installation location.

INL-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

*

1

: Without sunshade system

*

2

: With light &rain sensor

*

3

: With vanity mirror lamp

*

4

: With Intelligent Key System

*

5

: With sunshade system

BCM

• Activates the interior room lamp timer depending on the vehicle condition to turn the inte-

rior room lamps ON/OFF.

• Operates the interior room lamp battery saver depending on the vehicle condition to turn

interior room lamps OFF.

• Detects each switch condition by the combination switch reading function.
• Judges the illumination lamp ON/OFF status depending on the vehicle condition. And then

transmits request signal to IPDM E/R and combination meter (via CAN communication).

Refer to

BCS-7, "BODY CONTROL SYSTEM : Component Parts Location"

 for detailed in-

stallation location.

Power window main switch
(Door lock and unlock switch)

Refer to

DLK-29, "Component Parts Location"

 (Type 1),

DLK-203,

"Component Parts Location"

 (Type 2),

DLK-386, "Component Parts Location"

 (Type 3) or

DLK-511, "Component Parts Location"

 (Type 4).

Refer to

DLK-24, "Information"

 for detailed vehicle information.

Front outside handle assembly

(Request switch*

4

)

Refer to

DLK-29, "Component Parts Location"

 (Type 1),

DLK-203,

"Component Parts Location"

 (Type 2).

Refer to

DLK-24, "Information"

 for detailed vehicle information.

Front door lock assembly
(Driver side)
(Unlock sensor)

Refer to

DLK-29, "Component Parts Location"

 (Type 1),

DLK-203,

"Component Parts Location"

 (Type 2),

DLK-386, "Component Parts Location"

 (Type 3) or

DLK-511, "Component Parts Location"

 (Type 4).

Refer to

DLK-24, "Information"

 for detailed vehicle information.

Door switch

Refer to

DLK-29, "Component Parts Location"

 (Type 1),

DLK-203,

"Component Parts Location"

 (Type 2),

DLK-386, "Component Parts Location"

 (Type 3) or

DLK-511, "Component Parts Location"

 (Type 4).

Refer to

DLK-24, "Information"

 for detailed vehicle information.

Luggage room lamp

Refer to

INL-81, "bulb specifications"

.

Back door opener switch as-
sembly

(Request switch*

4

)

Refer to

DLK-29, "Component Parts Location"

 (Type 1),

DLK-203,

"Component Parts Location"

 (Type 2).

Refer to

DLK-24, "Information"

 for detailed vehicle information.

Back door lock assembly
(Back door switch)

Refer to

DLK-29, "Component Parts Location"

 (Type 1),

DLK-203,

"Component Parts Location"

 (Type 2),

DLK-386, "Component Parts Location"

 (Type 3) or

DLK-511, "Component Parts Location"

 (Type 4).

Refer to

DLK-24, "Information"

 for detailed vehicle information.

Personal lamp*

5

Refer to

INL-81, "bulb specifications"

.

Combination meter

Controls the illumination according to the request signal from BCM (via CAN communica-
tion).

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-13, "COMBINATION SWITCH READING SYSTEM : System Description"

.

Meter control switch
(Illumination control switch)

Controls the illumination brightness.

Key switch*

4

Refer to

DLK-386, "Component Parts Location"

 (Type 3) or

DLK-511,

"Component Parts Location"

 (Type 4).

Refer to

DLK-24, "Information"

 for detailed vehicle information.

Spicy illumination*

6

Refer to

INL-81, "bulb specifications"

.

NAVI control unit*

7

Controls the brightness of display according to the signal from BCM.

Push-button ignition switch
(Push-button ignition switch il-

lumination)*

4

Refer to

INL-81, "bulb specifications"

.

Interior room lamp relay

• Interior room lamp relay is controlled by BCM.
• Interior room lamp relay supplies power to interior room lamp and light & rain sensor.

No.

Component

Function

COMPONENT PARTS

INL-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

*

6

: With spicy illumination

*

7

: With NAVI

INL-8

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

INTERIOR ROOM LAMP CONTROL SYSTEM

INTERIOR ROOM LAMP CONTROL SYSTEM : System Description

INFOID:0000000010335130

SYSTEM DIAGRAM

With Sunshade System

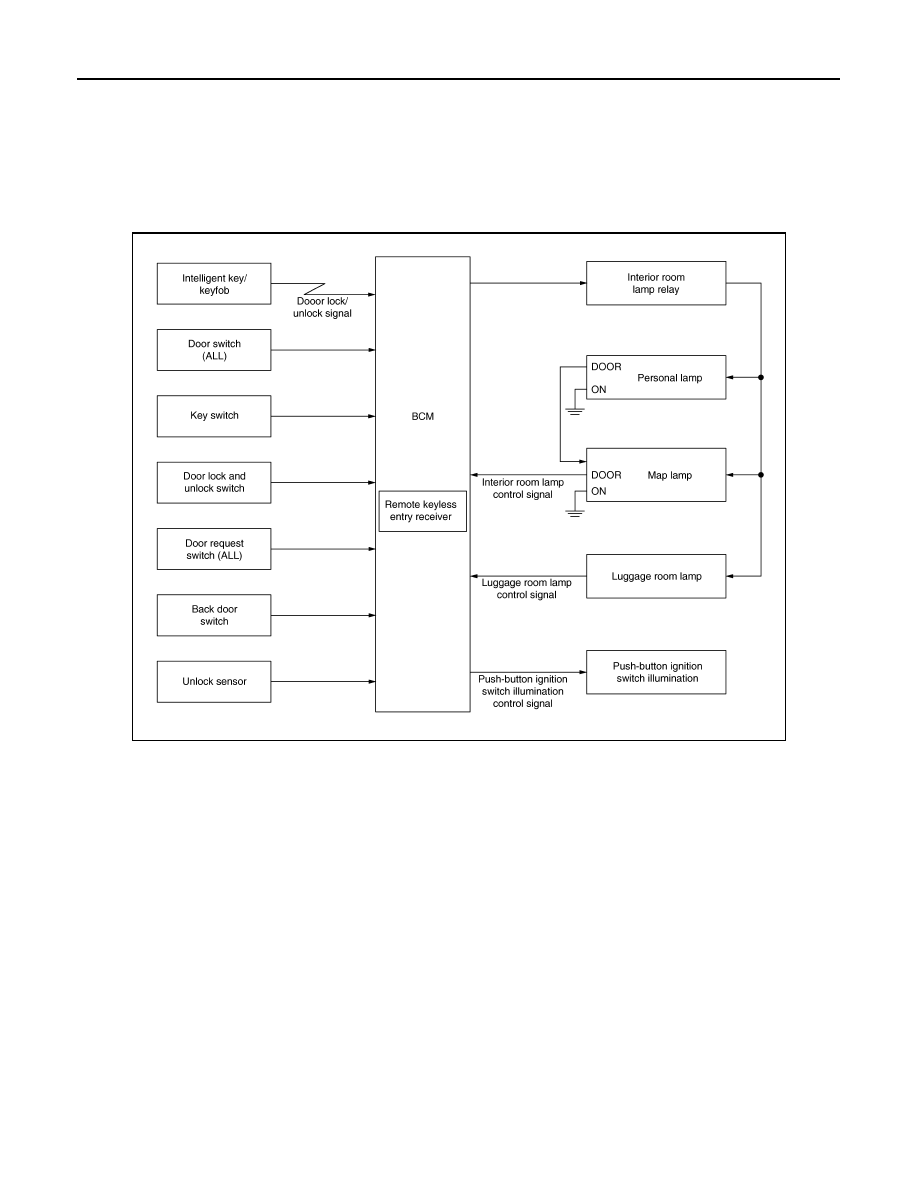

JMLIA5146GB
