SYSTEM

INL-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

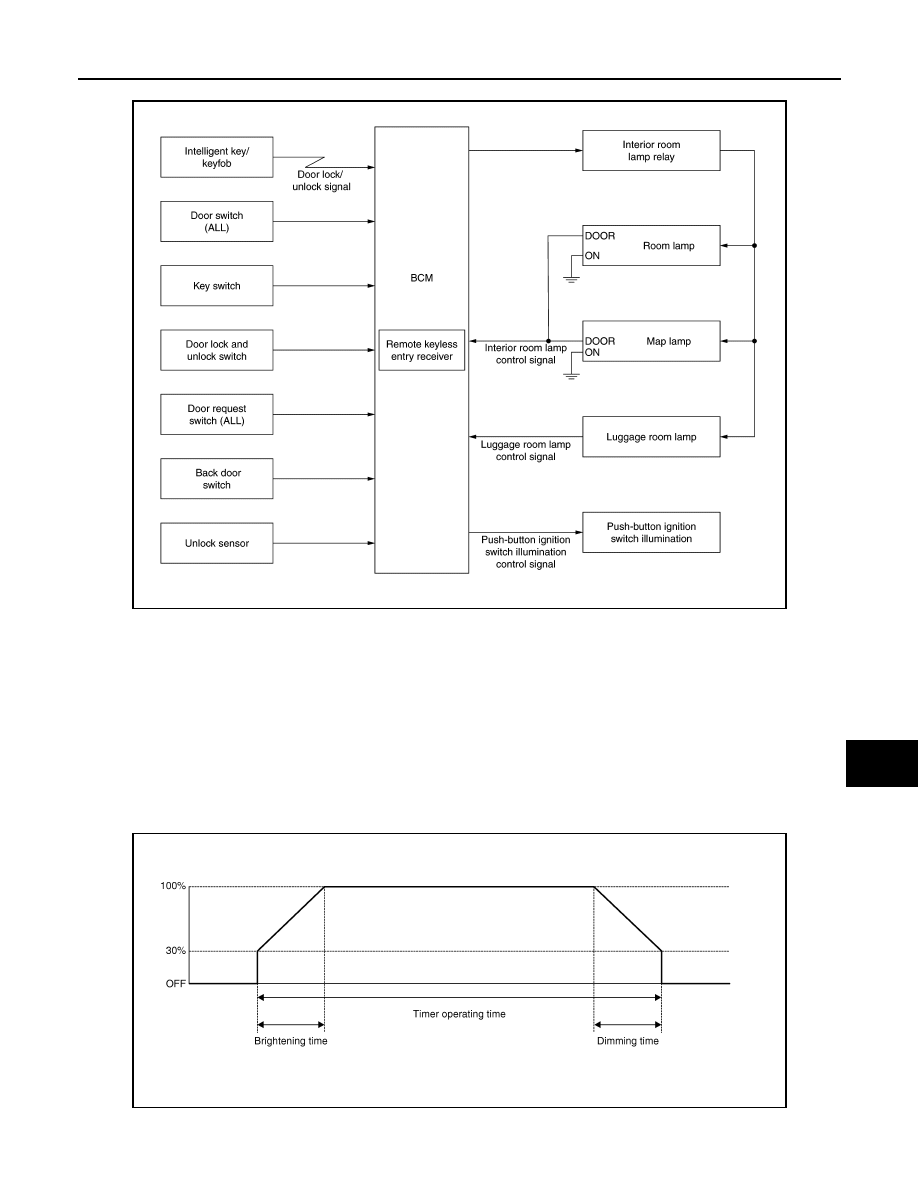

Without Sunshade System

OUTLINE

• Following lamps are controlled by interior room lamp timer control function of BCM.
- Map lamp*
- Room lamp*
- Personal lamp*
• Luggage room lamp is controlled by luggage room lamp control function of BCM.
• Push-button ignition switch illumination is controlled by push-button ignition switch illumination control func-

tion of BCM.

*: Interior room lamp time control operates when the switch position is DOOR.

INTERIOR ROOM LAMP TIMER CONTROL

Interior Room Lamp Timer Basic Operation

• Following lamps turn ON and OFF (gradual brightening and dimming) by the interior room lamp timer.
- Map lamp

JMLIA5375GB

JPLIA0093GB

INL-10

< SYSTEM DESCRIPTION >

SYSTEM

- Room lamp
- Personal lamp
• For Europe, Russia or South Africa: Timer operating time is 30 seconds.
• Except for Europe, Russia of South Africa: Timer operating time is 15 seconds.
• Brightening time is 1 second and dimming time is 1 seconds.
• BCM judges the vehicle condition with the following items and activates the interior room lamp timer.
- Ignition switch status
- Key switch signal
- Door switch signal
- Door lock/unlock signal (remote keyless entry receiver, door lock and unlock switch, each door request

switch)

NOTE:
Factory setting of interior room lamp is with interior room lamp timer control. This setting can be set to without
by using CONSULT. Refer to

INL-15, "INT LAMP : CONSULT Function (BCM - INT LAMP)"

.

Interior Room Lamp ON Operation

• BCM always turns interior room lamp relay ON to turn on interior room lamp when any door opens.
• BCM activates the interior room lamp timer in any of the following condition to turn the interior room lamp ON

for a period of time.

- Status of all doors are OPEN

→

 CLOSE

- Ignition switch is turned ON

→

 OFF

- Key switch is ON

→

 OFF

- Door unlock signal is detected when all doors close with ignition switch OFF
NOTE:
The timer restarts if new condition is input during the timer operating time.

Interior Room Lamp OFF Operation

BCM stops the timer in any of the following condition to turn the interior room lamp OFF.
• The timer operating time is expired
• Ignition switch is turned OFF

→

 ON

• Door lock signal is detected with all doors close.

LUGGAGE ROOM LAMP CONTROL

BCM turns luggage room lamp ON when the following condition is detected.
• Back door switch is ON
BCM turns luggage room lamp OFF when the following condition is detected.
• Back door switch is OFF

PUSH-BUTTON IGNITION SWITCH ILLUMINATION CONTROL

Push-button Ignition Switch Illumination ON Operation

BCM turns the push-button ignition switch illumination ON when Ignition switch is ON.

Push-button Ignition Switch Illumination OFF Operation

BCM turns the push-button ignition switch illumination OFF when the following condition is satisfied.
• Status does not change for 16 seconds
• Driver side door is UNLOCK

→

 LOCK

INTERIOR ROOM LAMP BATTERY SAVER SYSTEM

INTERIOR ROOM LAMP BATTERY SAVER SYSTEM : System Description

INFOID:0000000010335132

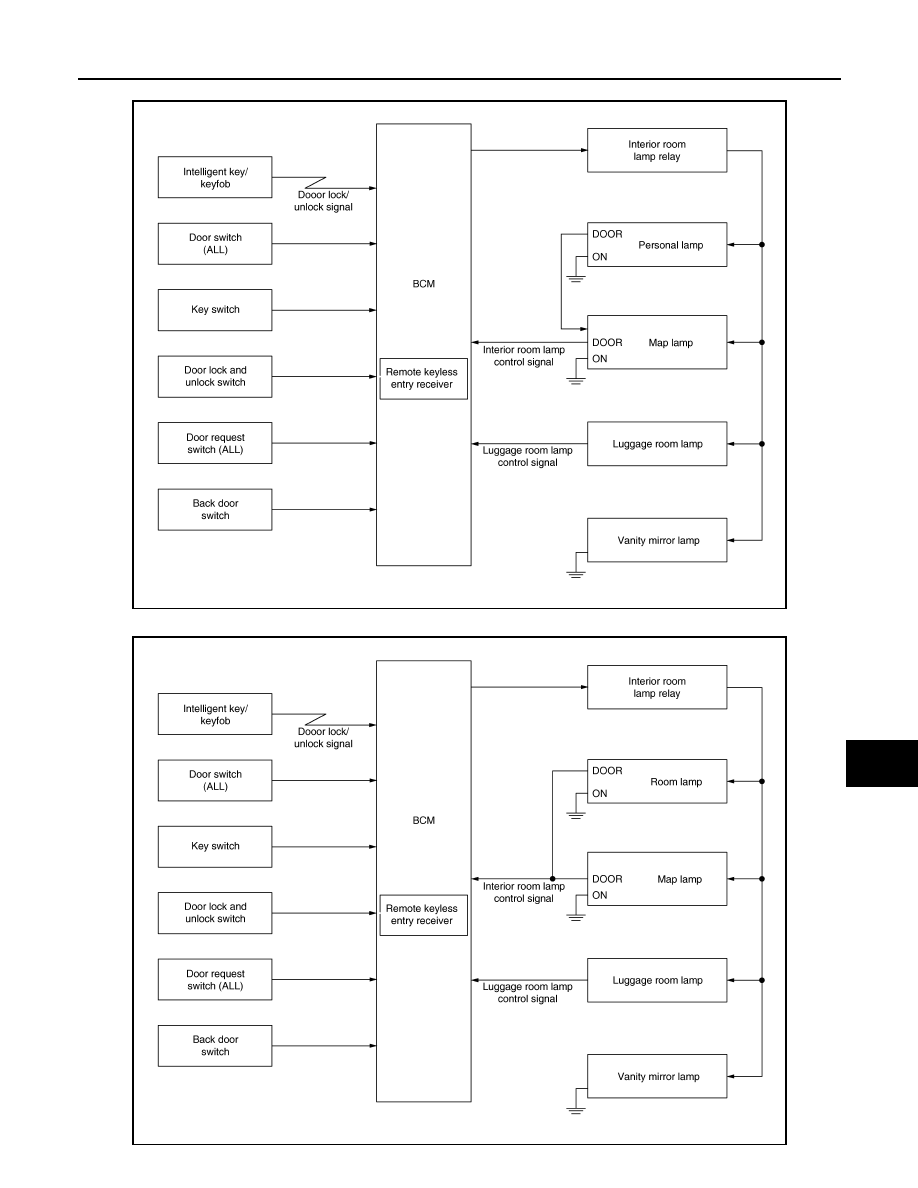

SYSTEM DIAGRAM

SYSTEM

INL-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

With Sunshade System

Without Sunshade System

JMLIA5148GB

JMLIA5149GB

INL-12

< SYSTEM DESCRIPTION >

SYSTEM

OUTLINE

• Interior room lamp battery saver is controlled by BCM.
• BCM turns applicable lamps OFF depending on the vehicle condition. This function prevent battery dis-

charge if the driver neglects, turning OFF any lamps.

Applicable lamps

- Map lamp
- Room lamp
- Personal lamp
- Luggage room lamp
- Vanity mirror lamp

INTERIOR ROOM LAMP BATTERY SAVER FUNCTION

• BCM turns interior room lamp relay ON and keeps the interior room lamp power supply continuously when

the ignition switch position is ON.

• When the ignition switch is turned OFF, BCM operates timer for 15 minutes and then turns interior room

lamp relay OFF to cut the interior room lamp power supply.
NOTE:
When the ignition switch is turned OFF and all door is locked, BCM operates timer for 10 seconds and then
turns interior room lamp relay OFF to cut the interior room lamp power supply.

• BCM restart the timer when any of the following signal changes while operating the timer.
- Ignition switch status
- Key switch signal
- Door switch signal
- Back door switch signal
- Door lock/unlock signal (remote keyless entry receiver, door lock and unlock switch, each door request

switch)

ILLUMINATION CONTROL SYSTEM

ILLUMINATION CONTROL SYSTEM : System Description

INFOID:0000000010430903

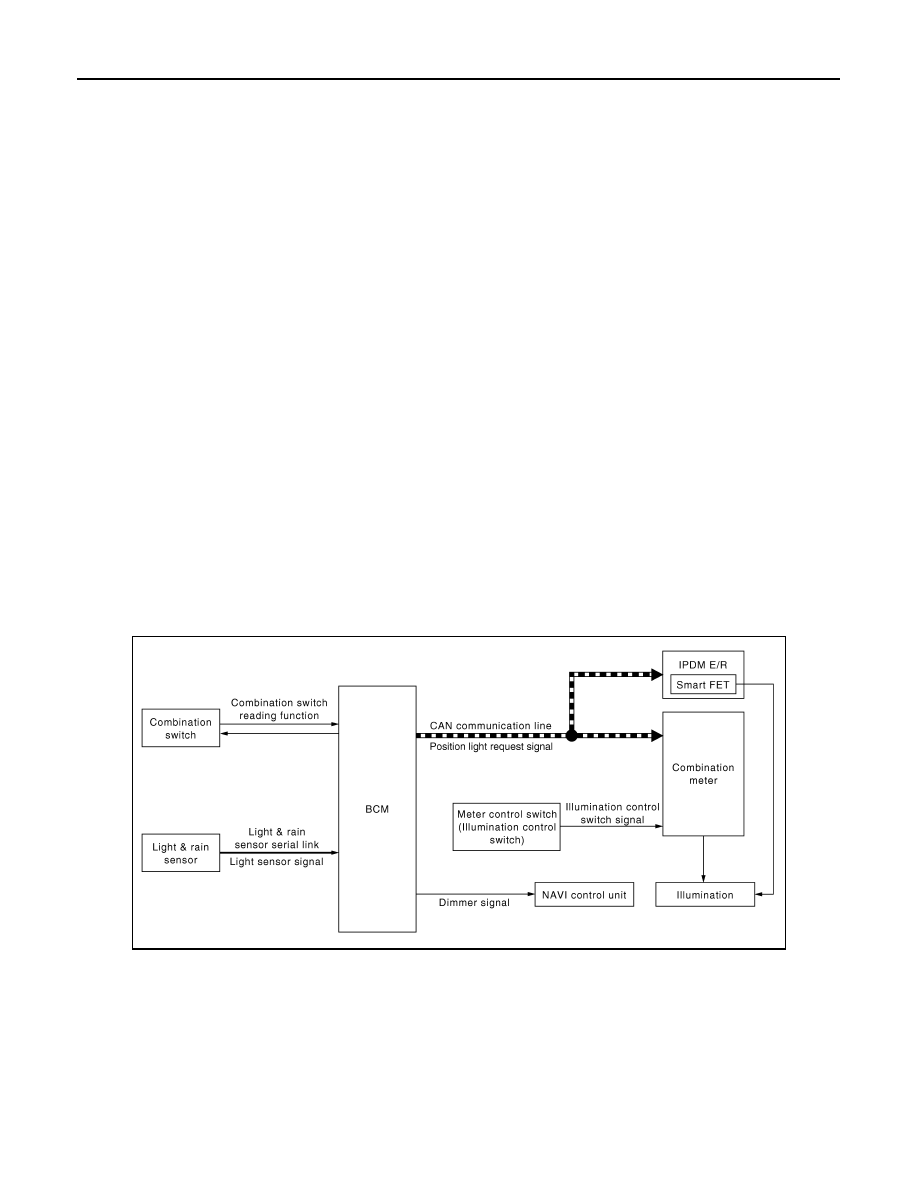

SYSTEM DIAGRAM

OUTLINE

Each illumination lamp is controlled by each function of BCM, IPDM E/R and combination meter.

Control by BCM

• Parking, license plate and tail lamp control function
• Combination switch reading function
• Auto light function

Control by IPDM E/R

• Relay control function

JMLIA5150GB
