Nissan Qashqai J11. Manual - part 1758

EXL-334

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

LICENSE PLATE LAMP

LICENSE PLATE LAMP

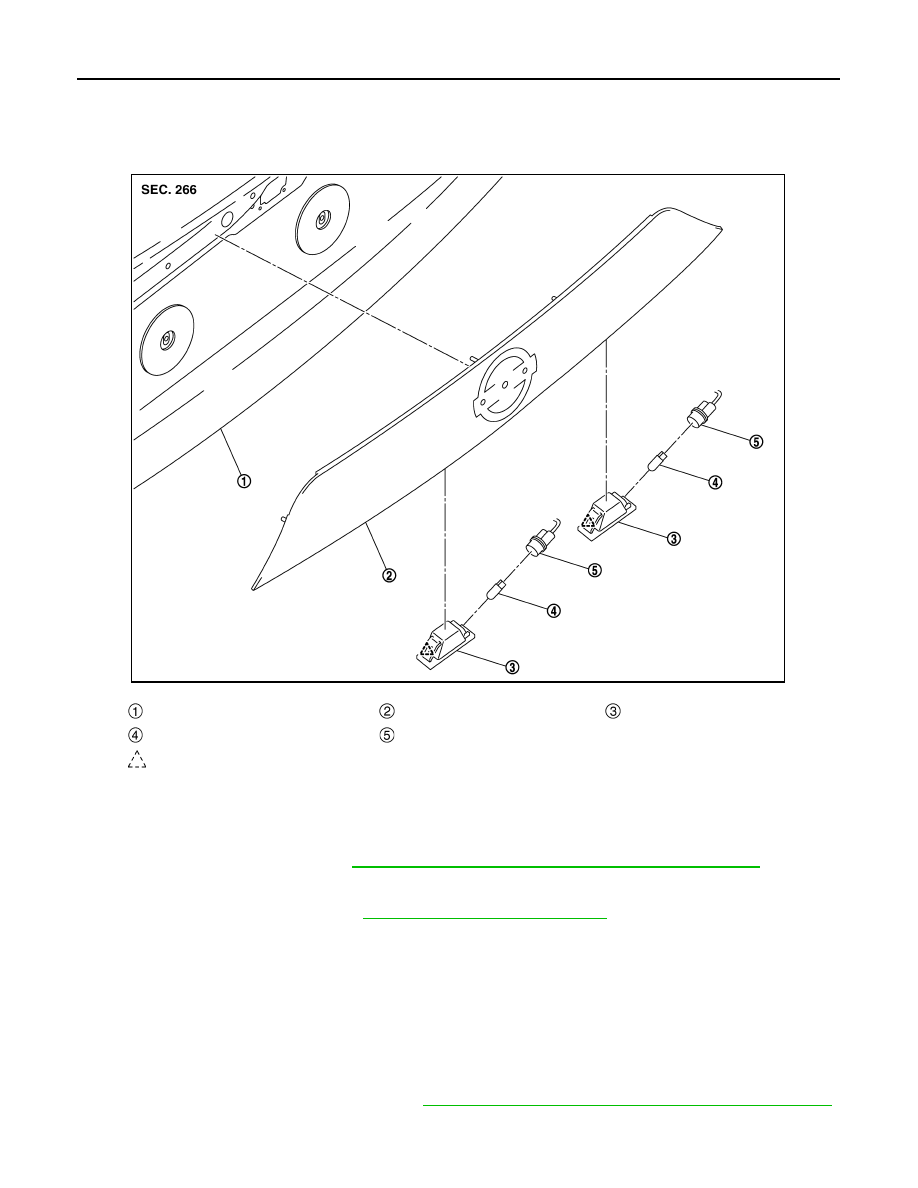

Exploded View

INFOID:0000000010437160

Removal and Installation

INFOID:0000000010437161

CAUTION:

Disconnect battery negative terminal or remove power circuit fuse when performing the operation for
preventing electric leakage. Refer to

EXL-182, "Precautions for Removing Battery Terminal"

.

REMOVAL.

1.

Remove back door finisher. Refer to

EXT-45, "Removal and Installation"

.

2.

Disconnect license plate lamp harness connector.

3.

Disengage license plate lamp housing fixing pawl, and then remove license plate lamp housing.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000010437162

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-182, "Precautions for Removing Battery Terminal"

.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned OFF.

Back door panel

Back door finisher

License plate lamp housing

License plate lamp bulb

License plate lamp bulb socket

: Pawl

JMLIA5101ZZ

LICENSE PLATE LAMP

EXL-335

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

LICENSE PLATE LAMP BULB

1.

Remove back door finisher. Refer to

EXT-45, "Removal and Installation"

.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb from the socket.

EXL-336

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

REAR REFLEX REFLECTOR

REAR REFLEX REFLECTOR

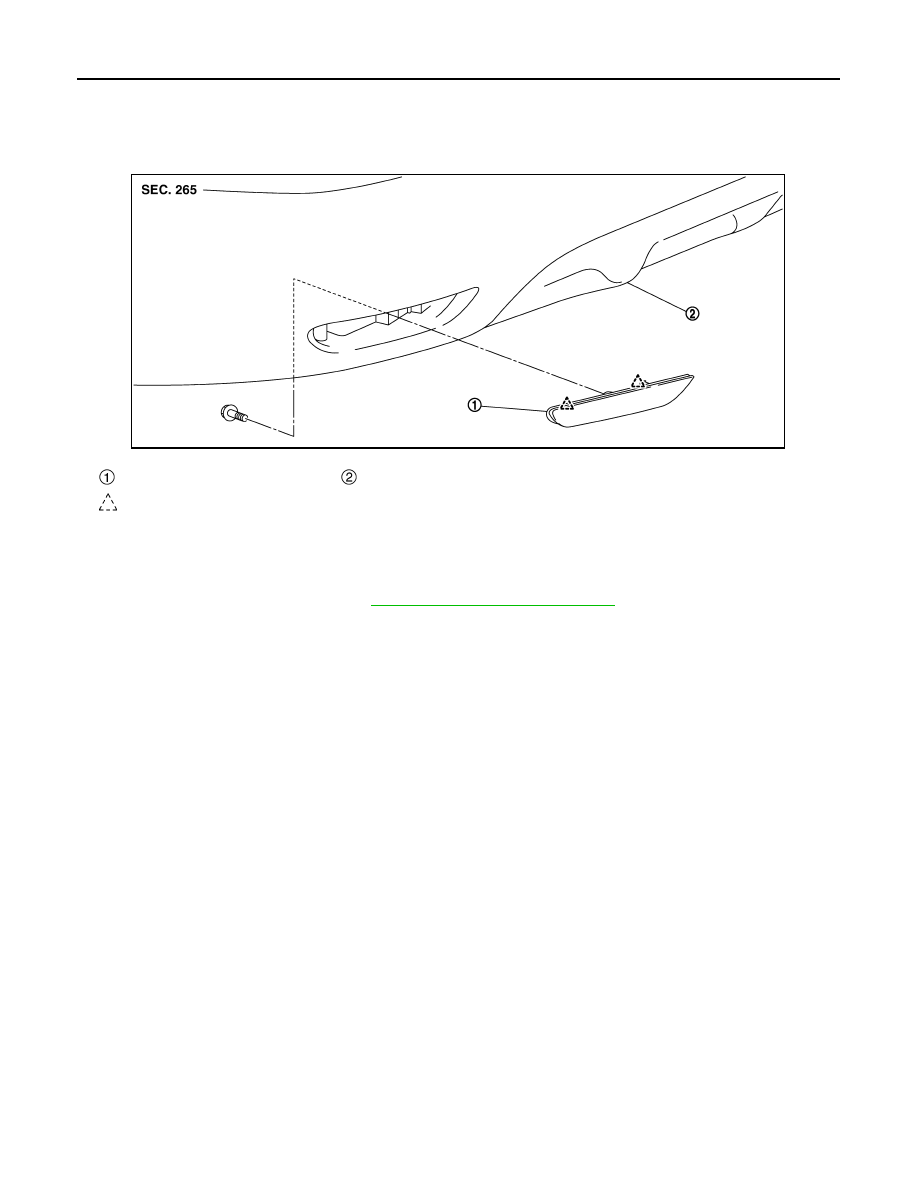

Exploded View

INFOID:0000000010437163

Removal and Installation

INFOID:0000000010437164

REMOVAL

1.

Remove rear bumper fascia. Refer to

EXT-23, "Removal and Installation"

.

2.

Remove rear reflex reflector mounting bolt and pawls, and then remove rear reflex reflector.

INSTALLATION

Install in the reverse order of removal.

Rear reflex reflector

Rear bumper fascia assembly

: Pawl

JMLIA5103ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

EXL-337

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000010437590

Bulb Specifications

Item

Type

Wattage (W)

Front combination lamp

Headlamp (HI)

H11

55

Headlamp (LO)

H7

55

Parking lamp/
daytime running light

LED

—

Front turn signal lamp

W21W

21

Front fog lamp

H8

35

Side turn signal lamp (built in door mirror)

LED

—

Rear combination lamp
(body side)

Tail lamp

LED

—

Stop lamp

LED

—

Rear turn signal lamp

WY21W

21

Rear combination lamp
(trunk lid side)

Tail lamp

LED

—

Back-up lamp

W16W

16

Rear fog lamp (driver side only)

W21W

21

License plate lamp

W5W

5

High-mounted stop lamp

LED

—
