Nissan Qashqai J11. Manual - part 1756

EXL-326

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

HEADLAMP AIMING SWITCH

HEADLAMP AIMING SWITCH

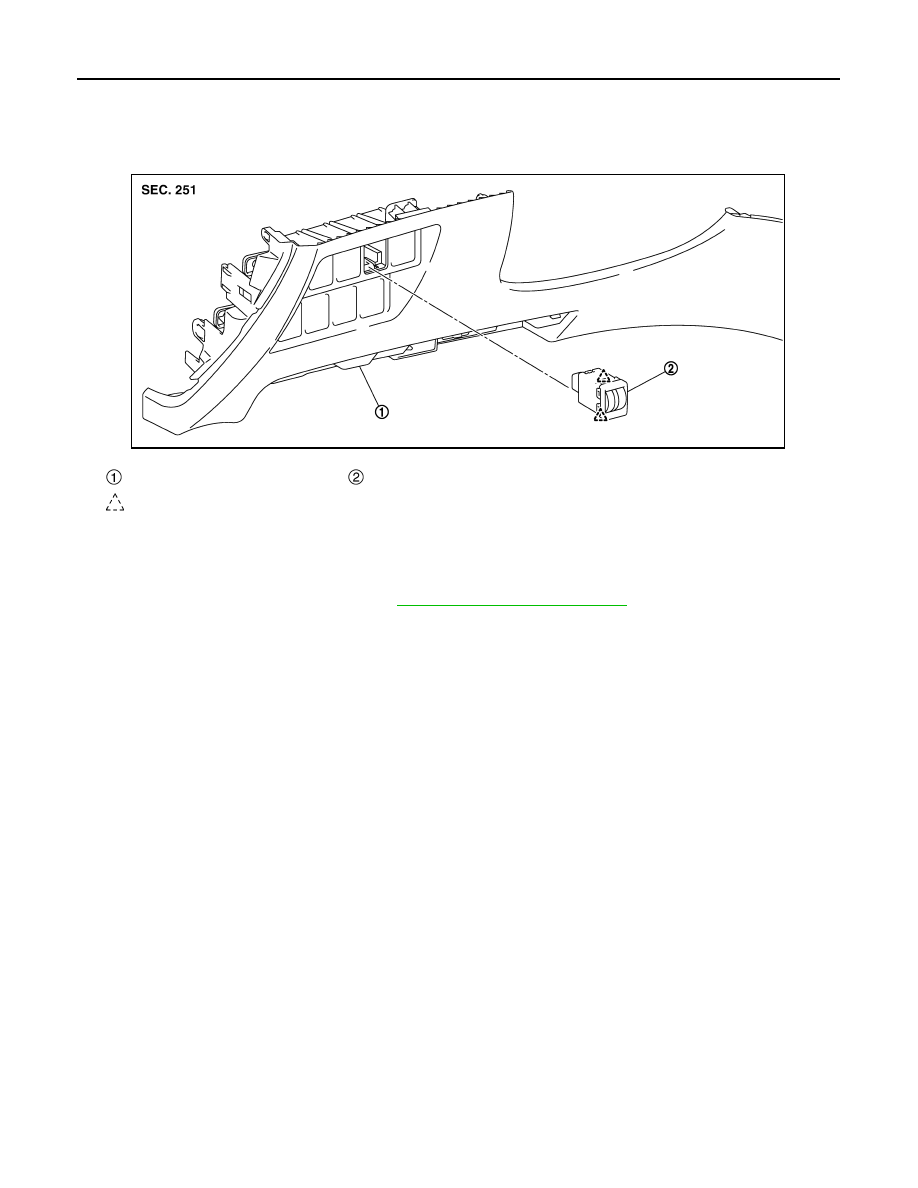

Exploded View

INFOID:0000000010437517

Removal and Installation

INFOID:0000000010437518

REMOVAL

1.

Remove instrument lower panel. Refer to

IP-13, "Removal and Installation"

.

2.

Remove headlamp aiming switch fixing pawl, and then remove headlamp aiming switch from instrument
lower panel.

INSTALLATION

Install in the reverse order of removal.

Instrument lower panel

Headlamp aiming switch

: Pawl

JMLIA5408ZZ

LIGHT & RAIN SENSOR

EXL-327

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

LIGHT & RAIN SENSOR

Exploded View

INFOID:0000000010437152

Refer to

WW-92, "Exploded View"

.

Removal and Installation

INFOID:0000000010437153

REMOVAL

Remove light & rain sensor. Refer to

WW-92, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

EXL-328

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

REAR COMBINATION LAMP

REAR COMBINATION LAMP

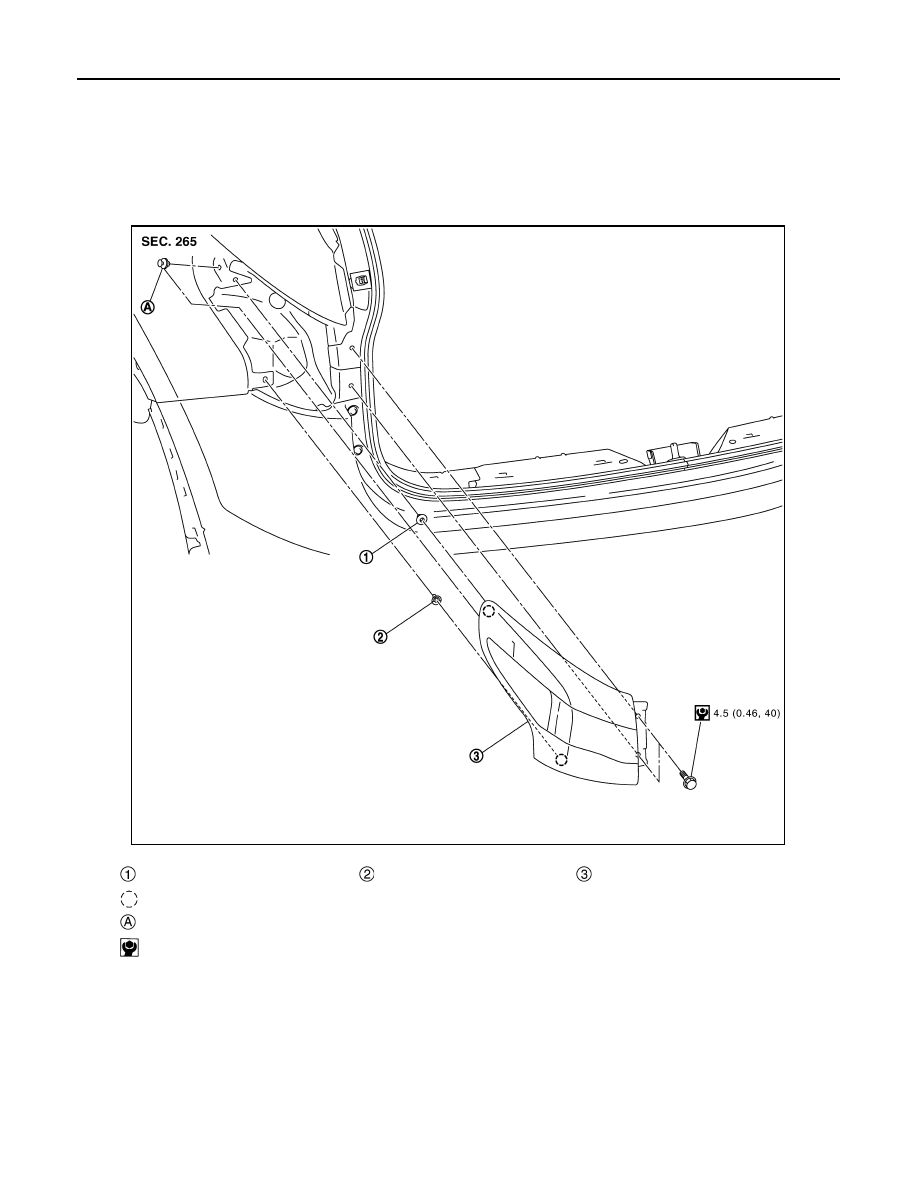

Exploded View

INFOID:0000000010437154

REMOVAL

Body Side

Back Door Side

Grommet A

Grommet B

Rear combination lamp

: Clip

: Clip

: N·m (kg-m, in-lb)

JMLIA5098GB

REAR COMBINATION LAMP

EXL-329

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

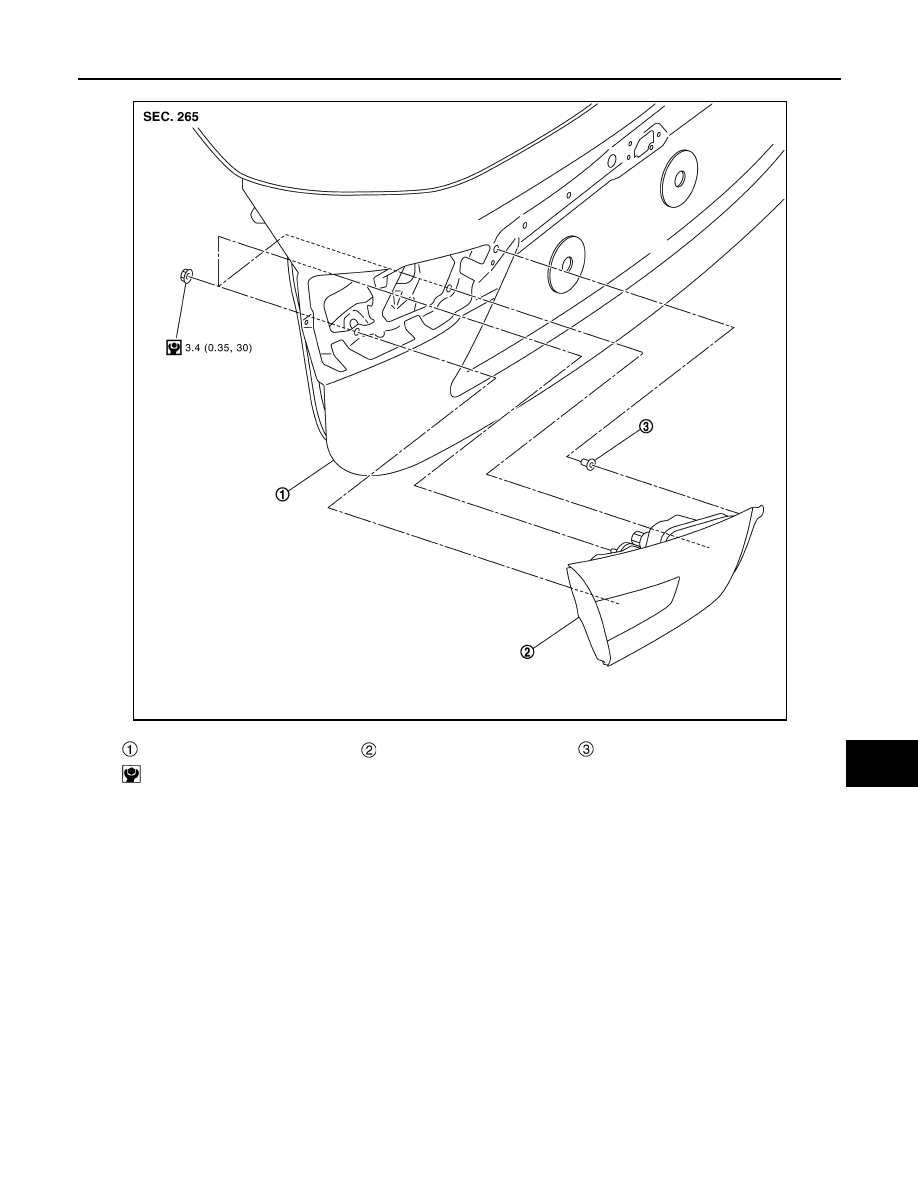

DISASSEMBLY

Back door assembly

Rear combination lamp

Grommet

: N·m (kg-m, in-lb)

JMLIA5099GB
